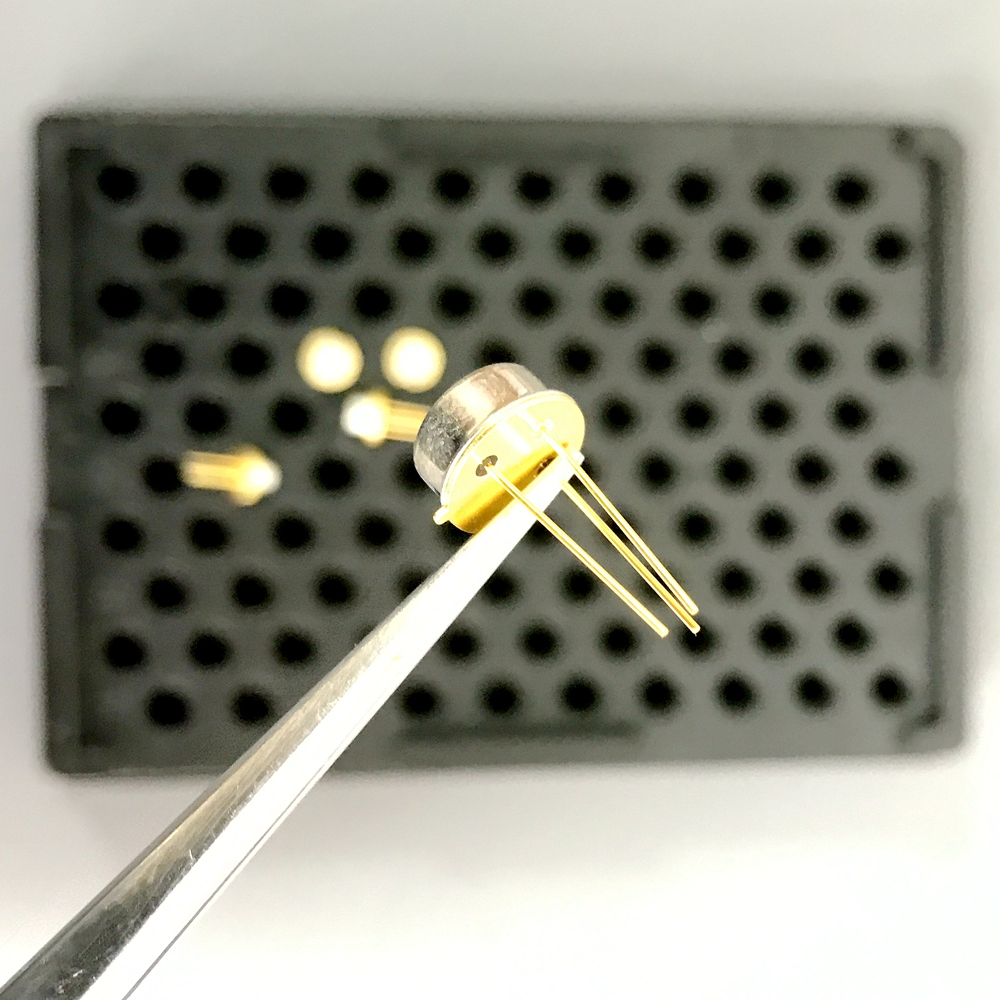

Infrared Photodetector 1100nm IR Detector

High reliability, low dark current
400-1100nm spectral range
1064nm responsivity up to 0.27mA/mW
Active diameter 1.2×1.2mm
Hermetic TO46 Can or with receptacle or with

Optical sensor and Optical power meter
Laser finding range and laser radar
Industrial automatic control
IR/ Laser light Monitoring
Fluorescence detector
Medical equipment

Parameter symbol value unit
Operating temperature Top -40～+85 ℃
Storage temperature Tstg -40～+100 ℃
Reverse voltage Vr 15 V
Soldering temperature(time) Ts(10s) 260 ℃
Electrical and optical characteristics:(T=25℃)
parameter symbol unit Value(Typ.)
Active diameter Φ mm 1.2×1.2
Spectral range λ nm 400-1100
Responsivity Re(Vr=5V,λ=405nm) mA/mW 0.15
Re(Vr=5V,λ=650nm) mA/mW 0.30
Re(Vr=5V,λ=850nm) mA/mW 0.55
Re(Vr=5V,λ=1064nm) mA/mW 0.27
Response time Tr (RL=50Ω,Vr=5V) ns 10
Dark current Id(Vr=0V) pA 0.5
Id(Vr=5V) pA 150
Reverse Breakdown voltage VBR (Id=10uA) V 80
Total capacitance Cj (f=1MHz, Vr=0V) pF 500
Cj (f=1MHz, Vr=5V) pF 6
Saturated Optical Power Ps(Vr=0V) mW 5
Ps(Vr=5V) mW 15
Reverse operating voltage Vr V 0-10
Shunt resistance Rsh (Vr=10mV) GΩ 20
Package Hermetic TO46 Can or with receptacle or with fiber coupling
