Industrial Web Thermometer Hygrometer With Ethernet Interface And Relays

$368.50

SKU: 1005004290041688 Category:

Description

  • Brand Name: MLHJ
  • Origin: CN(Origin)
  • DIY Supplies: ELECTRICAL
  • Certification: CE
  • Place of Origin: Beijing, China
  • Brand Name: YC
  • Model Number: APEM-5920
  • Power supply: POE and DC12V
  • Output: TCPIP/UDP/SNMP
  • Temperature range: -20-85℃
  • Alarm: Audible alarm
  • Humidity range: 0-100%RH
  • Precision: Temp:0.5℃/Humi:3%RH
  • Application: environment monitoring
  • Certificate: ISO9001/CE
  • Display: LED Display
  • Type: Lan

Industrial Web Thermometer Hygrometer With Ethernet Interface And Relays

Product description

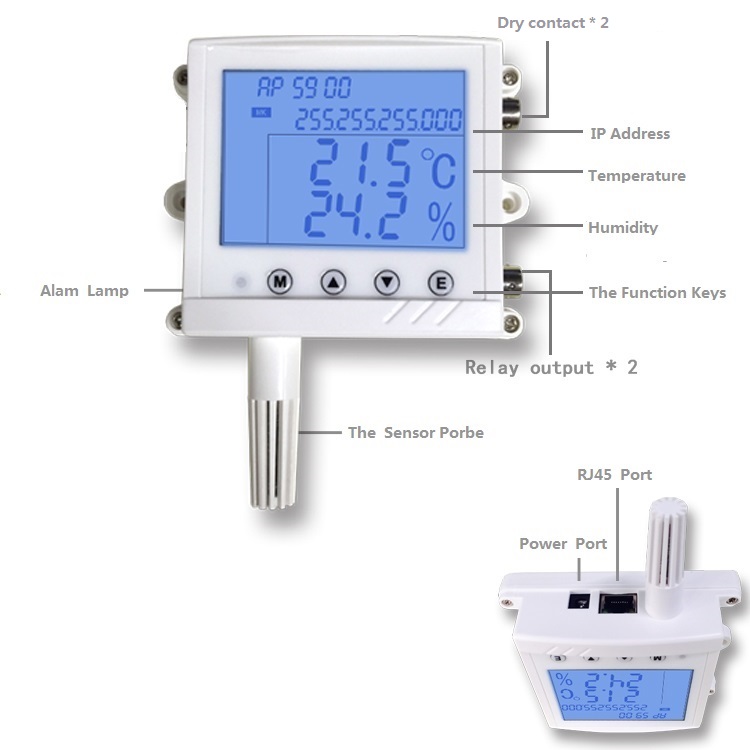

Apem5920 is a temperature and humidity sensor for Ethernet communication network. The product has built-in high-precision temperature and humidity probe chip, which can set the upper and lower limits of alarm. If the temperature and humidity exceeds the set threshold, the device will automatically send alarm information, and generate acoustooptic alarm on the spot. The temperature and humidity sensor chip adopts industrial-grade packaging, which can reduce the influence of external factors such as aging, vibration, volatile chemical gas on the sensor, ensure its good stability, high measurement accuracy, and meet the requirements of industrial field measurement of temperature and humidity data accuracy. The device has a 2-channel aviation plug interface, which can be connected to the switching volume sensor signal.

Features

1. High measuring accuracy, strong stability, display

2. Configuration is simple, easy to use, through the buttons or software Settings

3. The equipment supports POE power supply and DC12V power supply at the same time, which greatly reduces the cost of on-site laying line.

4. Support local sound and light alarm, product support TRAP alarm mode

5. Support remote configuration and query the temperature and humidity data.

Product parameters

Temperature

Measurement accuracy:

Measuring range:

Calibration:

0.5C

-25-80C

Configuration tool software calibration

Humidity

Measurement accuracy:

Measuring range:

calibration:

±3% RH (non-condensing)

1%~99% RH (typical)

Configuration tool software calibration

Switch value

Quantity:

Types:

Connectable sensor:





Alarm mode:

2-way digital input

dry contact

Various sensors such as smoke, water leakage, magnetic door, infrared, vibration, etc.

customize

Relay

Quantity:

2-way relay channel output

Alarm

Alarm method:

 Upper and lower limit setting:

Sound and light alarm

 Support set

Communication parameter

Network Interface:

Device MAC address:

Transmission distance:

Parameter configuration method:

Protocol:

RJ45, 10M/100M adaptive

Factory default

Unlimited

 Configuration software / device itself

TCP, UDP, SNMP, ARP, DHCP and other network protocols

Power supply

Power supply:

Dual power supply:

Working current:

POE / dc12v 300ma

Support

300mA

Sensor probe

Types of:

Built in / external:

Temperature and humidity

External

Environment

Working environment:



Storage environment:

Temperature -20~+70°C, humidity 0~99%RH, non-condensing

Temperature -20~+70°C, humidity 0~99%RH, non-condensing

Protection level

Enclosure rating:

Fire-proof level:

Anti-electromagnetic interference:

IP65

V-0



Support optical isolation

Material

Shell

Panel:

Screen display:

Weight:

Installation method:

ABS (white)

PCB single side

LCD screen

About 300 grams

Wall surface: screw fixed metal surface: magnet adsorption

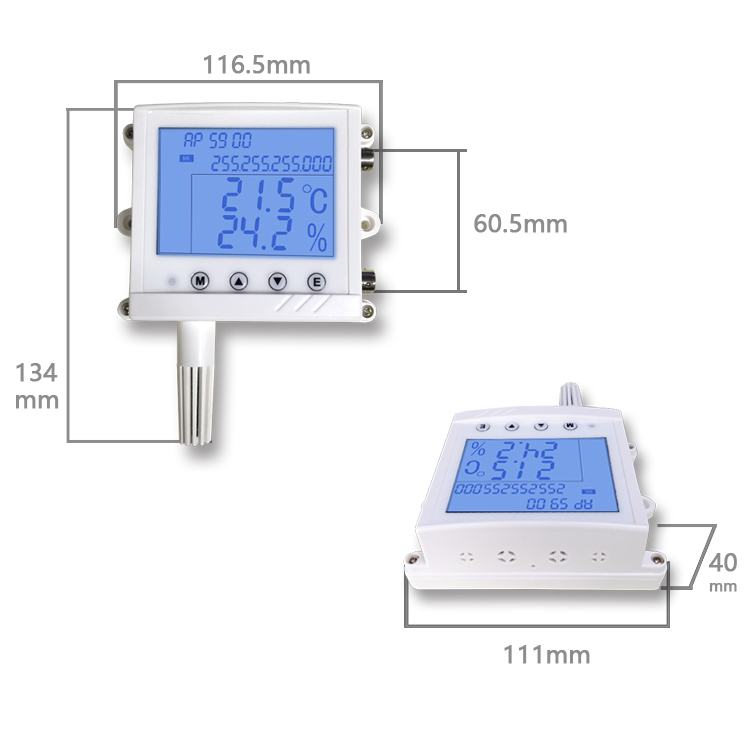

Size

Shell size:

LCD size:

134*116.5*40mm

49mm*78mm
