Description
- Origin: Mainland China
- Certification: CE
- Condition: New
- Model Number: fiber laser cleaning machine
- CNC or Not: CNC

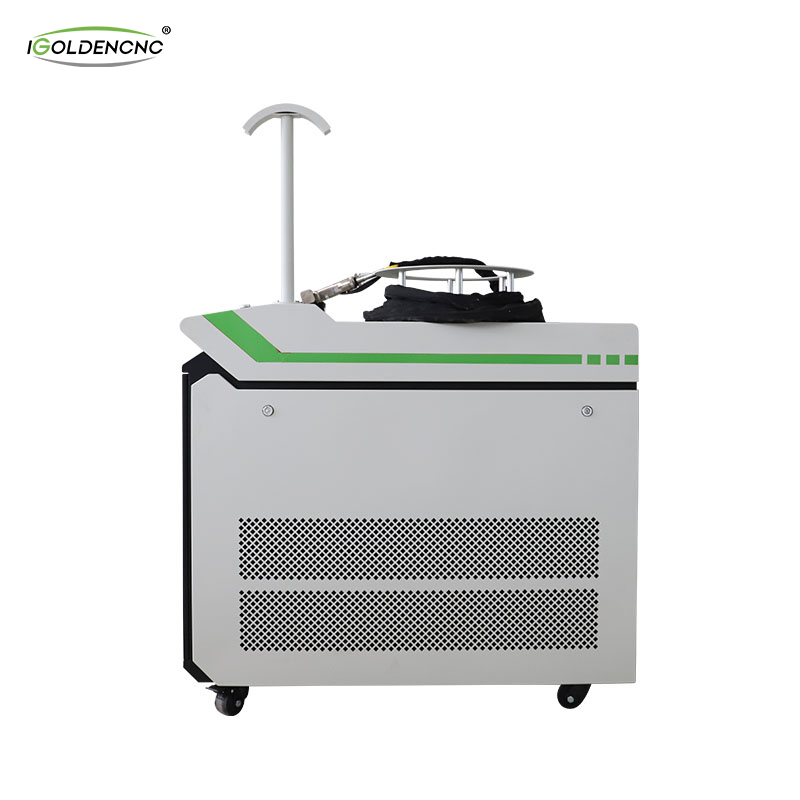

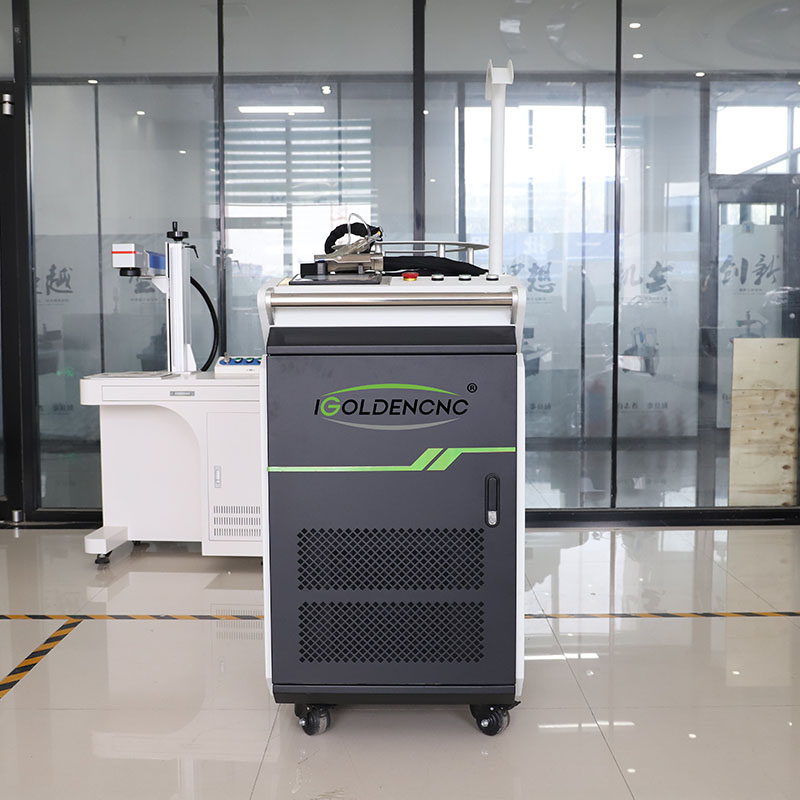

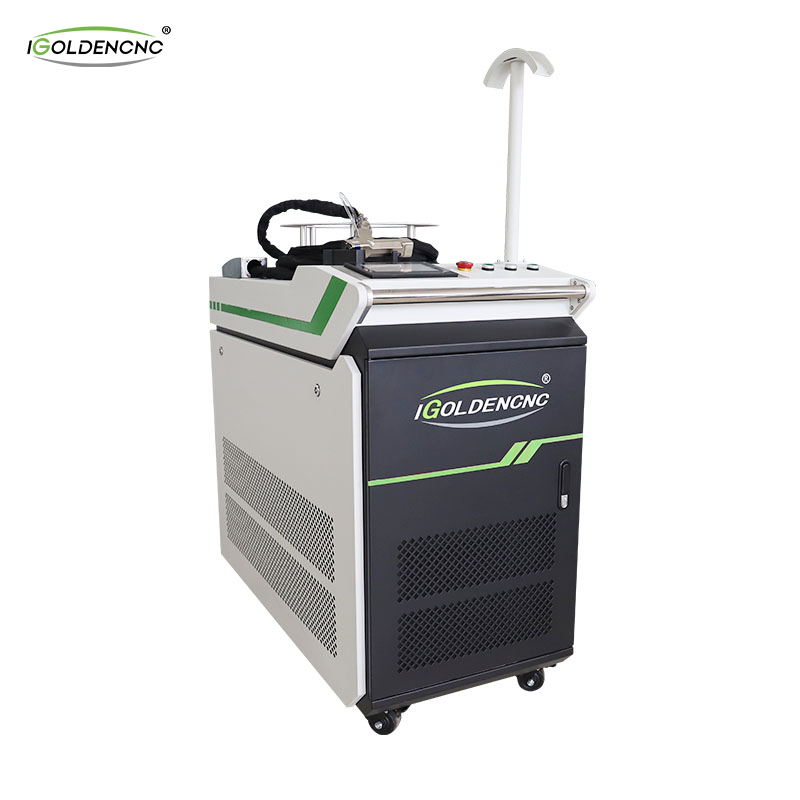

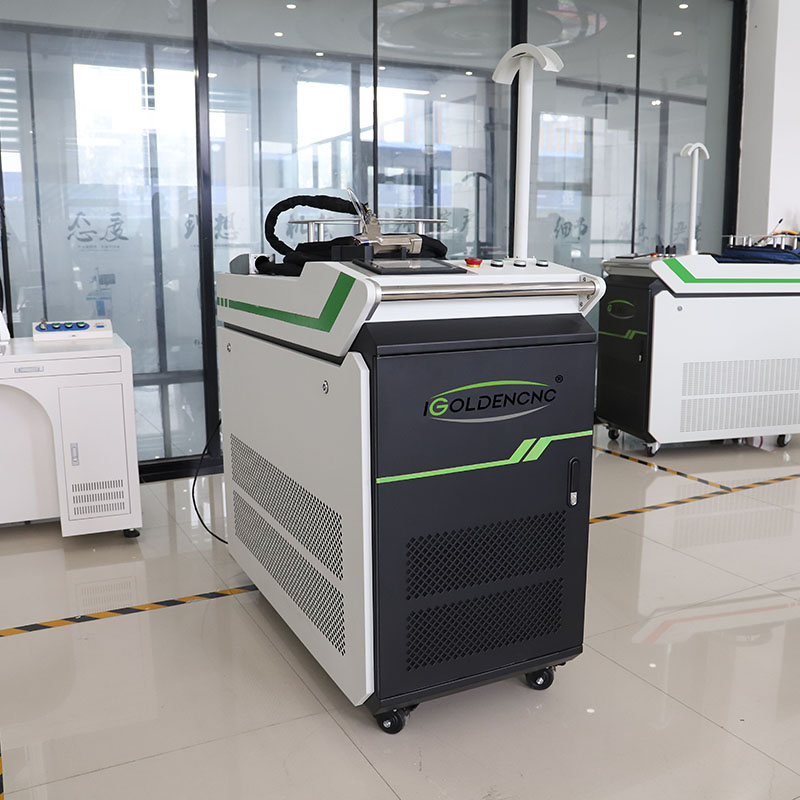

- Name: Fiber Laser Cleaning Machine
- Application: Surface Paint Cleaning
- Function: Metal Rust Surface Laser Cleaning
- Power: 3000/1500/2000/100/200/300/500w
restoration, mold industry, shipbuilding industry, food processing industry, petrochemical industry processing, petrochemical industry and other industries.
Item No.
|
iGCL
|
|||||
Laser Power
|
100w
|
200w
|
300w
|
1000w
|
1500w
|
2000w
|
Laser Wavelength
|
1064nm
|
1080±5nm
|
||||
Pulse Energy
|
1.5mJ
|
12mJ
|
15mJ
|
1.5-20mJ
|
||

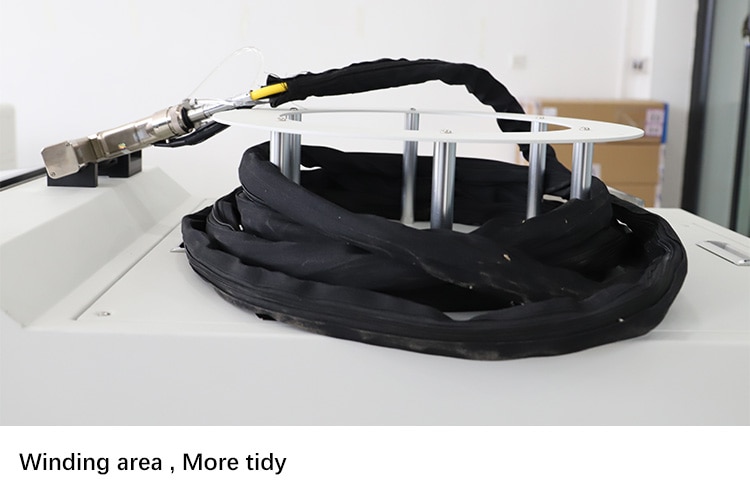

Fiber Length
|
5m (Optioned)
|
8-10m (15m Optioned)
|
||||

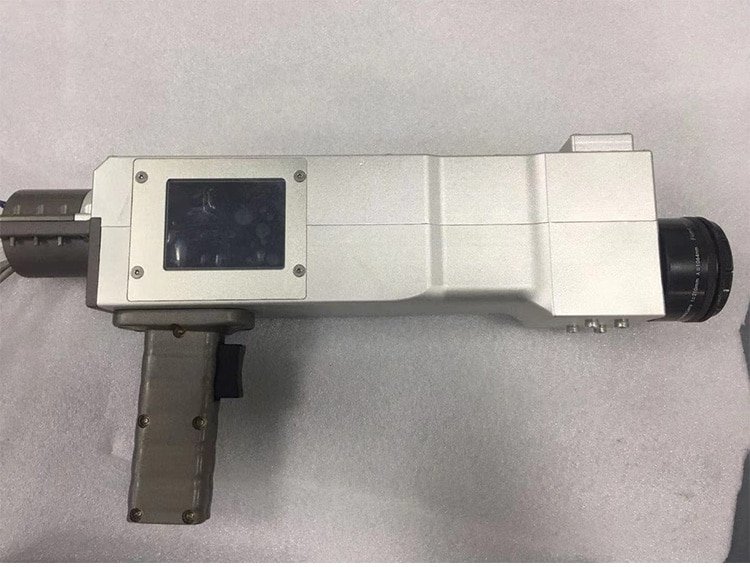

Laser Cleaning Head Weight
|
<1kg
|
3kg
|
||||
Scanning Width
|
10-80mm
|
|||||
Voltage
|
220V, 50/60Hz
|
380V, 50/60Hz
|
||||
Cooling Method
|
Air-cooling
|
Water-cooling
|
||||
Working Temperature
|
0-40℃
|
10-40℃
|

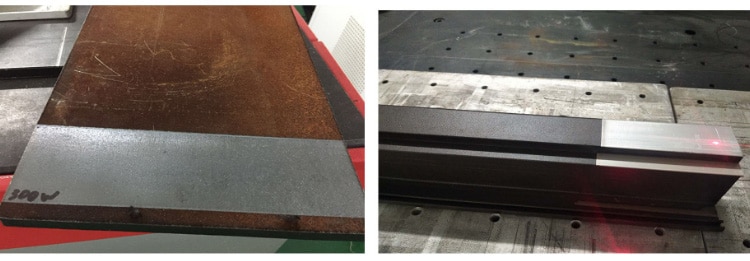

Substrate
|
Surface
|
Effective focal depth (mm)
|
Standard cleaning efficiency (mm/min)
|
High-speed cleaning efficiency (mm/min)
|
Effect
|
Cast iron
|
Severely corroded 0.08mm
|
>35
|
2000
|
3000
|
The surface is clean and the substrate is not damaged
|
Carbon steel plate
|
Moderate rust 0.5mm
|
>40
|
1800
|
2400
|
The surface is clean and the substrate is not damaged
|
Stainless steel
|
Surface oil, slight rust
|
>50
|
2000
|
3000
|
The surface is clean and the substrate is not damaged
|
Mold copper gear
|
Moderately oily, with iron filings attached
|
>45
|
2000
|
2300
|
The surface is clean and the substrate is not damaged
|
Aluminum plate
|
Oxide, surface fouling
|
>35
|
2000
|
2300
|
The surface is clean and the substrate is not damaged
|
surface of the workpiece, so that the surface oil, rust or coating evaporates or peels instantly, and effectively removes thesurface attachment or surface coating of the cleaning object at a high speed, so as to achieve the cleaning of the object. It is characterized by no damage to the part matrix, no consumables, energy saving and environmental protection.

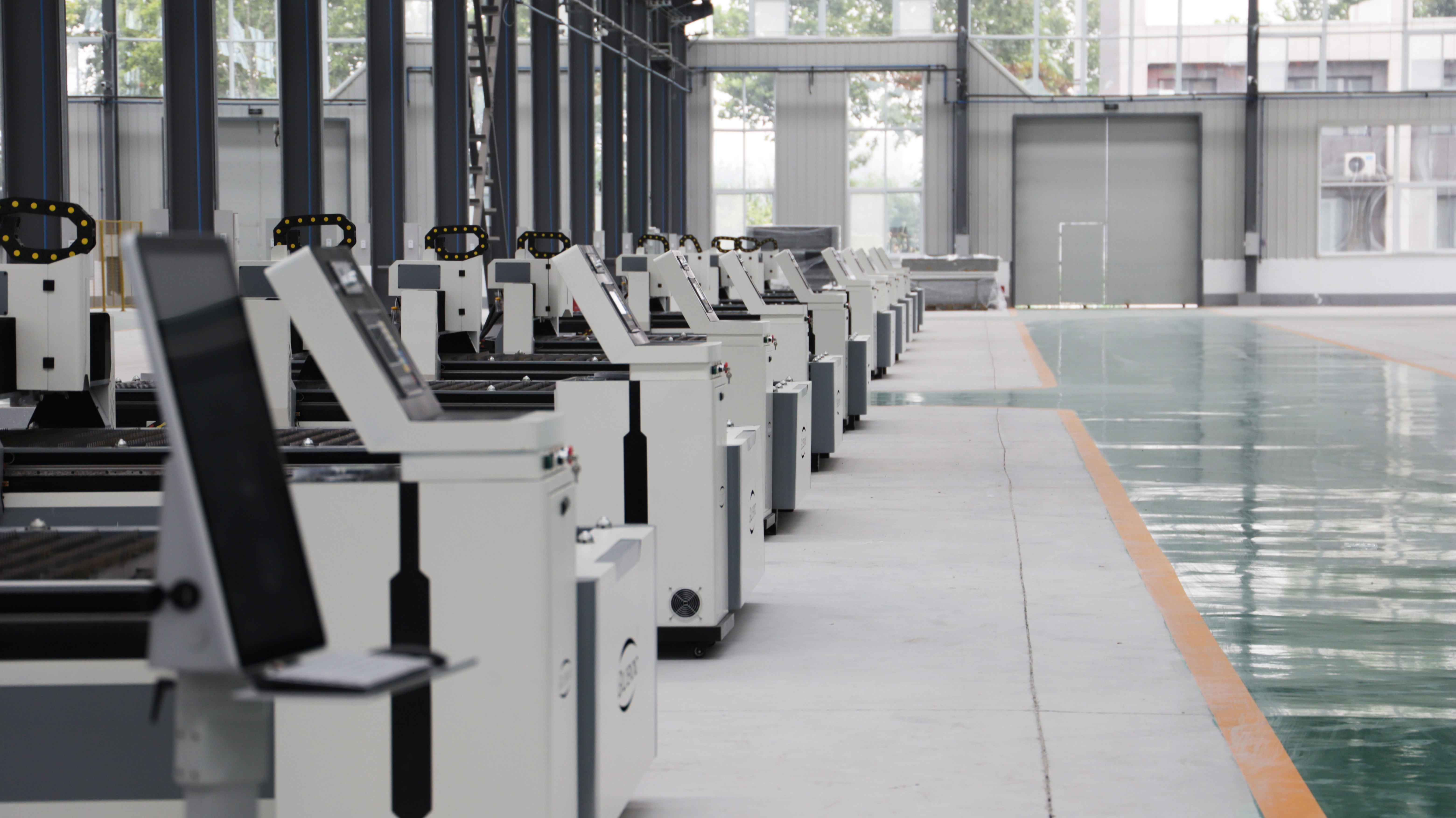

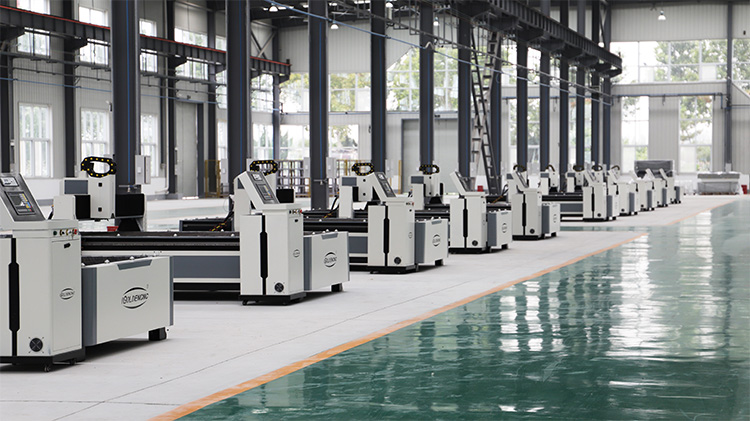

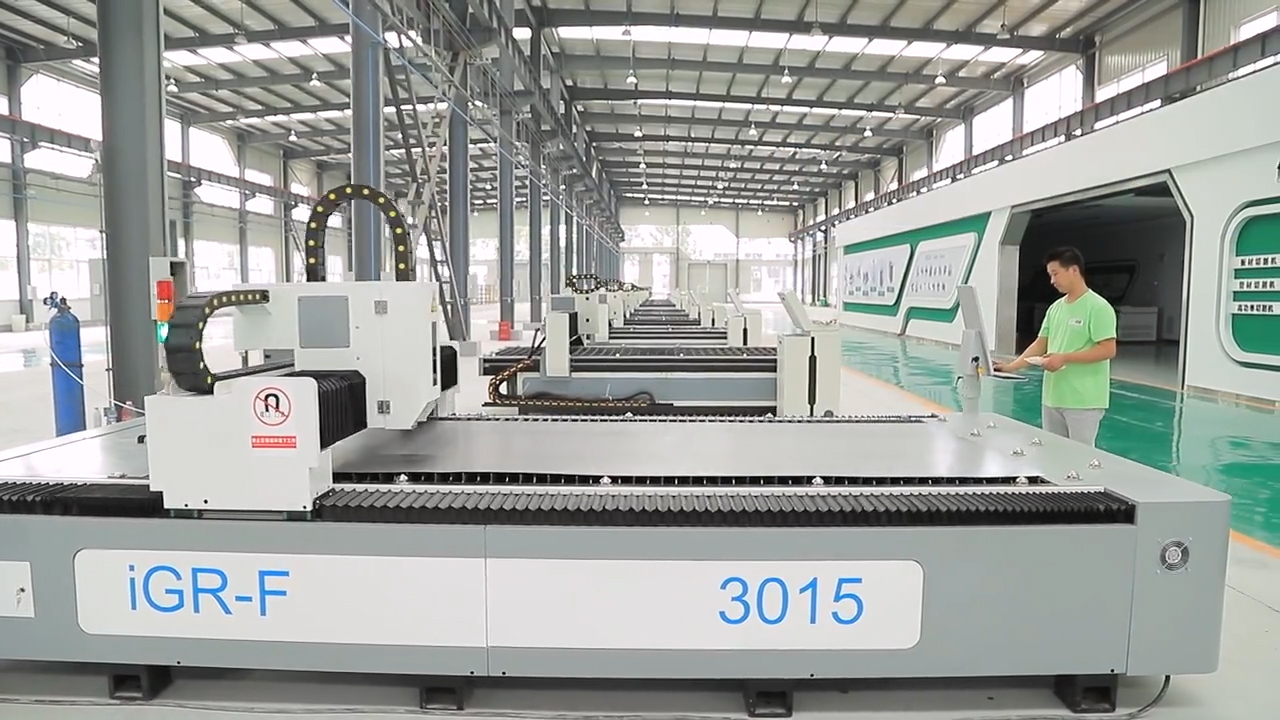

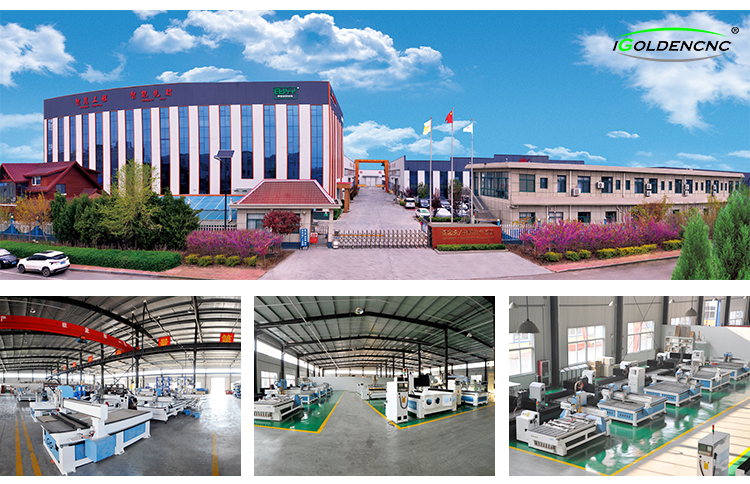

shandong igolden cnc technology co. ,ltd established in 2012, one the top CNC machine manufacturer from China, the professional solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.
Product lines cover 7 series and more than 100 models, include CNC Wood Router, Eps Foam CNC Machine, Stone CNC Machine, Furniture and Cabinet Door Making Machine, Fiber Laser Cutter, Laser Engraver, Laser Marker, CNC Plasma Cutter, and CNC kits, tools and accessories. We always provide customers with high-quality products, competitive price and excellent service.
