Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Customized support: OBM
- Place of Origin: Guangdong, China
- Brand Name: Graigar
- Model Number: HP-100
- Power: Electronic

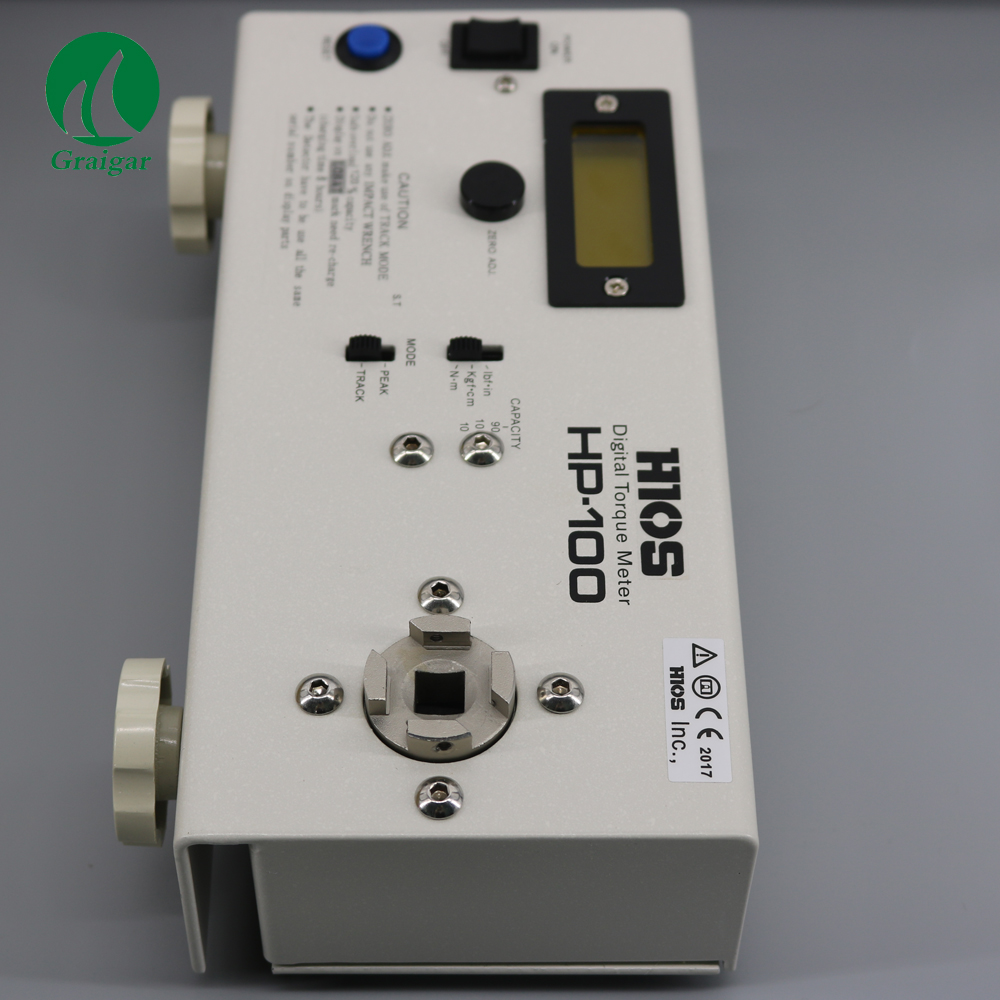

HP-100 Torque Meter Measuring Range 1.5-100.0kgf.cm Motor Torque Tester
Display of the torque direction
·
Alarm setting
·
Memory and print 10 PCS data
·
Automatic memorized data average
·
Measuring curve printing
·
Kgf.cm/Lbf.in/N.m transition
·
Peak keeping function
·
Power display by Nickel-Hydrogen battery
·
Automatic shut-off after 3 minutes without operation
·
Automatic charging control
·
Touch switch easy to operate
Apprication
The tension testing machines are mostly used for inspecting the torque of electric screwdrivers,
torque drivers,and wrenches,as well as for official inspection and function control,used for measuring
the torque setting of electric screwdrivers, torque drivers,and wrenches,used for many other
applications for which jig tools are devised.
Designed as easy-to operate ,accurate ,functional ,and portable tools.
The Digital Torque Meter is the same with many industries to product and service.
Main Parameters
|
Model |
Measuring range |
Accuracy |
Responsive |
|
HP-10 |
0.15-10.00kgf.cm |
± 0.5%
+1 digit
|
600HZ
|
|
0.015-1.000N.m |
|||
|
0.15-9.00Lbf.in |
|||
|
HP-50 |
0.5-50.0kgf.cm |
||
|
0.05-5.00N.m |
|||
|
0.5-45.0Lbf.in |
|||
|
HP-100 |
1.5-100.0kgf.cm |
||
|
0.15-10.00N.m |
|||
|
1.5-90.0Lbf.in |
