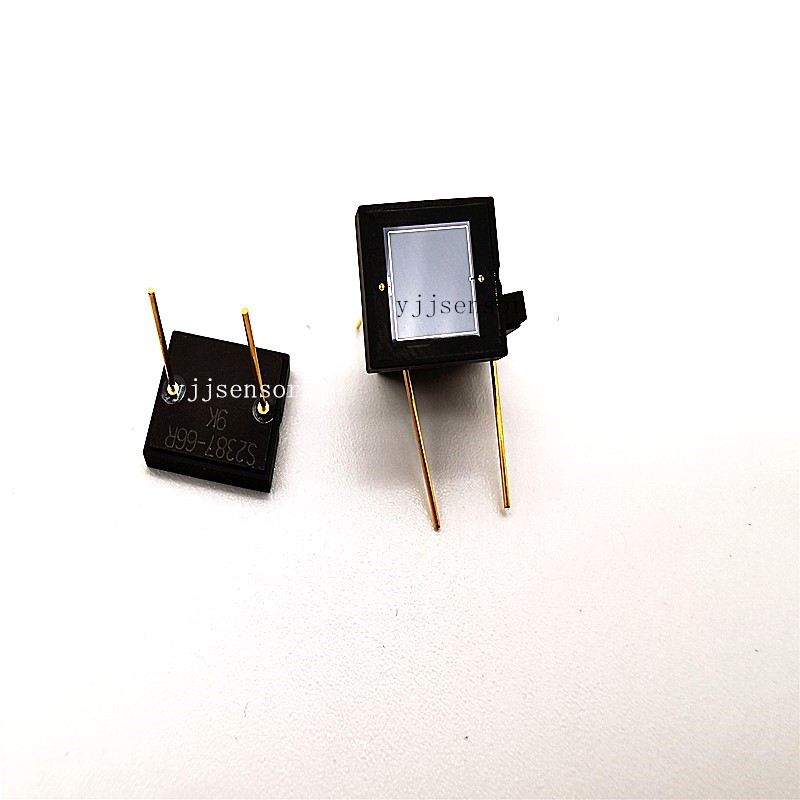

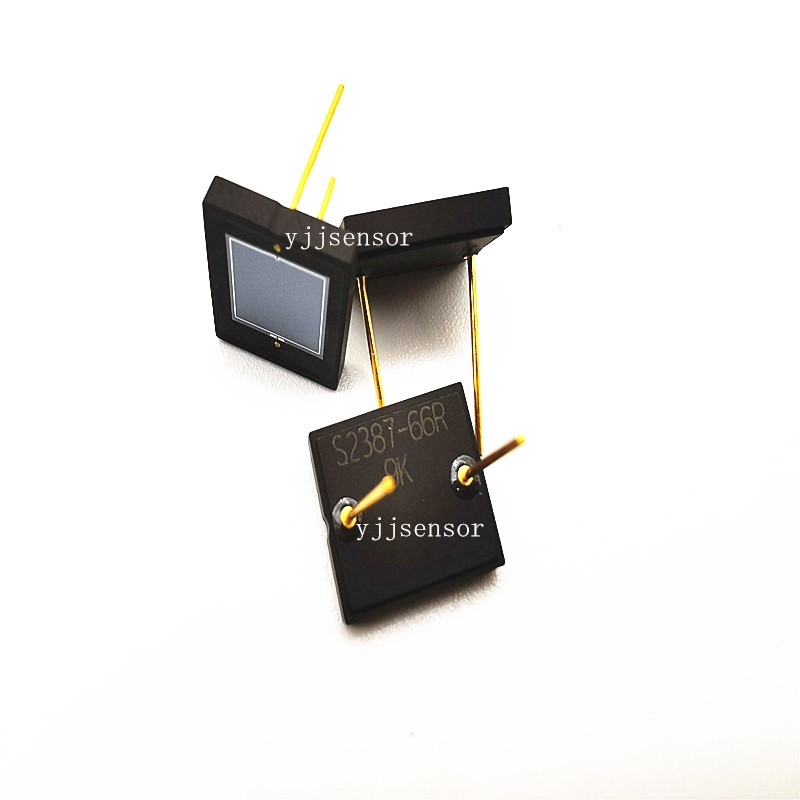

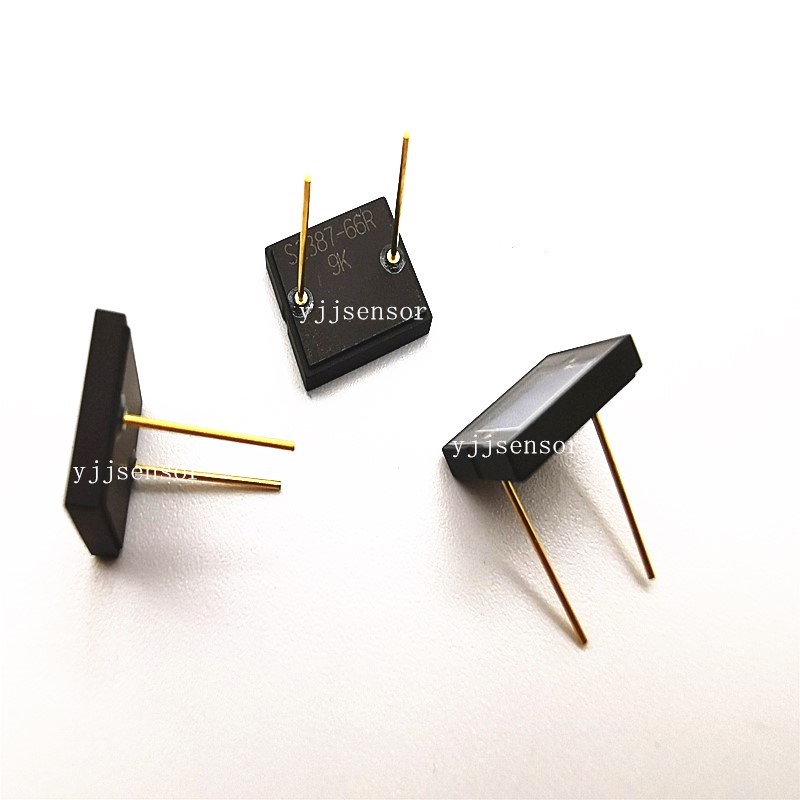

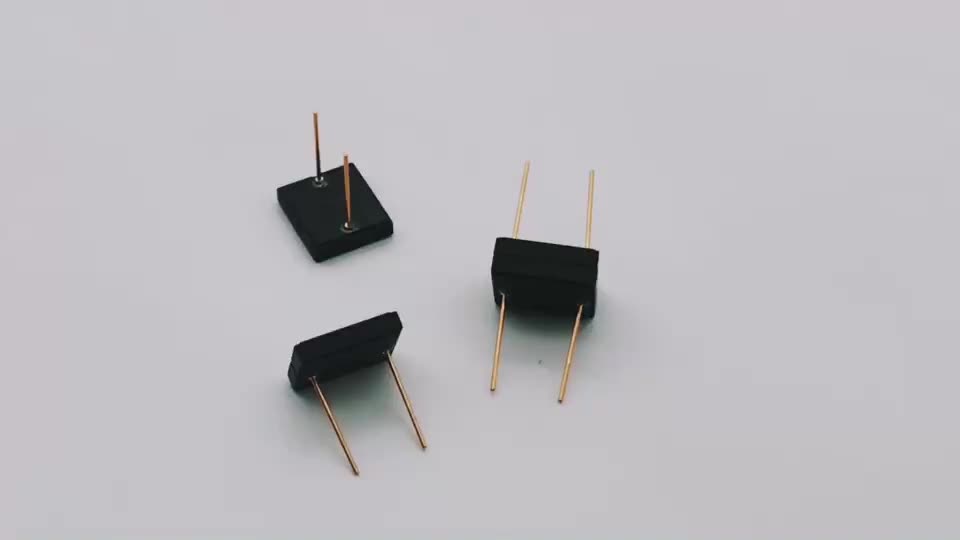

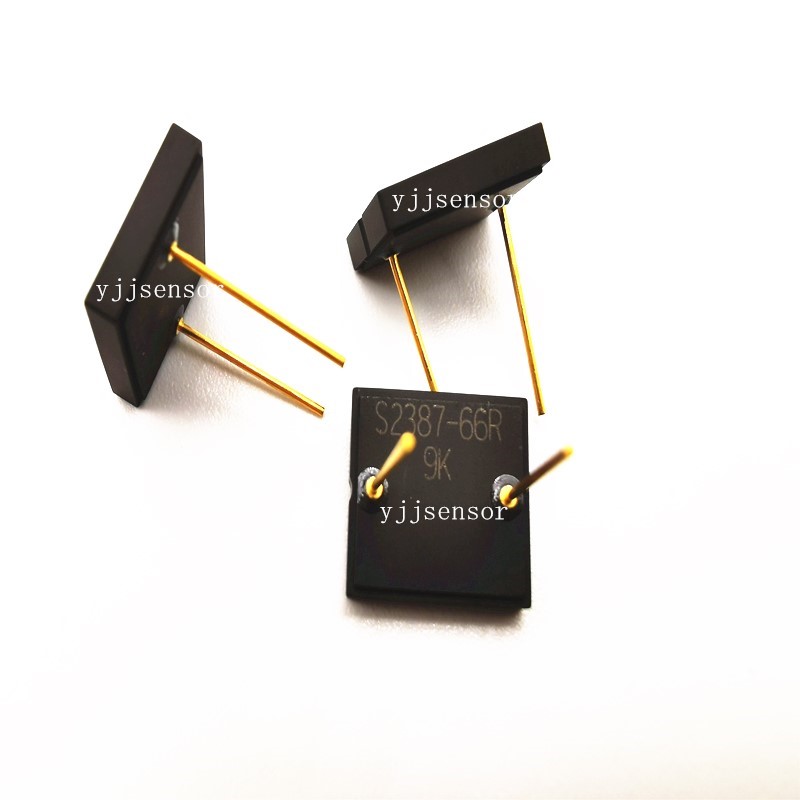

Hot spot Japanese hamamatsu silicon photodiode S2387-66R

$50.89

99 in stock

SKU: 1005004133610393 Category:

Description

  • Type: Hand Tool Parts
  • Origin: CN(Origin)
  • Model Number: S2387-66R
  • Type: Signal Diode
  • Place of Origin: Japan
  • Brand Name: YJJ
  • Package Type: Through Hole
  • Application: medical
  • Supplier Type: ODM
  • Cross Reference: S2386-44K
  • Media Available: Photo
  • Max. Forward Voltage: Ta=25 deg
  • Max. Reverse Voltage:
  • Max. Forward Current:
  • Max. Reverse Current:
  • Package / Case: SIP
  • Pixel number: 1
  • Spectral response range: 340 to 1100 nm
  • Photosensitive area: 5.8 * 5.8 mm
  • Reverse bias voltage (maximum): 30V

Notice to buyers:
This price does not include insurance and any taxes in the importing country. Any import expenses or insurance expenses shall be borne by the buyer. Thank you for your understanding.
Due to the time difference between China and different countries, when you browse products in my store. We may not be online, but please rest assured that we check the store every day. If you have any questions, please leave me a message and I will reply as soon as possible. If you place an order, we will ship it as soon as possible. Thank you very much for your understanding and support.
You can also add our WhatsApp + 86 13973026333 to contact us.
In addition, in terms of logistics, whether it is China Post air transportation or EMS, sometimes the real-time logistics information in your order may not be displayed. Please rest assured that we will always query the logistics information for you on the official website, make it for you, and then send you a screenshot.

Pixel number 1
Spectral response range 340 to 1100 nm
Photosensitive area 5.8 * 5.8 mm
Reverse bias voltage (maximum) 30V



S2386-44k photoelectric Hamamatsu photocell



Suitable for visible light to infrared general photometer

features

– high sensitivity from visible light to near-infrared

– low dark current

– high

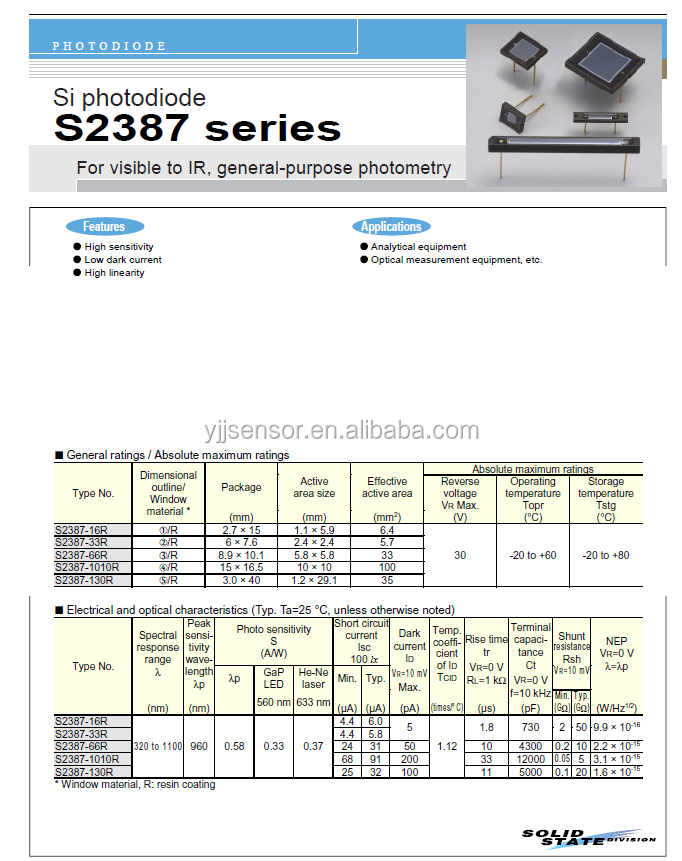

Detailed parameters



The photographic area is 5.8 × 5.8 mm

Pixel number 1

Encapsulated ceramic

Refrigerating unrefrigerating

Reverse bias voltage (Max.) 30V

The spectral response range is 340 to 1100 nm

The peak wavelength is 960 nm

Sensitivity 0.58a /W

Dark current 50 pA

Rise time (typical value) 10 PI s

Junction capacitance 4300 pF

The test condition Ta=25 ℃ is typical unless otherwise specified.Sensitivity: lambda =960nm, dark current: VR=10m V, junction capacitance: VR=0V, f=10 kHz



Conclass {font size: 12px/25px;Display: table;}. Conclass p {text text-indent: 2 em;}

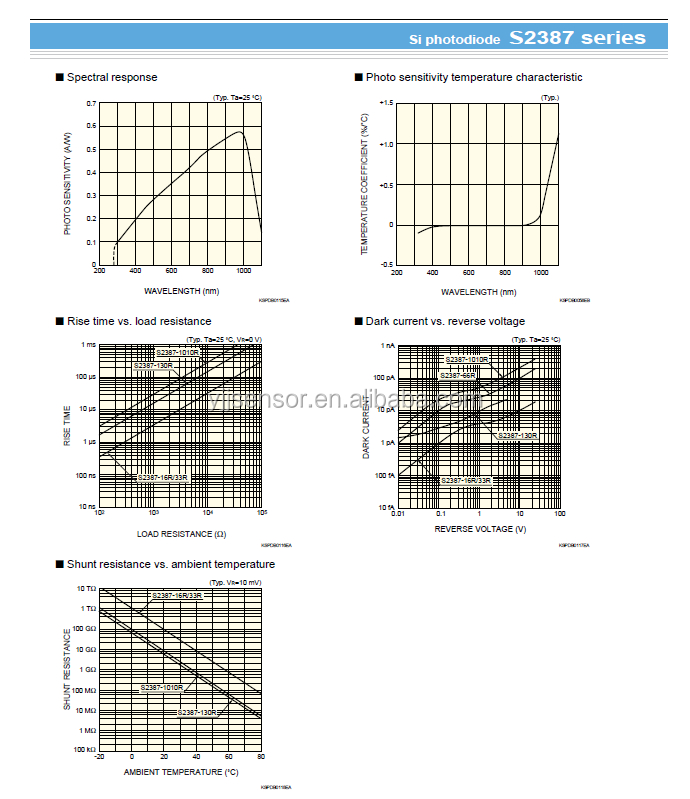

Spectral response





Yijiajie electronics is the American FREESCALE, GE, MEAS full series of silicon pressure sensors, American HONEYWELL pressure temperature and humidity, gas flow, current, hall effect and other full series of sensing and control products, the Japanese HAMAMATSU company flame, ultraviolet sensor, photodiode;Japan FIGARO UK CITY, Alphasense full series of semiconductor, catalytic, electrochemical gas sensors;French HUMIREL humidity sensor;SYHITECH dust sensor, Korea;Singapore Agilsense HB series microwave mobile sensors, and other internationally renowned companies authorized agents or distributors, to provide customers from product information, product solutions, product selection, supply assurance and logistics services.




Relative Products



Company Information

Certifications

Exhibition

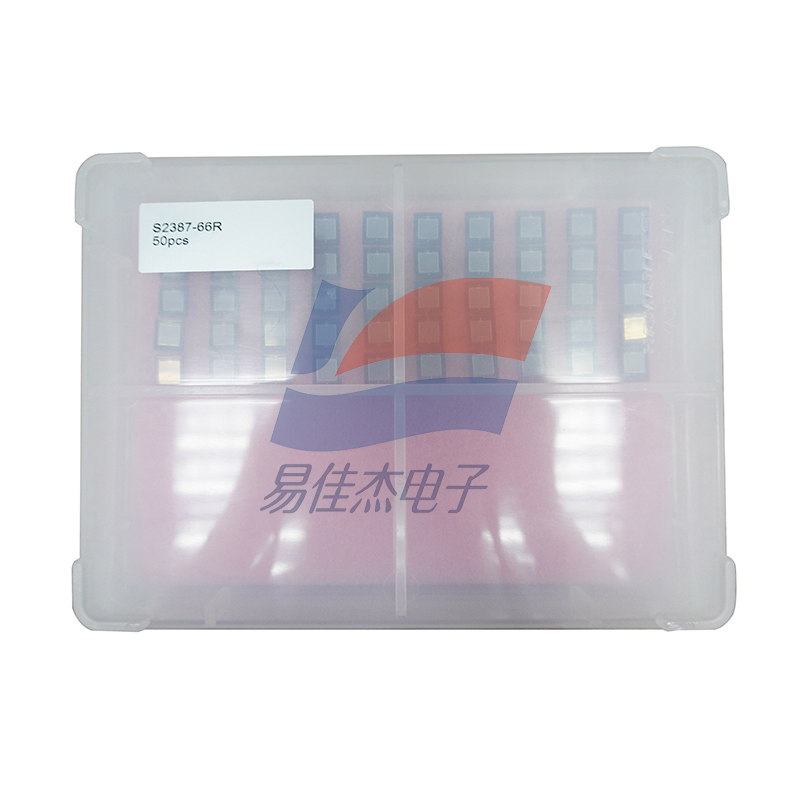

Packaging & Shipping
