Description
Product Description
Our logistics advantages:
U.S. 、Czech、Spanish、Russia overseas warehouse.
One year overseas after-sales
We are the manufacturer of ORTUR. We only provide you with the best quality and comprehensive pre-sales and after-sales services.Service website : https://ortur.tech/support.
One year overseas after-sales
We are the manufacturer of ORTUR. We only provide you with the best quality and comprehensive pre-sales and after-sales services.Service website : https://ortur.tech/support.
|
Available Laser Modules
|
||||||
|
Product Name
|
LU2-4-SF
|
LU2-4-LF
|
LU2-2
|
|||
|
Optical Power
|
4500- 5500 mW
|
4500- 5500 mW
|
1000-1600 mW
|
|||
|
Focal Spot
|
About 0.12×0.15 MM
|
About 0.1 7×0.25 MM
|
About 0.07×0.06 MM
|
|||
|
Light Path
|
Focused Beam
|
Focused Beam
|
Focused Beam
|
|||
|
Focal Length
|
30 MM
|
50 MM
|
50 MM
|
|||
|
Electric Current
|
3.4-3.6 A
|
3.4-3.6 A
|
1.1-1.35 A
|
|||
|
Wavelength
|
445+10 NM
|
445+10 NM
|
445±10 NM
|
|||
|
Voltage
|
4.2-5.0 V
|
4.2-5.0 V
|
5-6 V
|
|||
|
Product Size
|
40x41x122 MM
|
40×41.5×1 10 MM
|
40×41.5×96 MM
|
|||

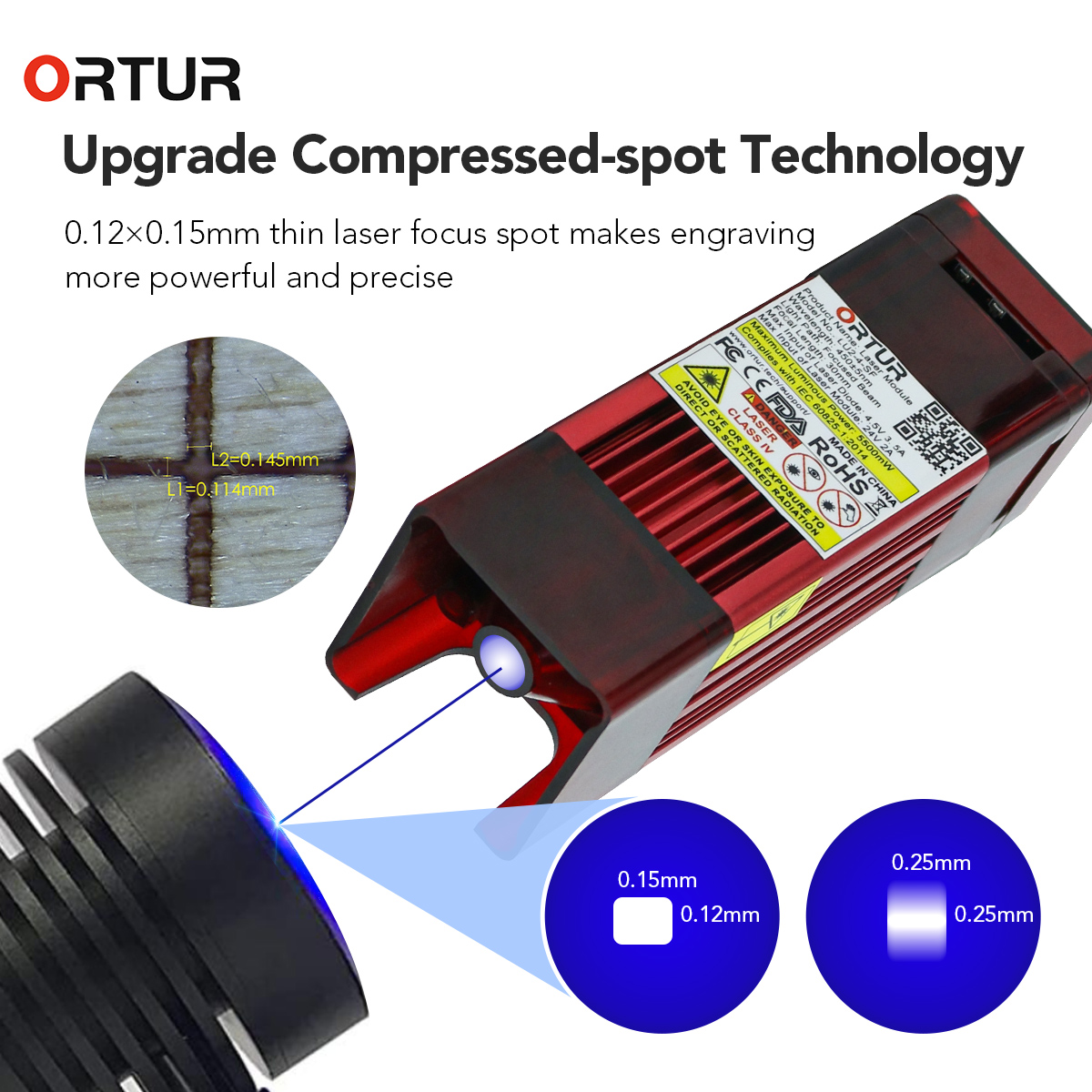

LU2-4-SF : Short Focus Laser Module : It has a smaller Luminous Cavity, so it has a smaller Focal Spot and good at engraving high-precision pattern.

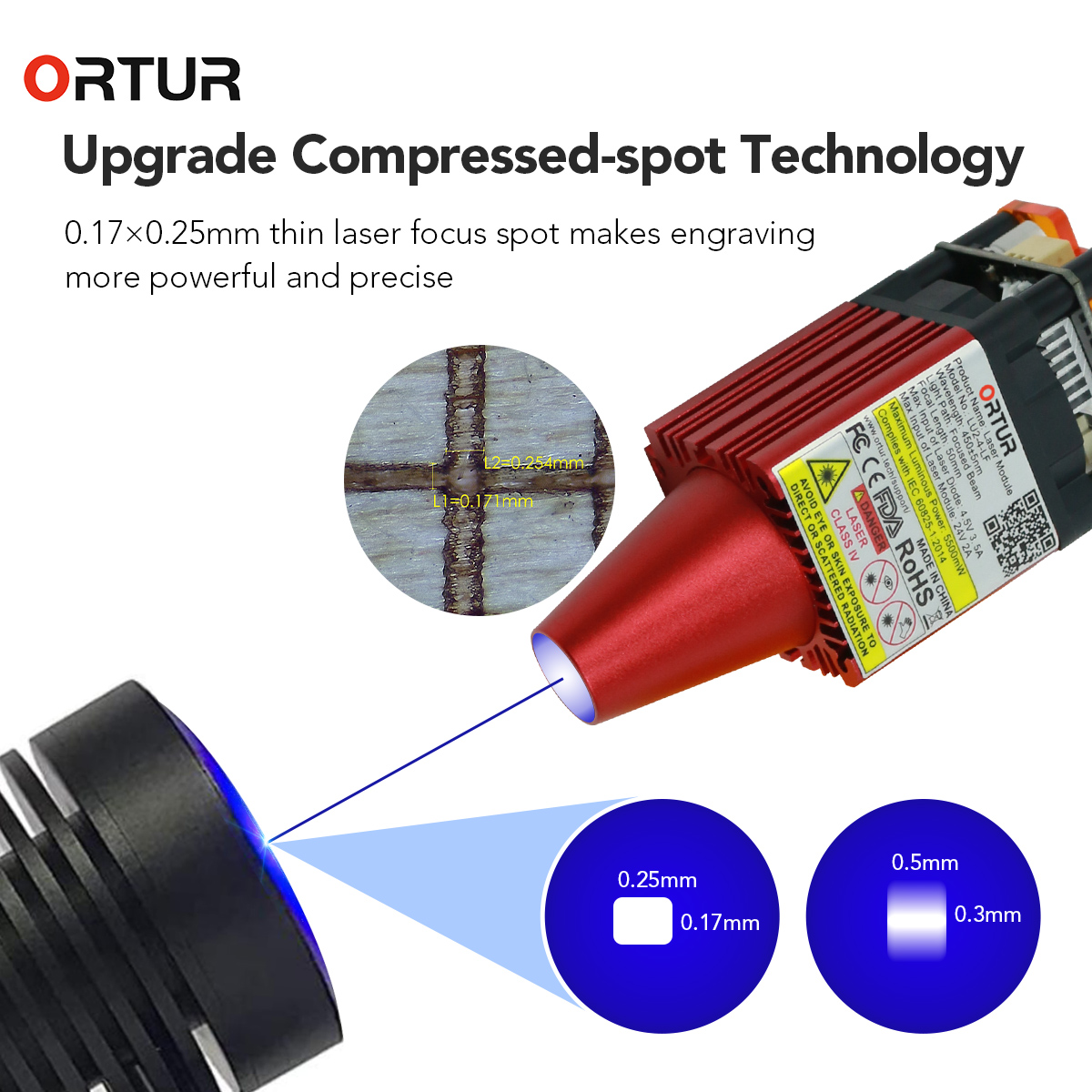

LU2-4-LF : Long Focus Laser Module :It’s high power and has a Compressed Laser Spot, so it’s good at cutting and better at engraving harder materials.
LU2-2 : Laser Module:It’s high power and has a longer Depth of Field, so it’s good at engraving and better at cutting.
LU2-2 : Laser Module:It’s high power and has a longer Depth of Field, so it’s good at engraving and better at cutting.
“Presently ORTUR is a known reference name in the world”The commitment of expanding and improve the technology of diode laser engravers is one of ORTUR’s top priorities.
1. It can reprocess 32 instructions, the carving is smoother and more delicate, the carving precision is higher, and the speed is faster. 2. Support Ortur L aser 1.8 series firmware. 3. Support flame detection function 4. Support emergency stop switch 5.Support Ortur Offline Controller. 6.24V Electric System has lower current and safer performance. 7. Driver Free install for most modern Operating Systems.(Except Win7, need to install driver for Win7)
Disclaimer :
Ortur is advertising real Optical Power output in all the 2nd Generation Module Labels. There are in the market many products with impossible claims of power output. These are simply impossible with current diode technology. We give our users and customers the real specifications, in order to allow an informed purchase decision. Ortur Laser modules dot size are measured by engraving on real-world products and materials.The L aboratory results can be significantly better, but are of no consequence for the users. As a rule of thumb: More power is not always better.” Engraving results benefit from a finer/smaller dot size and less power. Cutting on the other hand requires the opposite: More power, which consequently forces the dot size to be bigger.
YRR
Y-axis Roller Engraving Module is used to engrave cylindrical objects such as engraving text and patterns on cans Specifications: Motor: 42 Stepper Motor Material: Aluminum + Acrylic + Plastic Control Cable: 500mm 4Pin Wiring Harness, with PH-06 Female Connector + PH-06 Male Connector Width Adjustment: 7 Gear Positions Available Laser Engravers: Most kind of Desktop Laser Engravers Y-roller, can realize 7 gear adjustments to support cylinders of different sizes
About Ortur
Ortur’s Mission
Ortur is a high-tech manufacturer focus on developing diode laser engravers founded by a group of passionate engineers. We love to discover the unknown and try to develop our products to the next level with vitality and creativity.
Ortur is committed to expanding the use boundary of diode laser engravers and exploring more application scenarios of diode laser.In the next two years, Ortur’s mission is to create safer, more efficient,and more user-friendly multipurpose diode laser engravers, to provide more chances for small businesses, workshops, artists, engineers, and self-employed workers to improve their efficiency.
In future, Ortur will develop a small CNC machine to meet more demands from our users, to bring them more business opportunities and more possibilities.
Always on the way to try the best. Startup with creative imagination, find out the most adaptive design, always provide the outstanding product!
