Description
- Model Number: MZH8363510D
- Product name: 8mm 635nm 10mw Dot laser module
- Shell Material: Aluminum
- Model: CW
- Output power: <1mw(6.0-8.0MW)
- SIze: 8x20mm
- Operating Voltage(DC): 2.8-3.5V
- Drive Type: APC
- Operating Temperature: -10℃~ 40℃
- Service Life: >8000H
- Lens: Glass lens

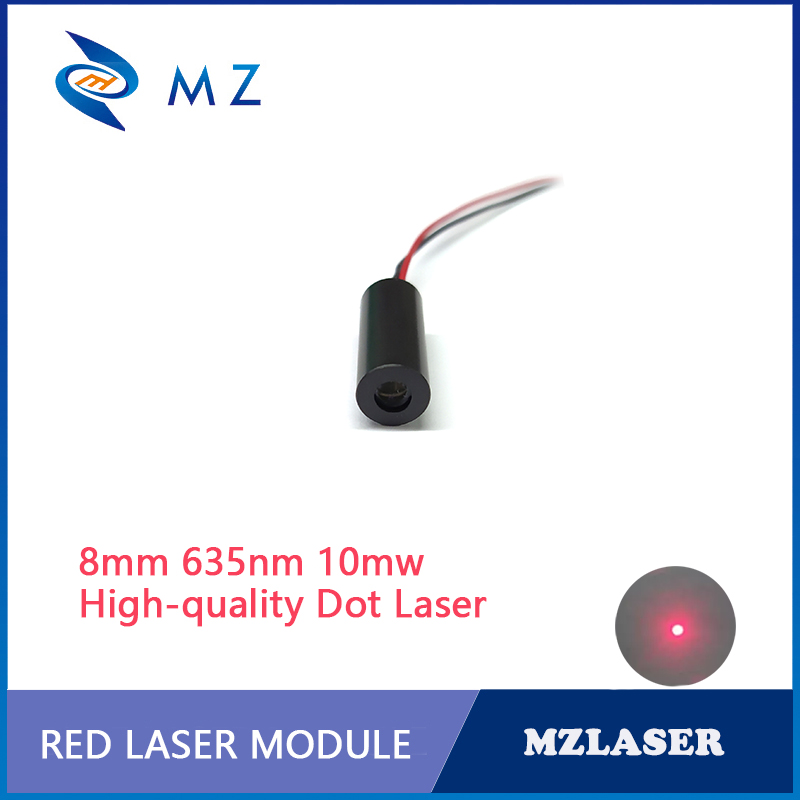

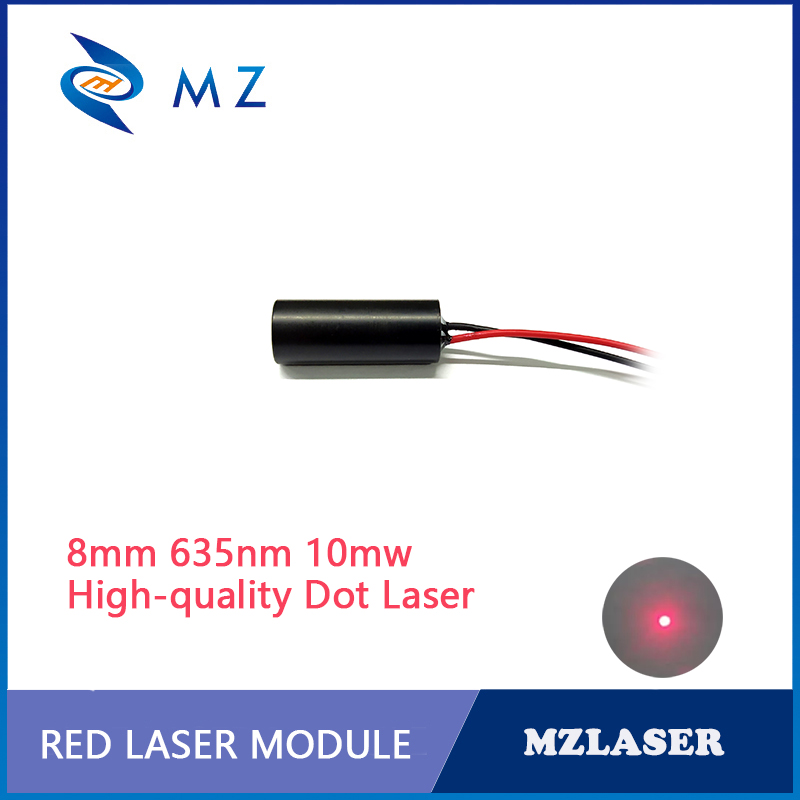

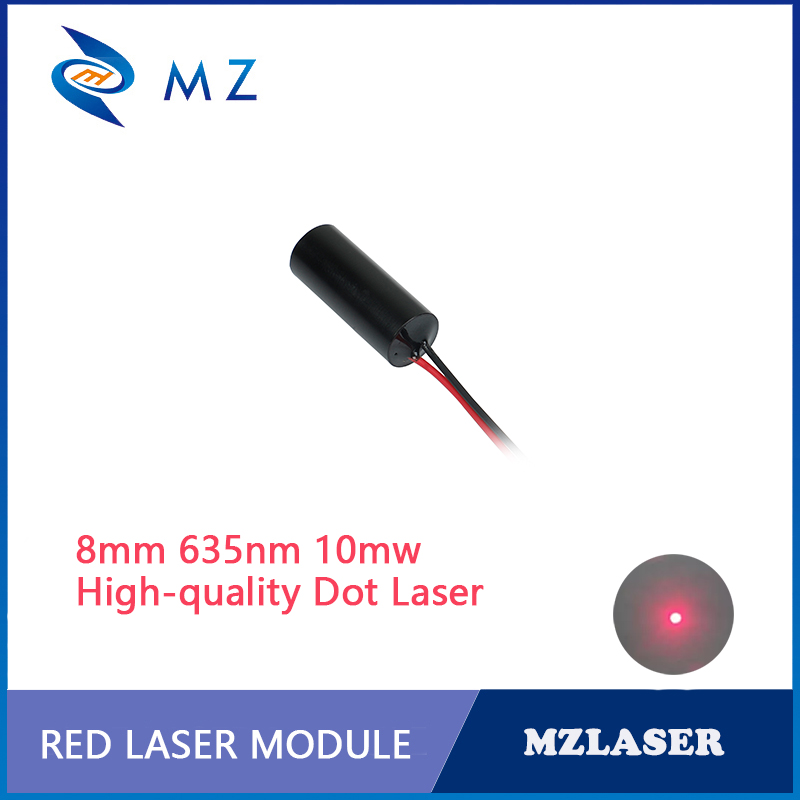

Red Laser Dot Module

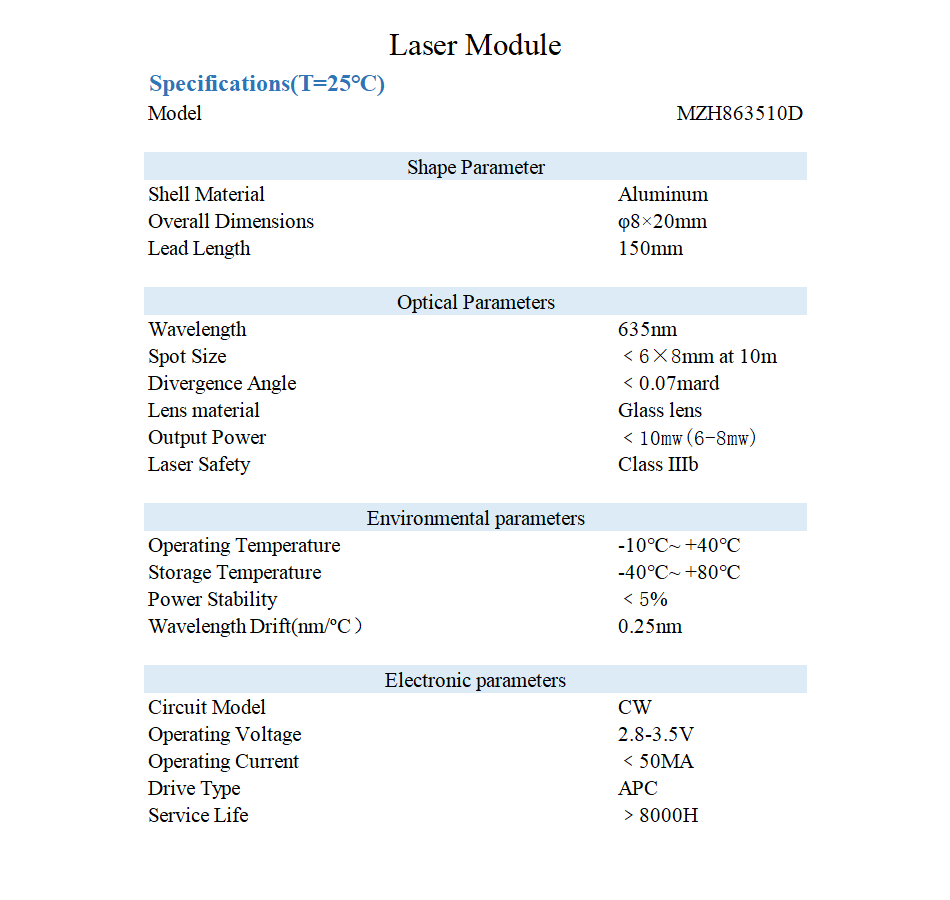

Product Description

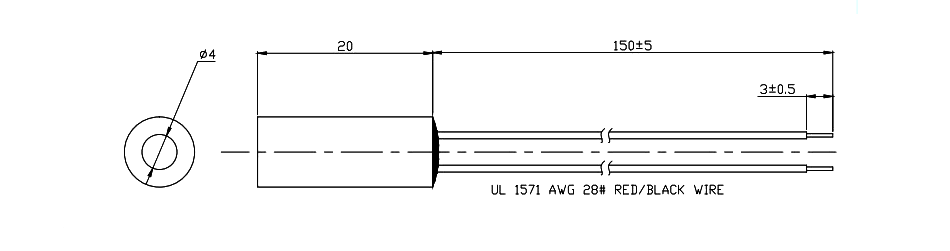

Mechanical Dimension

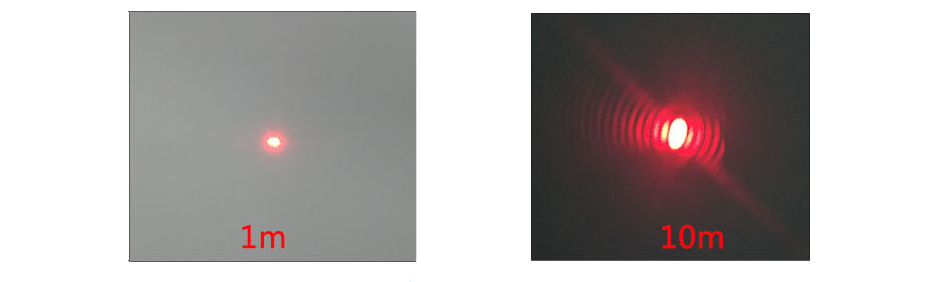

Spot size Define

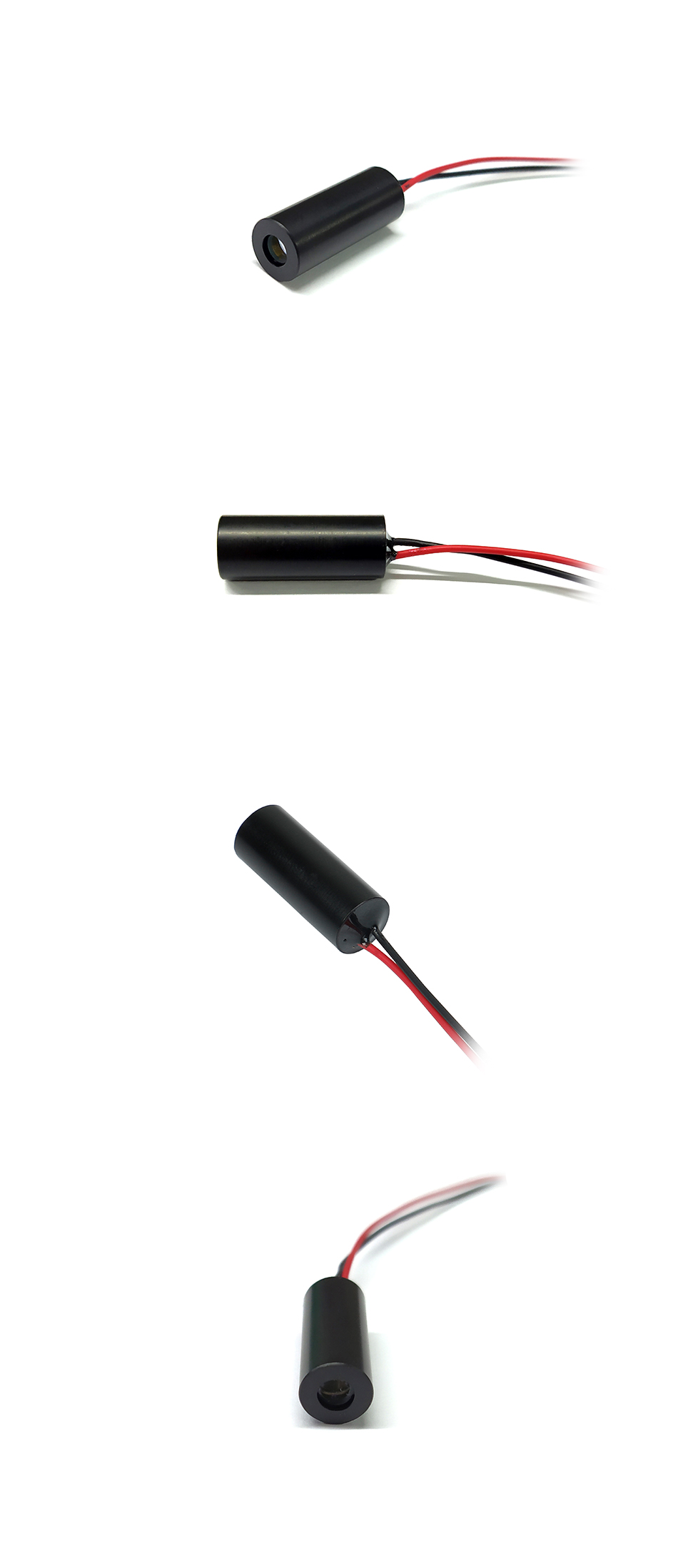

Detailed Images
