Description
Product Description
|
Product Name
|
350C Handheld Spectrometer Price for LED Light
|
|
Parameters
|
CCT, CRI, LUX, DUV, Peak wave….
|
|
Application
|
test LED wide spectrum light source, CFL/HID narrow spectrum light source….
|
|
Package
|
carton box for spectral lux meter
|
-
-
Product description

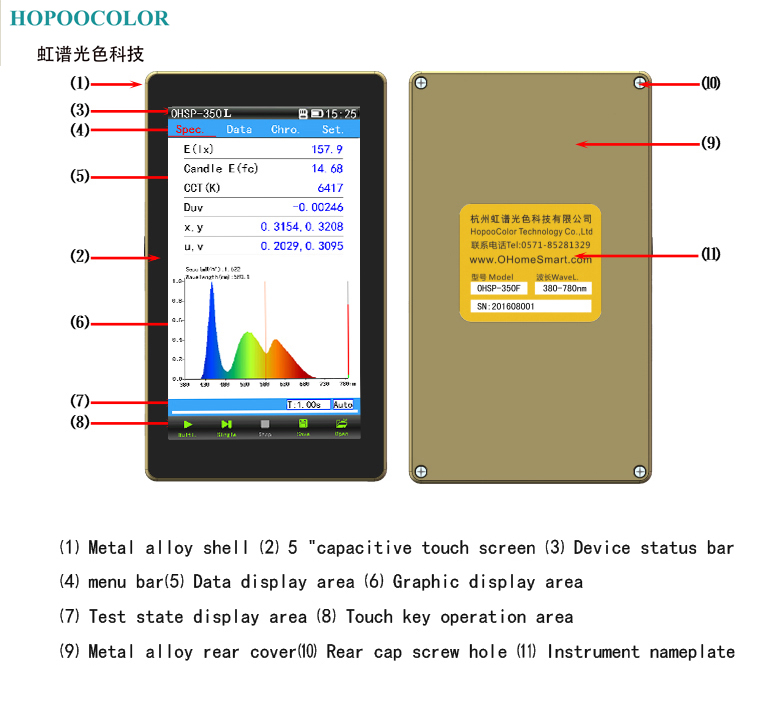

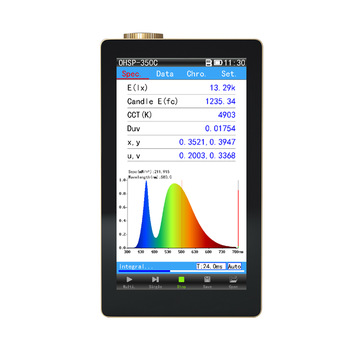

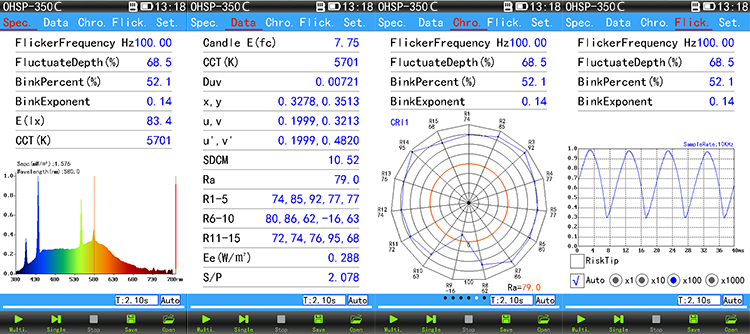

OHSP-350C Handheld Spectrometer Price for LED Light, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED
wide spectrum light source ,but also measure CFL、HID narrow spectrum light source.
|
MODEL
|
350C
|
|
Wavelength range
|
380nm ~780nm
|
|
Sensor
|
High precision CCD
|
|
Spectral Bandwidth (FWHM)
|
2nm
|
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength Accuracy
|
+ 0.5nm
|
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital）
|
|
Lighting Area
|
Ф10mm
|
|
Integrating Time
|
50μs～10000ms
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx～200,000lx
|
Details Images
OHSP-350C Economic Spectral Meter Optical Colorimeter, integrated spectrum, CCT, CRI, Lux, irradiation .etc parameters in one. With 5 inch touch screen, Real-time display of measurement parameters and curves ,use convenient and fast.not only measure LED wide spectrum light source ,but also measure CFL、HID narrow spectrum light source. BUT NO SOFTWARE.
OHSP350C Spectrum Lux Meter
OHSP350C: not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source. But have no PC software.
OHSP660T Spectral Transmittance Tester
OHSP660T: integrated Spectrum, Transmittance, L*A*B in one, can test material and lens immediately.
GREAT packing, use carton box for lux meter.
Hangzhou Hongpu Light and Color Technology Co., Ltd. established in September 2014, Is a professional manufacturer with more than 10 years experience in the field , which is located in Hangzhou Zhejiang China. Providing the best solutions with higher quality to our customers at a competitive price.
Providing the best solutions with higher quality
