Description
- Brand Name: Nakupenda
- Condition: New
- Model Number: laser head
- CNC or Not: CNC

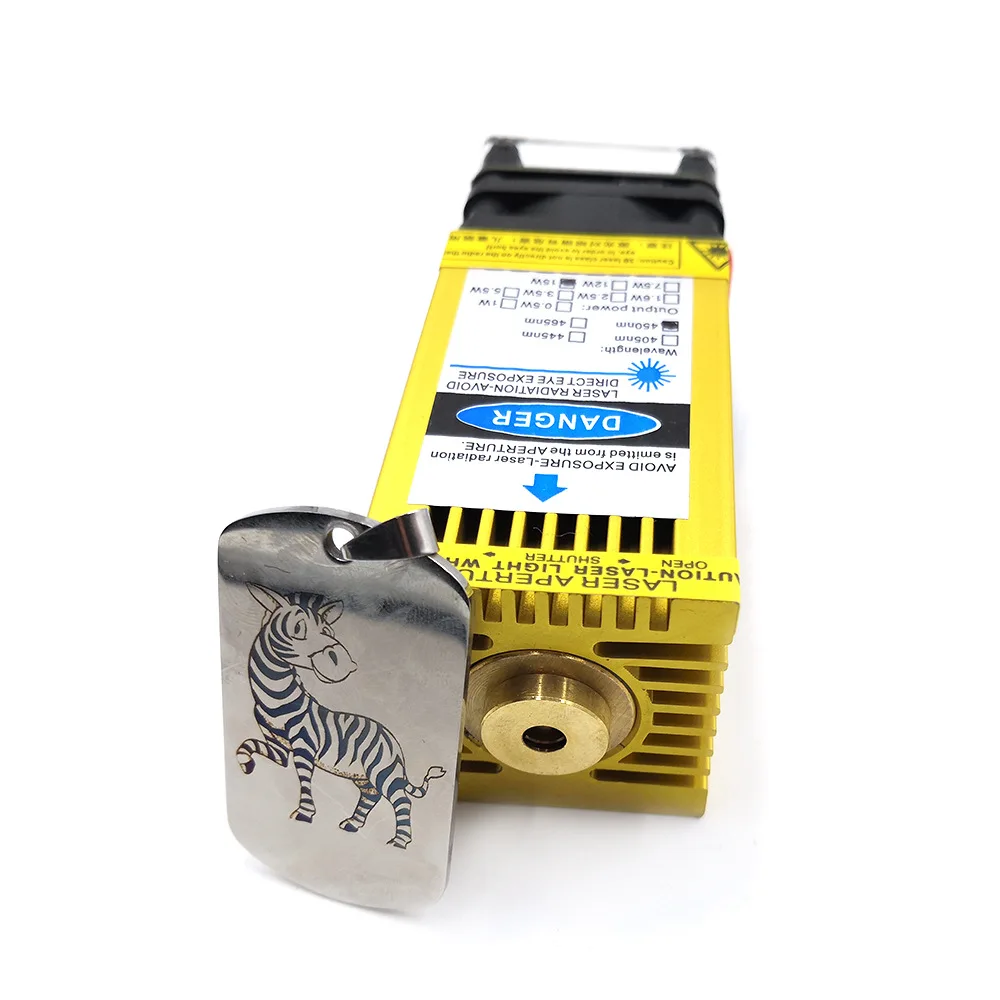

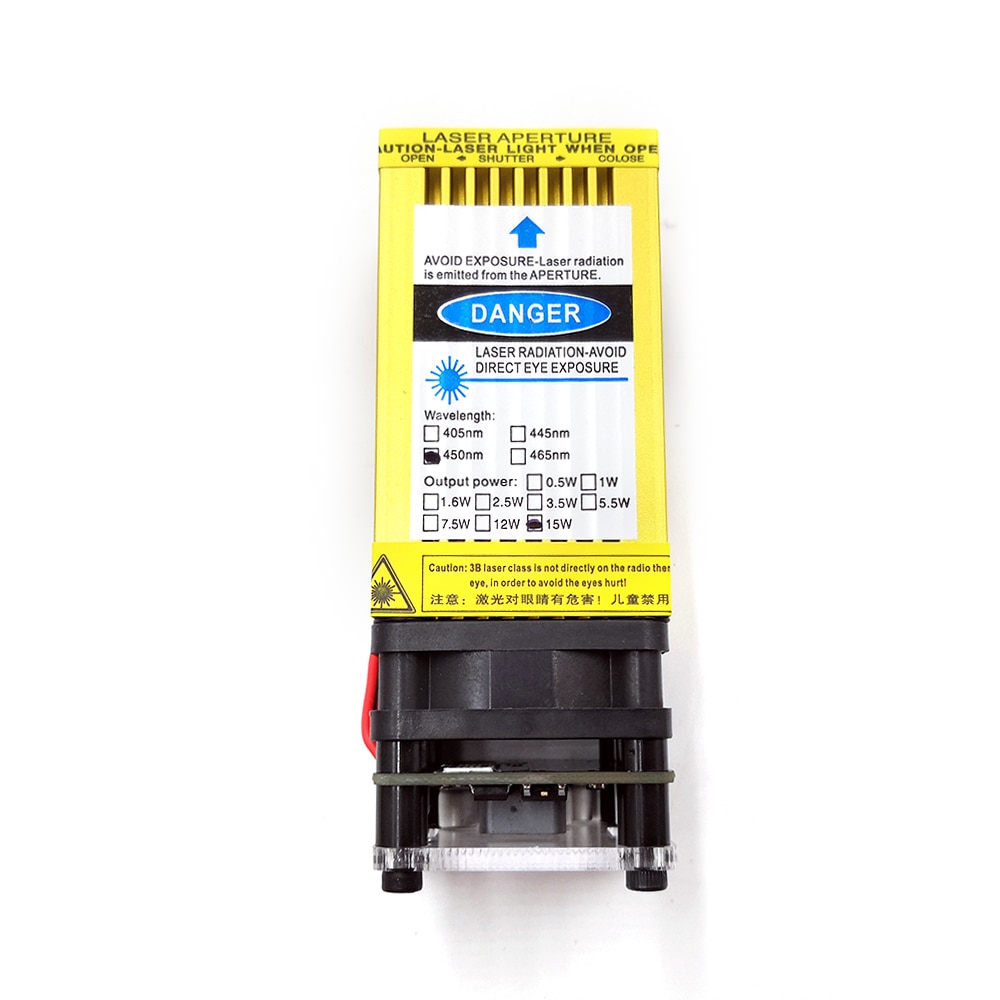

Hot sale New 15W Laser Heads Focusing 3P With TTL/PWM 450nm 15000mw CNC Laser Engraving Module
- Laser Power : Pulse 15W,average 8W
- Laser Wavelength: 450nm
- Beam Shape: 0.1mm Point
- Focal Length: Fixed focal length
- Shell material:Aircraft aluminum, copper,surface anodized
- Power Port Input Voltage: DC 12V
- PWM Port Input Voltage: DC 5V
- Power Supply Interface : XH2.54*3P (TTL control switch, PWM control power)
- Driving mode: External ACC Constant Current Drive
- Cooling method: forced air cooling
- Life Time:8,000hours
- Working temperature:-40-75Celsius
- The laser point is not adjustable, please adjust the distance between Laser bottom and engraving material into 20mm (set with plastic columns).
- Stainless steel,control speed from 100-150

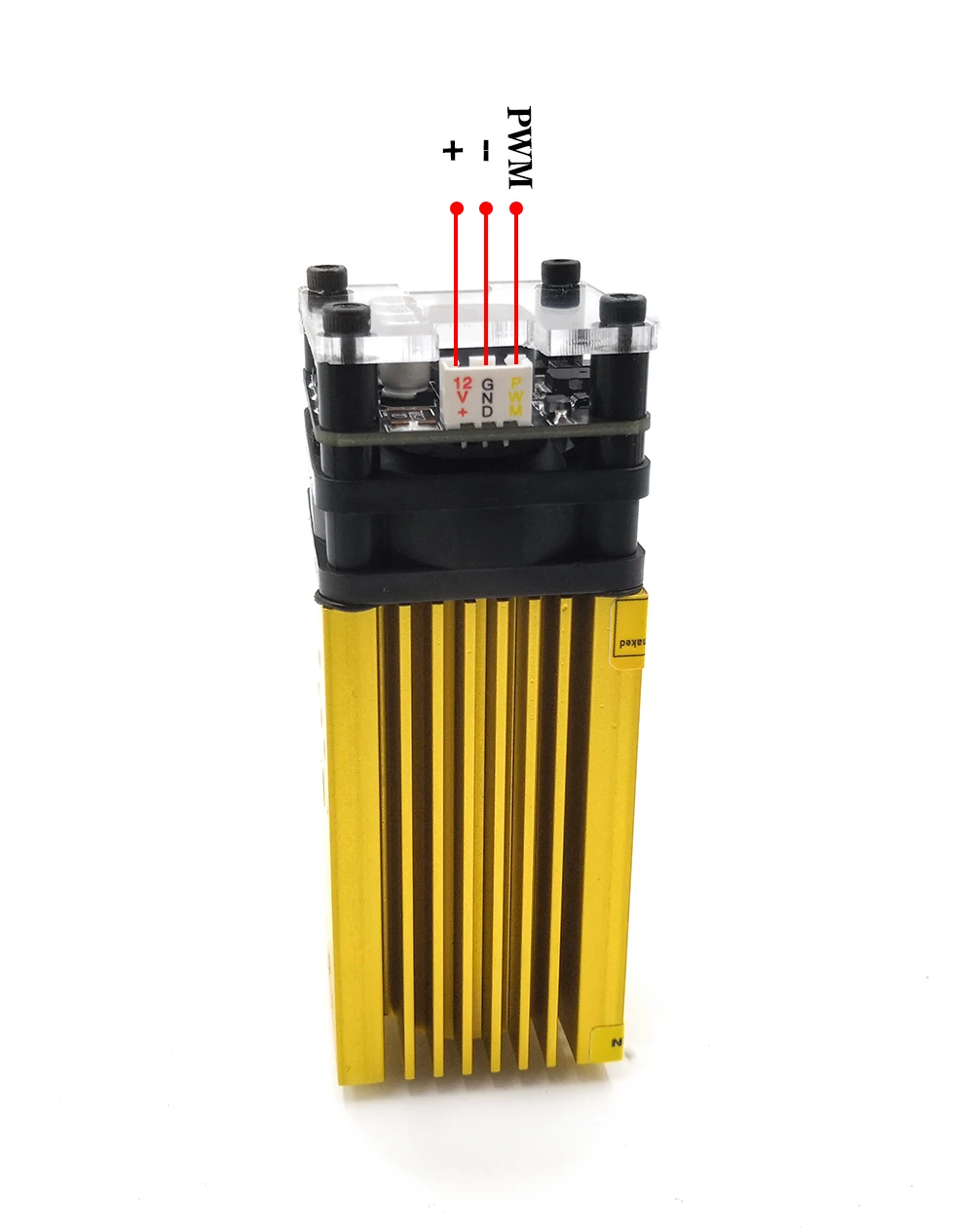

- Please connect the driver board carefully! The red wire corresponds to 12V, the black wire corresponds to GND-,and the yellow line corresponds to Signal (S).

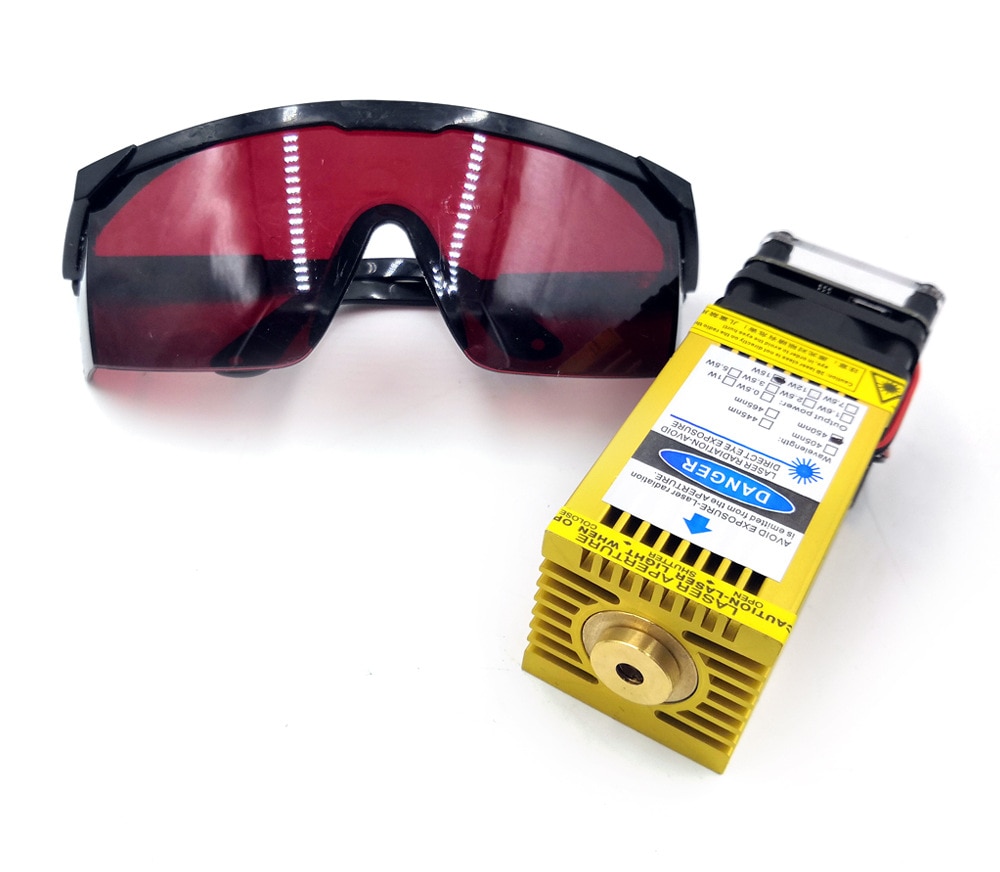

- Please wear the goggle when laser module is working..
- Please don’t touch the laser directly to avoid hurting the body and skin.– When working with lasers, keep children and pets at a safe distance
- Engrave Material🙁 15000mW can engrave 201/304 stainless steel ,Titanium steel and anodized aluminum,stone),MDF,Balsa,Wood, Fabric,Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
- Cut Material :15000mW can cut Black acrylic 1-3mm, 1-3mmplywood, leather1mm, paper etc
- Non-engravable materials :all metals, stones, ceramics, glass, reflective materials, transparent materials
Software and instructions
-
Please download software and installation instructions from our Web Cloud Disk(We'll send you after shipment). -
Or tell me your email address, we'll send you the software and installation instruction
Brief introduction
A. What area it can used for?
- Laser Engraving machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Adverstising Signs,Artwork,Crafts,Aircraft Models etc.
B. What materials it can used for?
- Engrave Material:Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather,Sponge Paper, etc.
C. Samples
