Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AKJ1530F
- CNC or Not: CNC
- Is Smart Device: No
- keyword: Raycus 1kw Fiber Laser
- name: Fiber 1000W Metal Steel Laser Cutter
- laser source: Raycus/IPG
- Cooling Mode: water cooling
- Transmission: rack pinion transmission
- laser power: 1kw/1.5kw/2kw/3kw
- After-sales Service Provided: Engineers available to service machinery overseas
- Control system: Au3tech control system
- laser head: Au3tech laser cutting head
- Warranty time: 3 years for machine
Hot Sale Big Power Fiber 1000W Metal Steel Laser Cutting Machinery With Factory Price
Know fiber laser cutting machine:
The modern technology which uses a fiber laser integrated into an optical fiber.
It means the laser cavity and beam delivery are both present inside the optic fiber.
One of the most effective uses of this technology is in the Fiber Laser Cutting Machines.
Advantages of Fiber 1000W Metal Steel Laser Cutter
1.High Efficiency–The rapid cutting speed is two times higher than normal laser cutting machine.
2.Environment friendly–Laser cutting will not creates any gases for the special cutting technology for steel sheet.
3.Lower Consumption–The power consumption is 20%-30% lower than ordinary laser cutting machine.
4.Maintenance-free–For the fiber laser cutter, the reflect lens are no needed. It will help to save a lot of time when optical path is adjusted.

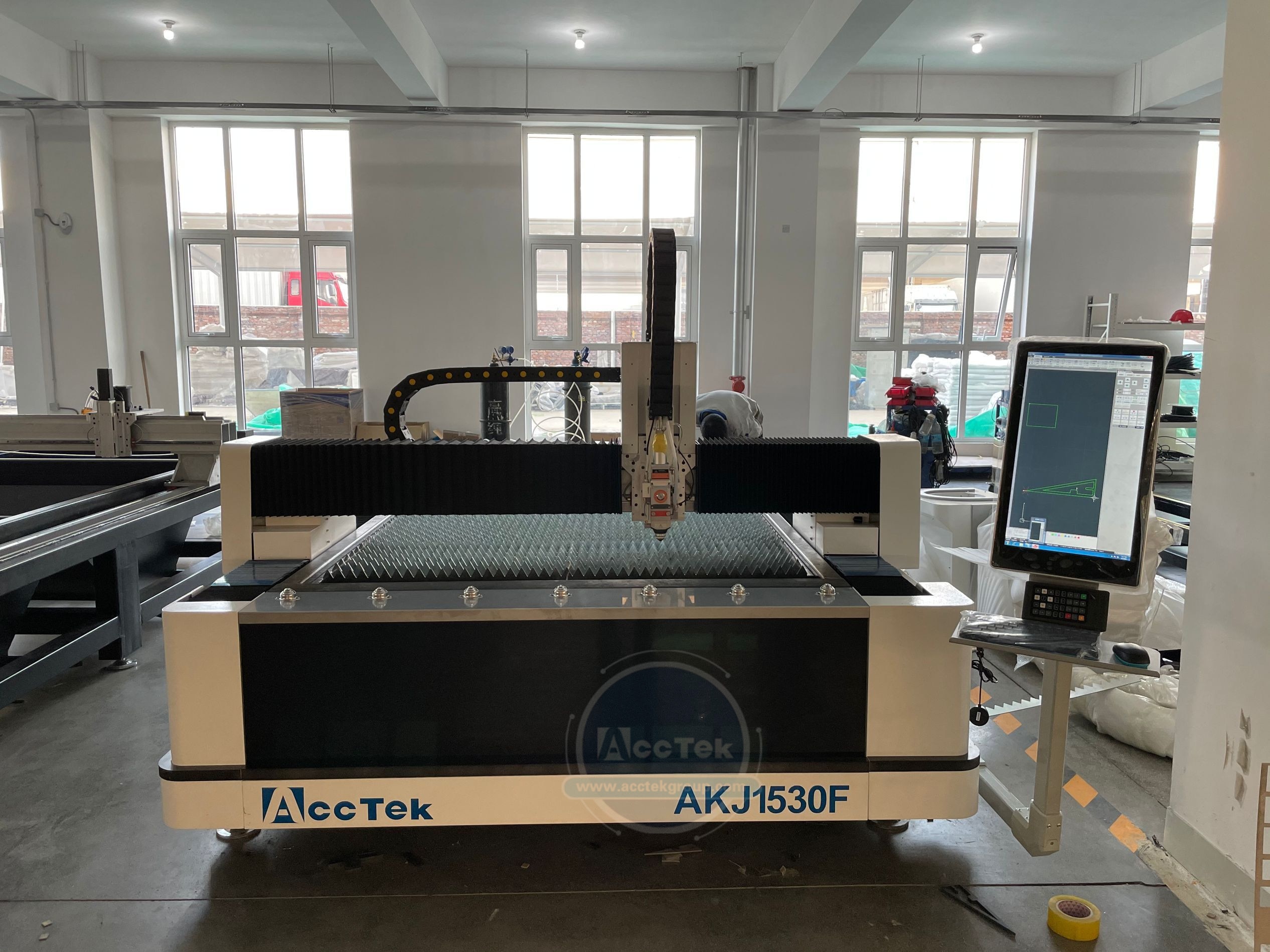

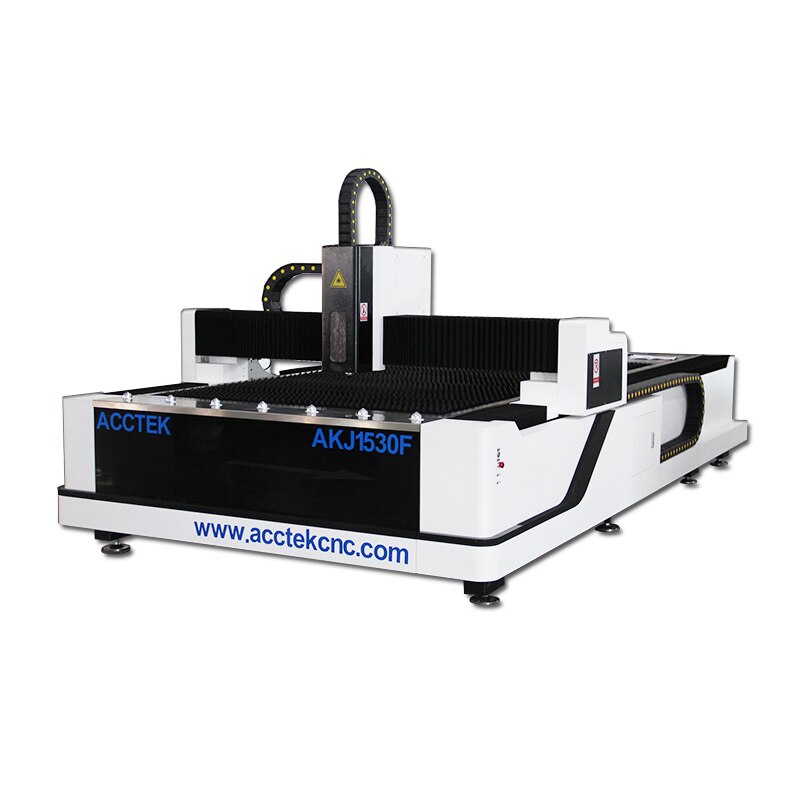

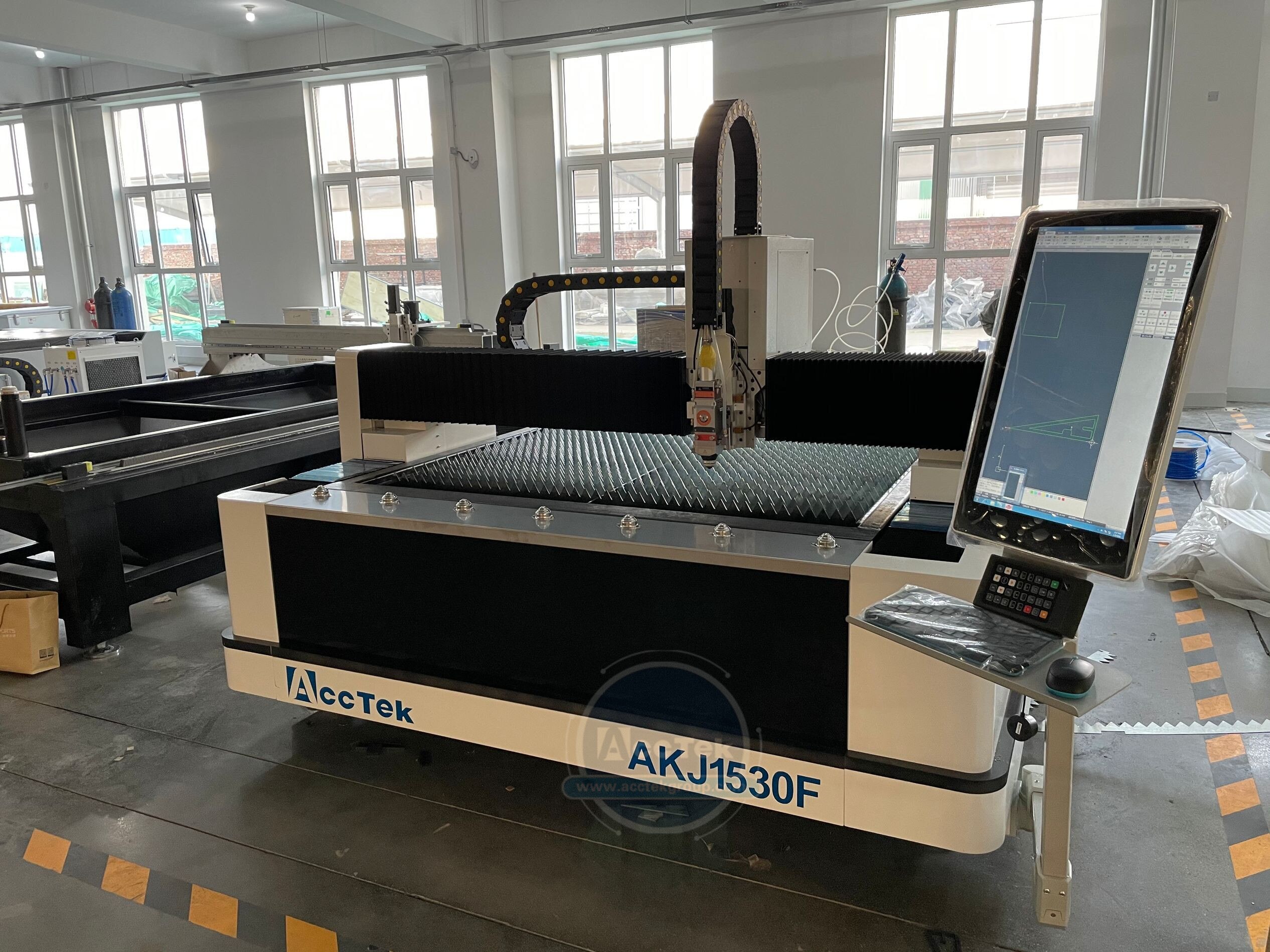

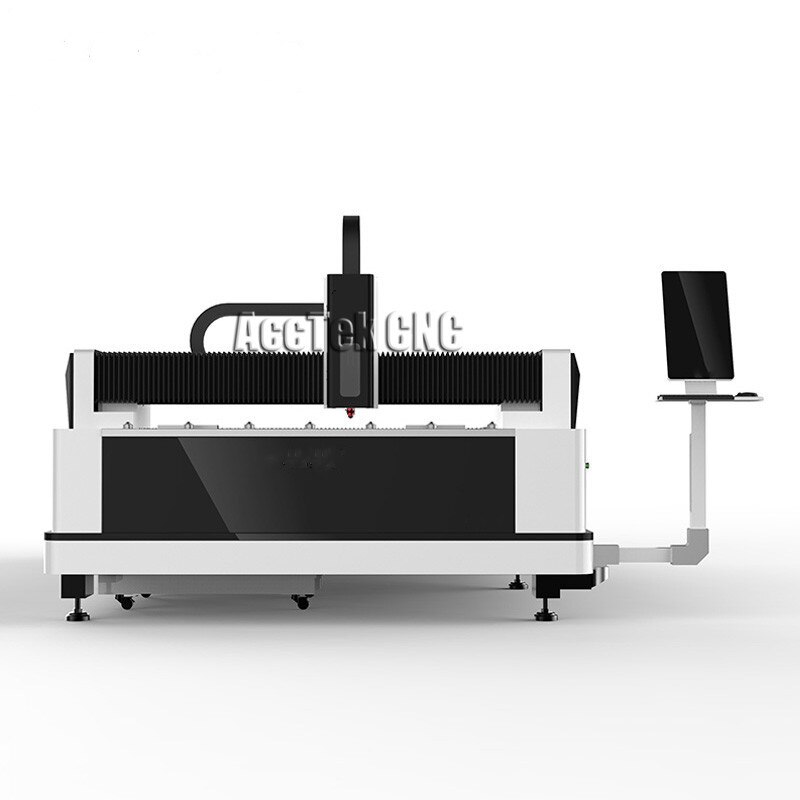

Detail pictures of Fiber 1000W Metal Steel Laser Cutter
# Au3tech fiber laser cut head.
# Taiwan Delta servo drivers and other electric elements
Water chiller
Dual temperature fiber chiller is used to cool both the fiber laser and the QBH connector.
Users can manually set water temperature control working mode according to actual needs.
Fiber laser is compact in structure, stable in performance and widely used, Fiber laser has high photoelectric
conversionefficiency, good beam quality and low maintenance cost,(Germany IPG Laser source is optional)
Parameters of Fiber 1000W Metal Steel Laser Cutter
|
1 |
Model |
AKJ1530F |
|
2 |
Laser power |
1000W /1500W/2000W /3000W (Optional) |
|
4 |
Working area |
3000mm x 1500mm |
|
5 |
Repeat positioning accuracy |
±0.02mm |
|
6 |
Maximum speed |
80m/min |
|
7 |
Max. acceleration |
1.0G |
|
8 |
Max Cutting Speed |
60m/min |
|
9 |
Motor &driver |
Japanese YASKAWA servo / Delta servo |
|
10 |
Laser head |
Raytools |
|
11 |
voltage |
380V 50Hz/60Hz/60A |
|
12 |
Weight |
2000Kg |
Applications:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube),
Carbon Steel Sheet(tube), Alloy Steel Plate, Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube),
Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate, Gold Plate,
Silver Plate, Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc
Application industry:
This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics,
electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment,
elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.
Cut ability:
1000W: cut stainless steel up to 5mm, 12mm carbon steel .
1500W: cut stainless steel up to 6mm, 14mm carbon steel .
2000W: cut stainless steel up to 8mm, 18mm carbon steel .
1. 3 years guarantee of the whole machine. 1.5 years for fiber laser generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem duringthe warranty period.
3.Lifetime maintenance free of charge.
4.We will provide the consumable parts at a factory price when you need replacement.
5.Machine has been adjusted before delivery.
6.Our technician can be sent to your company to install or calibrate if necessary.
