Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Warranty: one year
- Customized support: OEM, ODM
- Place of Origin: Guangdong, China

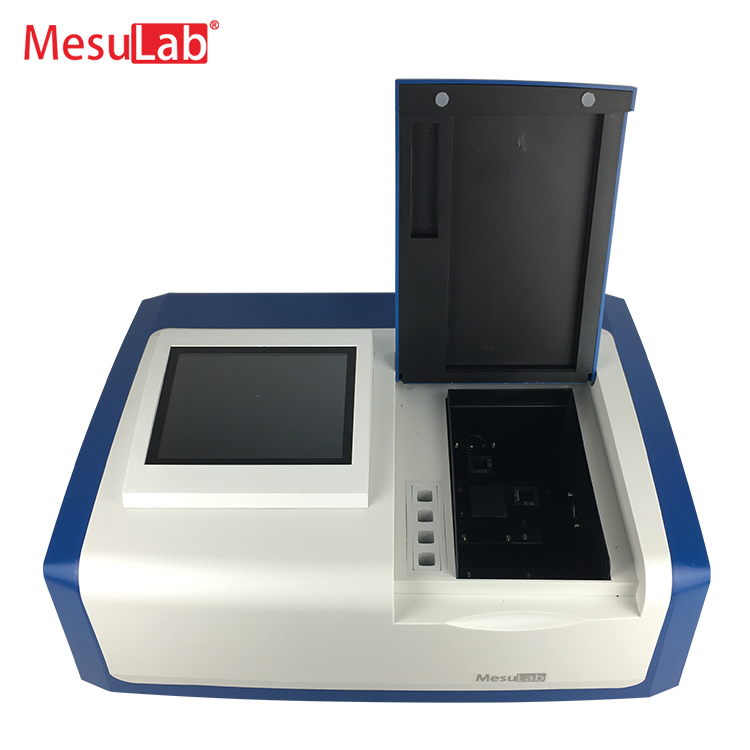

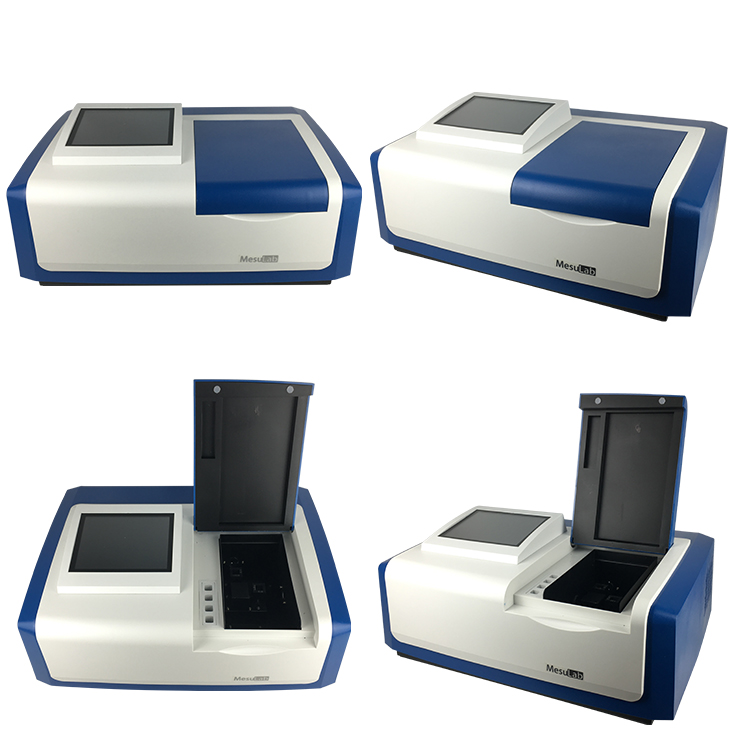

- Brand Name: MesuLab

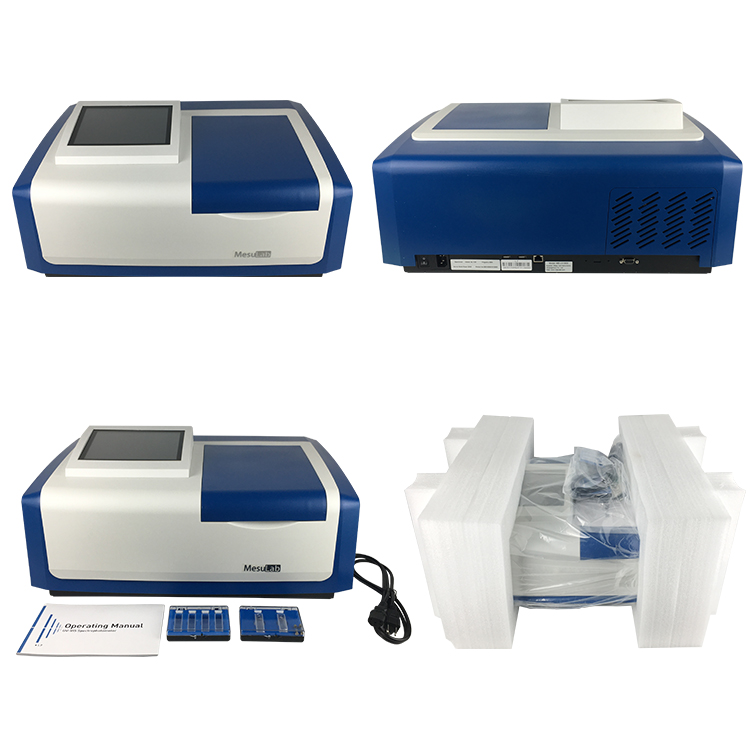

- Model Number: ME-L7
- Size: 74*63*45cm
- Weight: 35kg
- Focal Length: 190-1100nm
- Wavelength Range: 190-1100nm, 190-1100nm
- Monochromator type: Czerny turner
- Focal length: 160mm
- Band Width: 2nm
- Photometric Display Range: 0.0-200 .0% T / -0.301-4.000 A / 0.000-9999 C
- Stability: 0.0005A/h@500nm

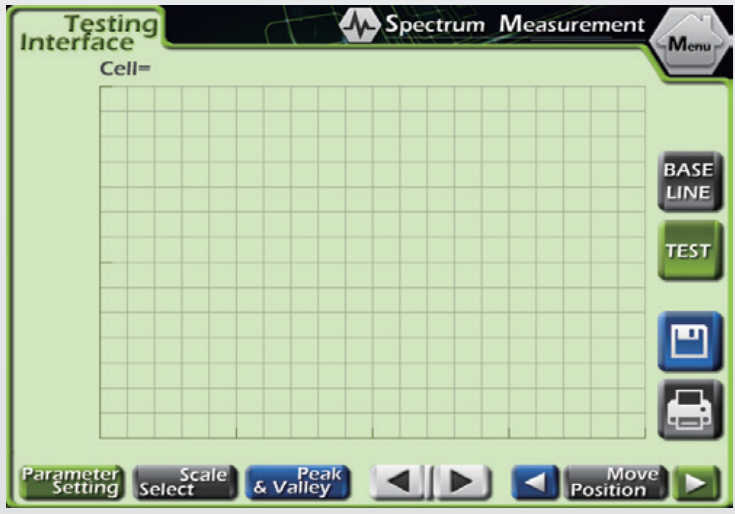

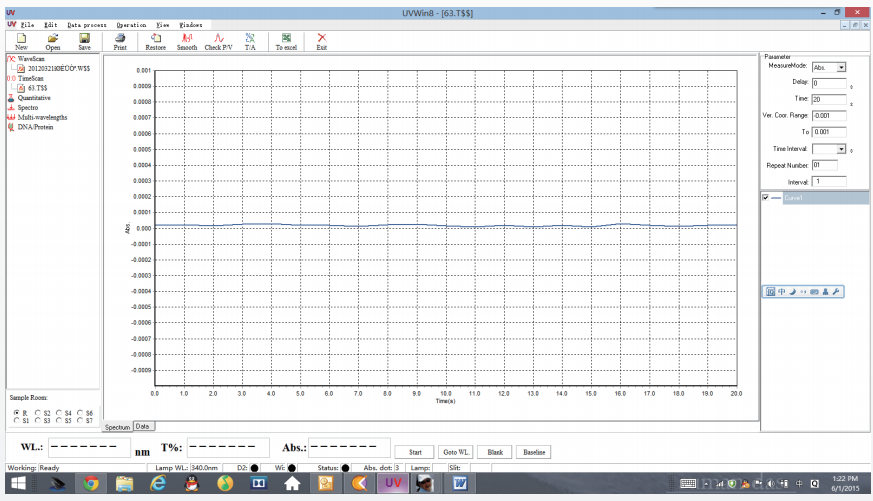

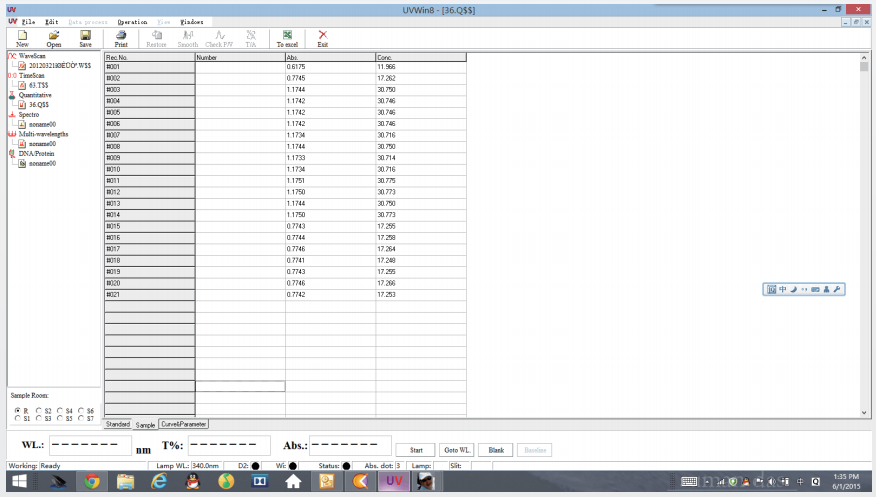

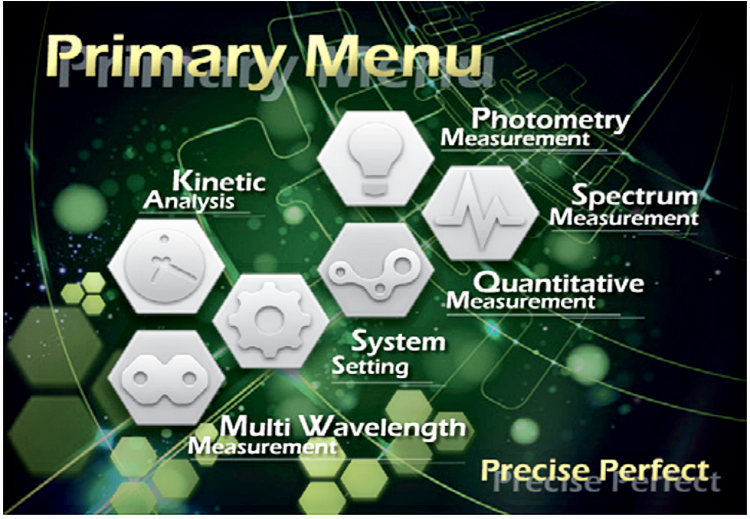

● Advantage Double beam optical system; 8 inch color touch-screen Automatic zero and full scale adjustment Equipped with USB interface Optional : UV WIN8 Spectrum data processing software / Thermal plotter ● Main Features Adopt blazed holographic gratings. Have outstanding test precision and very competitive price. Cutting-edge user interface, powerful functions, and easy operation. With powerful functions, the equipment shows great performance in qualitative and quantitative testing , such as : ◆ Full spectrum scanning ◆ Linear regression ◆ Detailed spectrum scanning ◆ Concentration direct reading ◆ Time-based kinetics determination ◆ Peak/Valley detecting ◆ Multi-wavelength measurement ◆ GOTO λ
Model
|
ME-L7
|
Wavelength Range
|
190-1100nm
|
Spectrum Bandwidth
|
1.8nm
|
Wavelength Accuracy
|
± 0.3nm
|
Wavelength Repeatability
|
≤ 0.01nm
|
Photometric Range
|
0.0 ~ 200.0% T ; -0.301 ~ 4.000A ; 0.000 to 9999C
|
Photometric Accuracy
|
± 0.3% T ; ± 0.002Abs (0 – 0.5A) ; ± 0.004Abs (0.5 – 1A)
|
Photometric Repeatability
|
≤ 0.15% T ; 0.001Abs (0 – 0.5A) ; 0.002Abs (0.5 – 1A)
|
Stray Light
|
≤ 0.15% (measured by NaI at 220 nm) (measured at NaNO2 at 360 nm)
|
Monochromator Type
|
Czerny-Turner
|
Focal Length
|
160mm
|
Grating
|
1200 lines/mm
|
Detector
|
Silicon Photocell
|
Noise
|
100%(T) noise ≤ 0.15% (T) ; 0% (T) noise ≤ 0.1% (T)
|
Baseline Drift
|
± 0.0002 Abs / h (250nm and 500nm after preheat warm up for 2 hours )
|
Power
|
AC220v± 22v, 50Hz± 1Hz, 200W
|
COM Port
|
USB
|
