Description
Product Description
|
Product Name
|
OHSP350S Portable Spectrum Analyzer Infrared Spectrometer
|
|
Parameters
|
PPFD, PAR, TM-30, CCT, CRI, LUX, DUV, Peak wave….
|
|
Application
|
test LED wide spectrum light source, CFL/HID narrow spectrum light source….
|
|
Package
|
carton box for spectral lux meter
|
-
-
Product description

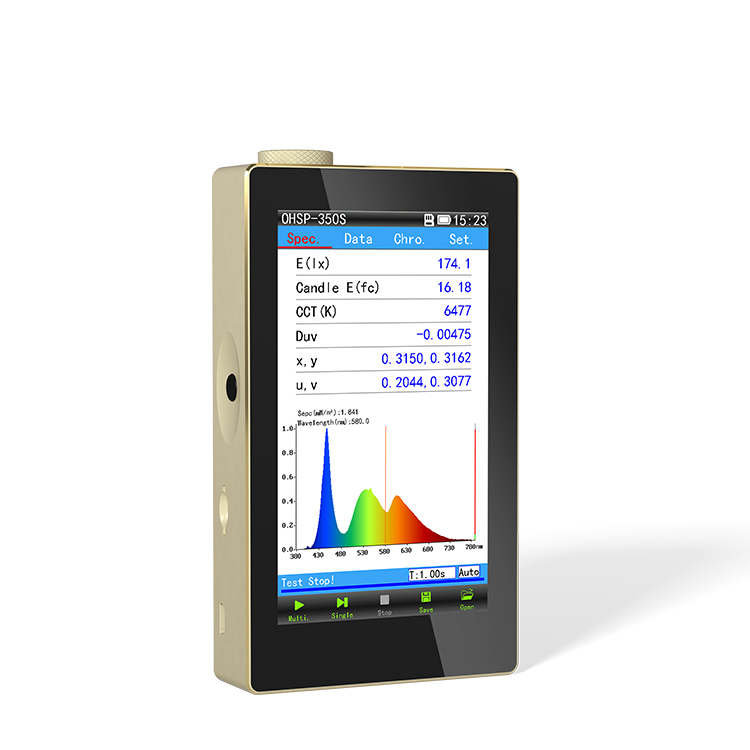

OHSP350S spectral irradiance colorimeter , extends wider wavelength to 350-950nm.add the latest and most authoritative evaluation of light source color rendering Methods TM-30-2015 .it is suitable for measuring all light source, Such as solar radiation spectrum, medical light sources, grow light, 365nm UV light, 850 nm infrared LED, etc.
|
MODEL
|
OHSP350S
|
|
Wavelength range
|
350nm ~950nm
|
|
Sensor
|
High precision CCD
|
|
Spectral Bandwidth (FWHM)
|
2nm
|
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
|
Wavelength Accuracy
|
+ 0.5nm
|
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital）
|
|
Lighting Area
|
Ф10mm
|
|
Integrating Time
|
50μs～10000ms
|
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
|
CCT Range
|
1,000K~ 100,000K
|
|
Stray Light
|
≤0.3%
|
|
Illuminance Range
|
5lx～200,000lx
|
Details Images
OHSP-350S spectral irradiance colorimeter , extends wider wavelength to 350-950nm.add the latest and most authoritative evaluation of light source color rendering Methods TM-30-2015 .it is suitable for measuring all light source, Such as solar radiation spectrum, medical light sources, grow light,365nm UV light, 850 nm infrared LED, etc.
OHSP350C Spectrum Lux Meter
OHSP350C: 380-780nm; not only measure LED wide spectrum light source ,but also measure CFL,HID narrow spectrum light source. But have no PC software.
OHSP350S 350-950nm Light Spectrum Analyzer Spectrometer Flagship Version
OHSP350S: 350-950nm;
add the latest and most authoritative evaluation of light source color rendering Methods TM-30-2015. really suitable for all light source test.
add the latest and most authoritative evaluation of light source color rendering Methods TM-30-2015. really suitable for all light source test.
