Description
- Brand Name: NoEnName_Null
- Size: 138.5*81*23mm
- Model Number: OHSP350C
- Focal Length: 42mm
- Weight: 430g
- Wavelength Range: 380-780nm
- Type: Single Beam Spectrometers
- Measurement Range: 380-780nm
- Place of Origin: Zhejiang, China
- Spectral bandwidth: 2nm
- spectral Resolution: 0.2nm
- Brand Name: HOPOOCOLOR
- Wavelength accuracy: ±0.5nm
- Illumination accuracy: ±4% Reading 1 Digital
- CCT range: 1,000K-100,000K
- Illuminance range: 5lx-200klx
- Integration time: 50us-10000ms

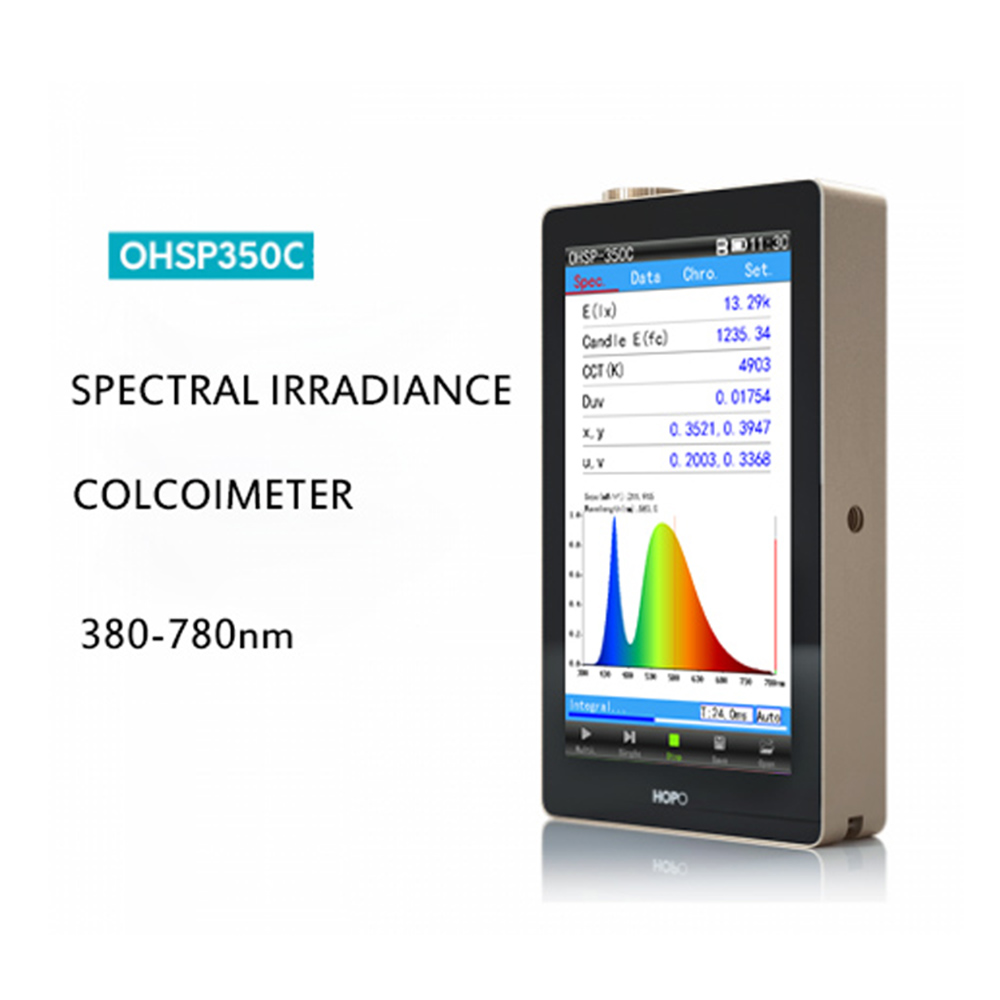

OHSP350C Test Parameters
1. CCT Tc (K) and Blackbody deviation Duv
2. light illumination E (LX), candlelight E (Fc) Spectral irradiance Ee (W/m2)
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
4. relative spectral power distribution P (lambda)
5. CRI Ra, Ri (i=1 ~ 15)
6. color tolerance SDCM
7. Dominant wavelengths, peak wavelengths
8. Visual ratio of light and shade S/P
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z
10. more functional parameters can be customized
