Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Type: Single Beam Spectrometers
- Size: 82* 72.5* 38 mm
- Model Number: HPCS300
- Focal Length: 42mm
- Weight: 250g
- Wavelength Range: 380-780nm
- Measurement Range: 0-200,000 lux
- wavelength: 380-780nm
- Spectral resolution: 0.5nm
- FWHM: 4nm
- Detector: CCD
- Wavelength accuracy: 1nm
- illuminance range: 5-200,000lx
- CCT range: 1000-100,000K
Product Show

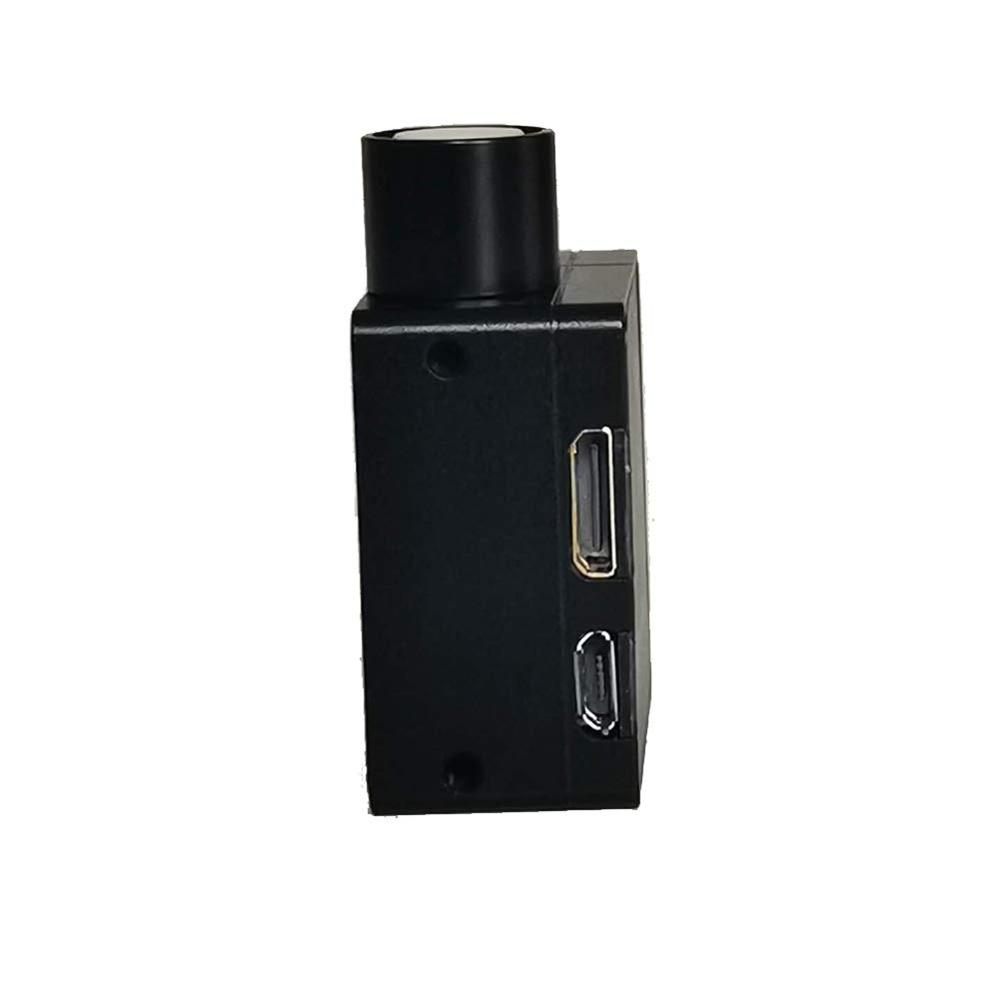

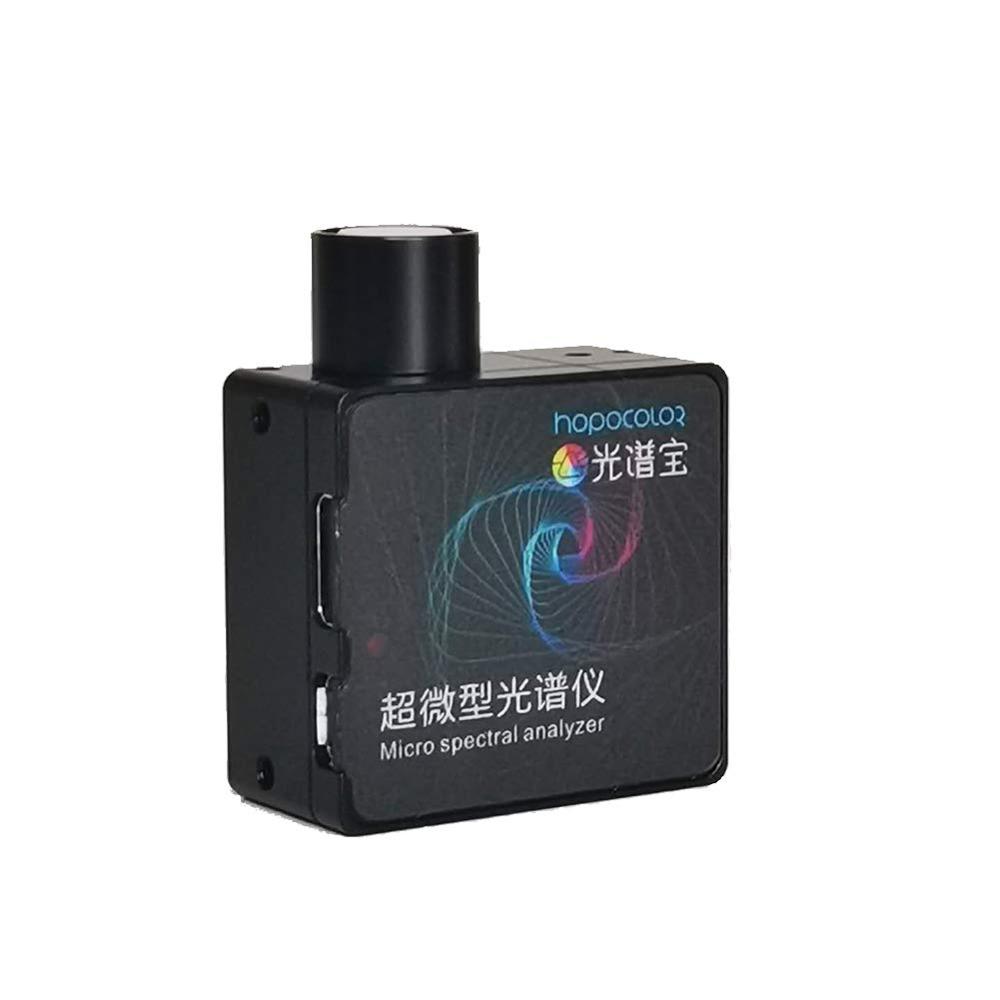

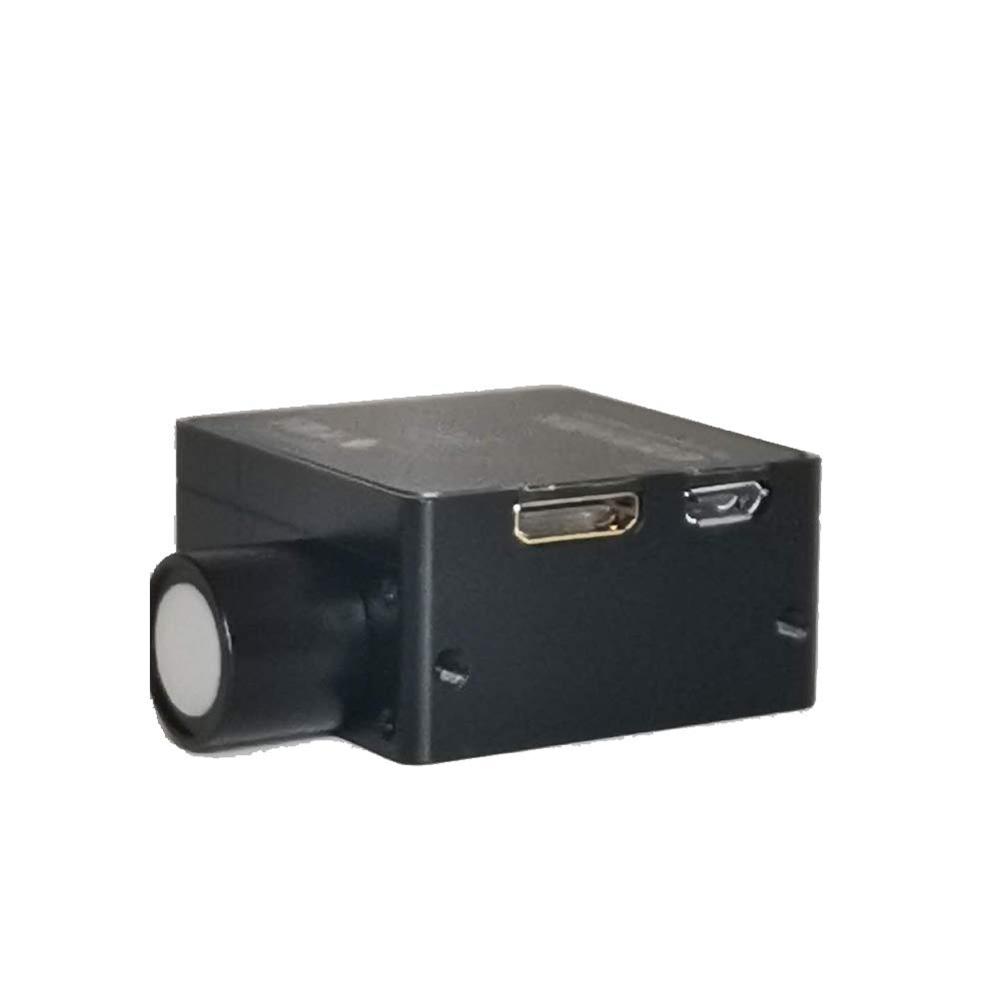

HPCS300 Spectral Illuminance Sensing Module ,adopt advanced technology, used in production line ,achievement On-line analysis of light and color parameters, RS485 interface or USB interface to output test result, open Modbus communication, it can use by self-programme, read spectrum data, CCT, Lux…etc.
FEATURE: wavelength: 380-780nm Spectral resolution: 0.5nm FWHM: 4nm; Detector: CCD Wavelength accuracy: 1nm; illuminance range: 5-200,000lx; CCT range: 1000-100,000K; Auto zeroing, Built-in SD card. Two ways to use: can connect with PC software to test; also can test when charging (store data to the SD card auto), so you do not carry PC everywhere easy and fast! after testing, can connect with PC to output the files. Mini Spectrometer can test cct, cri, illuminance, R1-R15…etc. measurement. 2 years warranty. Precise Measurement: LED, Tungsten, Natural Light, Sunlight..etc. Handheld and Portable. Auto zeroing, Built-in SD card.
Two ways to use: can connect with PC software to test; also can test when charging (store data to the SD card auto), so you do not carry PC everywhere easy and fast! after testing, can connect with PC to output the files. Spectrometer Handheld can be secondary development (plus RS485 or 4-20 ma signal simulator Need to confirm with customer service) Mini Spectrometer measuring range (color temp) 1,000 to 100,000K (Illuminance) 5 to 200,000lx 4nm FWHM of CRI Meter; CCD sensor 1500 points; Wavelength: 380 to 780 nm
Little Tips
Auto zeroing, Built-in SD card. Two ways to use: can connect with PC software to test; also can test when charging (store data to the SD card auto), so you do not carry PC everywhere easy and fast! after testing, can connect with PC to output the files. Support secondary development(Plus RS485 or 4-20MA signal simulator). If you wanna secondary development, please tell us…
