home CNC laser machine controller kit upgrade parts GRBL OFFLINE monitor MKS TFT35 LCD display GRBL1.1 touch screen WIFI module

$82.62 – $128.52

SKU: 1005002142951776 Category:

Description

  • Brand Name: Makerbase
  • Origin: CN(Origin)
  • Item Type: Display Screen
  • Model Number: CNC offline device
  • Online: 7 type languages
  • Axis: X,Y,Z
  • Compatible: CNC 3018
  • Note: None SD card

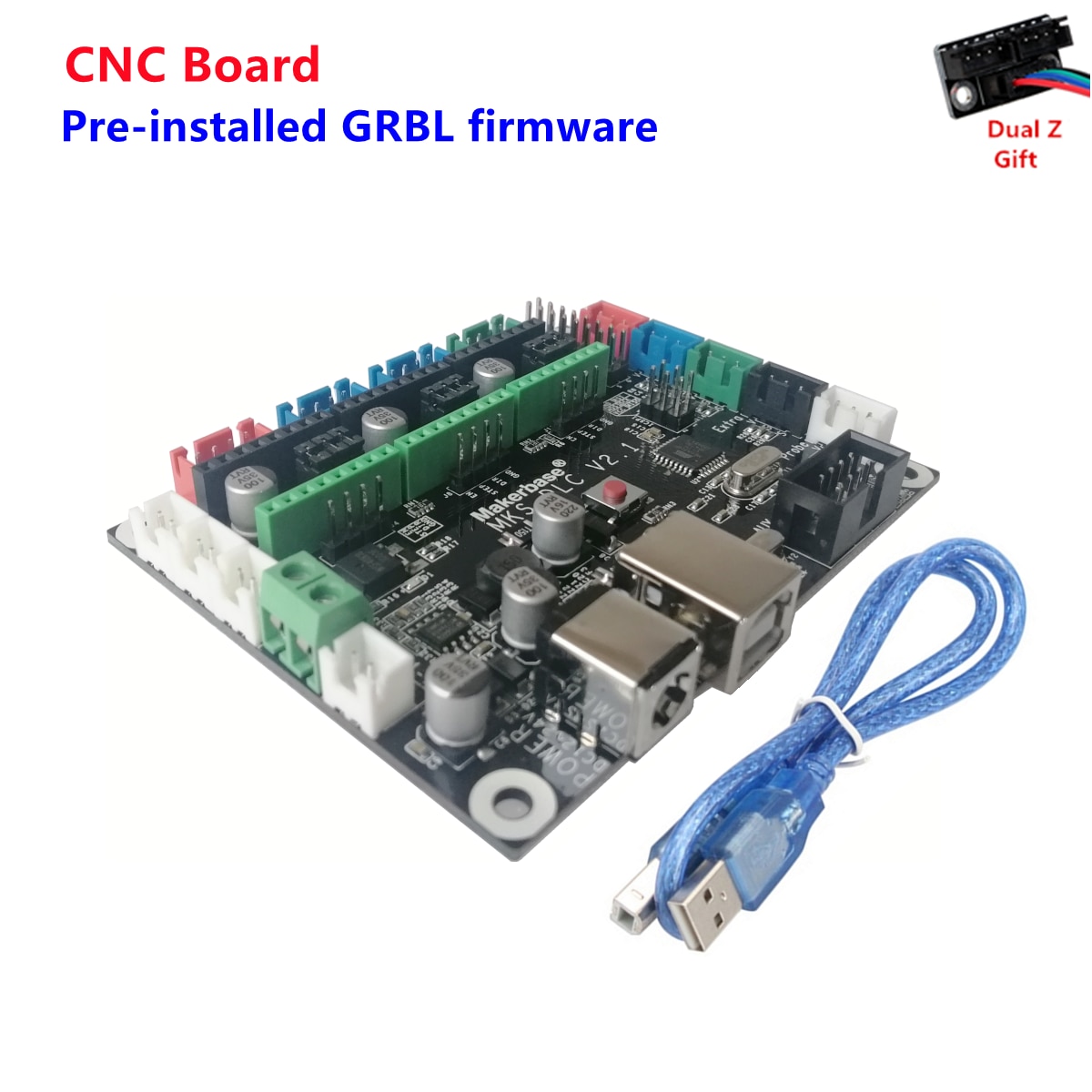

The controllers already pre-installed firmware.

Name: MKS DLC



Wiring



PINOUT




Size

Drivers Parameters

Caution!

Please mind the power polarity and  drivers direction.
Please don’t put the drivers or motors on/off when power on.
Please disconnect all motors when adjust driver current.



MKS TFT35 Touch Screen



Wiring

Wiring-M

Size

size

How to Use


Firmware Download and Update
https://github.com/Macrobase-tech/CNC-Firmware



1. Install Xloader to PC,upload GRBL firmware to CNC board.
Select baud rate 115200.



2. Display  firmware update

Select baud rate 115200 on TFT35 config.

Copy below files to SD card and plug it to TFT35 display.

3.Wire TFT35 to Aux-1 of CNC board.Then put board’s power on,it will update automatically.

4. Read G-code

   Copy G-code to SD card,plug it to the display.(SD card:1g-16g,Gcode format is nc.)

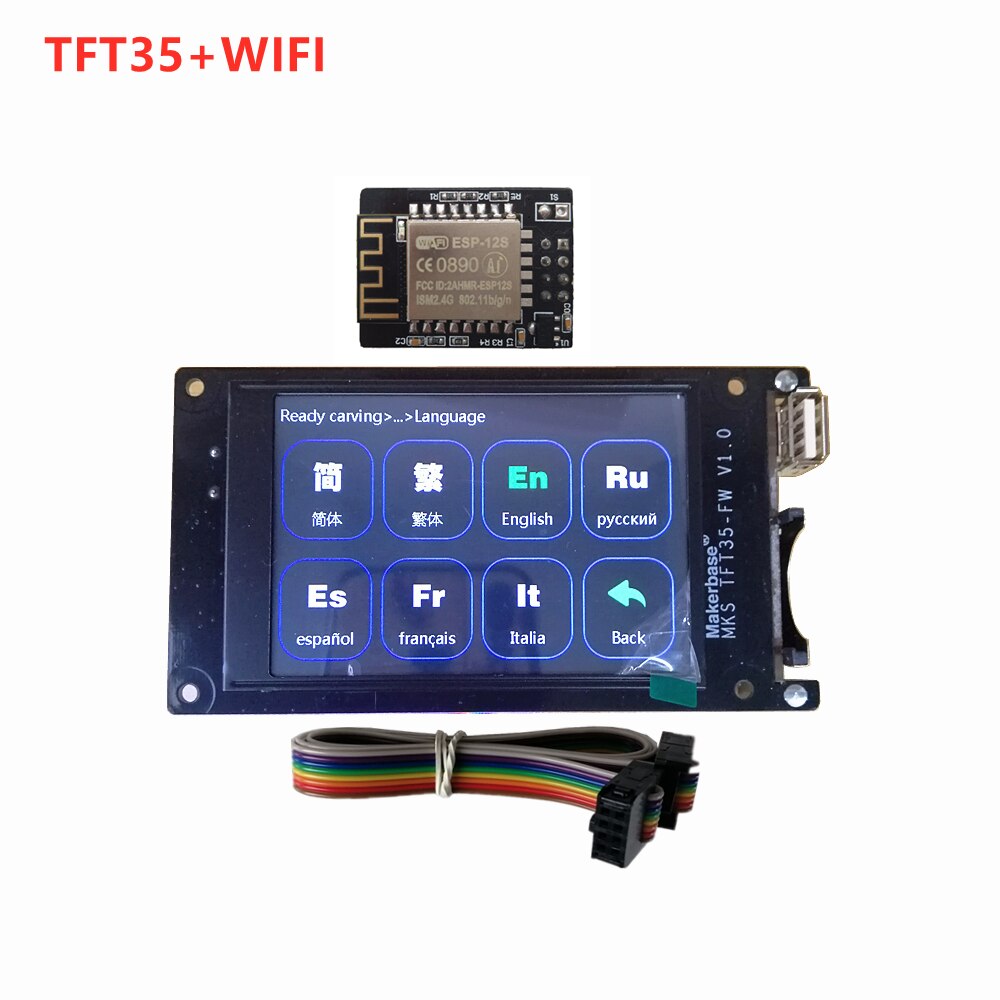

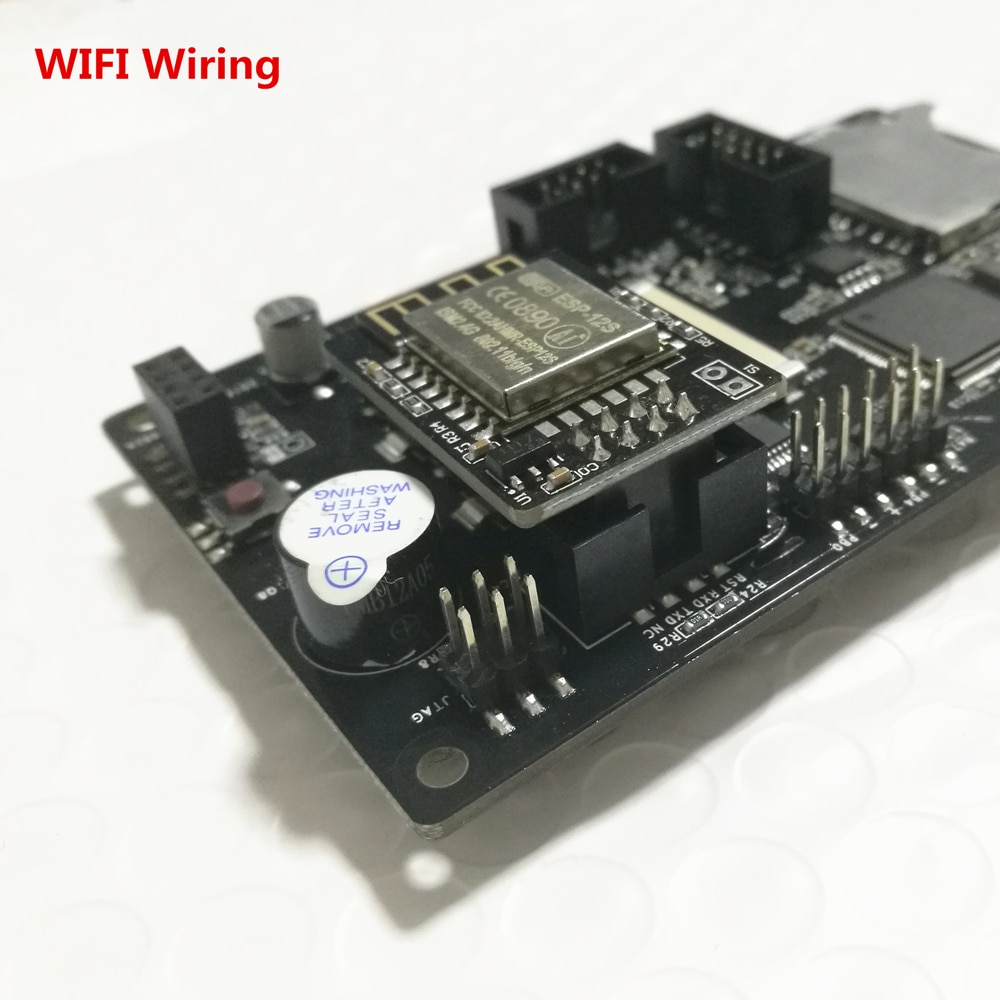

How to Use WIFI.
1.Connect to your WIFI.Enable WIFI on TFT config.And update the firmware to display.

2.Install MKSLaser APP to Phone.
