Description
- Brand Name: POELIDAR
- Origin: Mainland China
Applicable to the detection of unmanned vans, transfer vehicles, pedestrians and falling objects to prevent accidents.
The scanning area can be set and there are three outputs (alarm, deceleration, emergency stop).

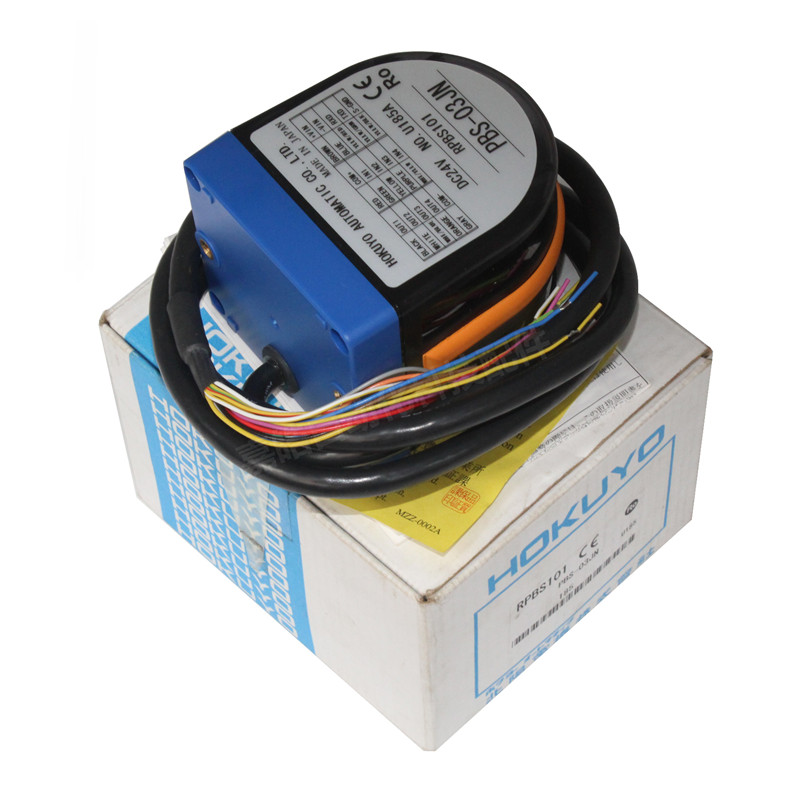

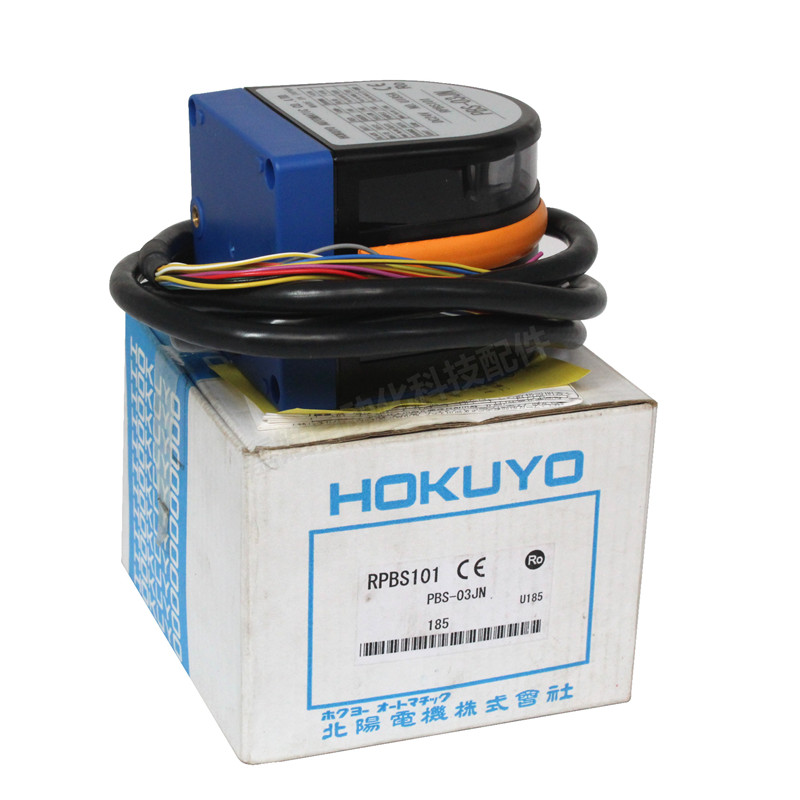

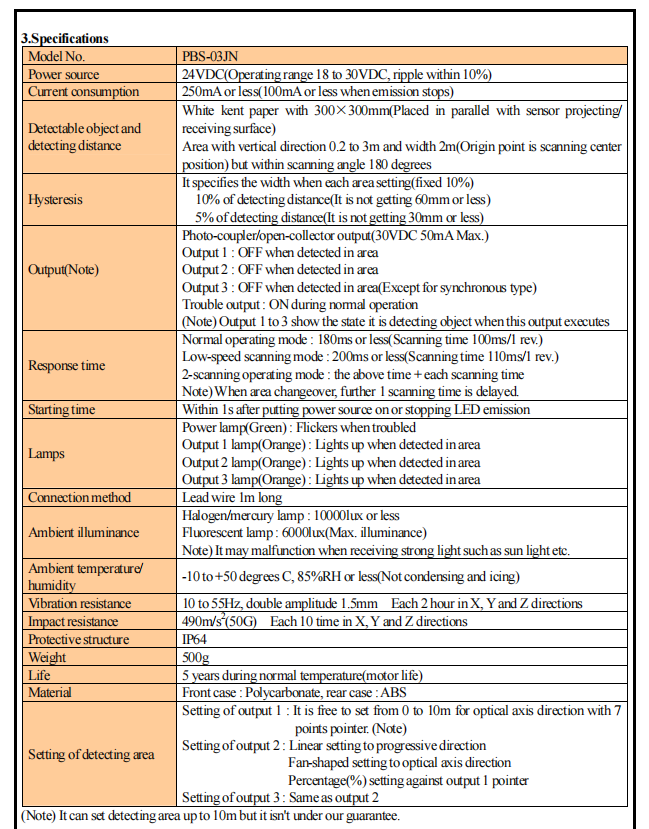

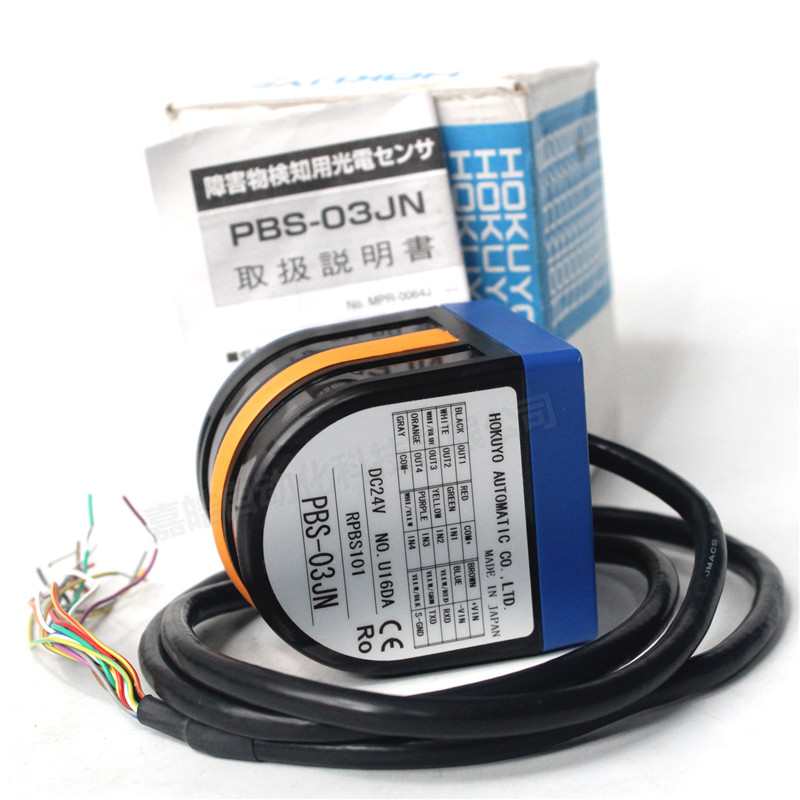

product name:PBS-03JN, LED area obstacle detection sensor
Supply voltage:24VDC (18-30VDC)
Supply current:<250ma (<100ma, lighting off)
Laser light source:Infrared LED

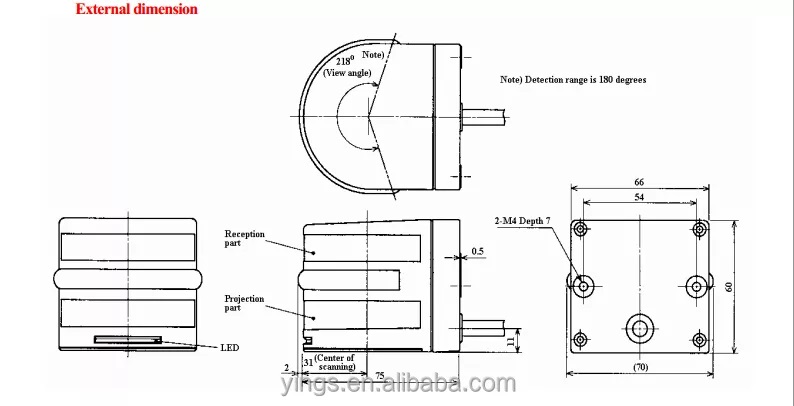

Monitoring object and scope:300×300mm white paper; 0.2 to 3m×2m (the origin is the scanning center position), scanning angle 180°
Locale output 1:0-10m free setting (10m is not guaranteed)
Locale output 2, 3:Rectangular setting / sector setting / percentage setting
Two scanning modes:Output can be set individually for each area
Hysteresis:< 10% of monitoring distance
Output:Photocoupler/NPN open collector output (30VDC <50mA);
Output 1,2,3:OFF= Detected object;
Fault Output: ON= Normal Operation

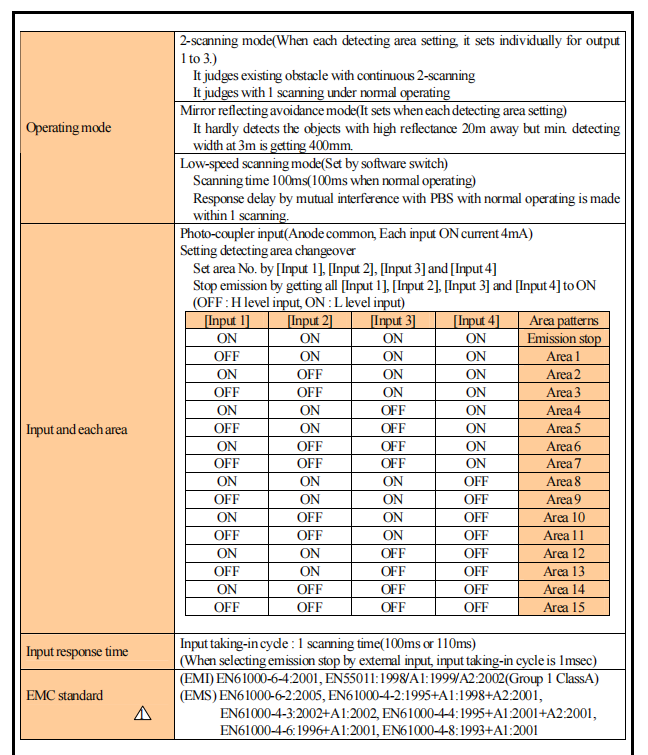

Input (1-4):Optocoupler input (common anode, each input current >4mA),
Can be used to switch monitoring areas
Monitoring area settings:Monitoring area conversion: Set the area by [input 1, 2, 3, 4];
Transmission stop: [input 1, 2, 3, 4] is ON at the same time;
Output response time:<180msec (scan speed 1rev./100msec>;
<280msec, 2 scan modes (except 100msec region conversion time)
Enter response time:Cycle: 1 scan time (100msec)
LED:Power (green): flashes on failure;
Output 1,2,3 (yellow): Lights indicate that the object was monitored
Cable length:1m
Environmental lighting
Halogen/mercury lamp: <10,000lx, Fluorescent: <6,000lx
Environmental temperature and humidity:-10 to +50 degrees C, < 85%RH (without condensation)
vibration:Dual amplitude 1.5mm 10 to 55Hz, 2 hours per axis
Impact:490m/s2, 10 Times, X, Y, Z Directions
Protection level: IP64 (IEC standard)
life:5 years (motor life)
material:Front: Polycarbonate, Rear: ABS
weight:About 500g
