Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Place of Origin: Guangdong, China
- Brand Name: Anying
- Model Number: A-SM1
- Response time: Less than 1s
- Soil moisture measuring range: 0-30%/0-50%/0-100%
- Soil moisture accuracy: 0-53%:±3%/53-100%:±5%
- Soil temperature measuring range: -40~80℃
- Soil temperature accuracy: ±0.5℃
- Waterproof: IP68
- Working environment: -40~85℃
- Material of probe: Food-grade steel
- Sealing material: Black flame-retardant epoxy resins
- Item name: soil moisture sensor

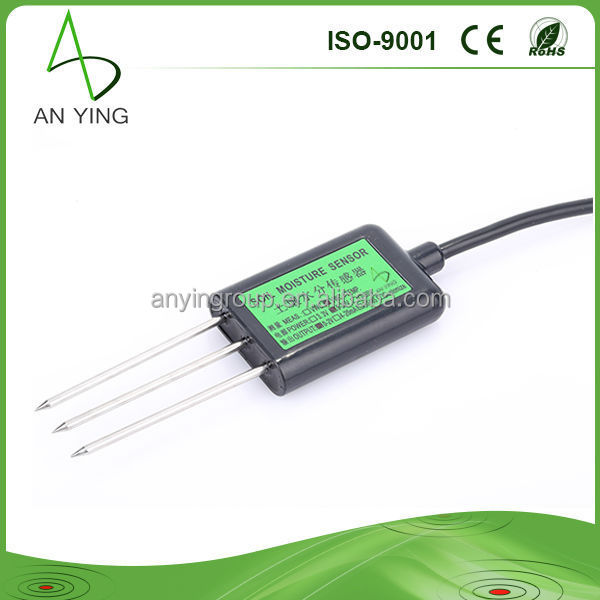

Highly Sensitive newest soil moisture meter
4 20 ma/RS485 Output Soil Moisture Sensor
“Quality is Our Culture!”
Click the picture or the title to know more details.
 |
 |
 |

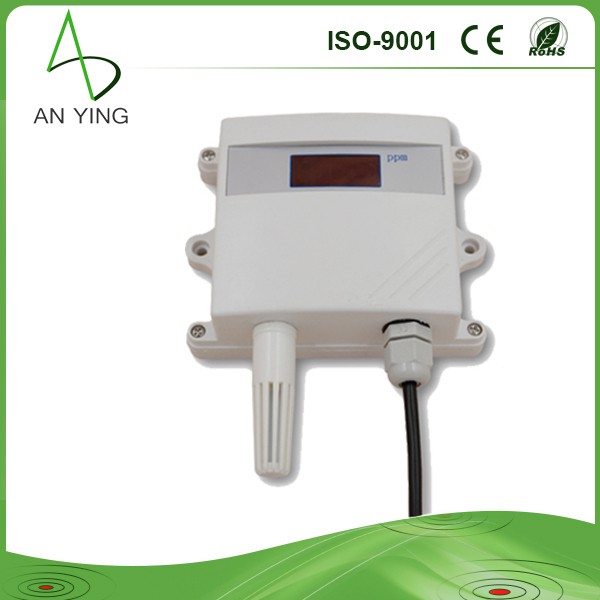

| Anying Temperature & Humidity Sensor TH6
Unique design, easy to install Relay & RS485 Output with external sensor Enable Software Management |

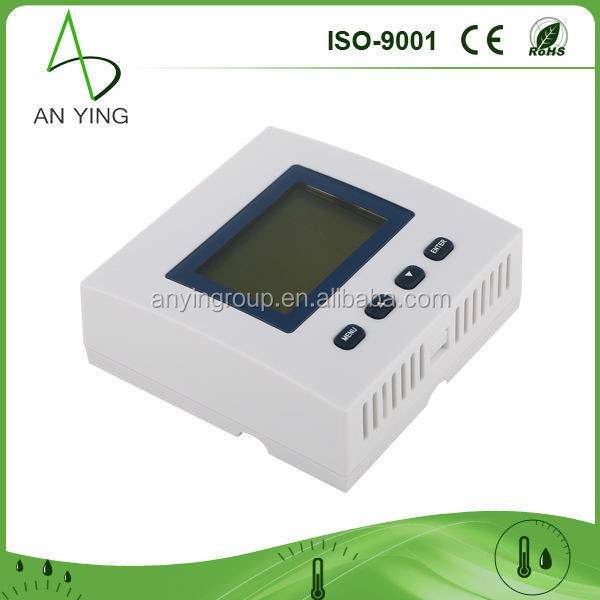

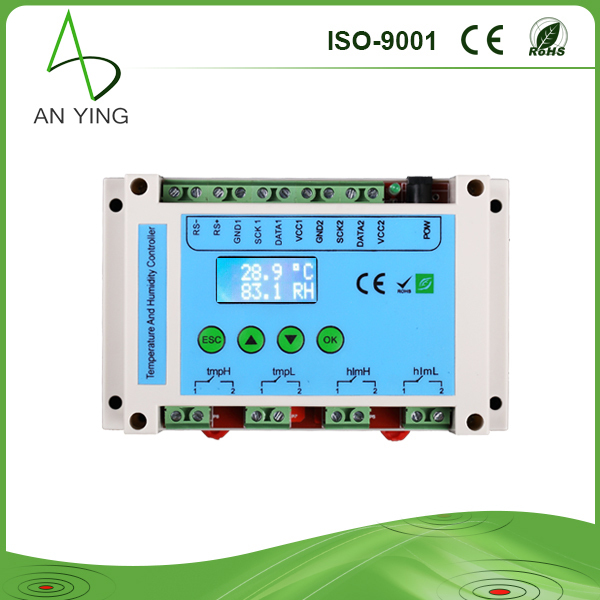

Anying Humidity & Temperature Controller TH1
Clear LCD screen to show real-time data RS485 Output with built-in sensor Enable Software Management |
High sensitive infrared sensor probe
Self-diagnosis function
Convenient installation and maintenance
Optional: 4~20mA , 0~5V , 0~10V or RS485 output
|
 |
 |
 |

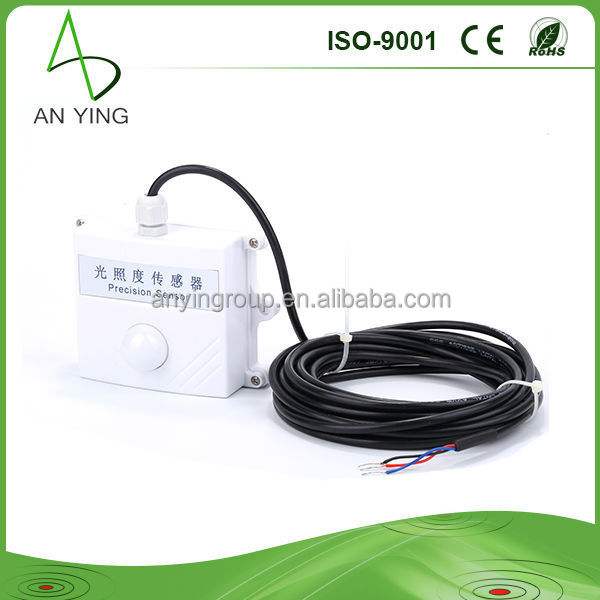

| Anying Lux Meter A-LUX1
Waterproof, easy installations
Stable remote control
3 optional output: 0-5V/4-20mA/RS485/RS232
3 optional power supply: 220V AC/24V AC/24V DC
|

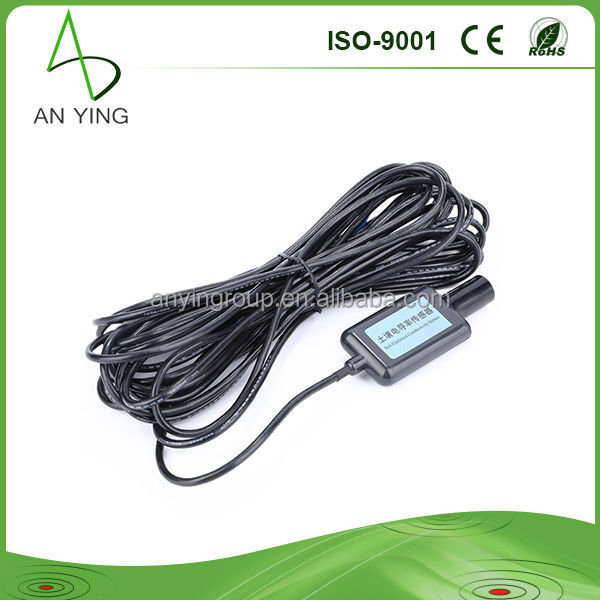

Anying Conductivity Sensor A-EC01
High sensitivity and stability
3 Options of Output signals:
Voltage output:0~5V or 0~2V
Current output:4-20mA
Digital output:RS485
|

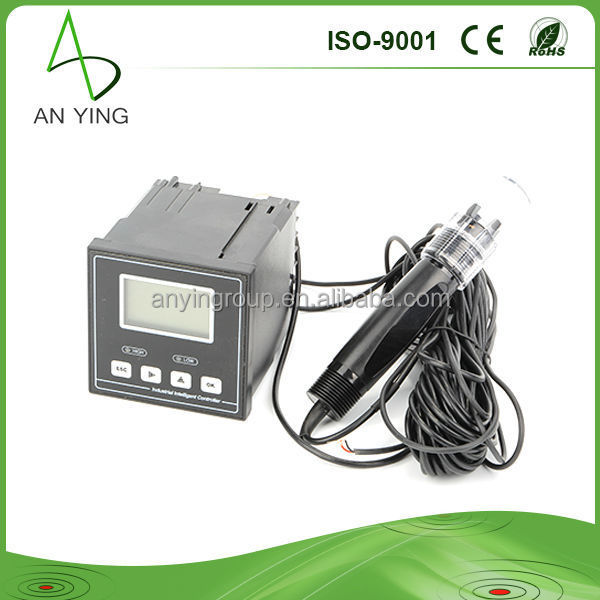

Anying PH Sensor A-PH01
Standard & friendly English interface
Equipted with relays
Together with temperature sensor
3 optional output: 0-5V/4-20mA/RS485
3 optional power supply: 220V AC/24V AC/24V DC
|

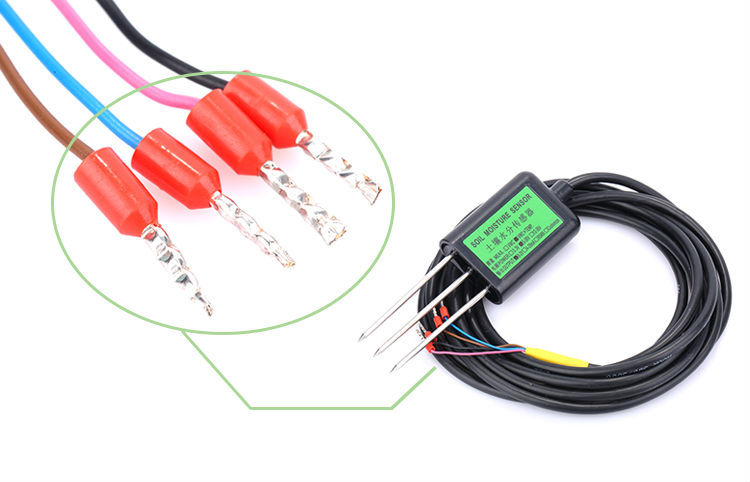

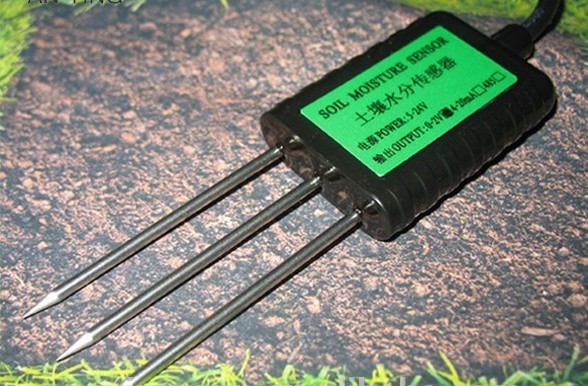

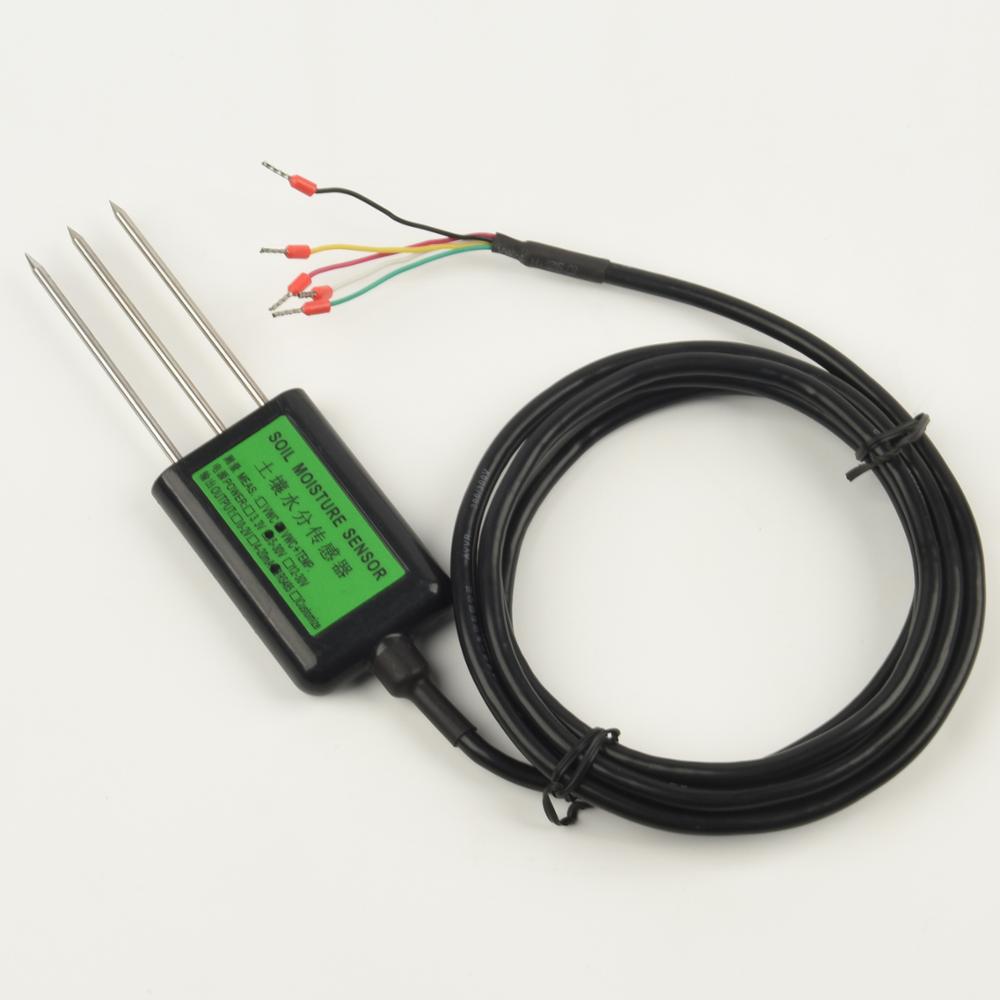

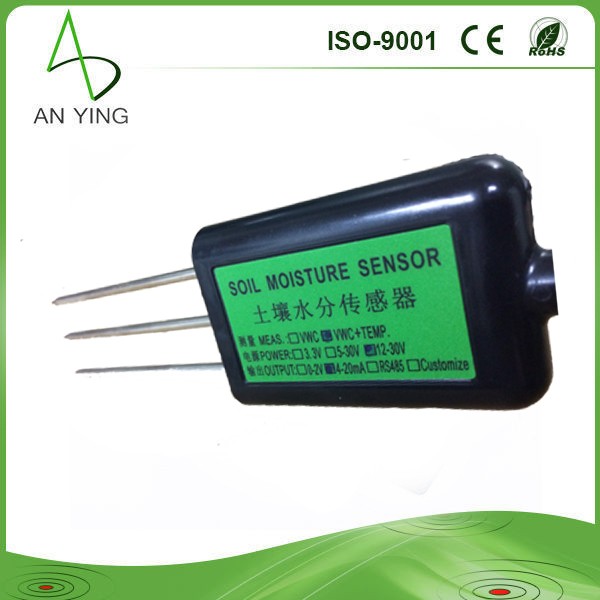

MS10 is a high-sensitivity and precise sensor to detect the real time moisture and temperature. By measuring the permittivity of soil, could directly and stably show the moisture. MS10 adopt International Standard measuring method to measure the water content of soil. It can be used in Scientific Experiment, Water-Saving Irrigation, Greenhouse, Flower & Vegetable Growing, Grass & Farm, Soil Quick Testing, Planting, Sewage Treatment, Grain Storage, Precise Agriculture etc., and it has been applied to Water Conservancy, Meteorology, and moisture of some particulate matter.
- High sensitivity and accuracy, good interchangeability, could be used in all kinds of soil.
- Reliably sealing, corrosion resisting, long serving life in the soil
- With flame-retardant epoxy resins to make sure strong waterproof and anti-impact ability.

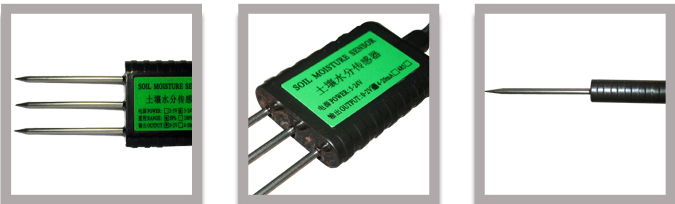

- Probe is made of high quality steel, the sensor can endure long time electrolysis and the corrosion of acid & base in the soil.
- Protected from inverse wire connection.
|
Technical parameter (Three Outputs, Free to Choose) |
|||
|
Signal output |
Voltage output 0-2V Output resistance <1Kohm |
Current output 4-20mA <500ohm |
RS485 Communication, Mod bus Protocol |
|
Supply voltage |
5-24V/DC |
12-24V/DC |
5-24V/DC |
|
Max Power consumption |
40mA@24V DC |
80mA@24V DC (when both of the current output are 20mA) |
30mA@24V DC |
|
Detected area |
In the 7cm high, 7cm diameter cylinder with the central pin as the center |
||
|
Response time (water content and temperature) |
Less than 1s |
||
|
Soil moisture measuring range |
choice: 0-30% 0-50% 0-100% |
||
|
Soil moisture accuracy |
0-53%: ±3%; 53-100%: ±5% |
||
|
Soil temperature measuring range |
-40~80℃ |
||
|
Soil temperature accuracy |
±0.5℃ |
||
|
Waterproof |
IP68 |
||
|
Working environment |
-40~85℃ |
||
|
Storage environment |
-40~85℃ |
||
|
Material of probe |
Food-grade steel |
||
|
Sealing material |
Black flame-retardant epoxy resins |
||
|

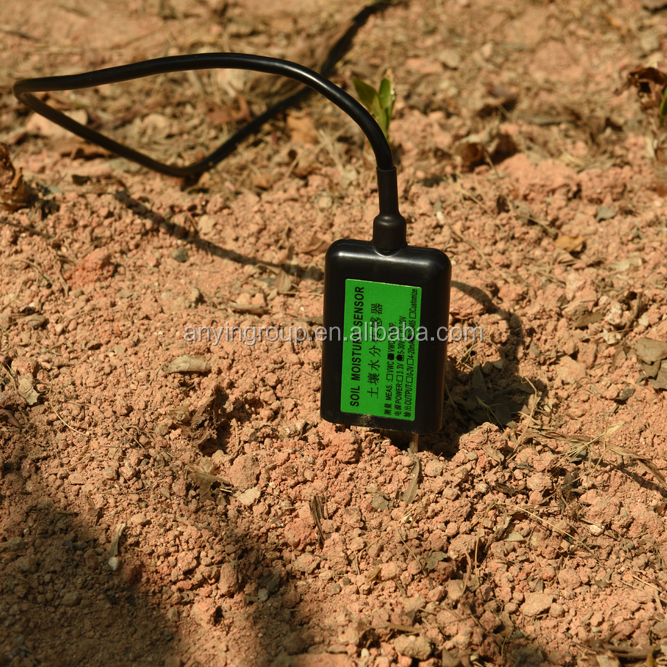

Installation way |
Complete buried or pins buried in the detected medium |
||
We offer the free bundled software of this sensor (WIN version), and we could provide the protocol.
The OEM service is offered if needed.
