Description

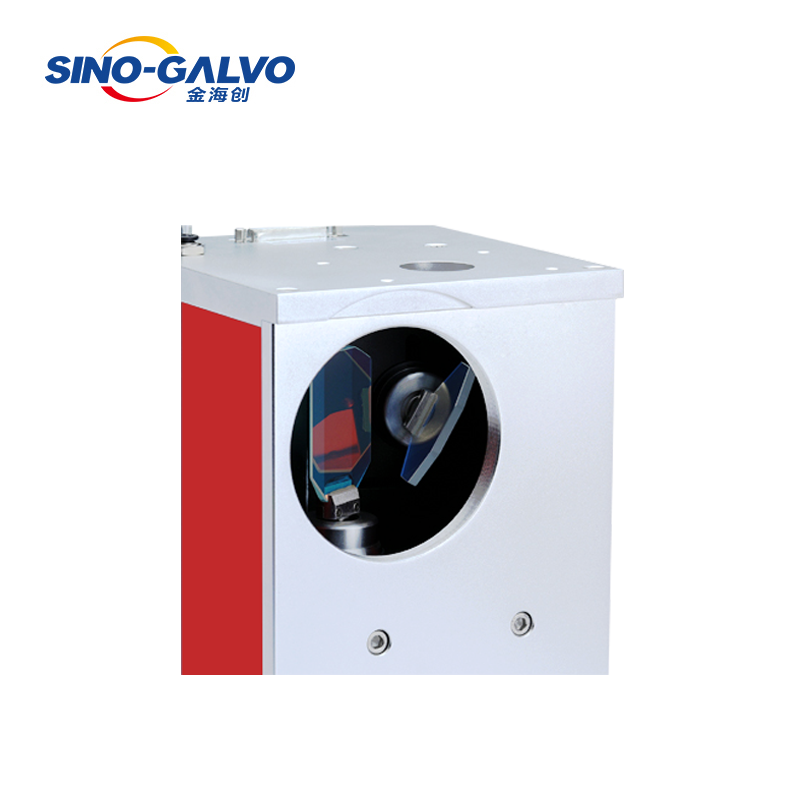

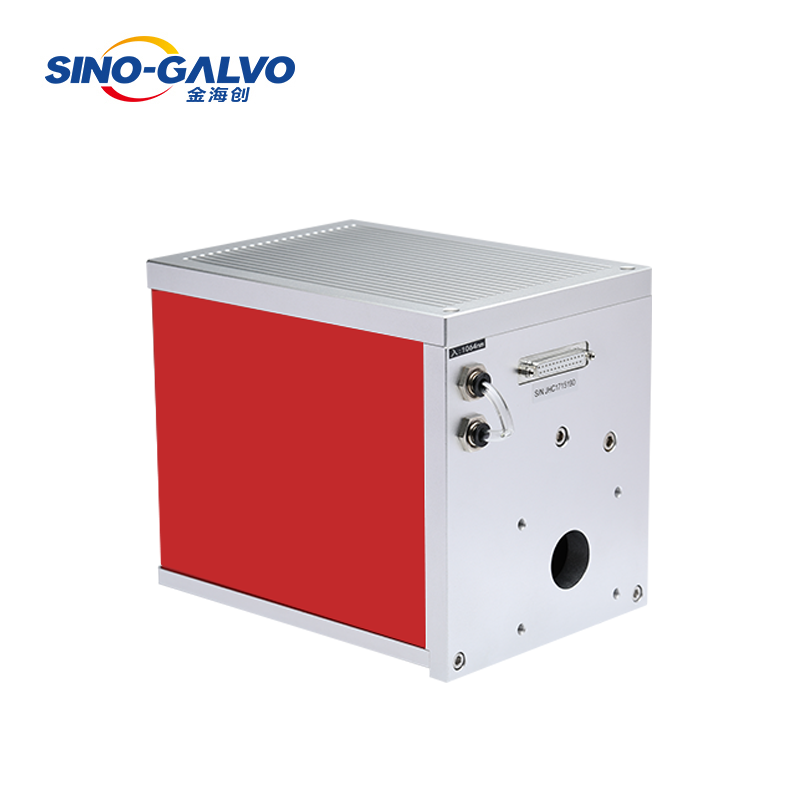

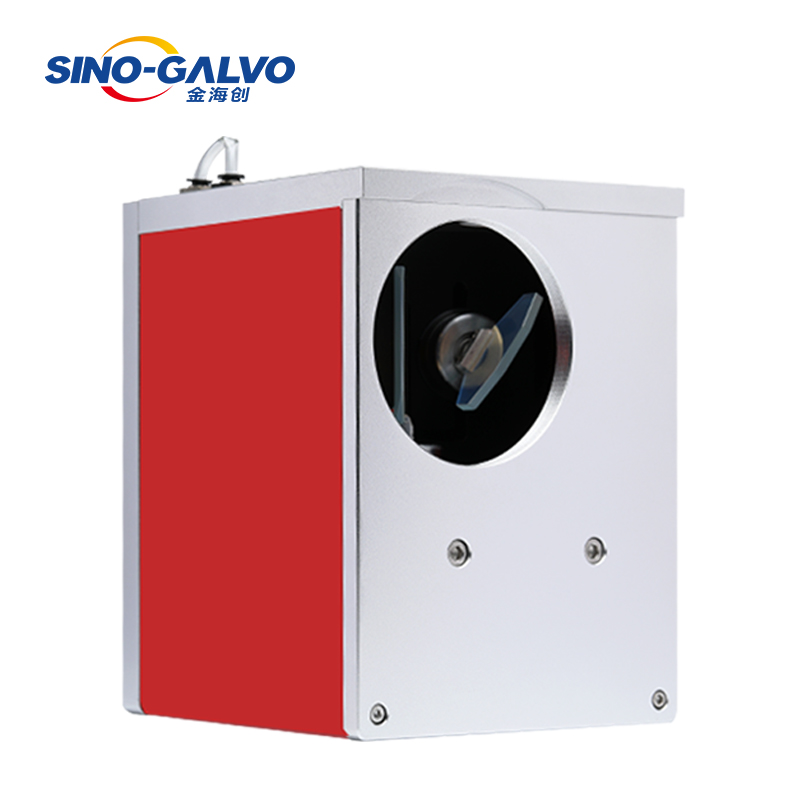

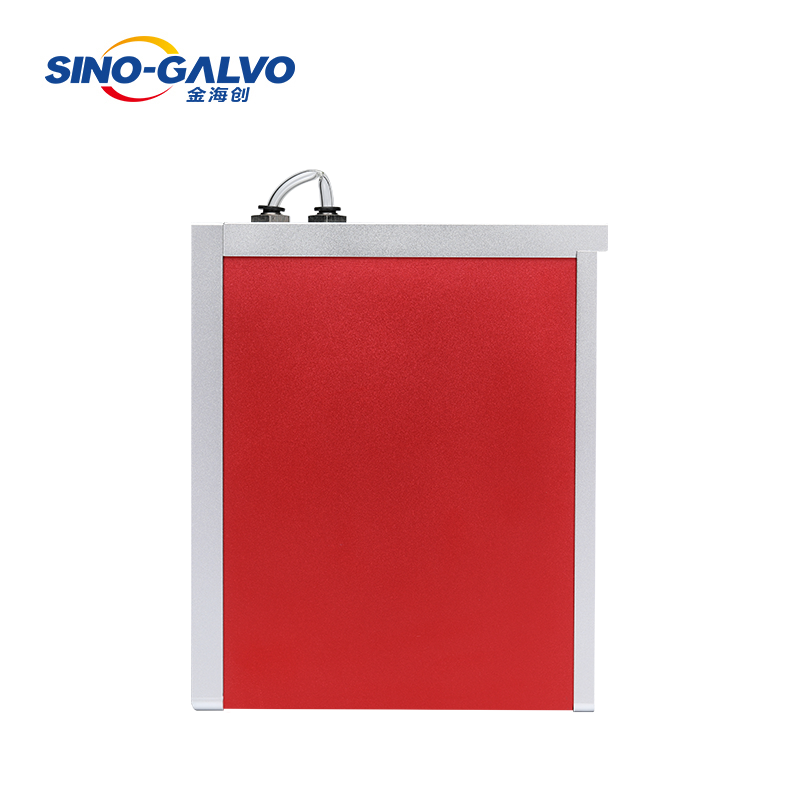

Higher speed 30mm Beam aperture SG8230 laser cutting head / galvo scanner / scan head for leather,shoe,fabric,denim cuttingDesigned with analog and digital interface;Adopted the unique double circulation water cooling system;The input aperture is 30mm.Mainly used in high-power laser welding and cutting.It has the characteristics of zero drift, higher speed, lower temperature and easy installation, etc.
|
Motor Specification |
||
|
Working Temperature |
0-45℃ |
|
|
Linearity |
99.9% |
|
|
Setting Time |
≤1.2ms |
|
|
Scale Drift |
<40PPM/℃ |
|
|
Zero Drift |
<15μRad./℃ |
|
|
Long-term Drift Over 8 Hours |
<0.5mRad |
|
|
RMS Current |
3.5A |
|
|
Peak Current |
25A(Max) |
|
|
Maximum Scan Angle |
±15° |
|
|
Storage Temperature |
-10 to +60℃ |
|
|
Resolution |
12μrad |
|
|
Repeatability |
8μrad |
|
|
Input Aperture |
30.0mm |
|
|
Beam Displacement |
39.6mm |
|
|
Weight |
7600g |
|
|
Frequency |
≤400Hz |
|
|
Wavelength Options |
355,532,840,1064,1550,10600, |
|
