Description

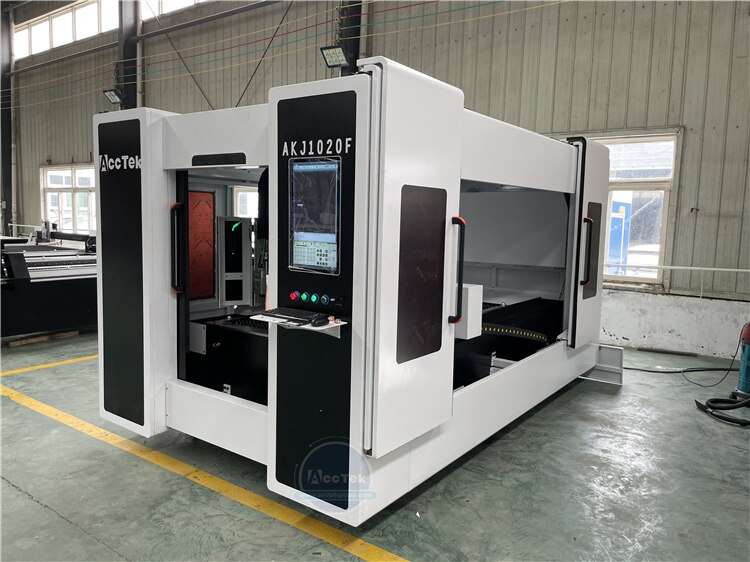

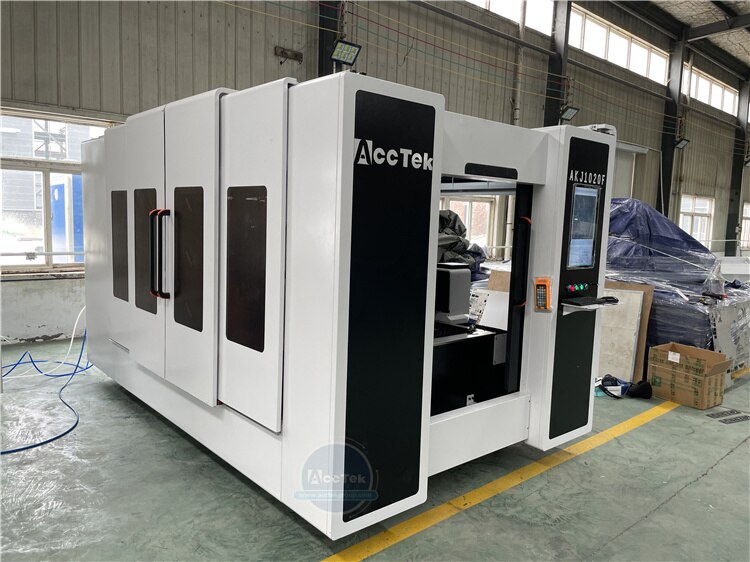

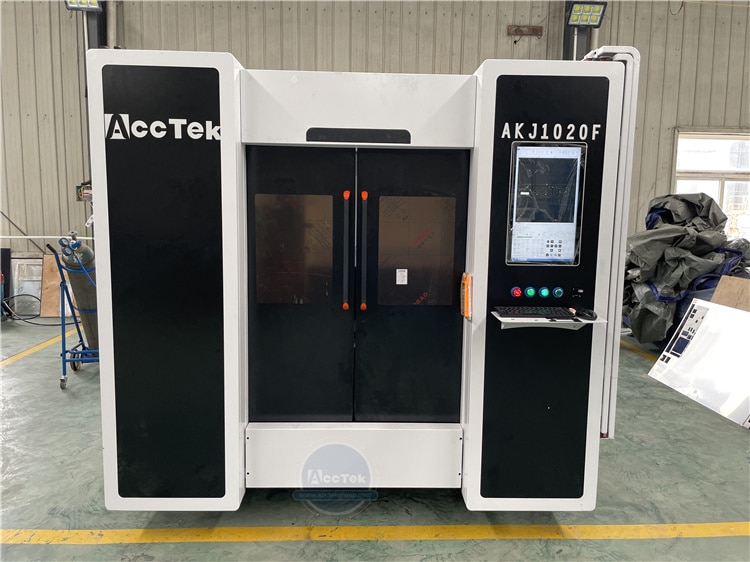

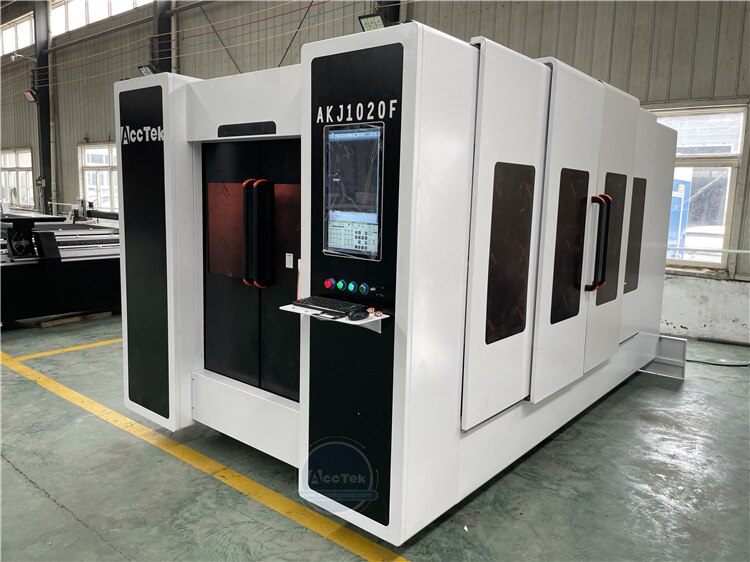

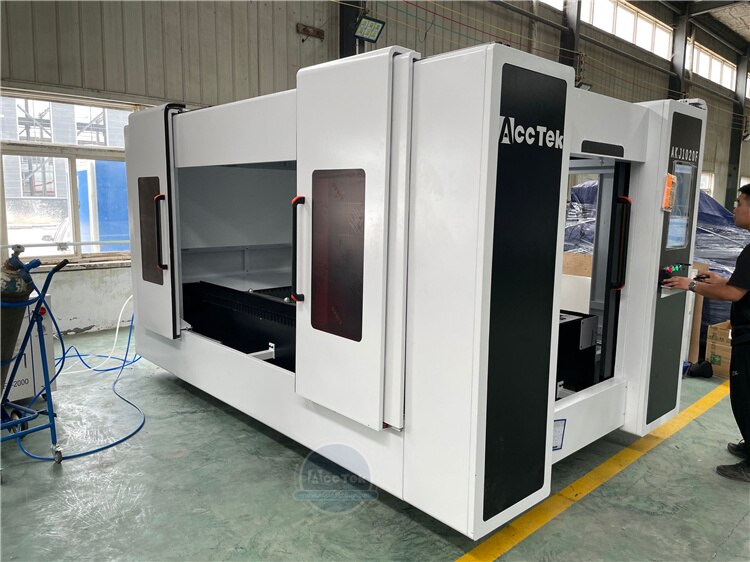

High Speed Single Mode Fiber Laser Cutting Machine Cypcut Control System Laser Cutting Machine 1020
- Brand Name: ACCTEK
- Certification: ce
- Model Number: AKJ1020F
- Certification: CE
- Product name: High Speed Single Mode Fiber Laser Cutting Machine
- Keywords: Cypcut Control System Laser Cutting Machine 1020
- MOQ: 1 set
- Type: AKJ1020F
- Working area: 1000*2000mm
- Control system: Cypcut
- Cutting Speed: 0-600mm/s
- Driving System: XY axis Yaskawa 850w, Z axis Pansonic 400w
- Laser source: Raycus
- Transmission: Rack and pinion
High Speed Single Mode Fiber Laser Cutting Machine Cypcut Control System Laser Cutting Machine 1020
Main features:
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating Cypcut system which makes the best cutting effect.
3. The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
|
Working area
|
1000*2000mm
|
|
|
Control System
|
Cypcut
|
|
|

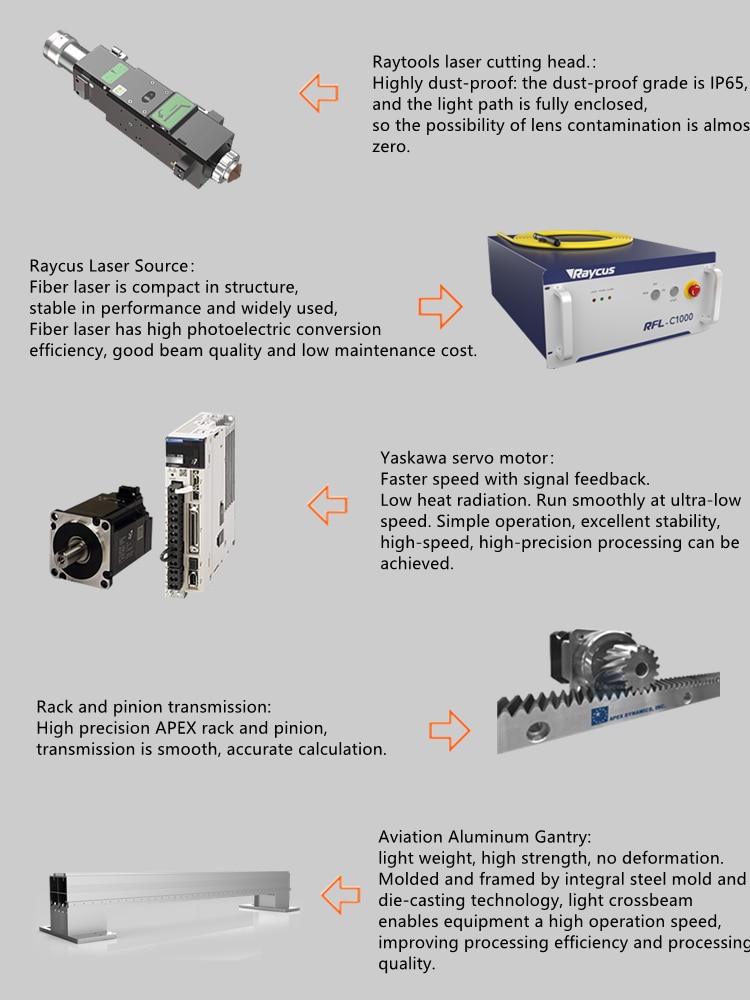

Cutting head
|
Raytools fiber laser head
|
|
|
Guide rail
|
Taiwan Lapping 30mm linear guide rail
|
|
|
Transmission
|
Taiwan APEX gear and rack transmission
|
|
|
Electronic Components
|
French Schneider
|
|
|
Motor
|
XY-axis Japanese Yaskawa servo motor 850w
Z axis Panasonic servo motor 400w
|
|
|
Max Speed
|
120m/min
|
|
|
Repeat positioning accuracy
|
±0.02mm/m
|
|
|
Maximum Acceleration
|
1.0G
|
|
|
Min line width
|
0.1mm
|
|
|
Power Requirements
|
380V, 50/60Hz
|
|
|
Cooling Way
|
Water Cooling
|
|
|
Machine Operating temperature
|
0 ℃ -40 ℃
|
|
|
Graphic Format Supported
|
AI, BMP, DST, DXF, DXP, PLT
|
|
Application:
Application materials:
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet(tube), Mild Steel Plate(tube), Carbon Steel Sheet(tube), Alloy Steel Plate,
Spring Steel Sheet(tube), Iron Plate(tube), Galvanized Iron(tube), Galvanized Sheet, Aluminum Plate(tube), Copper Sheet(tube), Brass Sheet, Bronze Plate,
Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate Tubes and Pipes, etc
Application industry:
This Fiber Laser Cutting Machine is applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery,
precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising,
metal foreign processing various manufacturing processing industries.

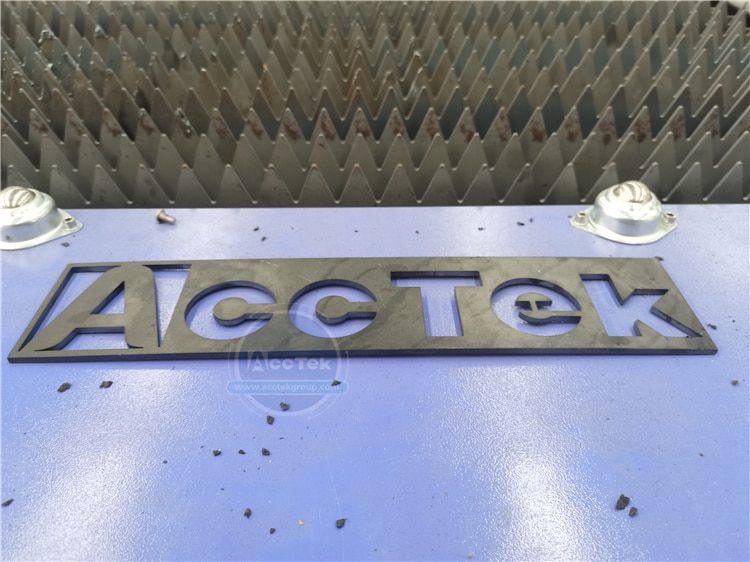

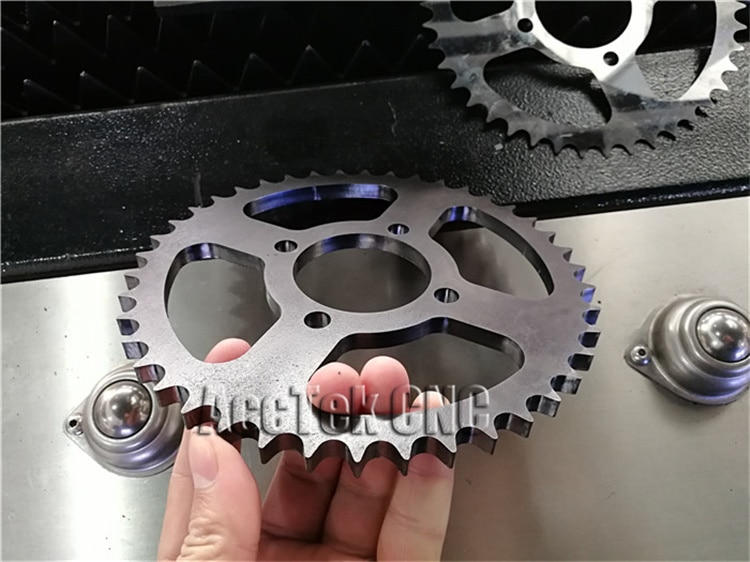

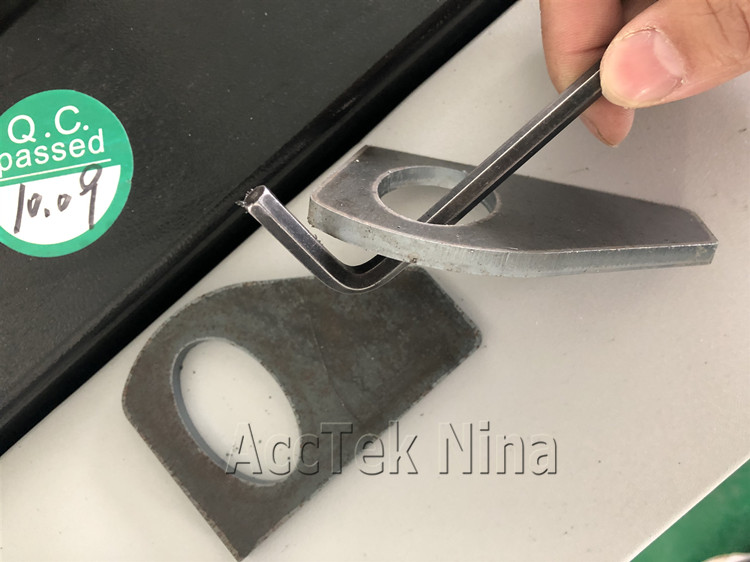

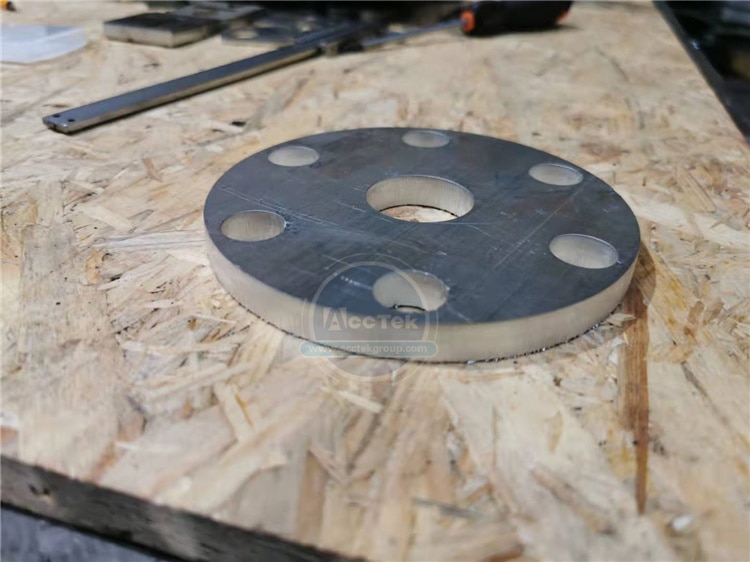

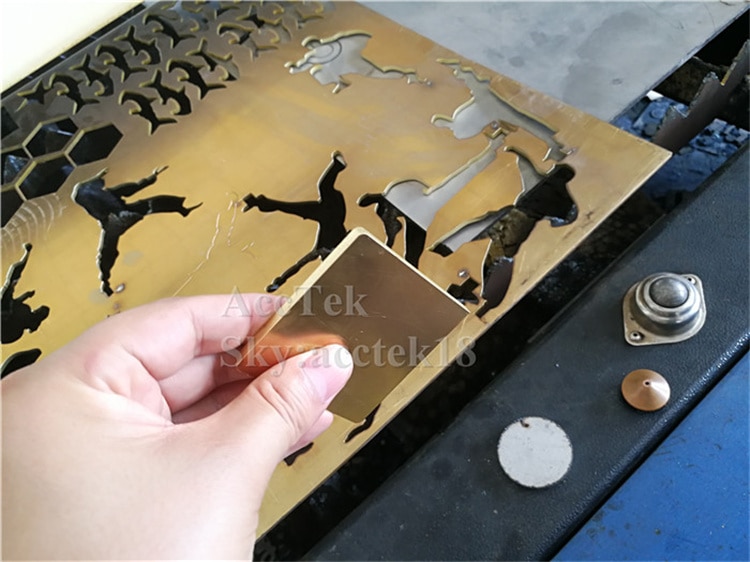

Samples:
