Description
- Brand Name: TailKuKe
- DIY Supplies: ELECTRICAL
High speed photodiode detector
1, using imported Hamamatsu company high-speed photodiode
2, wavelength response range: 300nm ~ 1100nm
3. Cutoff frequency: >1GHz
4, rising edge: <300ps, falling edge: <500ps
5, the output voltage range: 0-12V (when 12V voltage supply)
6, the power supply voltage 9 ~ 24VDC
7, can be used to detect ultra-fast pulse laser such as femtosecond or picosecond, can also detect nanosecond laser pulse and quasi-continuous laser of us or ms level, can also be used to directly detect the intensity of continuous laser or non-laser source

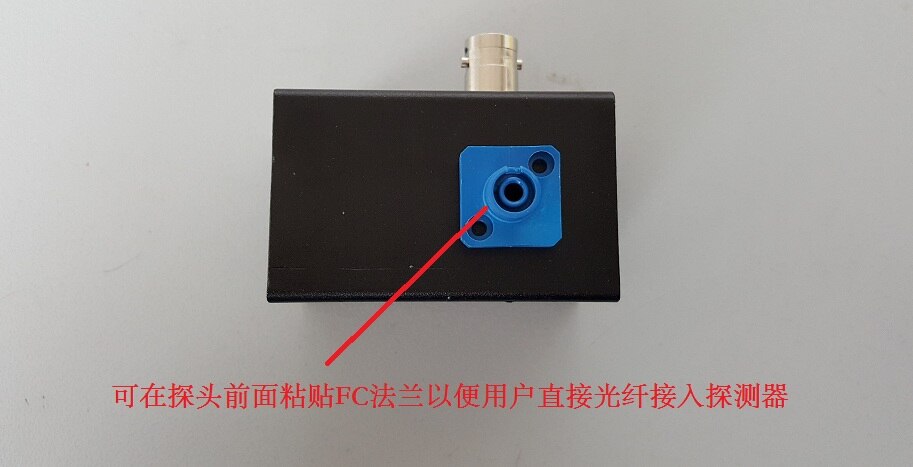

Note: The detector material is silicon. The probe photosensitive diameter is less than 0.5mm. The default is free space light entering the probe. If you need it, you can attach the FC flange to the front of the probe so that the user can directly access the detector with fiber. Please explain in advance when purchasing, the default delivery detector does not have FC flange
Delivery list: One photodetector, one 12V DC regulated power supply.

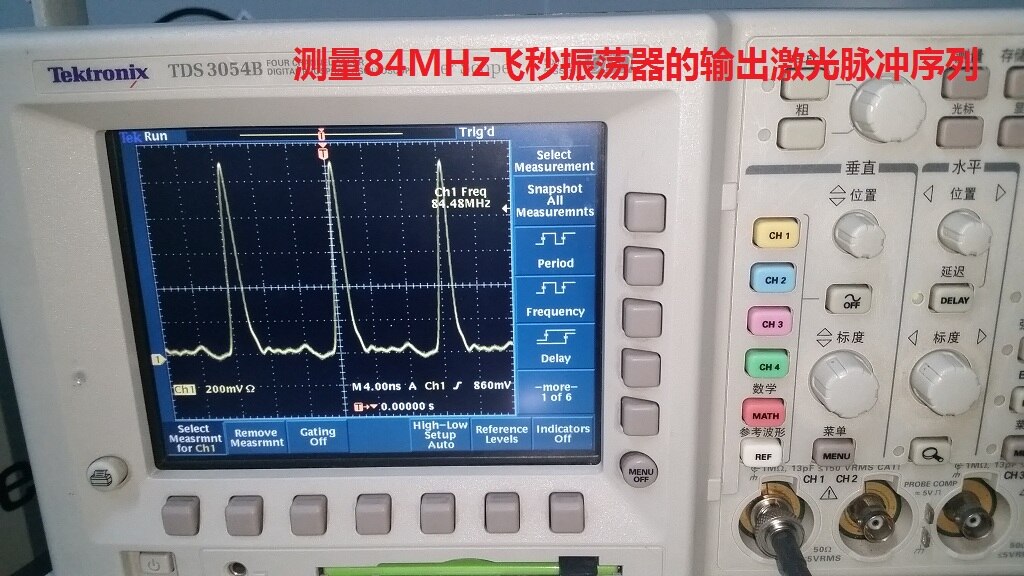

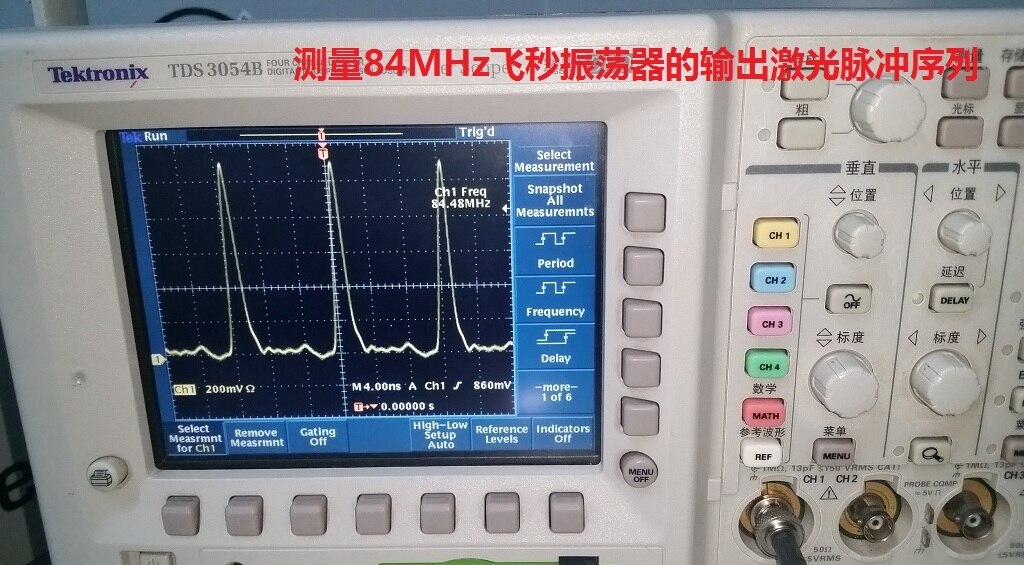

The following figure shows the waveform of the probe femtosecond oscillator:

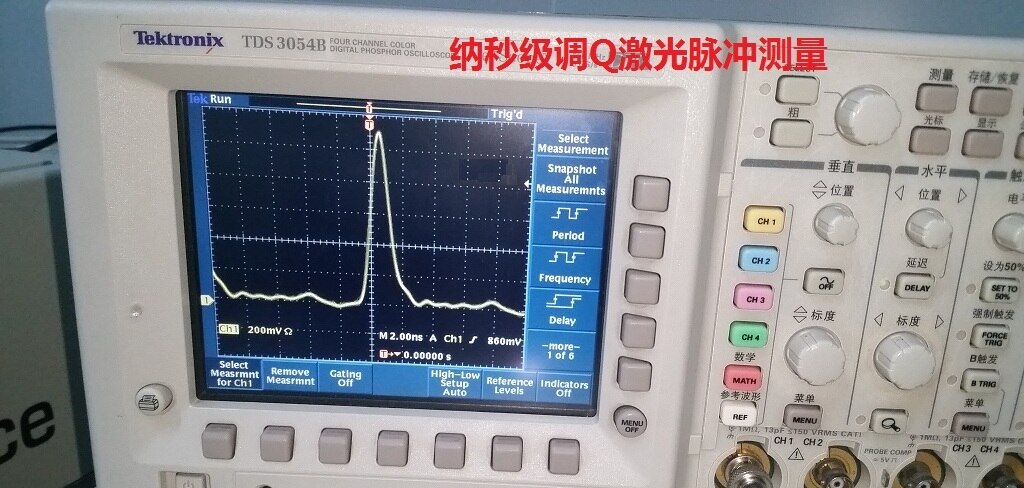

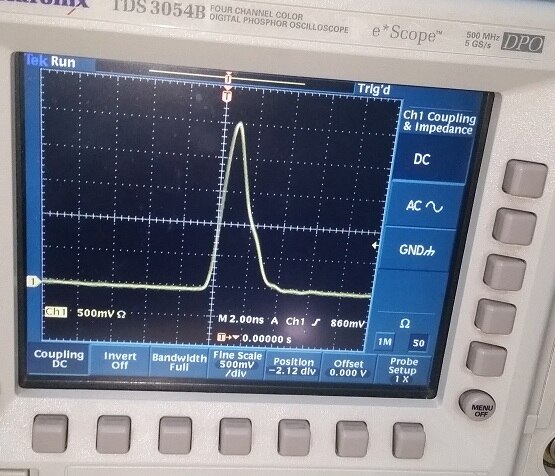

The following figure shows the waveform of a nanosecond Q-switched laser.
