Product Description
|

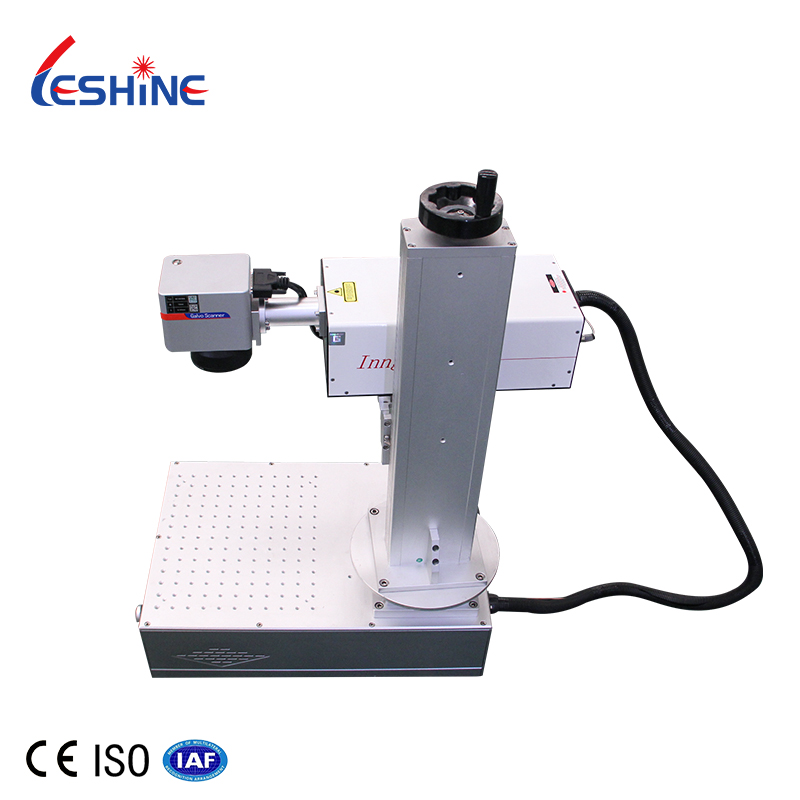

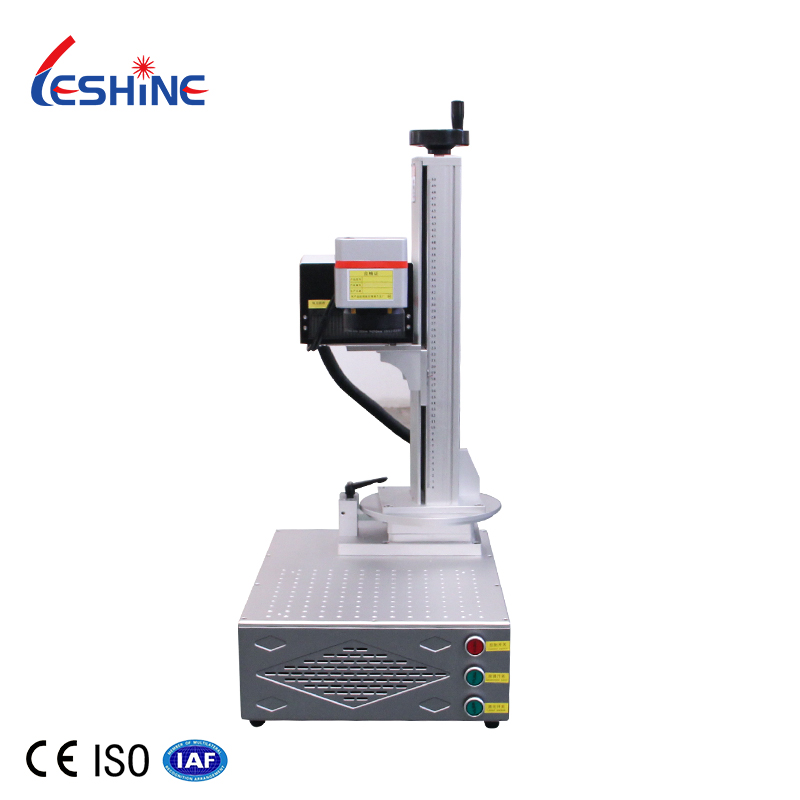

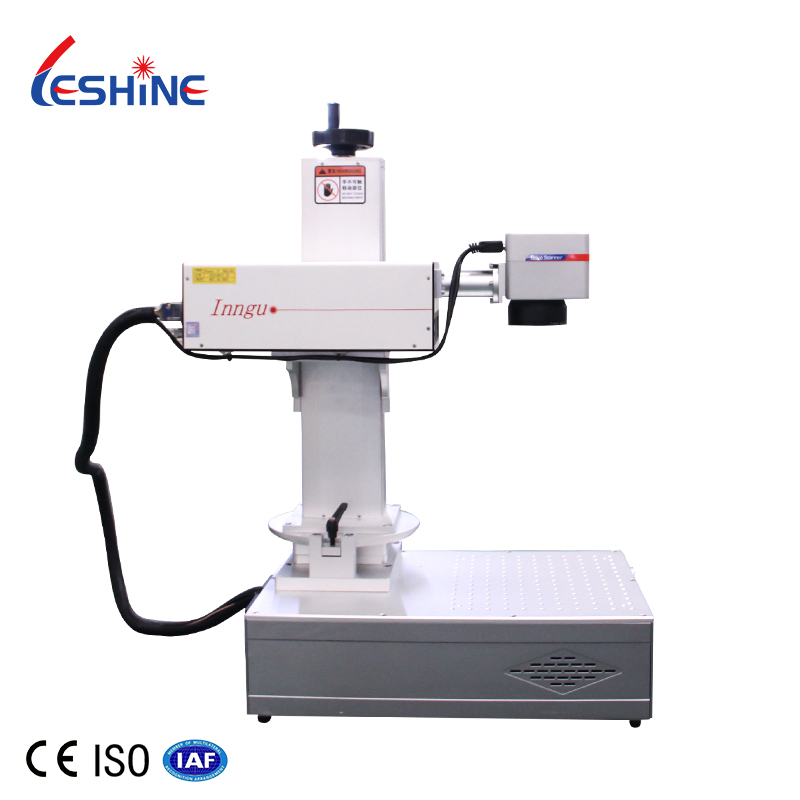

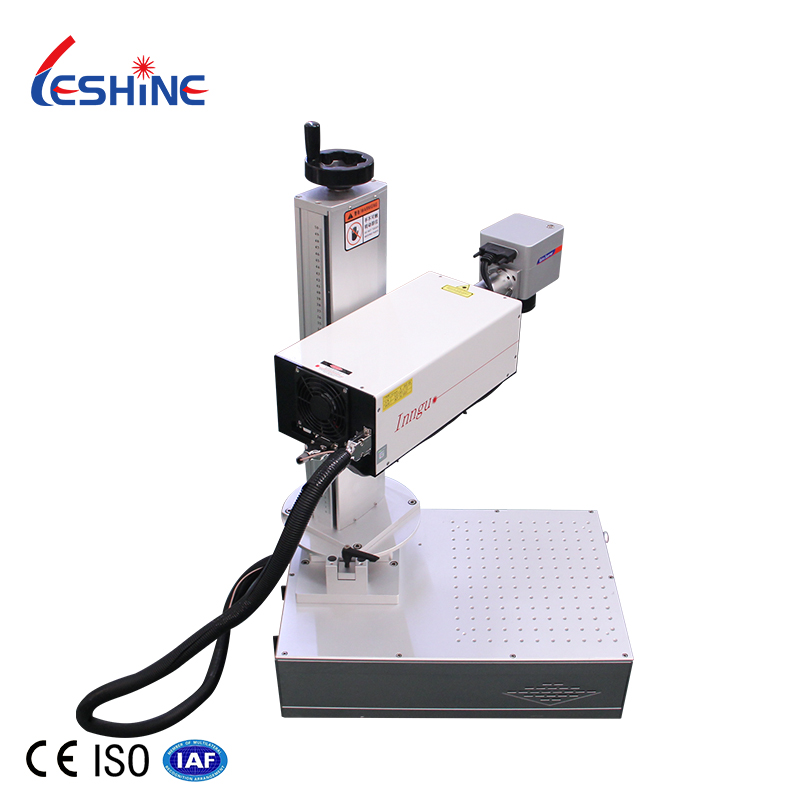

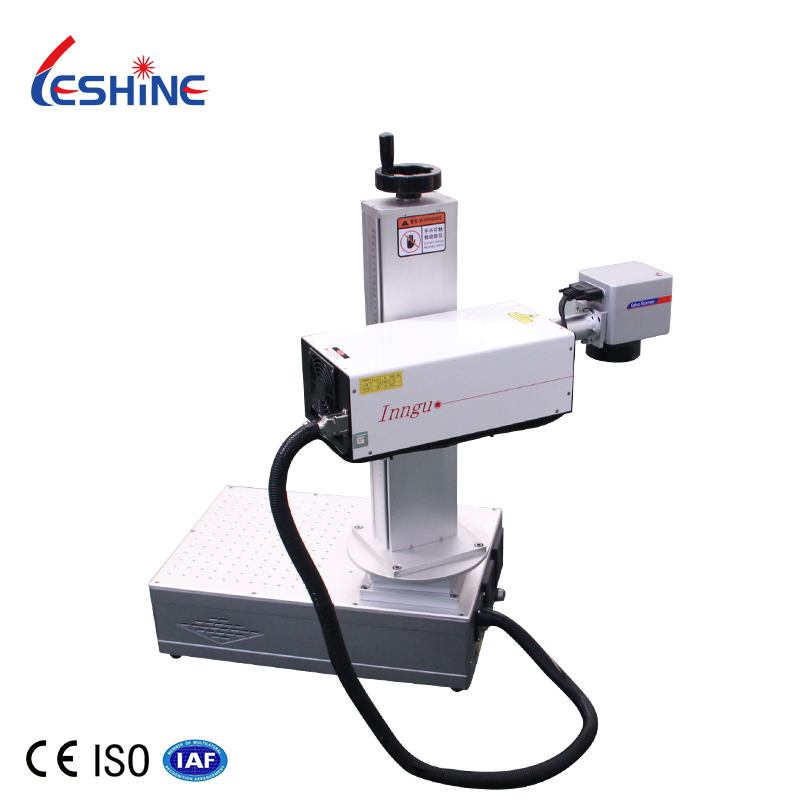

UV Laser Marking Machine
Product application Main used for all kinds of glass, Charger shell of Samsung and iphone , earphone, TFT, LCD, plasma screen, textiles, thin ceramic, silicon, IC crystal, sapphire, polymers, drug, cosmetic, polymer materials such as wire, bottles surface marking and micro-hole. Performance characteristics l UV laser with stable water-cooling system. l UV laser temperature control PID with high precision. l Choose a variety of models for first pulse suppression, to achieve the best inhibitory effect. l Flexible control mode, full parameter sit-in and outside control selection, suitable for different processing requirements. |
||||||||
Specification
|
Laser power
|
3W
|
5W
|
|
|
Laser wavelength
|
355nm
|
||
|
Pulse Repetition Rate Range
|
10KHZ–150KHZ
|
||
|
Pulse width
|
≤16ns@30KHZ
|
||
|
Average Power
|
>3W@30KHZ
|
>5W@30KHZ
|
|
|
Average Power stability
|
<3% over 24 hours
|
||
|
Marking speed
|
8000mm/s
|
||
|
Marking area
|
Recommend:150x150mm
|
||
|
Machine Control
|
EZCAD 2.0
|
||
|
Machine type
|
Portable split
|
||
|
Marking materials
|
Metal and nonmetal materials,such as Glass, ceramics.
|
||
|
Ambient temperature(ºC)
|
15-30
|
||
|
Storage temperature(ºC)
|
-15-50
|
||
|
Relative humidity
|
10%-80%(non-condensing)
|
||
|
Operating voltage(V)
|
110v/220v(Optional)
|
||
Product configuration
355nm UV Laser source
—The new air-cooled design is more convenient and easy to use.
—It can work normally without a chiller, which is more convenient.
360°rotating column design
—
It can rotate 360°, which is more convenient for your marking work.
It can rotate 360°, which is more convenient for your marking work.
UV 355nm Laser scan head
—It has the advantages of fast marking speed and high marking accuracy.
—It has a red light indicator, which is more convenient for you to find the marking focus.
EZCAD Control Card
—It is very convenient control system,High precision and long service life.
Sample
1.–All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition. 2.–Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material.
