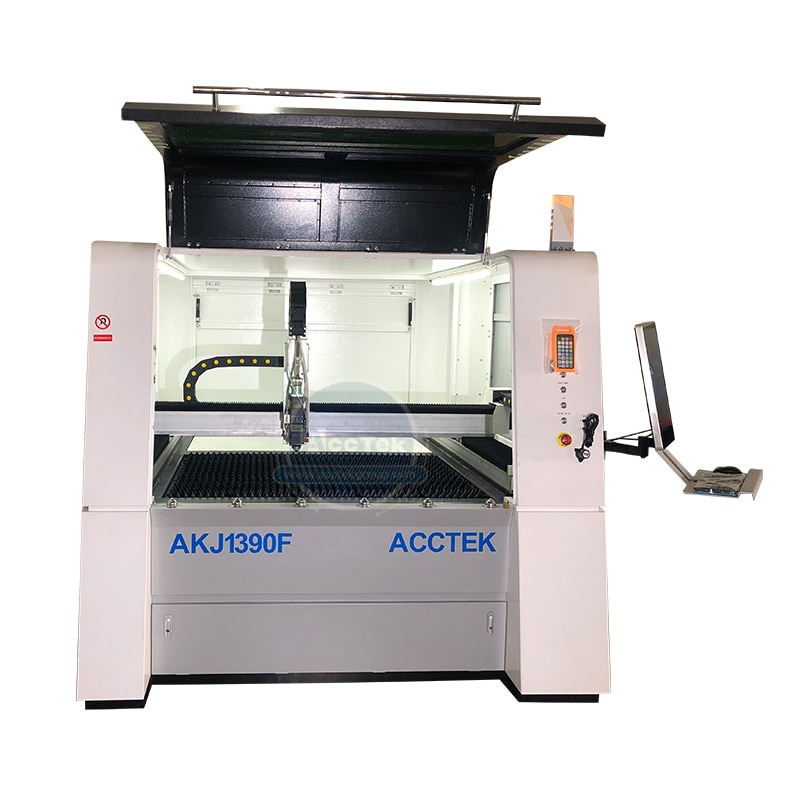

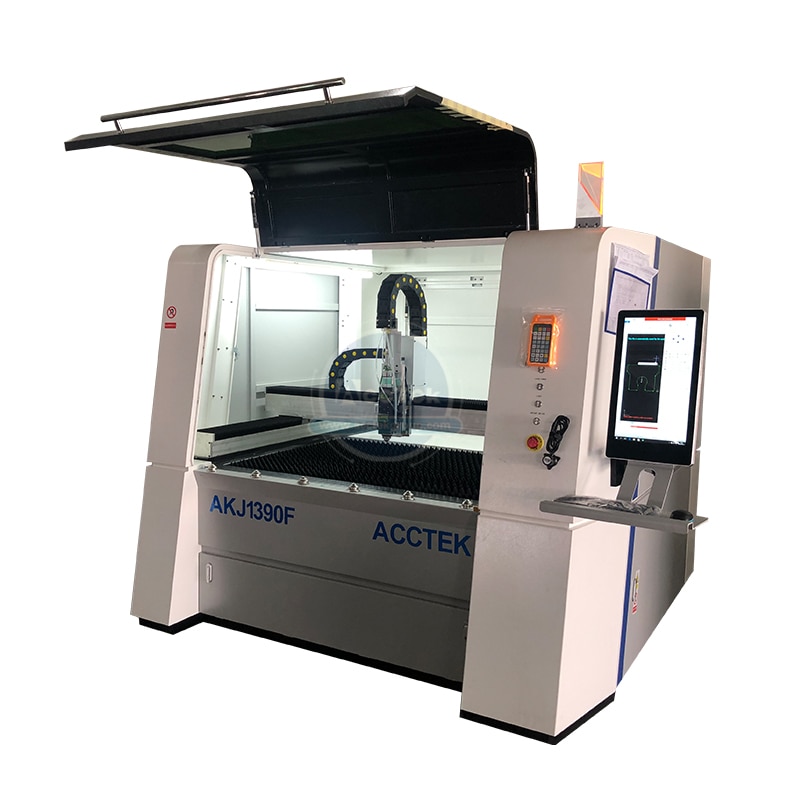

High Precision Middle Area CNC Fiber Laser Cutting Machine 1390 Metal Laser Cutter 1000w

$79,827.35

20 in stock

SKU: 1005002282862367 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1390F metal laser cutter 1000w
  • CNC or Not: CNC
  • Keyword: metal laser cutter 1000w
  • Working size: 1300*900mm
  • Application: Metal sheet
  • Control system: Cypcut
  • Transmission: Taiwan TBI ball screw transmission
  • Motor and driver: Japanese Yaskawa servo motor and driver
  • Laser type: Fiber laser
  • Laser wave length: 1080nm
  • Min line width: 0.1mm
  • Cutting speed: 0-20 000 mm/min
  • Positioning accuracy: ±0.01mm
  • Repeat positioning accuracy: 0.008mm
  • Acceleration: 0.5G
  • Machine dimension(L*W*H): 2160*2160*1630mm
  • Machine weight: 1400kg
Machine Description

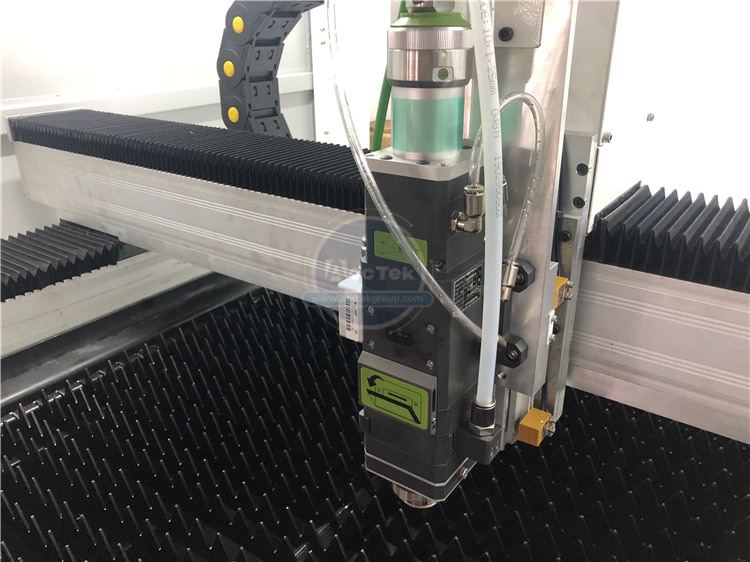

1) Raytools cutting head

2) Computer included

3) Grinding grade TBI ball screw transmission

4) Wireless hand-wheel

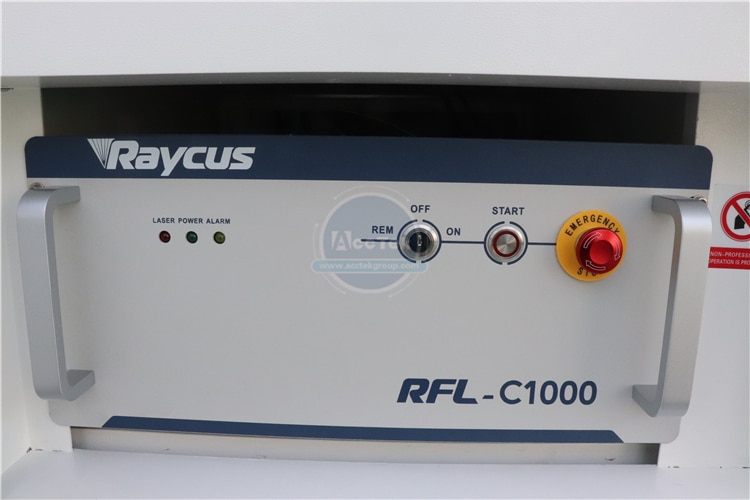

5) Raycus laser generator

6) Cypcut control system

7) Cypcut automatic following up system

8) All axis Yaskawa servo motor and driver

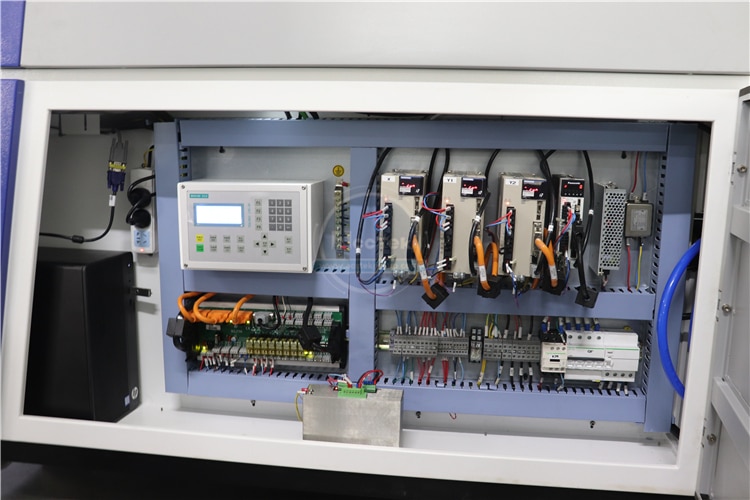

9) French Schneider electronic components

10) Oil lubrication

11) Industrial water chiller

12) Exhaust fan

Main Features
1) Excellent beam quality
The focused spot smaller cut lines more sophisticated, higher productivity, better quality and processing.
2) High cutting speed
2 times faster than the same power CO2 laser cutting machine.
3) High stability
Adopts the world's top imported Fiber laser, stable performance, a key component of up to 100,000 hours
life.
4) High electro-optical conversion efficiency
Fiber Laser cutting machine is three times higher than the CO2 laser Electrical and optical conversion
efficiency, energy saving and environmental protection.
5) Low cost
The whole power consumption of only similar CO2 Laser cutting Machine 20-30%
6) Low maintenance cost
No working gas lasers; optical fiber transmission, without reflecting lenses, can save a lot of maintenance
costs.
7) Easy operation and maintenance
Optical transmission, no need to adjust the optical path.
8) Super flexible light guide effect
Small size, compact structure, easy to flexible processing requirements.
Technical Parameters

Application & Working Samples
Applicable Materials
This kind of fiber laser cutting machine is suitable for metal cutting like stainless steel sheet, mild steel
plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized
sheet, aluminum plate, copper sheet, brass sheet, bronze plate, old plate, silver plate, titanium plate,
metal sheet, metal plate, etc.
Applicable Industry
This kind of fiber laser cutting machine is widely used in manufacture billboard, advertising, signs,
signage, metal letters, led letters, kitchen ware, advertising letters, sheet metal processing, metals
components and parts, ironware, chassis, racks & cabinets processing, metal crafts, metal art ware,
elevator panel cutting, hardware, auto parts, glasses frame, electronic parts, nameplates, etc.
Certifications

Package &Delivery

Package

1) Whole film packaging machine.

2) Anti-collision package edge.

3) Fumigation-free plywood wooden box with an iron-binding belt.

4) According to the customer's requirements for loading the whole container or LCL at Qingdao Port.

Delivery Terms

1) The machine will be produced after received your deposit, its need about 15-25 working days to

produce the machine after get your deposit.

2) After the machine is ready, we will test it very carefully, and ensure everything is OK.

3) Then we will show you the machine photos and the testing video.

4) After you agree, please finish the balance payment.

5) Finally, all things are tested well, then we arrange the delivery.

After Sale Services

1) Guarantee

1.5 years guarantee of the whole machine.

2) Software issue

Our technician is able to re-install or set up by remote for free.

3) Hardware issue

Main parts(excluding the consumables) shall be replaced or repaired free of charge,

if there is any problem during the warranty period.

4) Support online

Our technician is able to teach you online to run the machine or eliminate the fault for free.

5) Training in AccTek factory

We are able to train your staff after placed order in our factory for free.

6) On-site training (Recommended, the most effective way)

We are able to send technician to your workshop to do the installation and training.

You will need bear the related costs(flight, visa, hotel, training costs, etc.)
