High Precision Laser Fiber 1000w CNC Laser Cutting Machine Metal AKJ1390F For Elevator Panel Cutting

  • Home
  • High Precision Laser Fiber 1000w CNC Laser Cutting Machine Metal AKJ1390F For Elevator Panel Cutting
Awaiting product image

High Precision Laser Fiber 1000w CNC Laser Cutting Machine Metal AKJ1390F For Elevator Panel Cutting

$80,294.47

20 in stock

SKU: 1005002306381503 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AKJ1390F cnc laser cutting machine metal
  • CNC or Not: CNC
  • Keyword: cnc laser cutting machine metal
  • Working size: 1300*900mm
  • Laser type: Fiber laser

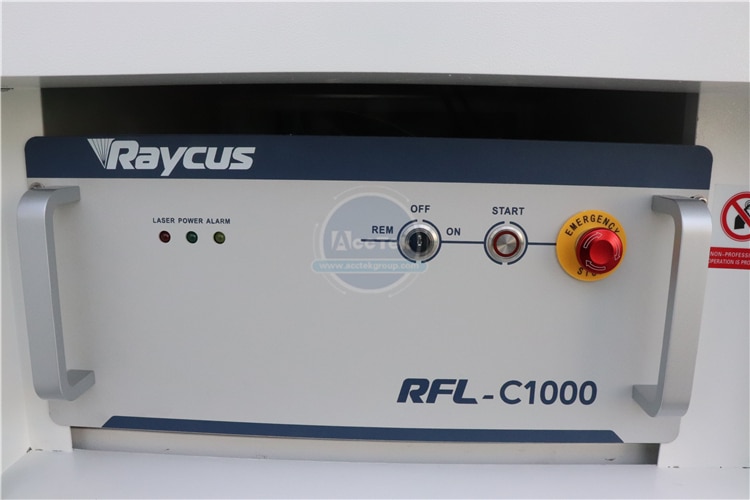

  • Laser generator: Raycus (option: IPG, Nlight)
  • Laser power: 1000W (option: 1500w, 2000w)
  • Control system: Cypcut
  • Motor: Japanese YASKAWA servo motor
  • Cutting speed: 0-20 000 mm/min
  • Acceleration: 0.5G
  • Application material: Metal sheet
  • Machine dimension(L*W*H): 2160*2160*1630mm
  • Machine weight: 1400kg

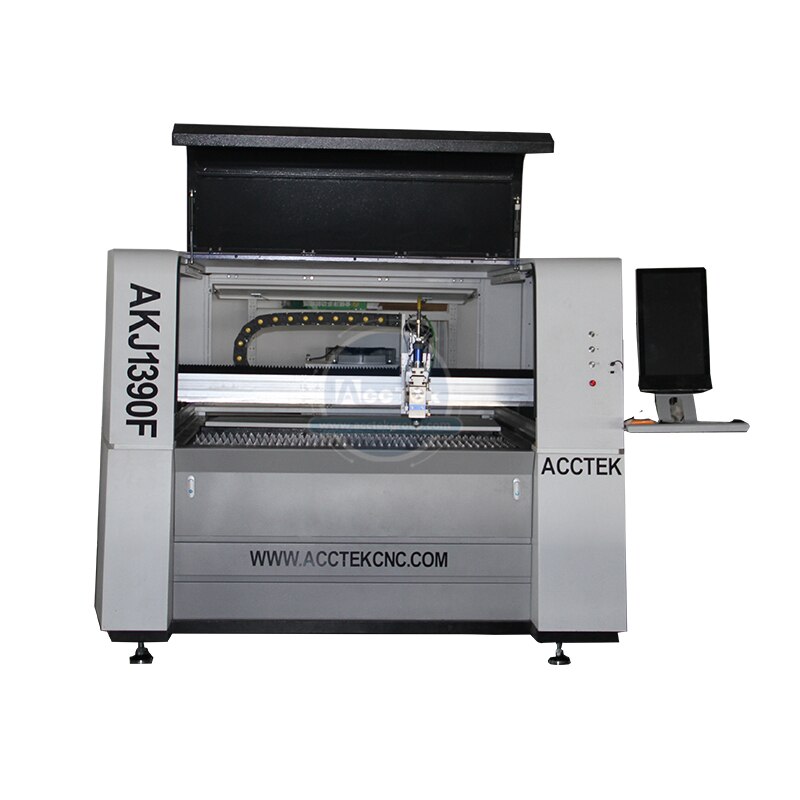

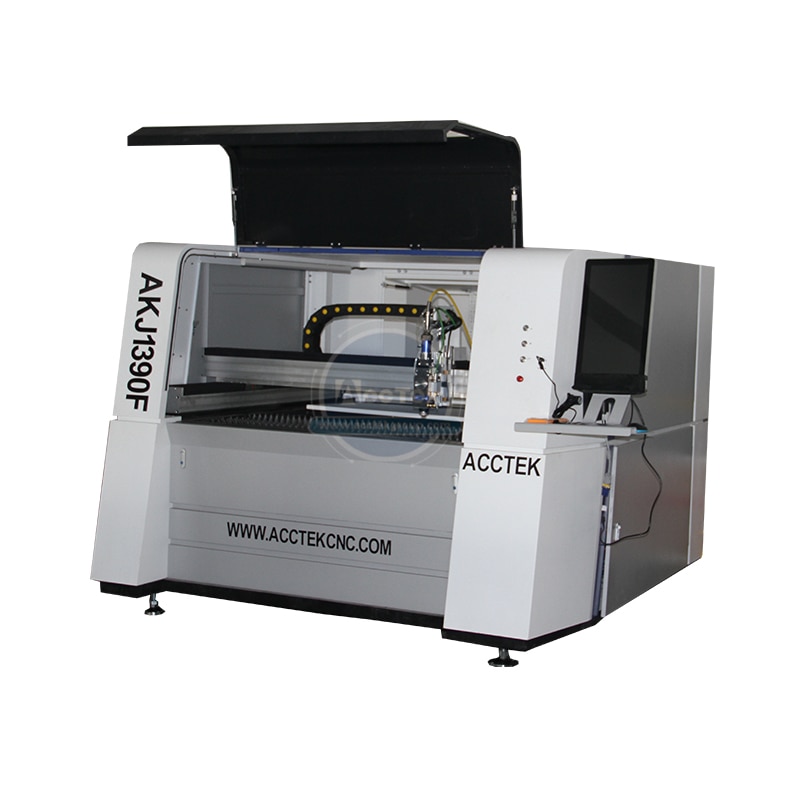

Machine Show

Main Features
1)With a fully enclosed design. The observation window adopts an European CE standard laser protective glass.The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly.
2)High-performance laser source and stable operating Cypcut system which makes the best cutting effect.
3)The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably.
4)The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5)The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

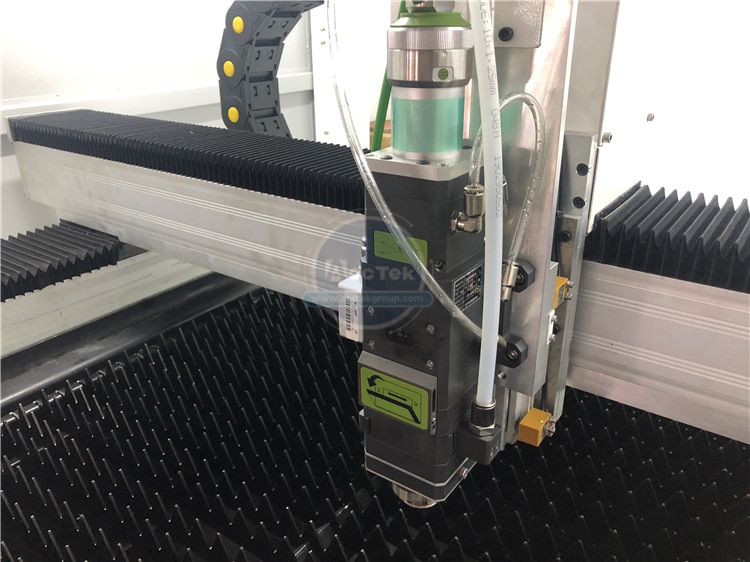

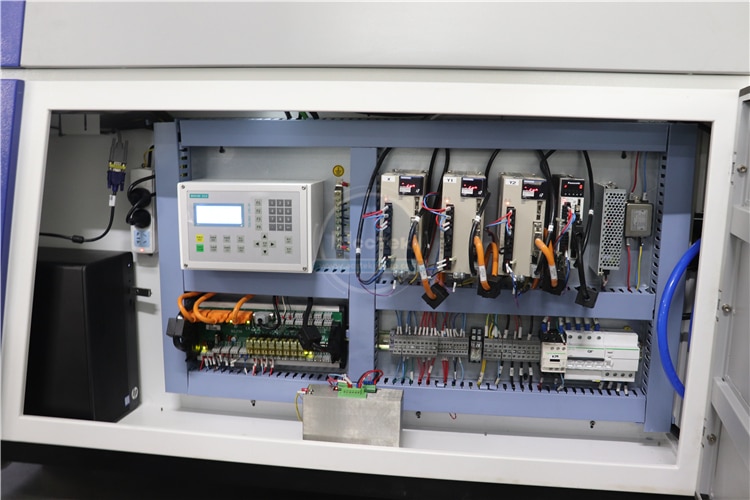

Machine Details

Technical Parameters

Application & Working Samples
Applicable Materials
This kind of fiber laser cutting machine is suitable for metal cutting like stainless steel sheet, mild steel
plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized
sheet, aluminum plate, copper sheet, brass sheet, bronze plate, old plate, silver plate, titanium plate,
metal sheet, metal plate, etc.
Applicable Industry
This kind of fiber laser cutting machine is widely used in manufacture billboard, advertising, signs,
signage, metal letters, led letters, kitchen ware, advertising letters, sheet metal processing, metals
components and parts, ironware, chassis, racks & cabinets processing, metal crafts, metal art ware,
elevator panel cutting, hardware, auto parts, glasses frame, electronic parts, nameplates, etc.

Package & Delivery

Package

1) Whole film packaging machine.

2) Anti-collision package edge.

3) Fumigation-free plywood wooden box with an iron-binding belt.

4) According to the customer's requirements for loading the whole container or LCL at Qingdao Port.

Delivery Terms

1) The machine will be produced after received your deposit, its need about 15-25 working days to

produce the machine after get your deposit.

2) After the machine is ready, we will test it very carefully, and ensure everything is OK.

3) Then we will show you the machine photos and the testing video.

4) After you agree, please finish the balance payment.

5) Finally, all things are tested well, then we arrange the delivery.

Certifications

After Sale Services

1) Guarantee

2 years guarantee of the whole machine.

2) Software issue

Our technician is able to re-install or set up by remote for free.

3) Hardware issue

Main parts(excluding the consumables) shall be replaced or repaired free of charge,

if there is any problem during the warranty period.

4) Support online

Our technician is able to teach you online to run the machine or eliminate the fault for free.

5) Training in AccTek factory

We are able to train your staff after placed order in our factory for free.

6) On-site training(Recommended, the most effective way)

We are able to send technician to your workshop to do the installation and training.

You will need bear the related costs(flight, visa, hotel, training costs, etc.)
