Description

Brand Name: ACCTEK
Origin: CN(Origin)
Certification: CE
Condition: New
Model Number: AK20F
CNC or Not: CNC
Is Smart Device: No
Product name: 3d fiber laser marking machine 30w
Laser Power: 20W /30w/ 50w(Optional)
Marking Speed: 0-8000mm/s
Laser wavelength: 1064um
Marking Depth: 0.01-0.5mm
Power supply: AC220V 10% / 50HZ
Minimum Character: 0.15mm
Marking material: Metal and plastic
color: Customized Color
Keywords: 3d fiber laser marking machine 30w

High Precision 3D Fiber Laser Marking Machine 20W 30W 50W Laser Engraver Log Marker

Product description

1.AK6090F series are developed for efficient laser marking of metals and some nonmetal materials
2.With big work area, transmission ball screw, high precision.
3. Long-life 100,000 hours life span, continuous 24 hours working,

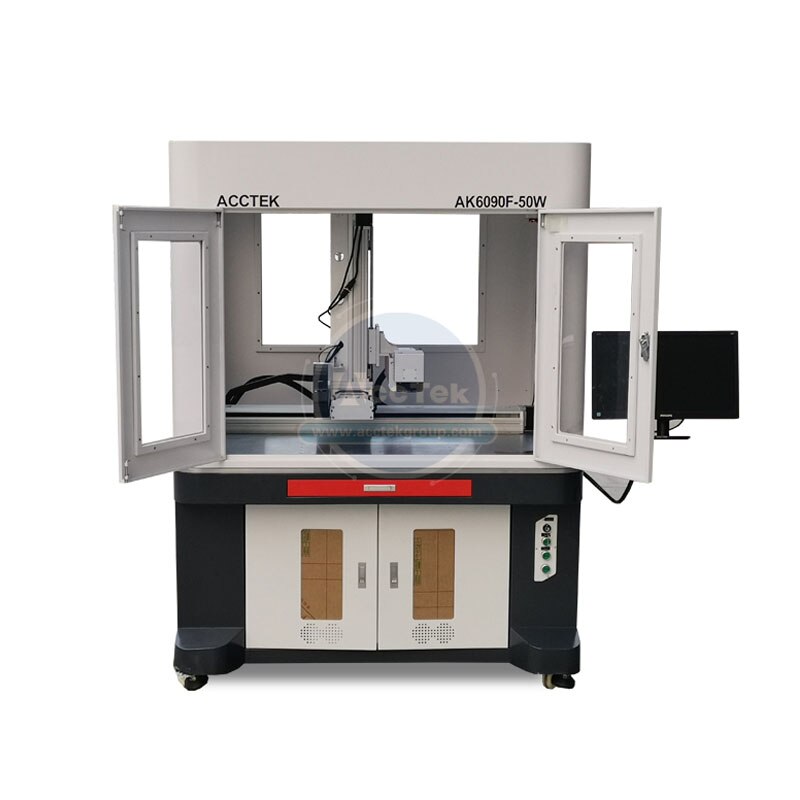

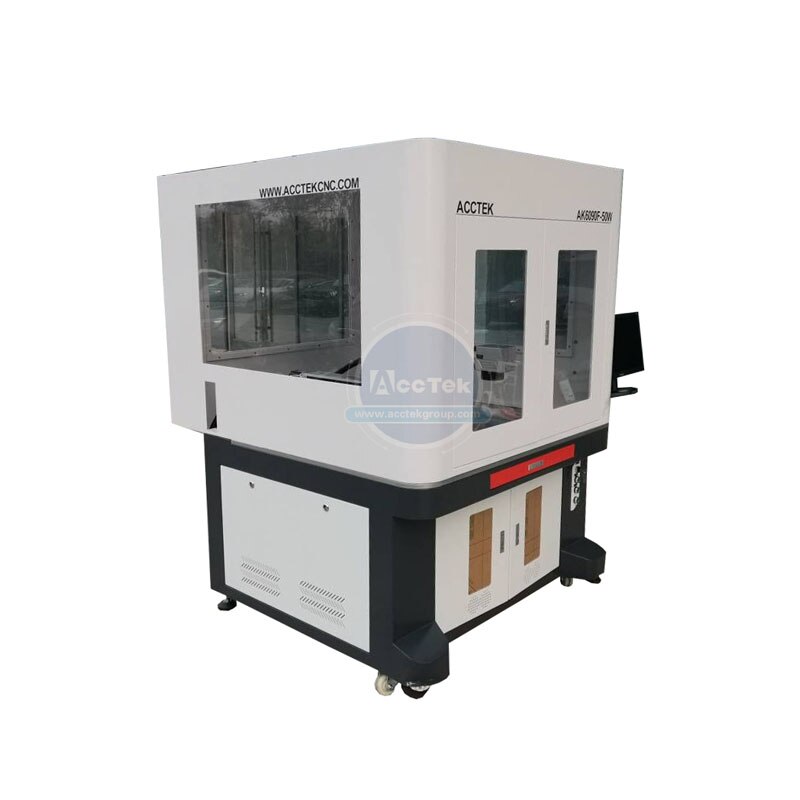

AK6090F fiber laser marking machine as your best choice.

NO	Model	Fiber laser marking machine AK6090F
1	Laser power	Raycus fiber laser source 20w/30W/50W
2	Working area	600*900mm
3	Laser Wavelength	1064nm
4	Response time	0.5ms
5	Frequency of pulse	20-100KHz
6	Max marking depth	≤0.8mm
7	Marking lines	1-10 lines(in the marking area)
8	Minimum line width	10um
9	Minimum character	0.15mm
10	Repeatability accuracy	±0.002mm
11	Resolution ratio	0.1mm
12	Marking content	Text,pattern,date,barcode,etc
13	Operation system	Windows XP and win7,win8,win10
14	Control software	EZCAD control software
15	Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
16	Unit power	≤1.2KW
17	Operation temperature	5℃-40℃
18	Relative moisture	≤ 90%,no fog
19	Supply Voltage	220V, 50/60Hz

More Details

Raycus fiber laser source
Long service life and more stable operation

Field lens
Good materials ,good focus,high power,long service life

Original LMCV4 EZCAD controller
The system is stable, easy to operate and install

High-speed Galvanometer
Compact and convenient, easy to operate ,durable, energy-saving and efficient, high-definition scanning, fast .

Optional parts for laser marking machine 20w:

1. Rotary :Realize local machining , reduce finshing allowance and complete tool path calculation at one time
2. 2D aluminum table : Make the object placed flat and easy to adjust the focal length.

Application samples

Applicable industry of laser marking machine 20w: gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus and instruments, watches & glassware, auto accessories, electronic hardware .
Applicable materials of laser marking machine 20w: gold & silver, stainless steel,ceram, plactic, glass, stone, leather, cloth, bamboo and so on.
