Description
- Brand Name: LCFOCUS
- Origin: CN(Origin)
- Certification: CCC
- Certification: ROHS
- Certification: ce
- Color Temperature: <2700K
- Model Number: LC-3&500IR7-G42 SERIES
- LED Chip Model: 3W High Power
- Occasion: Square
- Voltage: 1.3V-30V (3-500W)
- Luminous Flux: 1000 – 1999 Lumens
- Shape: Globe
- Certification: CE
- Average Life (hrs): 30000

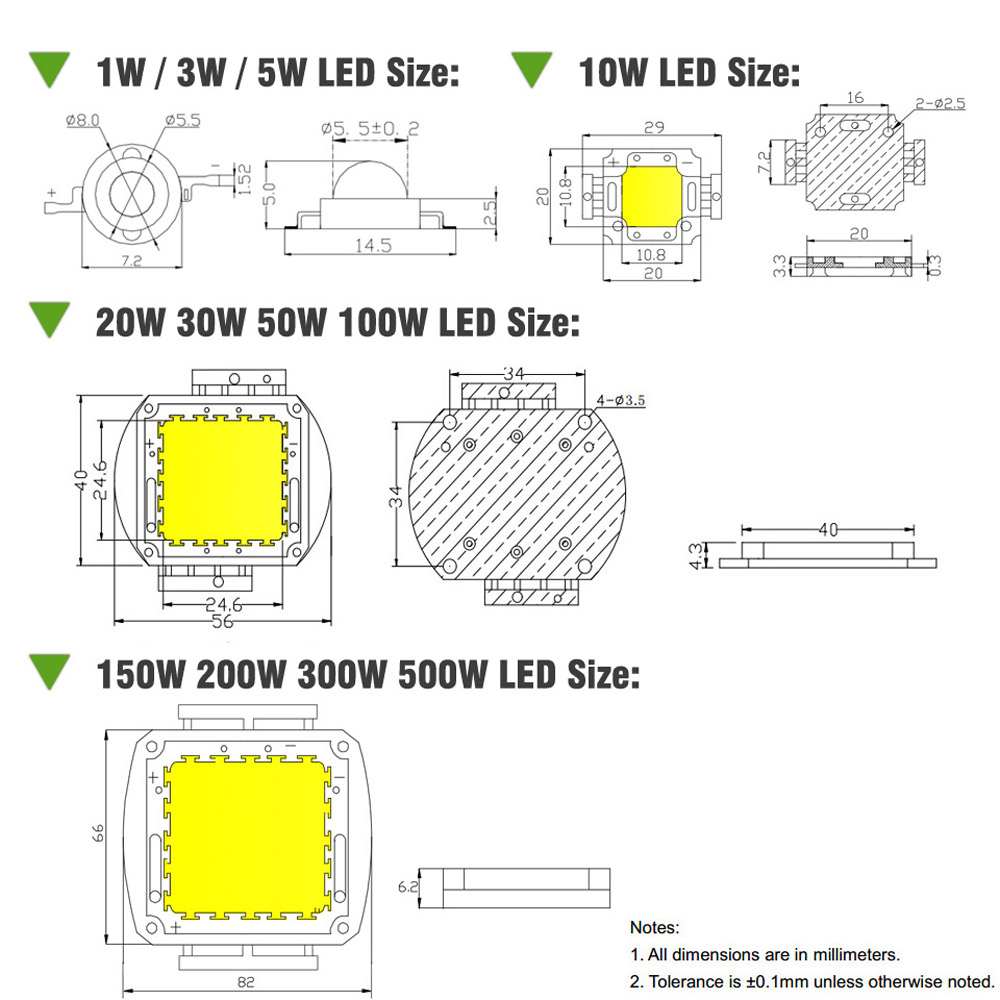

- Length: 15mm / 20mm / 56mm
- Item Type: LED Bulbs
- Area: 8-10㎡
- Led Bulb Type: Spotlight Bulb
- Is Smart Device: No
- LED Chip Brand: Epileds
- Beam Angle(°): 120°
- Base Type: Wedge
- Power Tolerance: 1%
- Color: Infrared

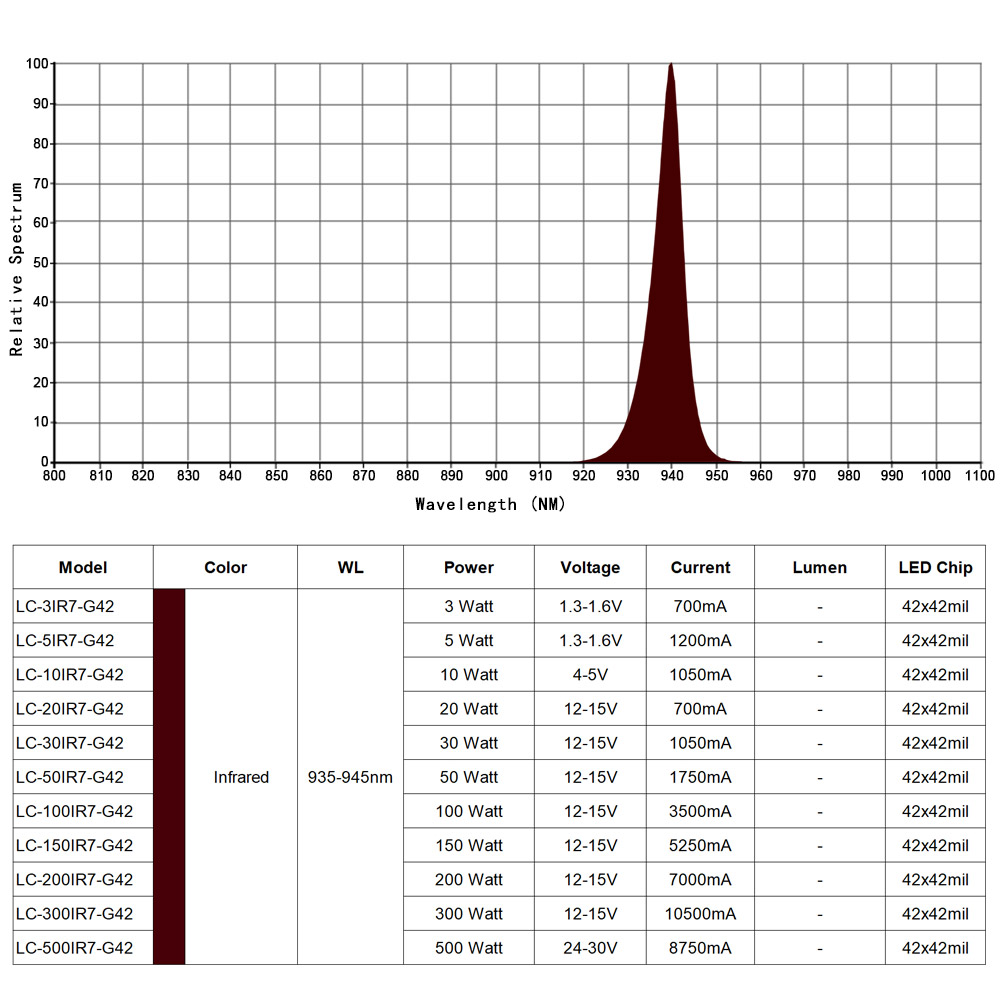

- Wavelength: 935-945nm (940nm)
- Current: 700-10500mA (3-500W)
- Package Type: High Power Integration, LED Chips, COB, Lamp, SMD, Bead

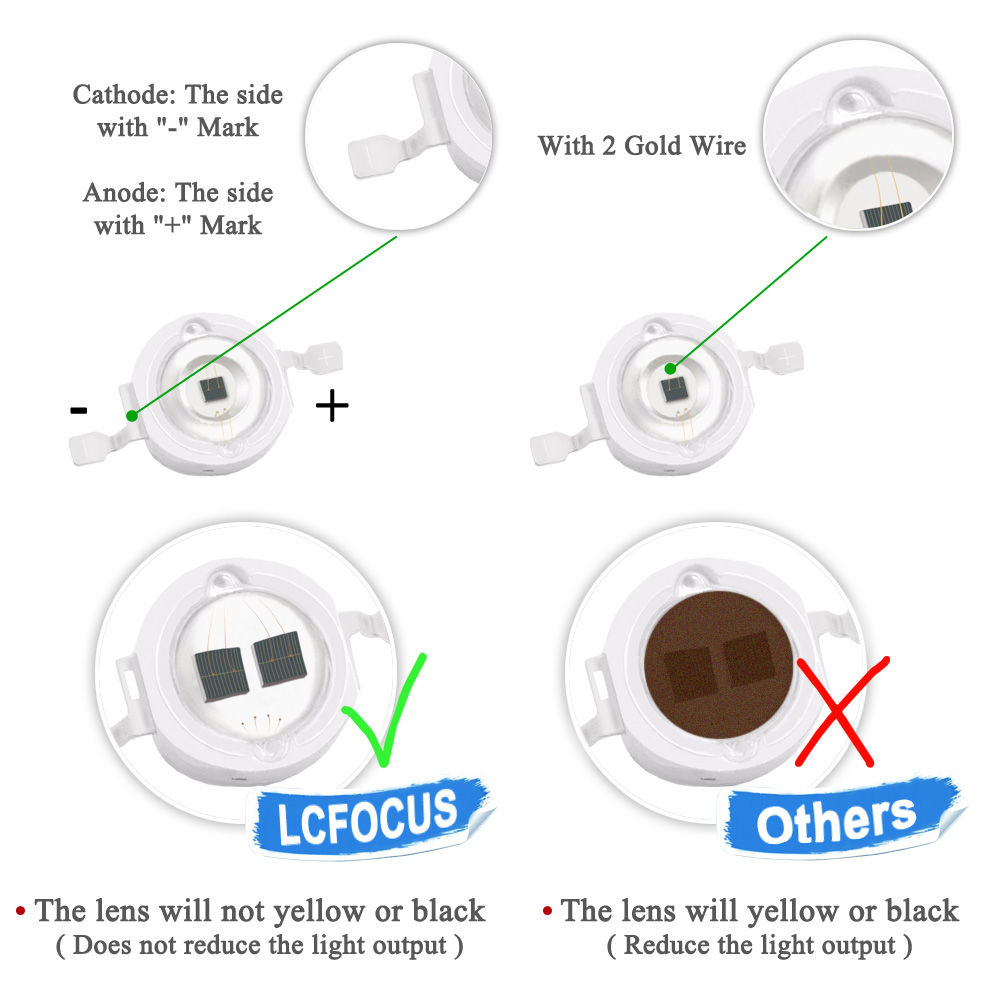

- Material: Two Gold Wires / Copper Brackets
- Working Temperature: Less than 60 Celsius
- Chip Size: 42x42mil (Epileds)
- Rated power: Watt 3W, 5W, 10W, 20W, 30W, 50W, 100W
- Application: Detecting, Sensor, Laser, Flashlight, CCTV, Scanning, Security System

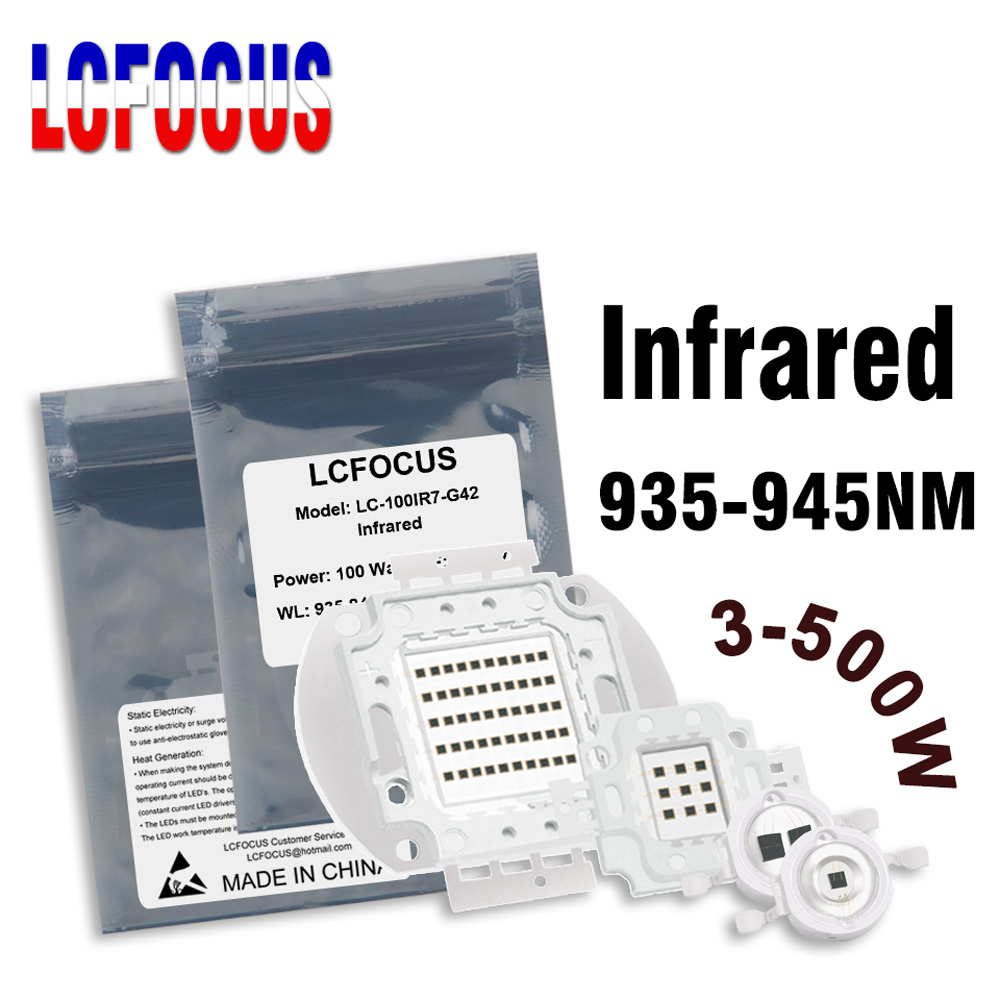

High Power LED COB Chip IR 940nm 3W 5W 10W 20W 30W 50W 100W 200W 300W Infrared Radiation Bulbs Detect Sensor Laser Flashlight

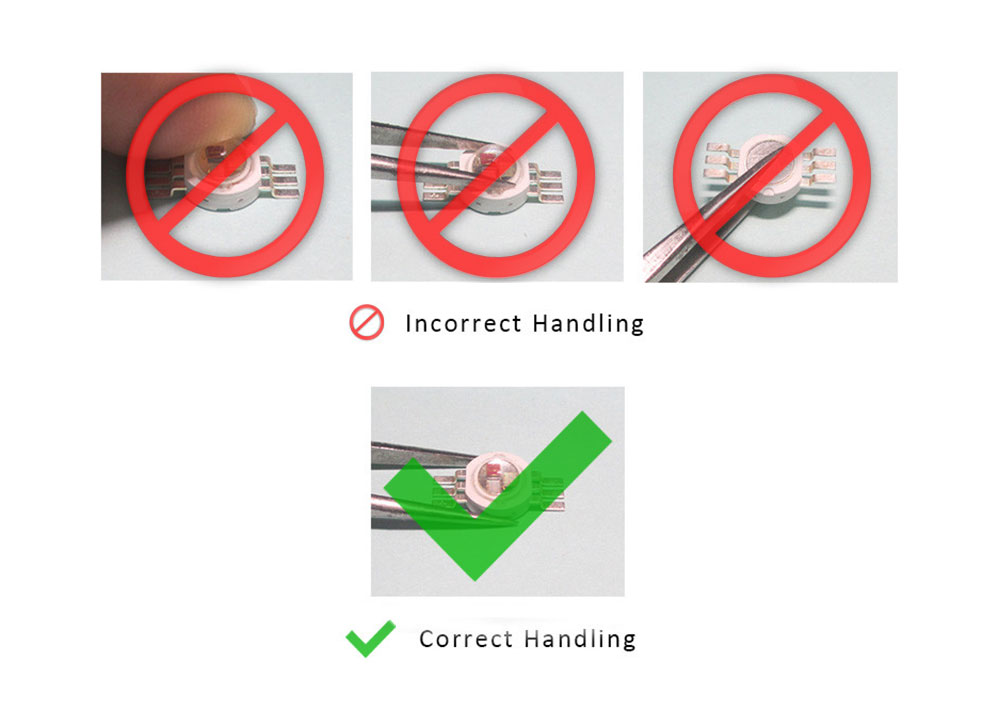

– Static Electricity:
• Static electricity or surge voltage damages the LED chip.
We recommendedto use anti-electrostatic glove or wrist band be used when handing the LEDs.
– Heat Generation:
• When making the system design. To avoid intense heat generation,
theoperating current should be decided after considering the ambient maximumtemperature of LED’s.
The operate within the maximum current ratings.
(Constant current LED drivers are recommended for high power COB LED Chip)

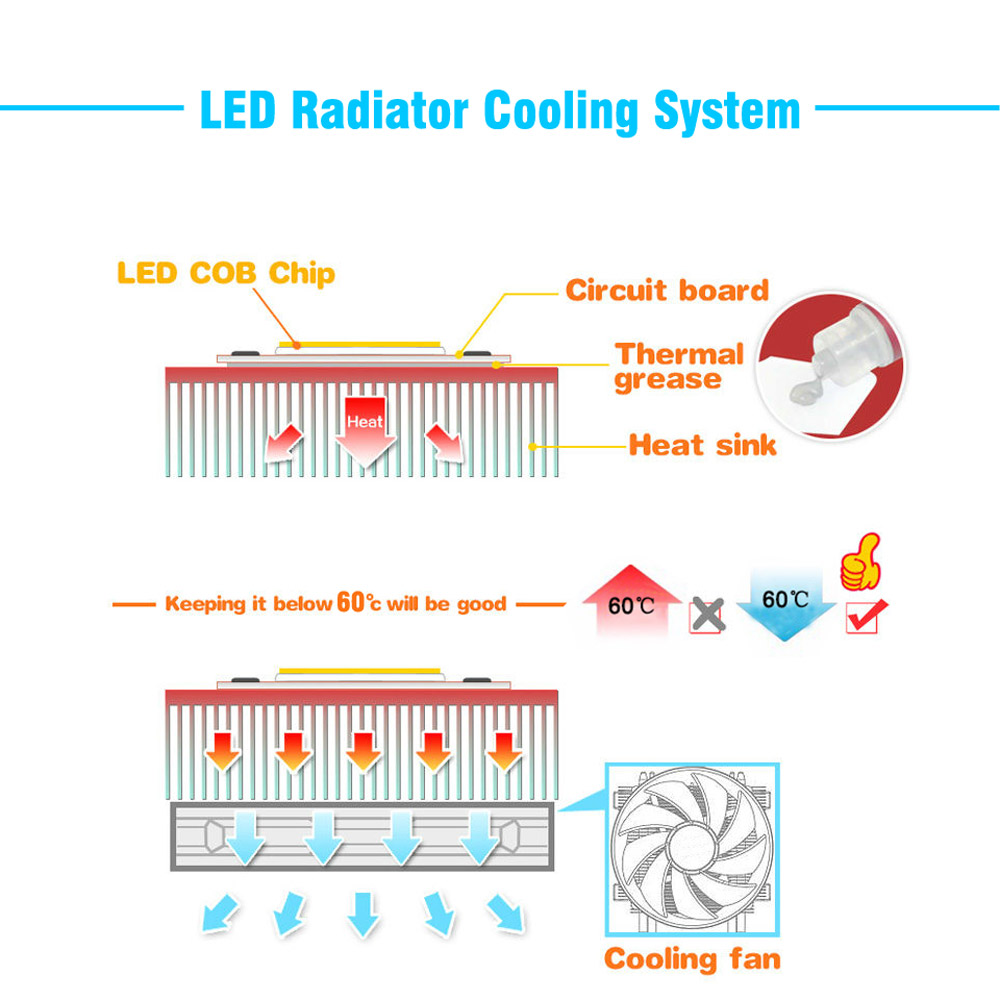

• The LEDs must be mounted on metal core PCB, heat sink or thermal pad.
The LED work temperature is controlled below 60°C.
If you have any question of product, Please contact us. We will reply to you in 24 hours.
