High Power Laser Head Module 15W Diode Engraver Machine Printer CNC Cutter Parts with TTL PWM for engraving cutting diy
- Brand Name: tgleiser
- Style: Mini
- Model Number: TG-LASER-15W-3PIN
- Power: 15W
- Item Type: Stage Lighting Effect
- Occasion: Professional Stage & DJ
- Voltage: 12V
- Wavelength: 445nm 450nm
- Color: Blue
- Beam: Focusable
- Laser Module: 15W laser
- Applications: Laser Engraver, Laser Cutter, Laser Machine
- Laser Type: Diode Laser 15w
- Power: 15 W, 15000mW
- Voltage: DC 12V
- Powerful: High Power
- TTL Modulation: TTL < 20KHz
- Analog: 0-5V corresponds 0-100%
- DIY Laser: engraving laser, cutting laser, laser parts, cnc machine
- Lazer: Laser head, 15w laser, machine laser
High Power Laser Head Module 15W Diode Engraver Machine Printer CNC Cutter Parts with TTL PWM for engraving cutting diy
Features:

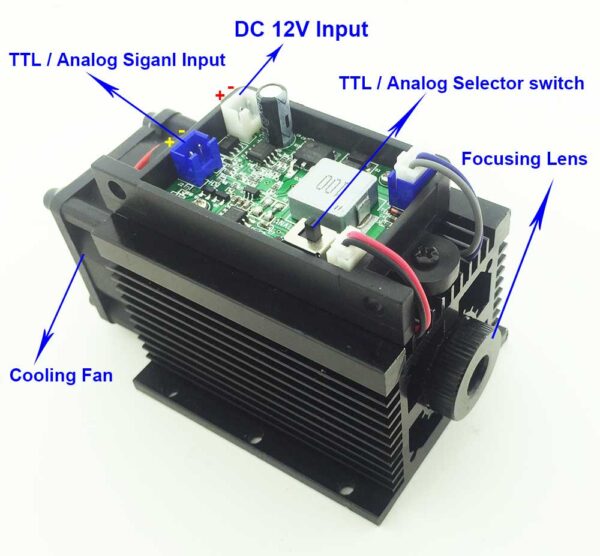

the module is a focusable high power laser module, and with a focusable lens, can adjust the focus, output both focusable beam and collimated beam.

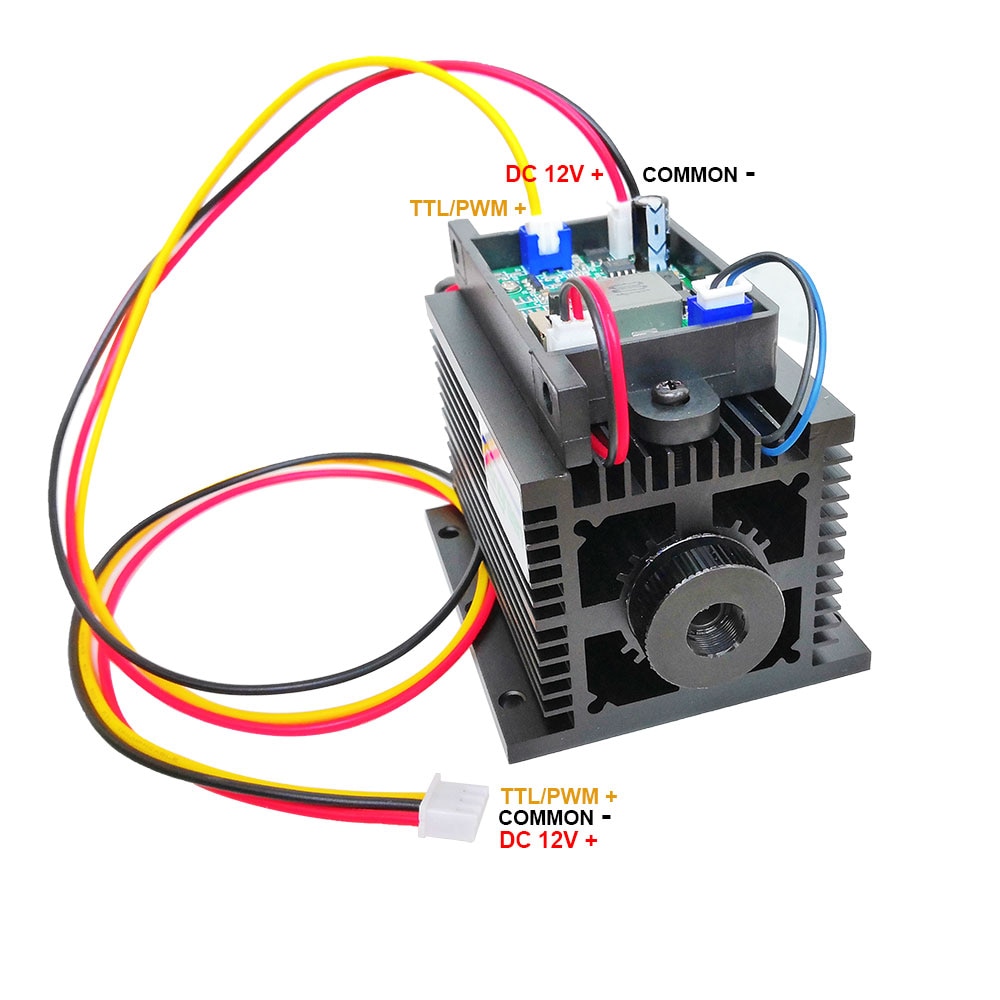

driver board supports TTL / PWM signal and Analog signal for easy modulation control.
this powerful laser head suitable for laser cnc, laser machine, laser engraving, lazer cutting, diy laser, engraver, cutter, lasear machine parts etc.
Descriptions:
Focal length: Can be adjust
Wavelength: 445nm–450nm
Output Power:
15W pulsed
Average 8W (Max)
Modulation: TTL(PWM) / Analog
TTL(PWM) Logic:
5V or Unconnected: OFF;
0V: ON;
TTL Frequency: 0-20Khz
Analog:
0-5V level Corresponds to 0-100% (nonlinear)
Operating Voltage: DC 12V
Working Current: <4A (Recommended power supply current > 4A)
Focal length: 15mm~50mm;(can adjustable)
Operating temperature: -10 degrees to 45 degrees
Spot diameter: ≤Φ0.12mm, at 15mm~50mm
Operation mode: pulsed laser 100 ns Duty 50%,
With TTL modulation/ Analog modulation
Material: hard aluminum + brass
Finish: Black anodized + sandblasting
Heat dissipation: Fan cooling
Can be carved materials: balsa wood, plywood, stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.
different materials have different effects. and reflected light reflected from highly reflective materials may cause damage to the module.
for metal, only a very thin line can be produced, the darker the color, the better effect, enhancing the effect may require multiple operations.
the effect depend on the material color, reflectivity, transparency, density, thermal conductivity, etc.
Attentions:
1. Voltage Input: DC 12V.
2. Please make sure input voltage polarity is correct and does not exceed 12V, and TTL / Analog input signal is correct, otherwise it will burn laser module.
3. Prevent high voltage electrostatic damage.
4. It is recommended to install on a metal plate with good heat dissipation.
5. The light beam can not shoot to anyone or any flammable, otherwise It can result in injury or fire!!!
6. A high proportion reflected beam reflecting to the module itself may cause damage.

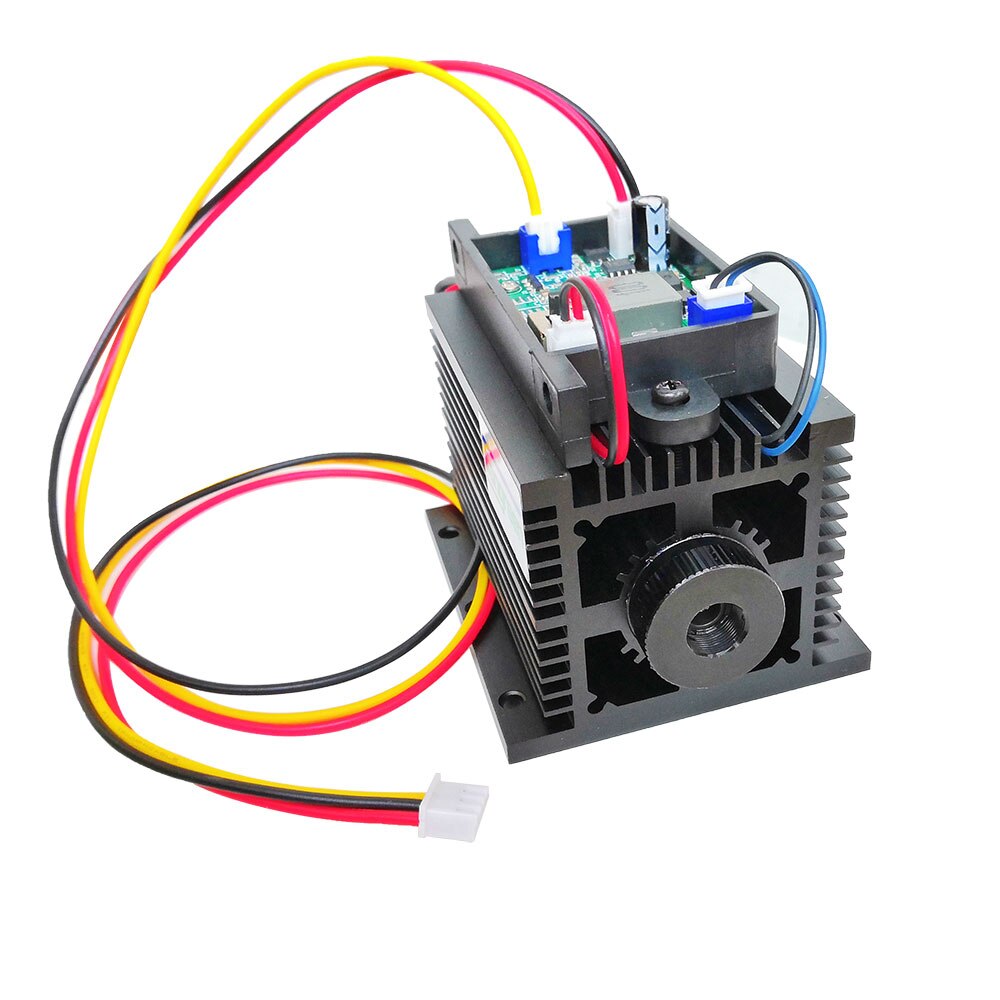

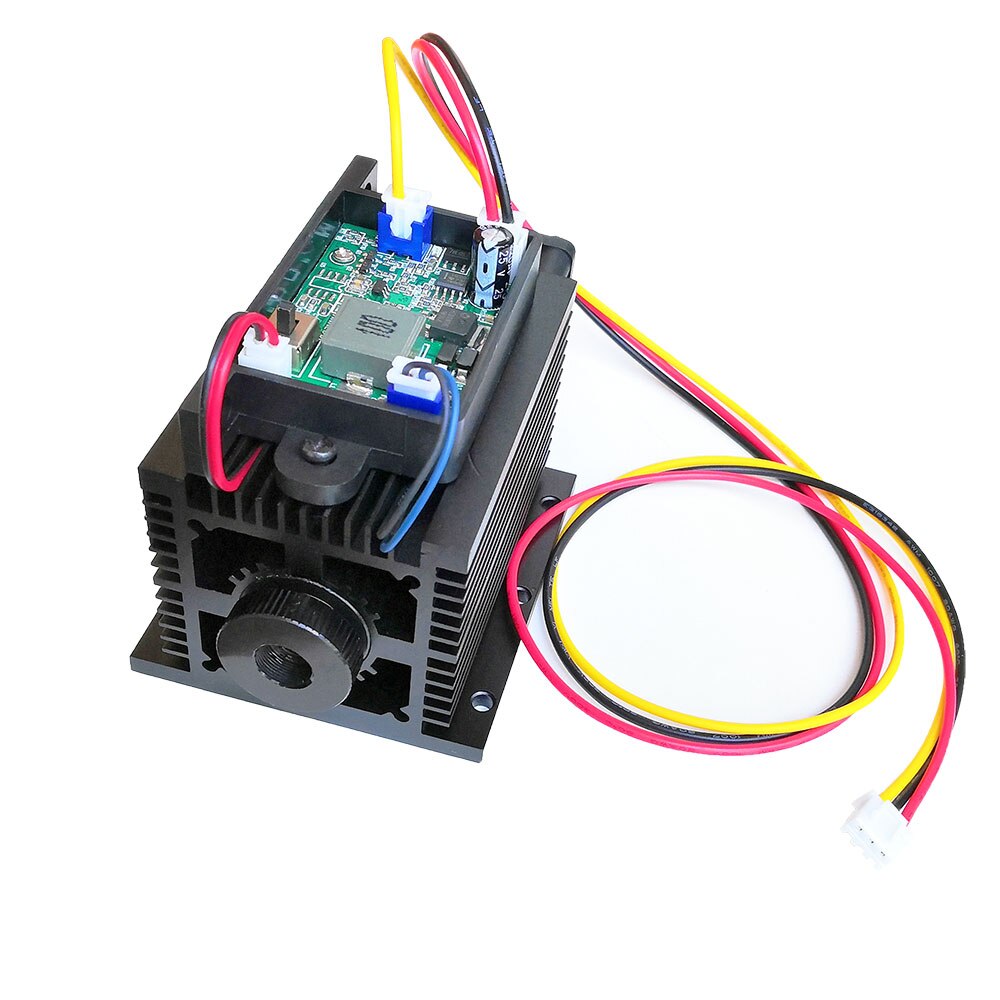

Package: 1 X 450nm 15W laser module with TTL / Analog driver board
Free one 4PIN to 3PIN Cable + one 2 PIN TTL Cable + one DC Voltage input Cable
