High power Laser Head desktop diode Laser Module 450NM Focusing Blue Laser Engraving Machine Tools Laser Tube 7000mw 10000mw 15000mw

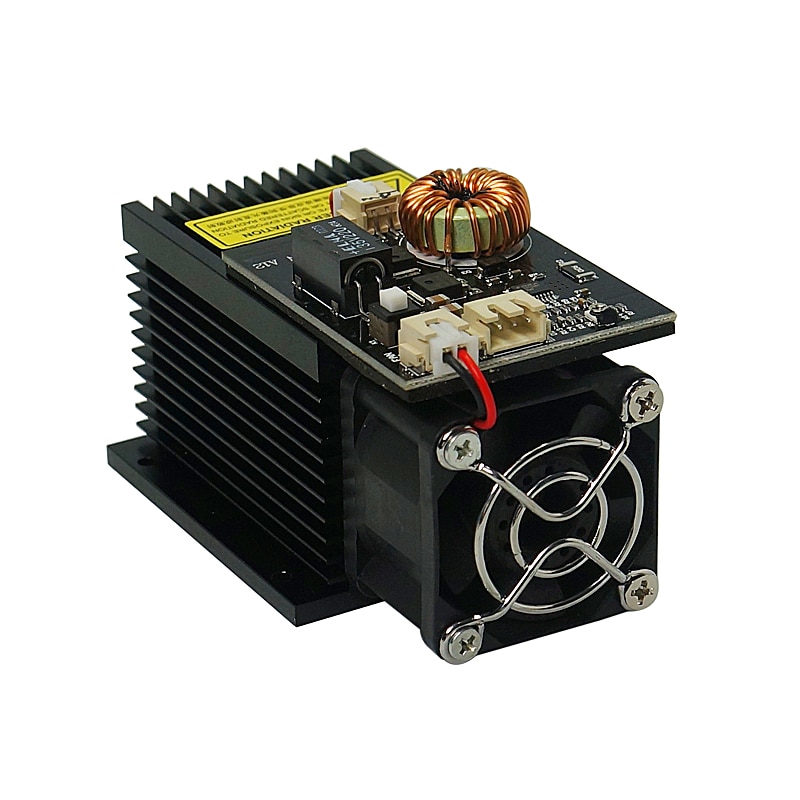

Pluse 7W power 450nm laser module

Specification parameters:

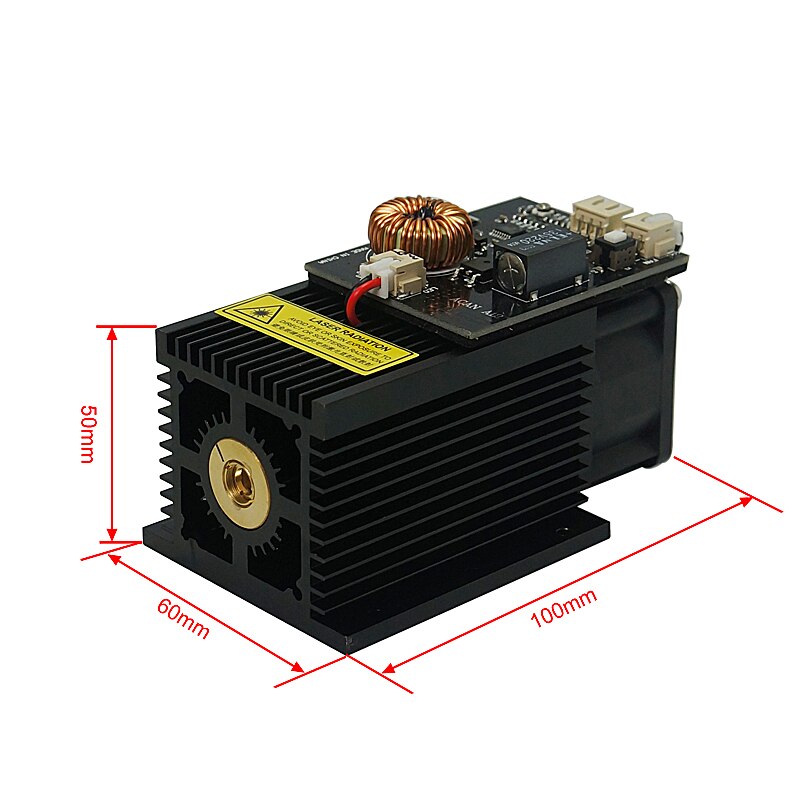

Main body size: 50mm long * 50mm wide * 100mm high

Output wavelength: 445nm ~ 450nm

Output power: 7W

Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

Focal length: adjustable

Working temperature: 15 ℃ ~ 45 ℃





Pulse 10W power 450nm laser module

Specification parameters:

Main body size: 50mm long * 50mm wide * 100mm high

Output wavelength: 445nm ~ 450nm

Output power: pulse 10W

Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

Focus: not adjustable

Working temperature: 15 ℃ ~ 45 ℃





Pulse 15W power 450nm laser module

Specification parameters:

Main body size: 50mm long * 50mm wide * 100mm high

Output wavelength: 445nm ~ 450nm

Output power: pulse 15W

Modulation frequency: TTL can modulate 0v- off 5v PWM frequency <9Khz

Working voltage: DC=12V

Working current: I<3A

Focus: not adjustable

Working temperature: 15 ℃ ~ 45 ℃
