Description

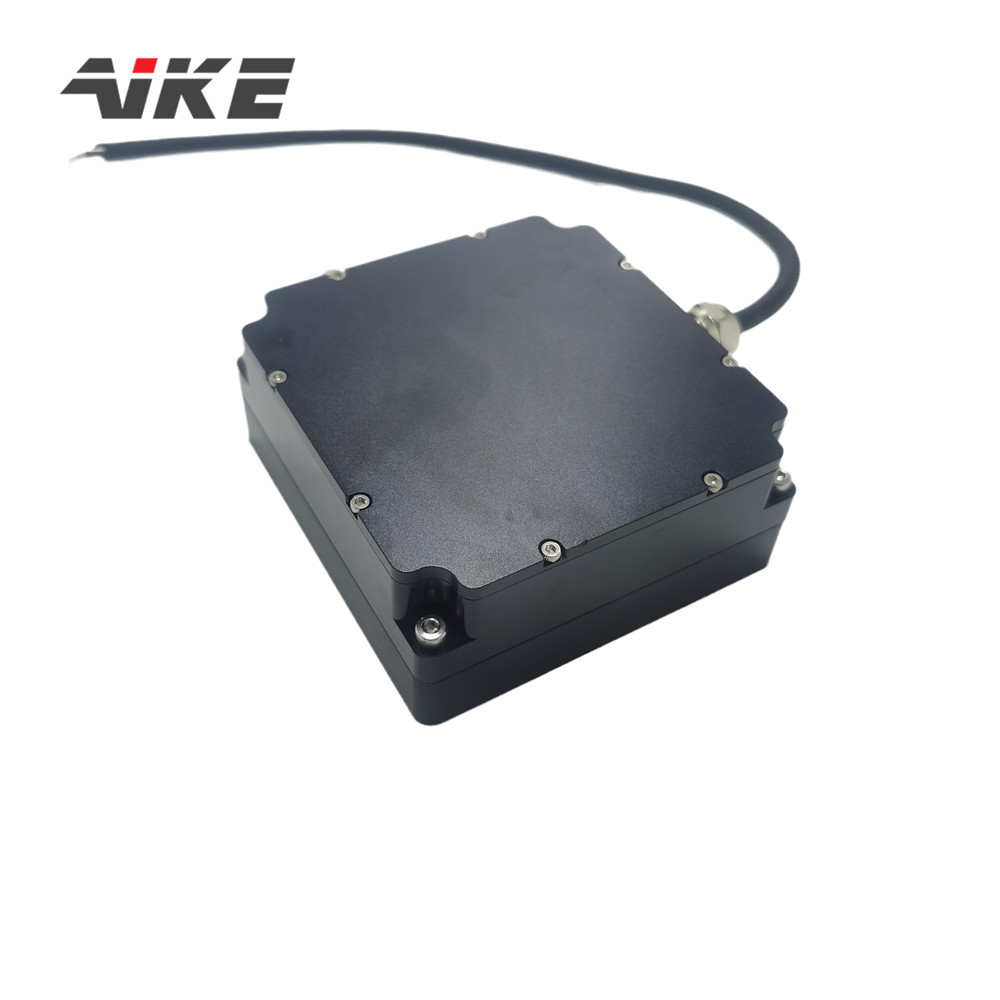

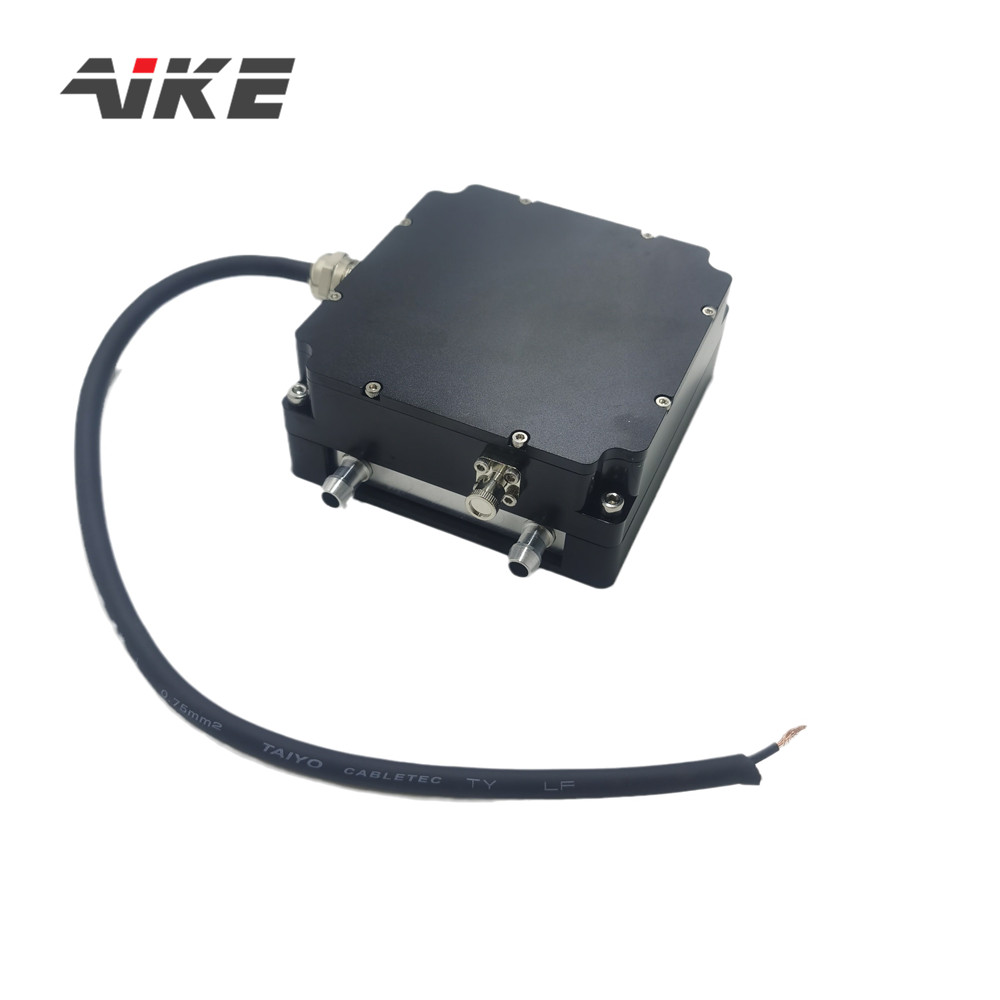

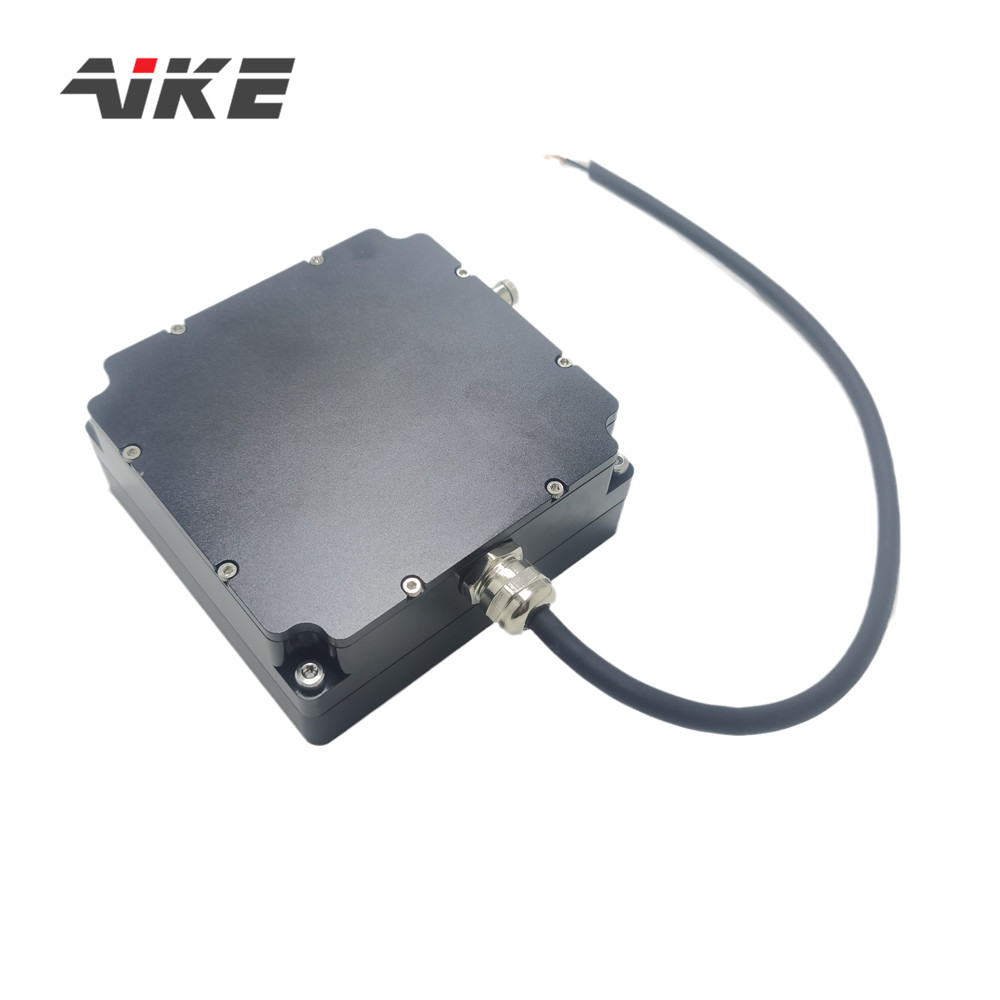

High Power Fiber Coupled Lasers 445nm 450nm 20W 40W 80W Blue Laser Module for Material Processing 3D Printing
- Type:Laser Diode
- Condition:New
- is_customized:Yes
- Wavelength:450nm
- Output Power:20/40/80W
- Threshold Current:0.6A
- Operating Current:11A
- Operating Voltage:1.7V
- Core Diameter: 100um/200um
High Power Fiber Coupled Lasers 445nm 450nm 20W 40W 80W Blue Laser Module
Features:
445nm wavelength
200W output power
200µm fiber core diameter
0.22NA
Cooling mode: water cooling
Applications:
Material Processing
3D Printing
OPERATING NOTES1. Avoid eye and skin exposure to direct radiation during operation.
2. ESD precautions must be taken during storage, transportation and operation.
3. Short-circuit is required between pins during storage and transportation.
4. Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260℃ and time shorter than 10 second.
5. Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
6. Use constant current power supply to avoid surge current during operation.
7. Laser diode must be used according to the specifications.
8. Laser diode must work with good cooling.
