Description
- Brand Name: TALCNC
- Origin: Mainland China
- Model Number: 80W Laser Module
- CNC or Not: CNC
- Is Smart Device: YES
- Condition: New
- Certification: CE
- Voltage:: 12V or 24V

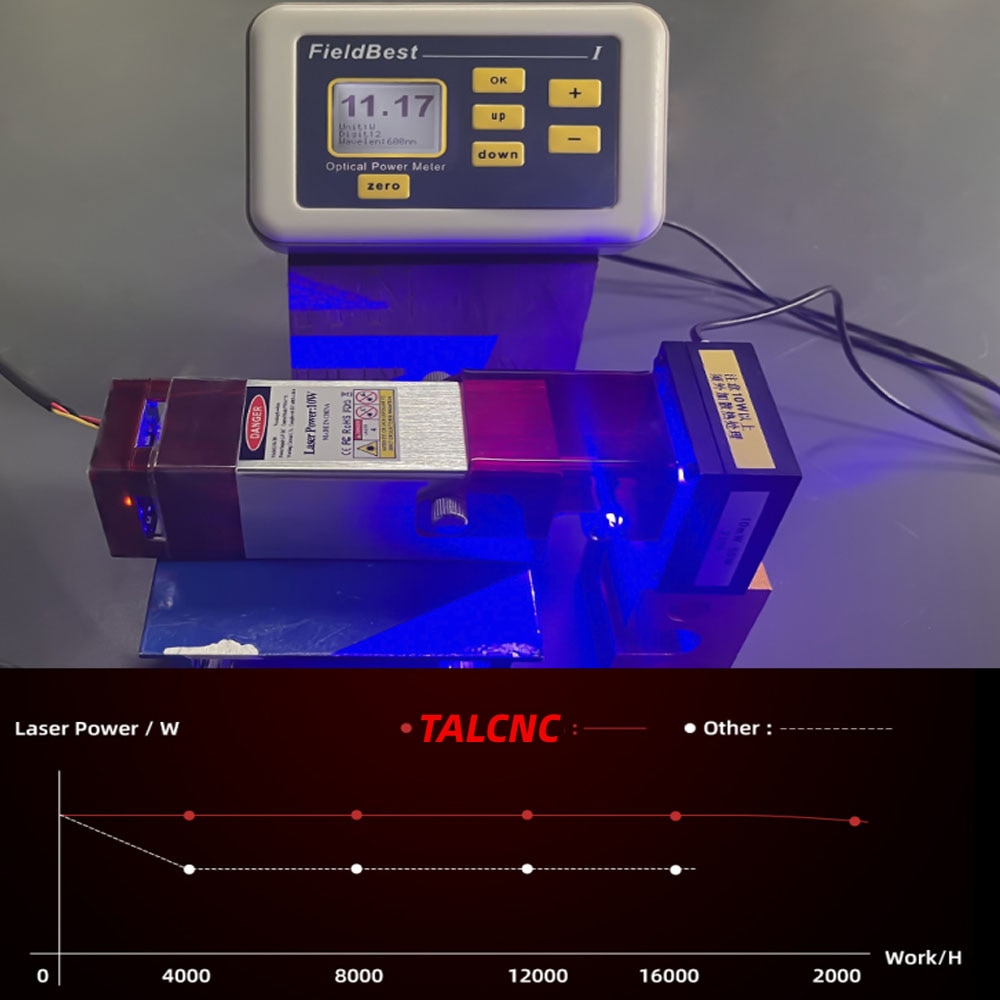

Notice : Electric power 80w, optical power 10w
Two Ways to use 80W laser:

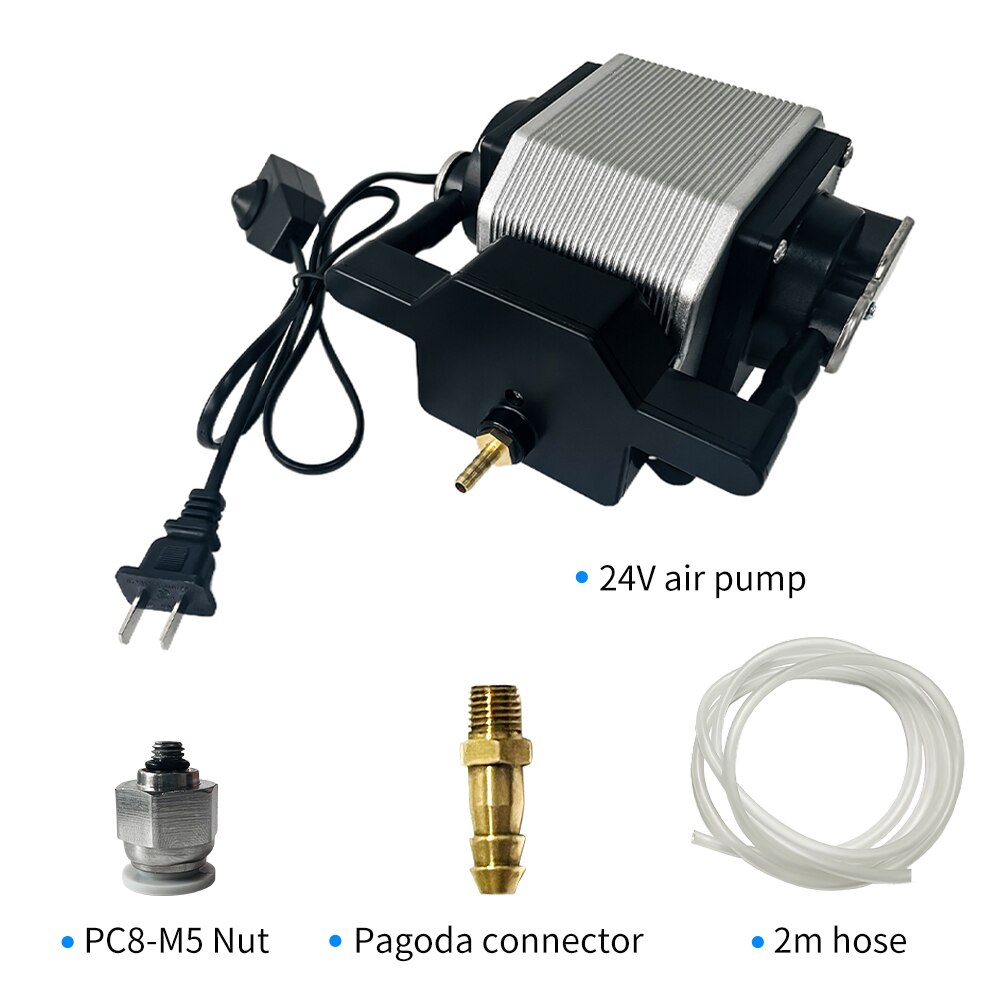

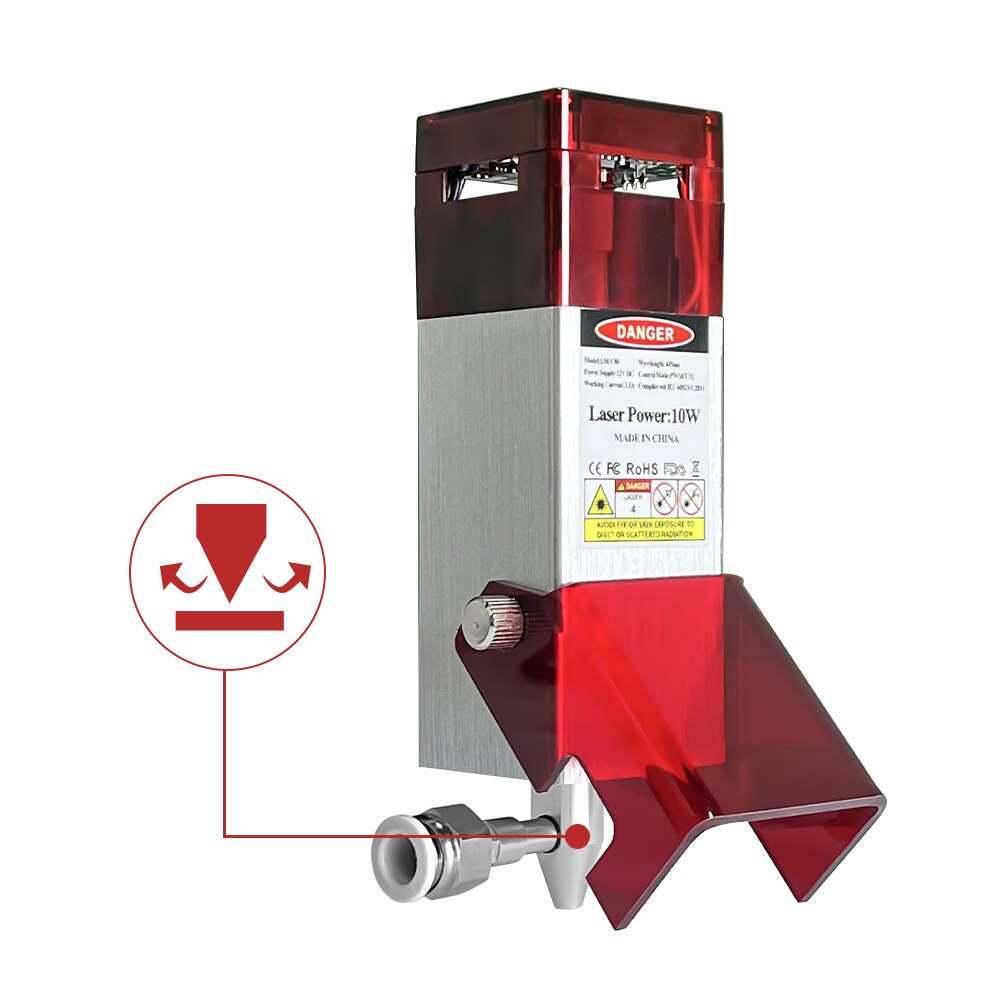

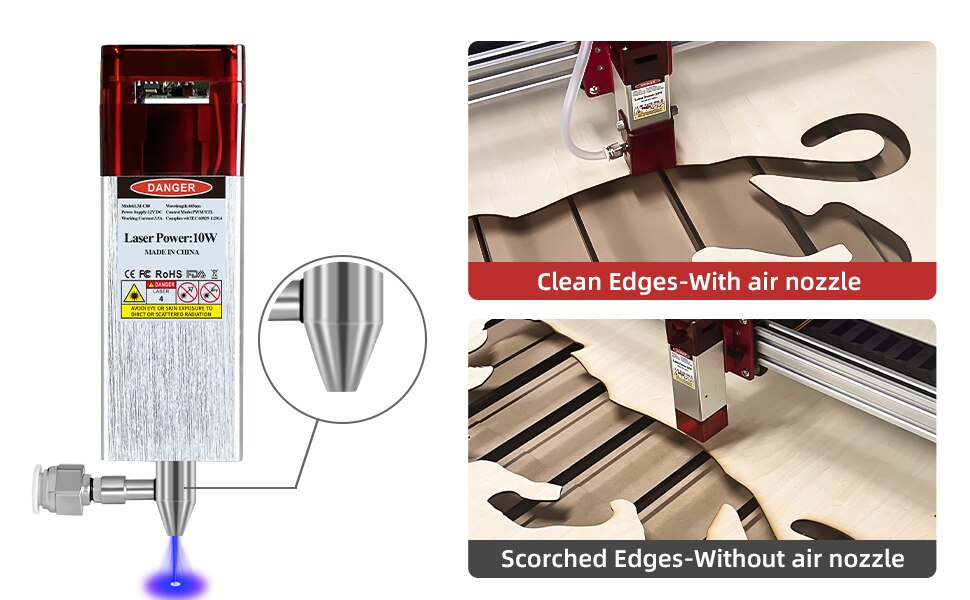

Way 1: with the air asssit nozzleThe laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

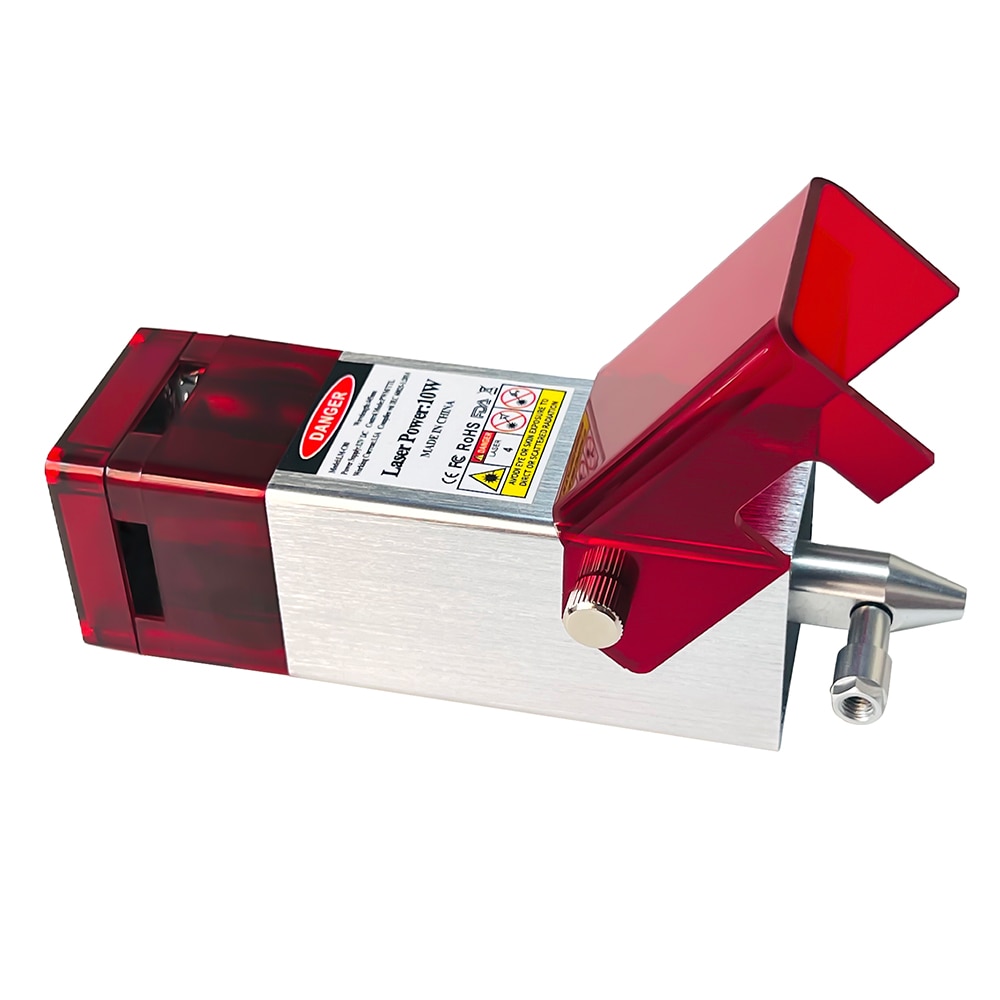

Way 2：with the laser protective cover When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.
[Main performance]
1.Directly engrave mirror stainless steel: no need painting black;
2. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 45mm focus length;
3. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s with 45mm foucs length.
[Original diode] Original diode, high quality,20,000 hours life time!
[Easy to use] Wavelength: 450nm, Input: DC 12V 3.2A ,Support 5V PWM modulation, Input port: XH2.54-3P socket ,control line installation method: pluggable.Suitable for DIY engraving machine.
[Applicable materials] Ceramics,Bone,MDF,Coated glass,Black acrylic,Plywood,Brushed stainless steel,Stone,Bamboo,Leather,Rubber,
Alumina,Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.
Feature:

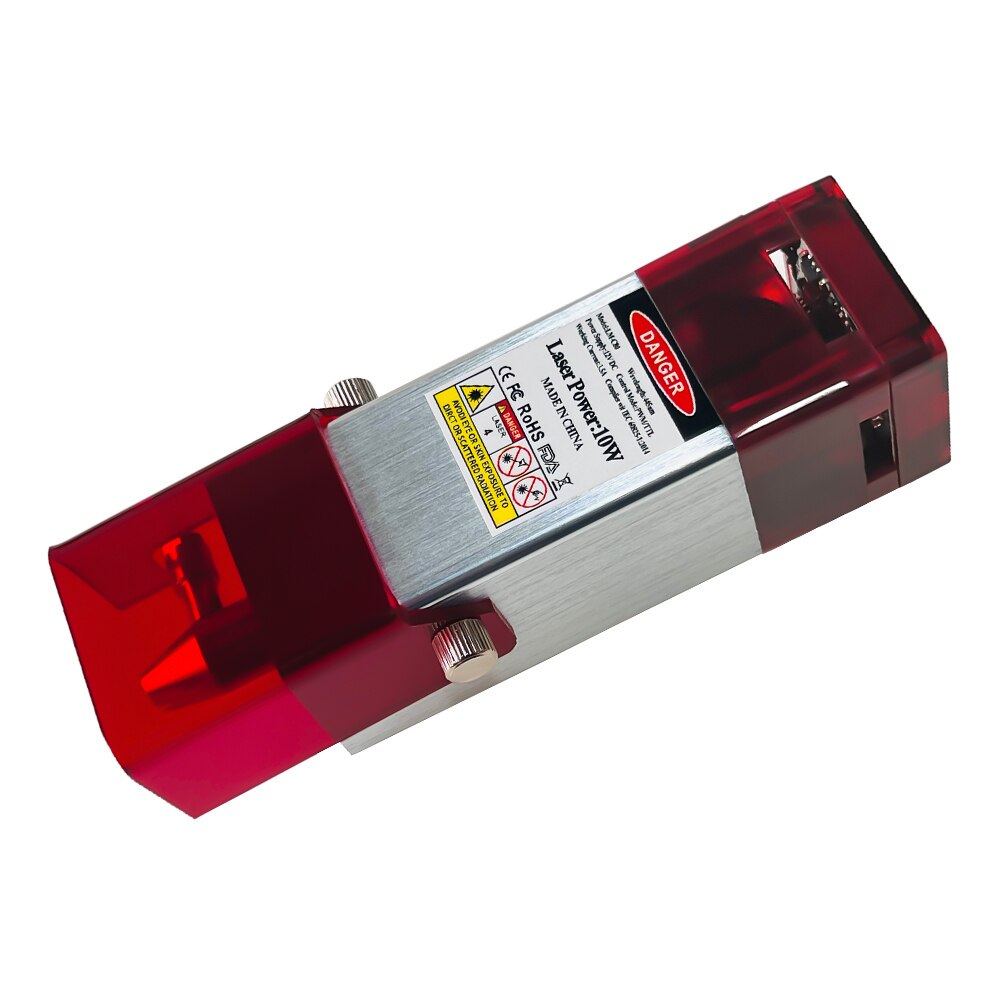

Blue laser module—a professional laser head with high speed and high stability. Bright blue light, easy to locate when engraving.

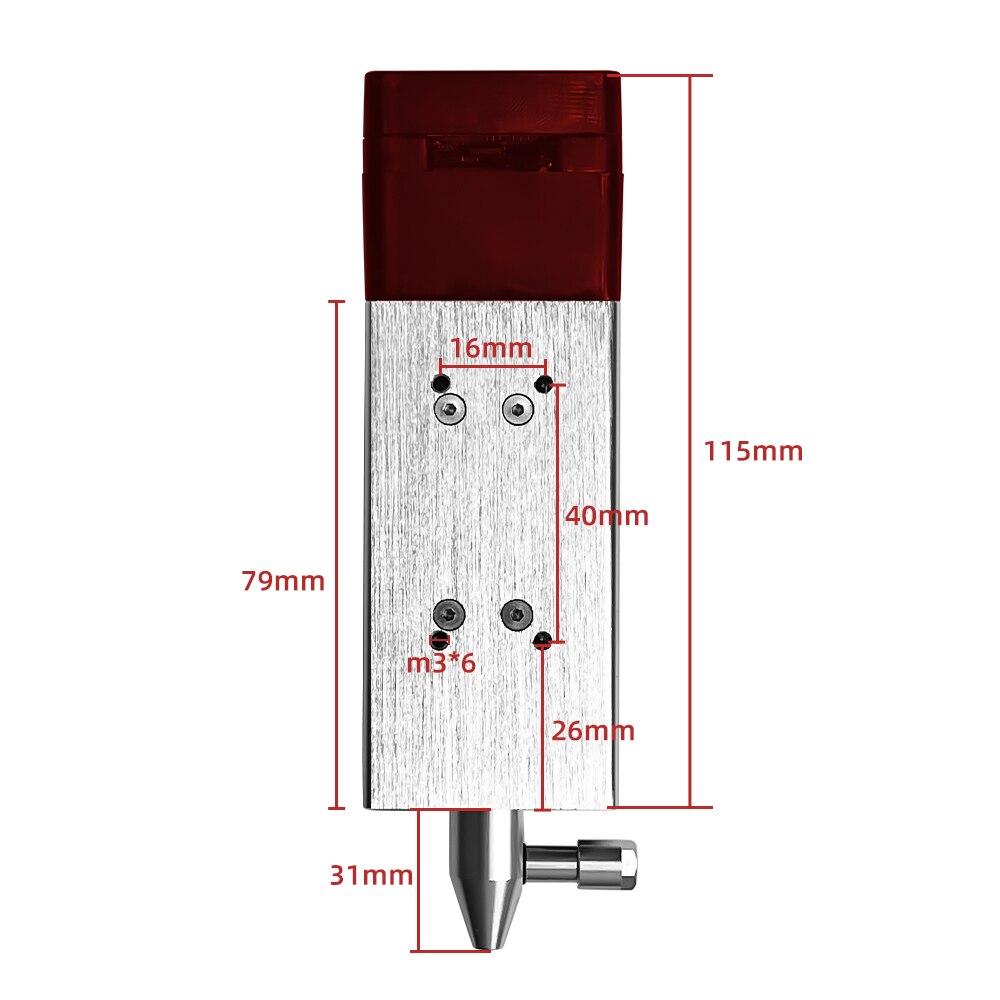

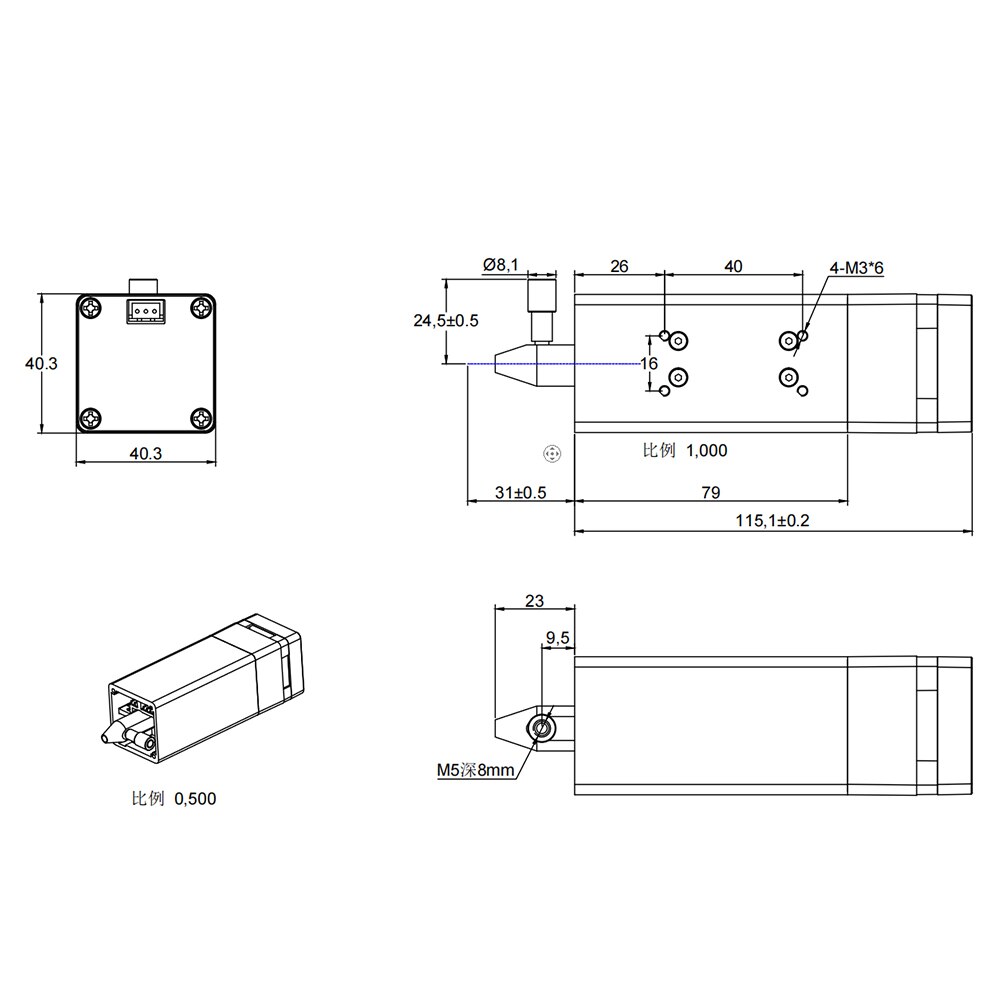

Fixed focus laser head, suitable for three-axis engraving machine, easy to install.
Easy to assemble—small, compact, convenient and easy to install.
