Description

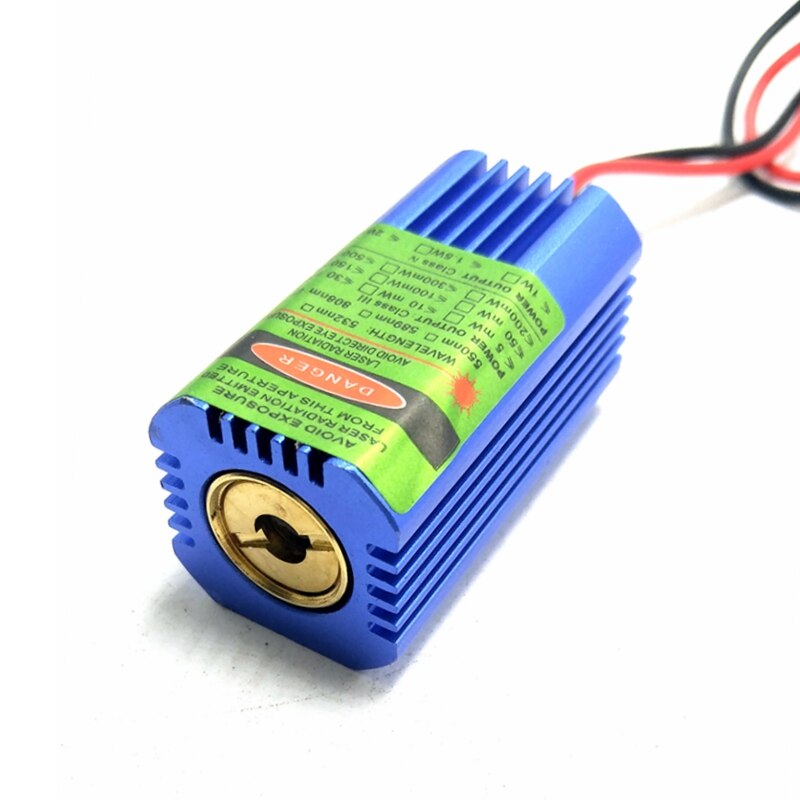

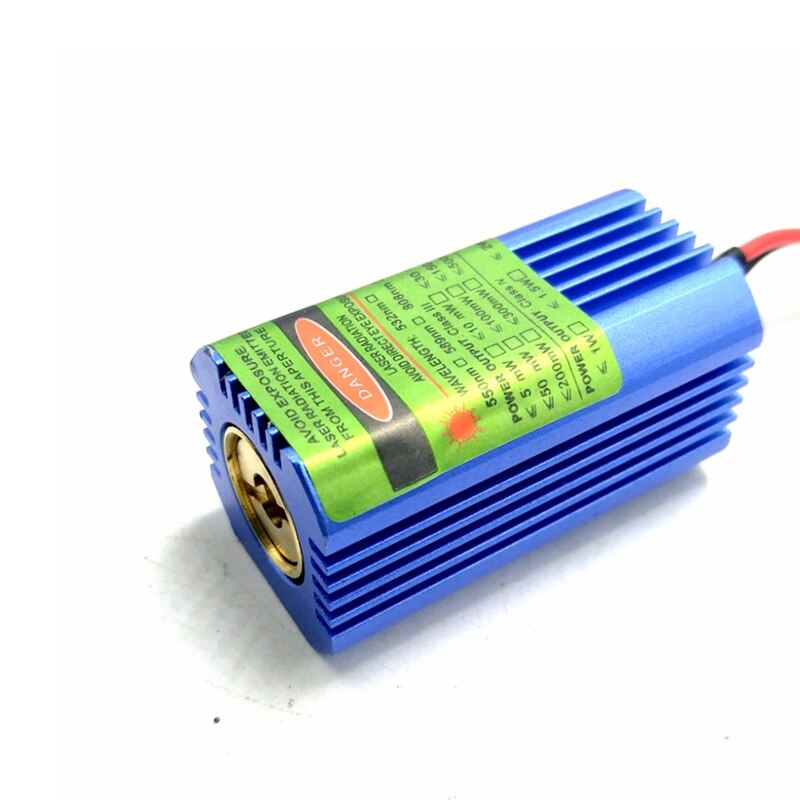

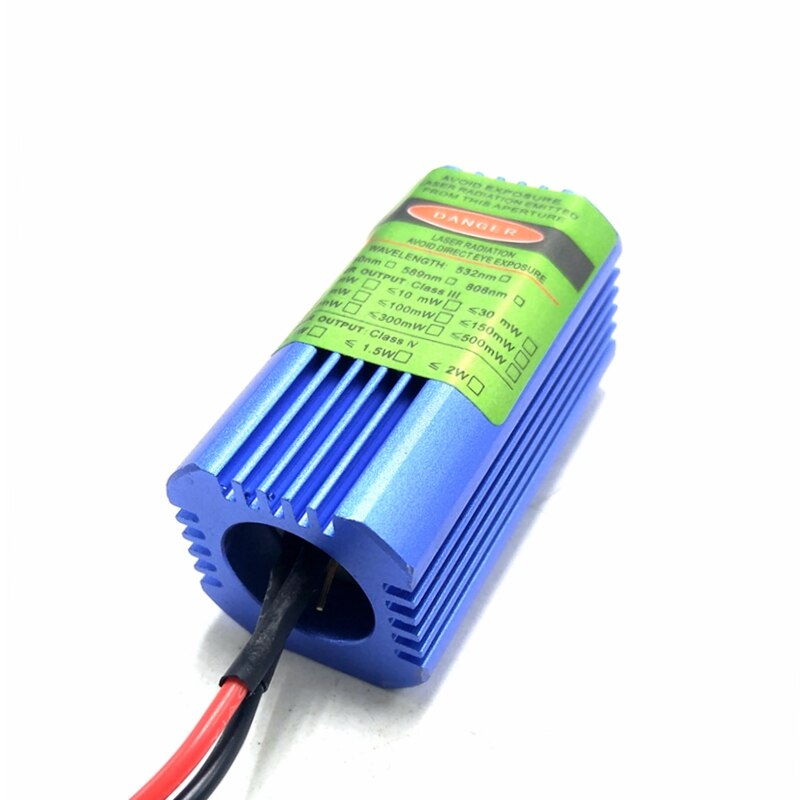

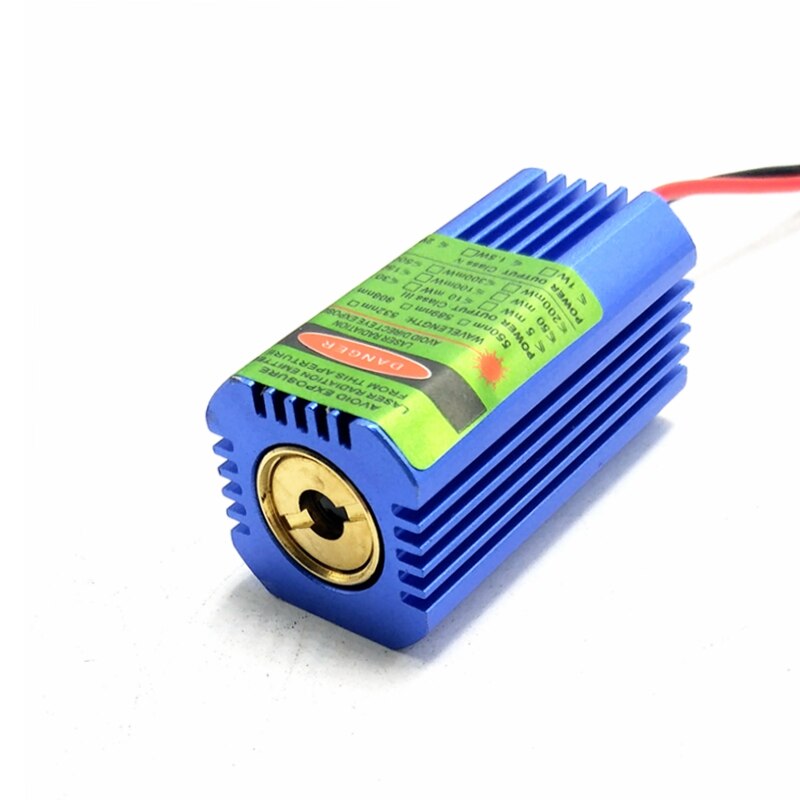

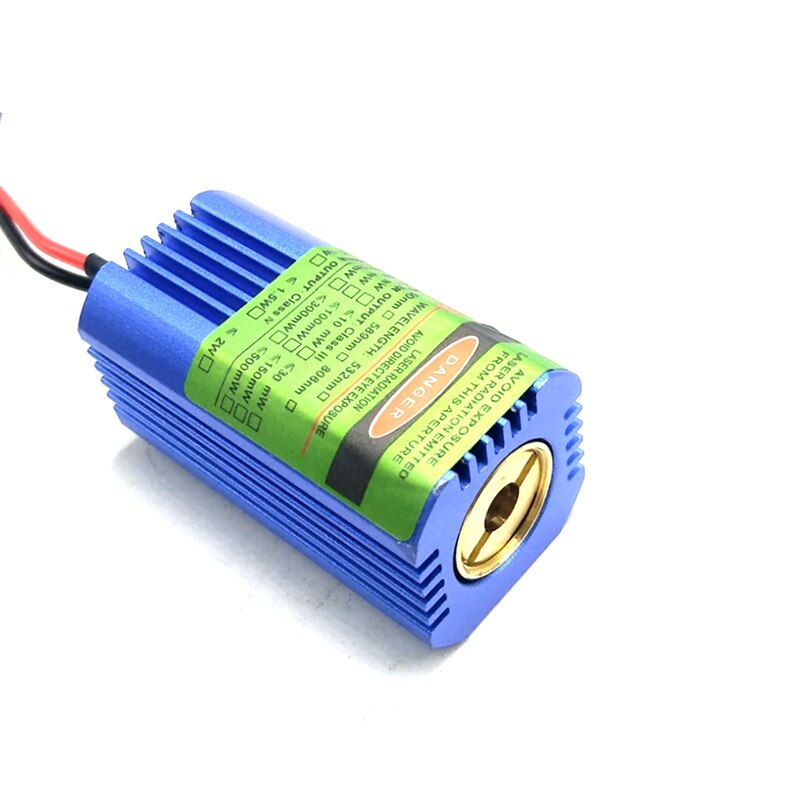

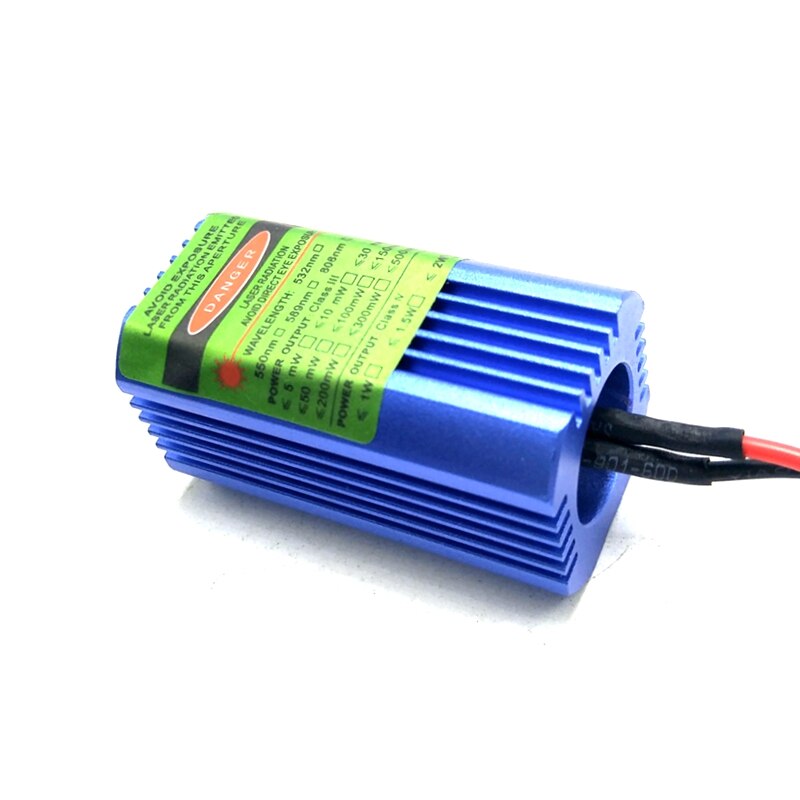

High Power 532nm 50mW Green Laser Diode Dot Module Spot Beam with Glass Lens 40mmx21mm
- Item Type: Stage Lighting Effect
- Model Number: 532MD-50-4021-12V-XL
Specifications:
Product description:
These products can be widely used in various stage laser lights, industrial-grade lasers that can work for a long time.
Product size: length 40mm*width 21mm*height 21mm
Outer circle size: 25mm in diameter
Output wavelength: 532 nm
Output power: 45-55mW
Cooling method: Aluminum heat dissipation
Modulation frequency: not modulated
Working characteristics: can work continuously for 30 minutes
Surface treatment: aluminum color
Shell material: aluminum
Circuit control: constant current
Reverse connection protection: with automatic identification of positive and negative poles
Working voltage: DC=3-5V
Working current: I<350mA
Warm-up time: none
Working temperature: -10℃～＋40℃
Storage temperature: -10℃～＋40℃
Structural features: laser tube + lens + heat dissipation shell
Note:
The power supply is built-in.
Tips:
The color of the product shown in the picture shell is blue，
Depending on the batch of shell material, sometimes the delivery maybe red or gray.
Special reminder:
The input voltage is 3-5V. Overvoltage will cause instantaneous damage to the circuit and module. If you have any technical problems, please feel free to consult!
Packing:
1pc * 532nm 50mW green dot laser module
