Host size: length 69mm* width 30mm* high 30mm



Circuit size: length 47.5mm* width 31.5mm* high 16mm (aluminum base reference above)



Output wavelength: 445 NM



Output power: 4000mW



Cooling method: aluminum cooling



Modulation frequency: adjustable (0-20kHz)



Working features: continuous work



Surface treatment: Black



Shell material: Aluminum



Circuit control: constant current



Reverse protection: automatic identification of positive and negative pole



Working voltage: DC=12V



Working current: I<4A



Preheating time: no



Start setting: slow start



Working temperature: -10 degrees C ~ 40



Storage temperature: -10 ~ 40 C

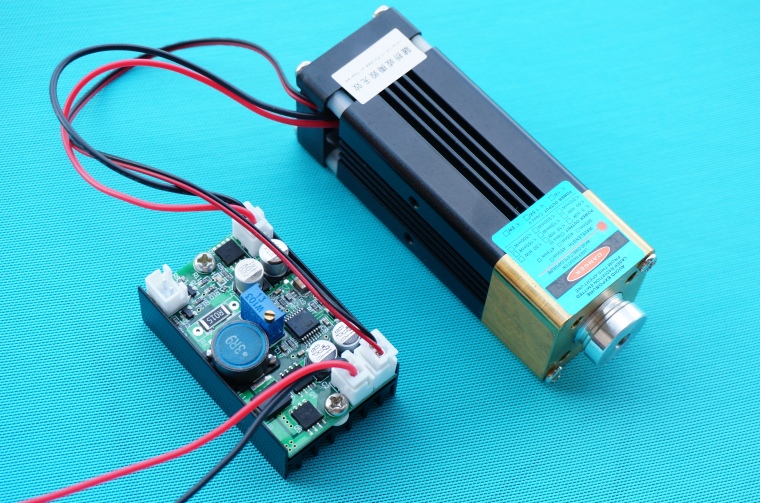

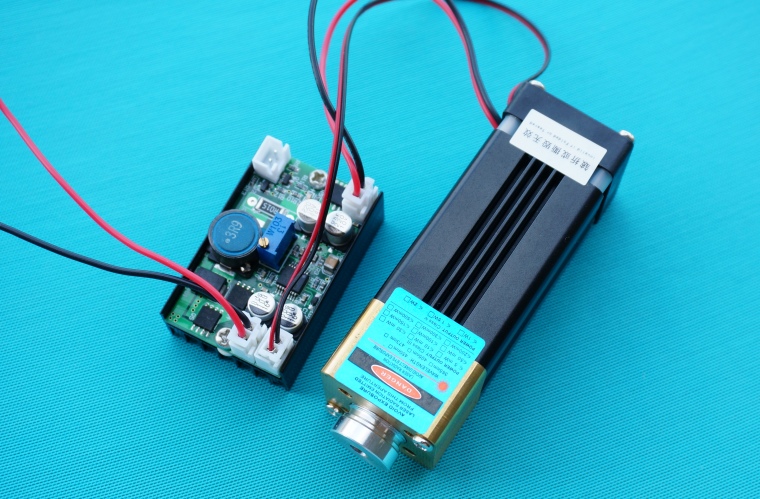

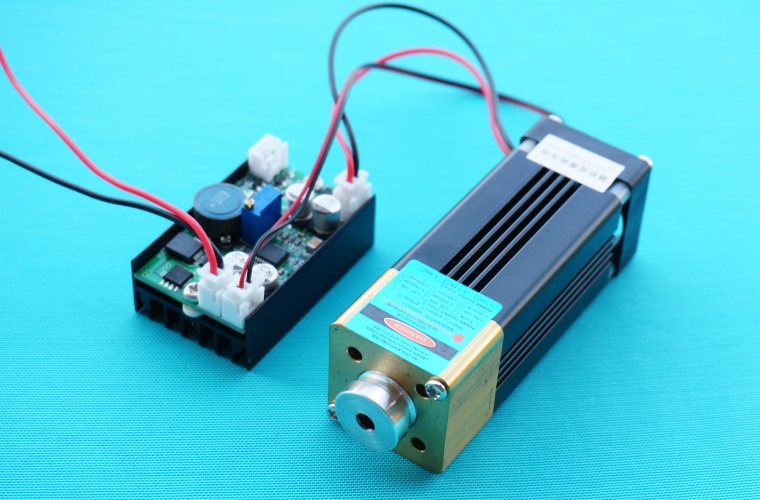

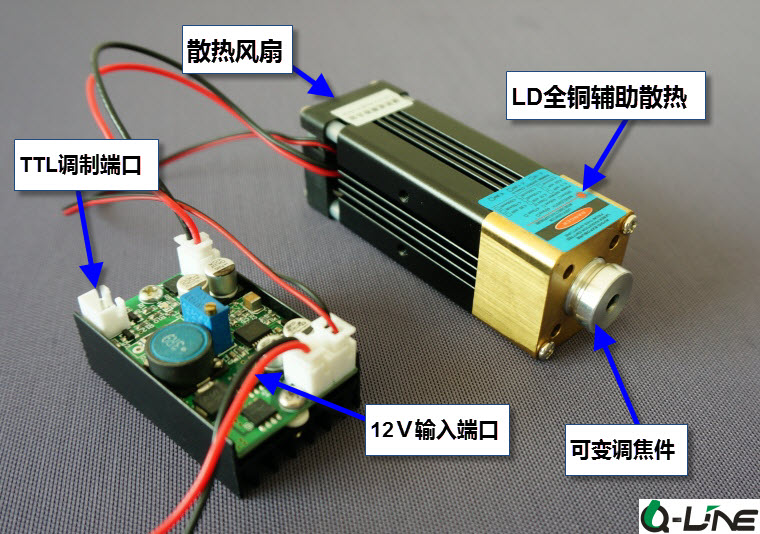

Structure features: laser diode + lens + heat dissipation shell



Note: power is external.



Special reminder: the input voltage is 12-14V, the overpressure will cause the circuit and the module instantaneous damage, if you have any technical problems, please consult first, thank you!
