Description
- Brand Name: EIDEVO
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 40W Fixed Focus Laser
- CNC or Not: CNC
- Funciton: for wood metal engraving
- Focus length:: 18mm
- Metal engrave:: Yes
- Suit:: Suitable for 3-axis and 2-axis Laser engraver
Note:
Friend,thank you for your support..Once you receive the parcel,please contact with us for the link to download the software!!!
We are always behind you!!

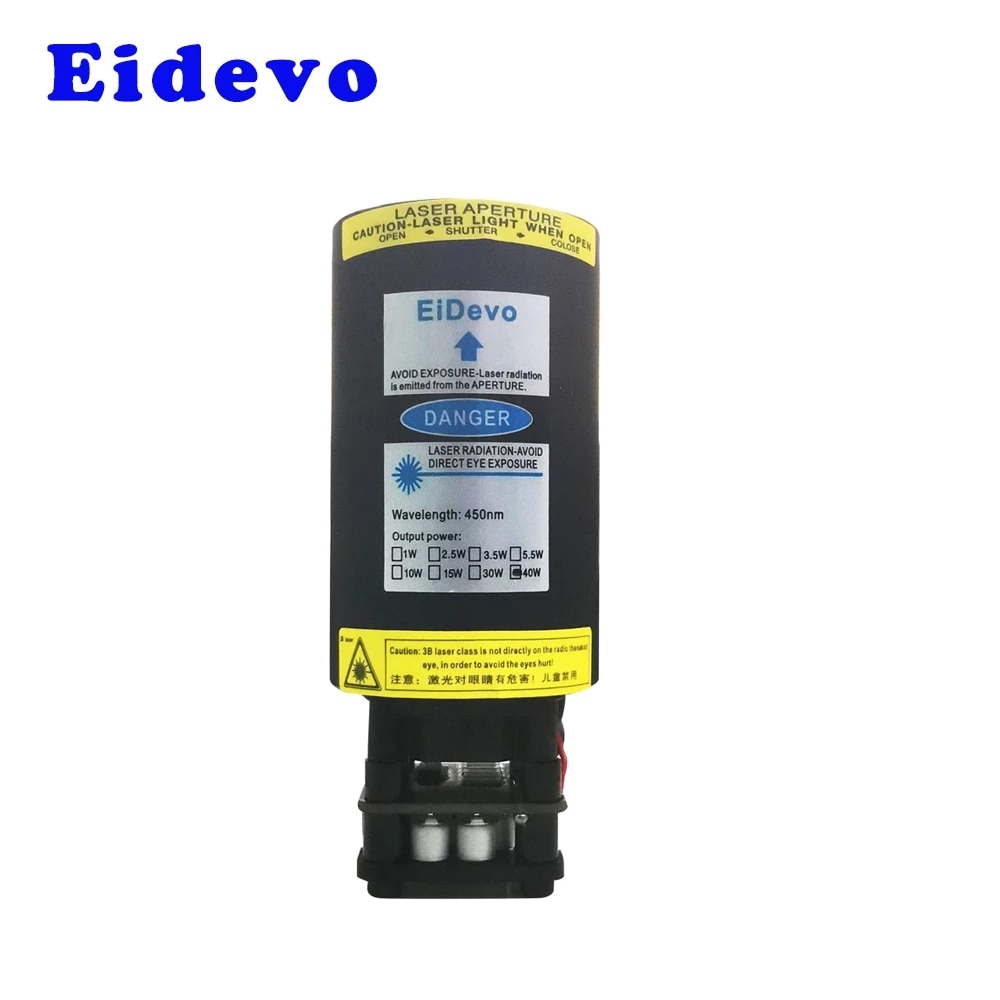

40W Laser Module PWM TTL 12V 450nm for Stainless Steel Engraving Wood Cutting Blue Cylinder Laser for CNC 3018 6550 5040 3020
Specifications:
Input Voltage: DC12V
PWM Pulse voltage:0 to 5V
Laser Diameter:43mm
Electronic Power: 40W
Optical Power:6000mW
Focus length: Fixed focus 18mm
Available Material engraving: Wood,Plywood,ABS,Bamboo,MDF,Plastic,Leather,Stainless steel, Aluminum,etc.
Suitable Engraver model: 2-Axis Laser engraver,as 65x50cm,50x40cm,100x100cm; 3-Axis model as CNC 3018/3018 Pro/3018 ProBM,1810,etc.

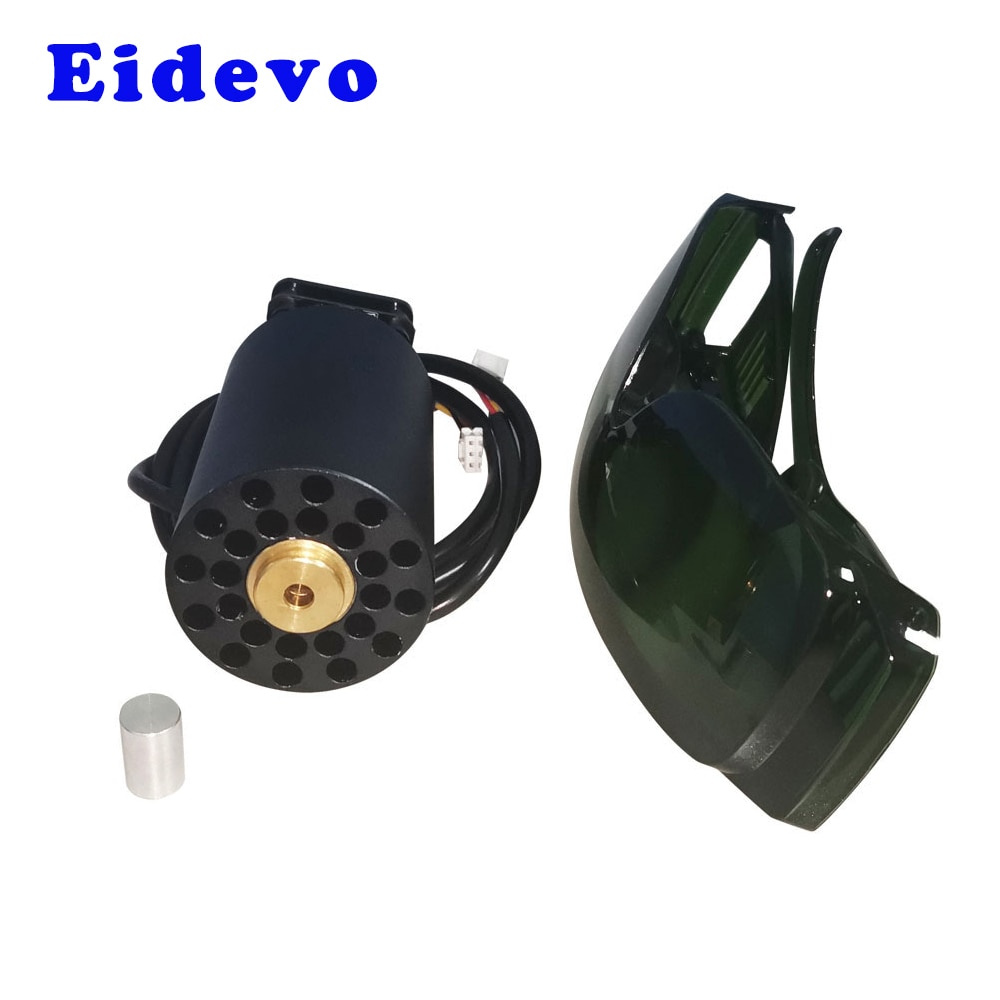

Package:
1*40W laser module
1*Protect Goggle
1*80cm PWM Wire cable
1*18mm Fixed focus Cylinder
Note:
If your engraver can not make this laser working,please check your controller board laser connect port if they are same as the laser driver port, and send the photo of the controller board to us, we will give a solution ASAP, thanks for your understanding!
