Description
- Origin: CN(Origin)
- Certification: tgleiser
- Usage: DIY cnc lighting laser
- Voltage: 12v
- Name: High Power Focusable Laser Module
- Power: 2.5W/2500mW
- Wavelength: 445nm/450nm
- Color: Blue
- Focusable: Yes, Focus < 0.5mm
- Voltage: 12V
- Material: Aluminum
- Applications: Laser cutter, Laser engraving machine, Laser equipment, CNN, DIY laser

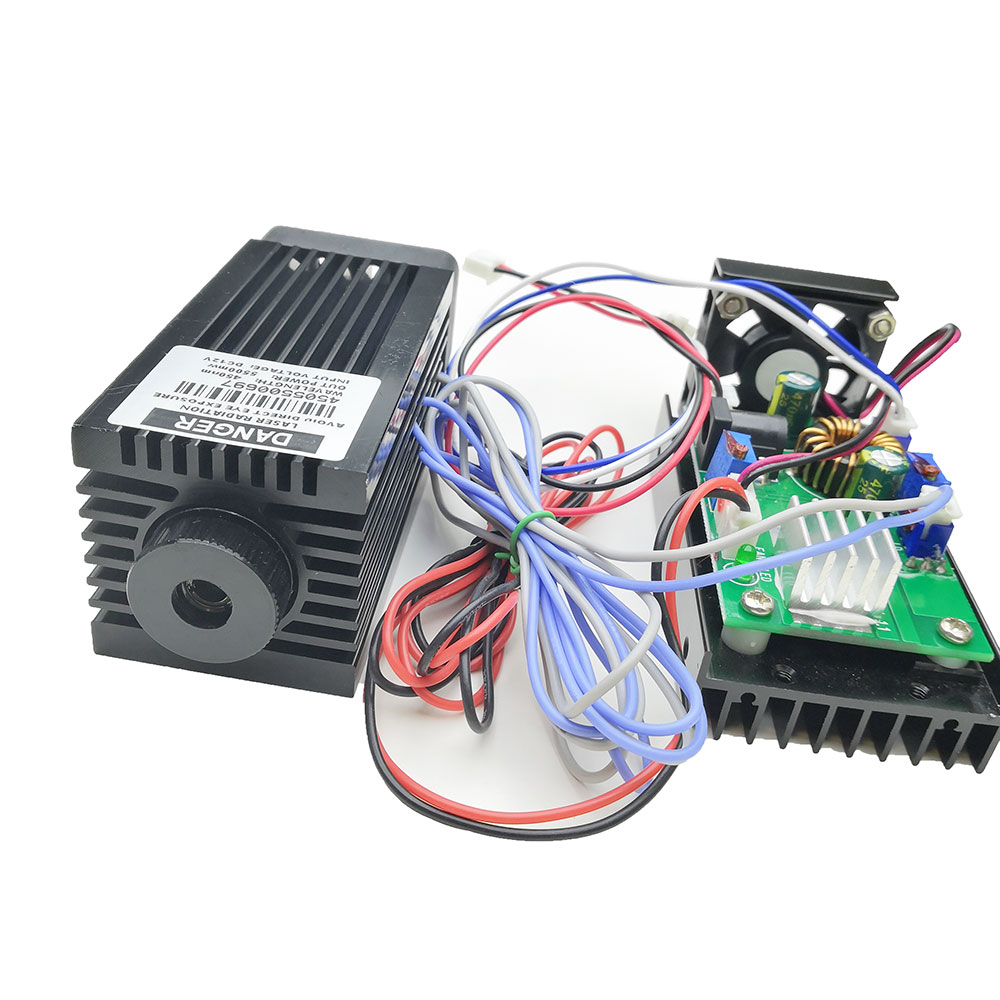

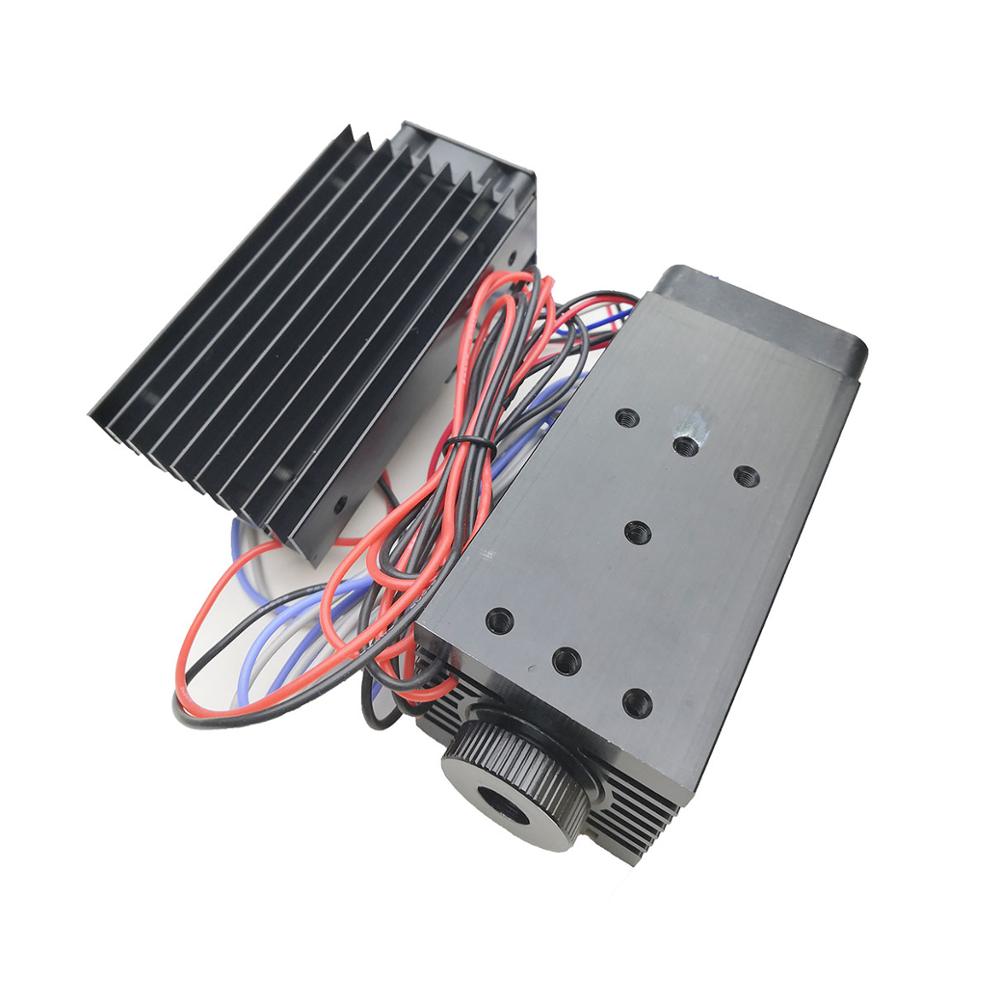

High power 2.5W Blue Light Module Diode for Laser CNC Engraving Machine 450nm 445nm Focus Power Supply 2500mw Laser Tube
1,Wavelength:445nm-450nm
2,Output Power:2500mW
3,Adjust the focus:Yes(By fingers),<0.5mm at 4CM~30CM;
4,Working Voltage:12V
5,Power supply:>2A;
6,TTL:Yes,White cable at + and Blue cable at -;
7,TTL signal input 0~5V input.(0V OFF/5V ON)(TTL Modulation control the output beam OFF / ON )
please make sure the TTL input vlotage does not exceed 5V.othrewse it will brun the driver board.
8, Frequency for TTL control:0-20KHz;
9,Duty cycle:input 1%-100%;
10,Cooling mode:Heatsink and Fan
11,Material:Metal
12,Lens:Glass
13,Red cable at "+",Black cable at "-";
14,Size:Laser Module:80*40*40mm;Driver board:80*42*35mm;
Packing: 1 X 450nm 2500mW laser module with TTL Driver board
1 X protective glasses
*Laser products are specialized and dangerous, just please who have relevant knowledge or professionals to buy, the company is not responsible to the non-normal use caused damage and injury.
