Description
- Model Number: 15W

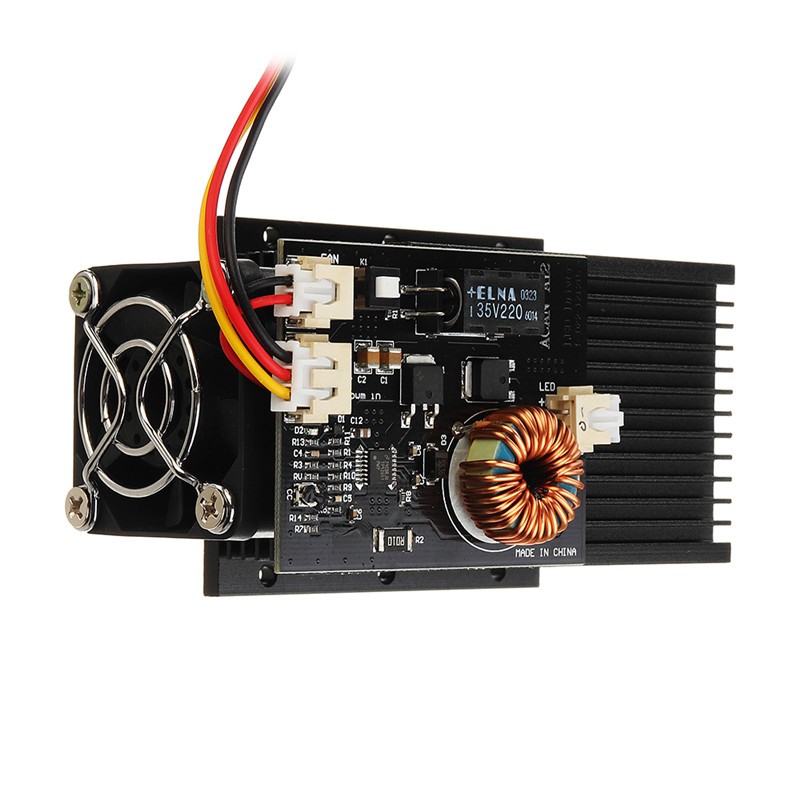

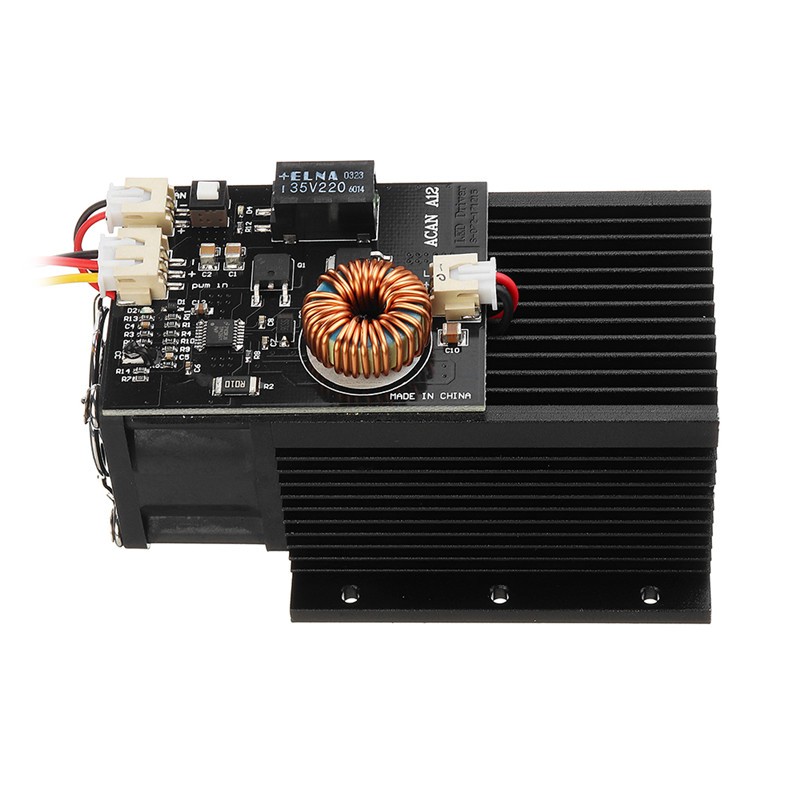

High Power 15W Laser Module
Specifications:
Name: 15W laser module
Wavelength: 445nm-450nm
Body size: length 50mm* width 50mm* height 100mm
Output power: pulse 15W average 8W
Modulation frequency: ttl can be modulated 0v-off 5v open pwm frequency <9Khz
Working voltage: DC=12V
Working current: I<3A
Focal length: not adjustable
Working temperature: 15 ° C ~ 45 ° C
package:
1 X 15W Adjustable Focus Laser Module
1 X adapter
Note:
– Please wear the protective glass when you use the laser module.
– Do not touching the laser light directly in case that hurt the body and skin.
– Keep children and pets away from the laser module when it working.
– The Laser dot could not be adjusted, please make sure the distance between bottom of the
laser module and engraving material is 16mm(Use the plastic column to do it).
Or it will influence the result.
– Please connect to the driver board carefully! The Red cord is 12V+, the black cord is GND-,
the yellow cord is Signal(S). Please make sure you know how to connect it.
Or it might damage the laser module!
The laser beam cannot be directed at anyone or flammable items, as this may result in personal injury or fire!
