High Power 10W Laser Diode Module Blue Engraver Head 450nm 10000mw TTL Cutting Engraving Machine CNC Cutter

$413.88

14 in stock

SKU: 32965554827 Category:

Description

  • Brand Name: tgleiser
  • Model Number: tgleiser
  • Item Type: Laser Flashlight
  • Wavelength: 450nm
  • Color: Blue
  • Power: 10W 1000mW Pulsed
  • Type: Inner driver
  • TTL Modulation: TTL
  • TTL frequency: 0-20KHz
  • Input Voltage: DC 12V
  • Beam: Focusable
  • Applications: Cutting Engraving Cutter Engraver CNC Laser Head

High Power 10W Laser Diode Module Blue Engraver Head 450nm 10000mw TTL Cutting Engraving Machine CNC Cutter

Features

1. DC 12V input voltage

2. Bigger multilayer glass lens

3. Easy to adjust the focus

4. Support TTL modulation

5. The minimum focus is less than 0.2mm

6. Focus range from 15mm to 50mm

7. With M3 screw holes, easy to install



Specifications

Wavelength: 445nm-450nm

Power: Pulse 10W, Average 5-6W

Focusable: Yes

Beam diameter at exit: ≤ 5mm

Working current: < 4A

Working Voltage: DC 12V

Operating temperature: -15 degrees to 45 degrees

Focus diameter: ≤Φ0.12 (mm)

Operation mode: TTL modulation

TTL Frequency: 0-20KHz

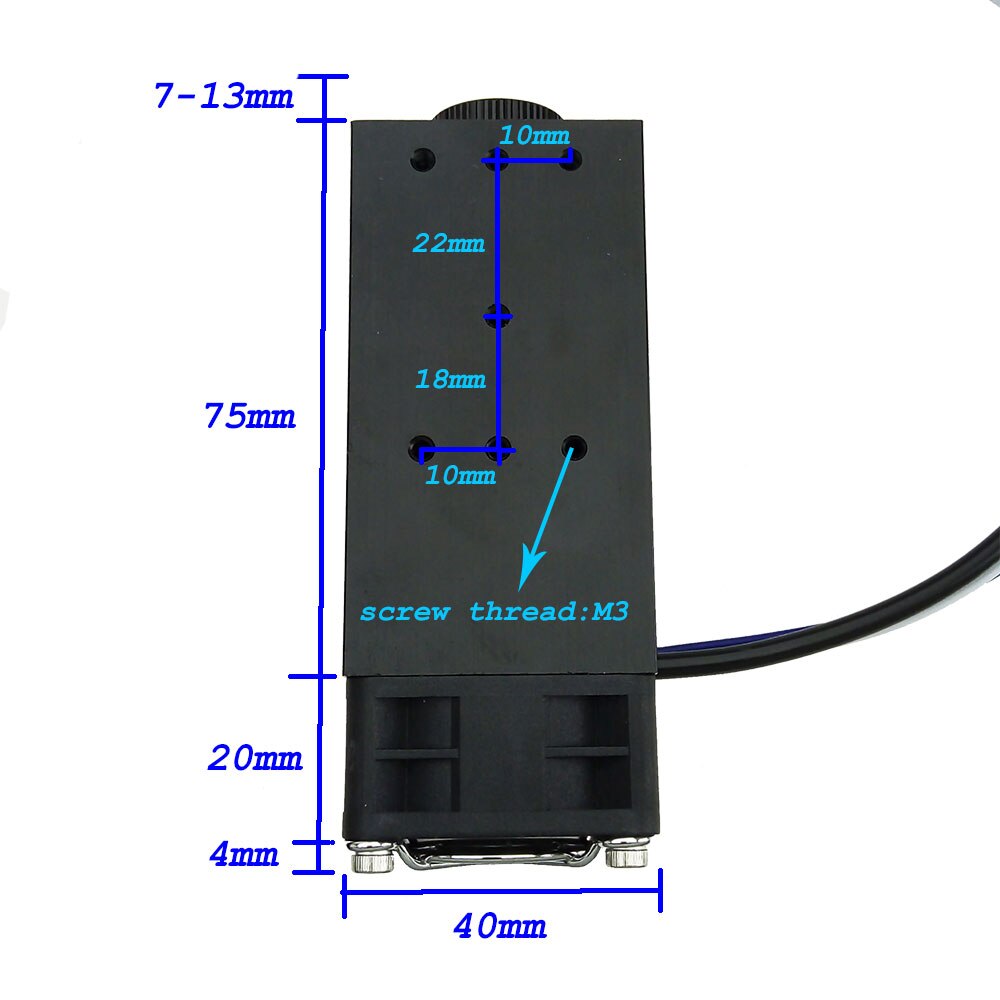

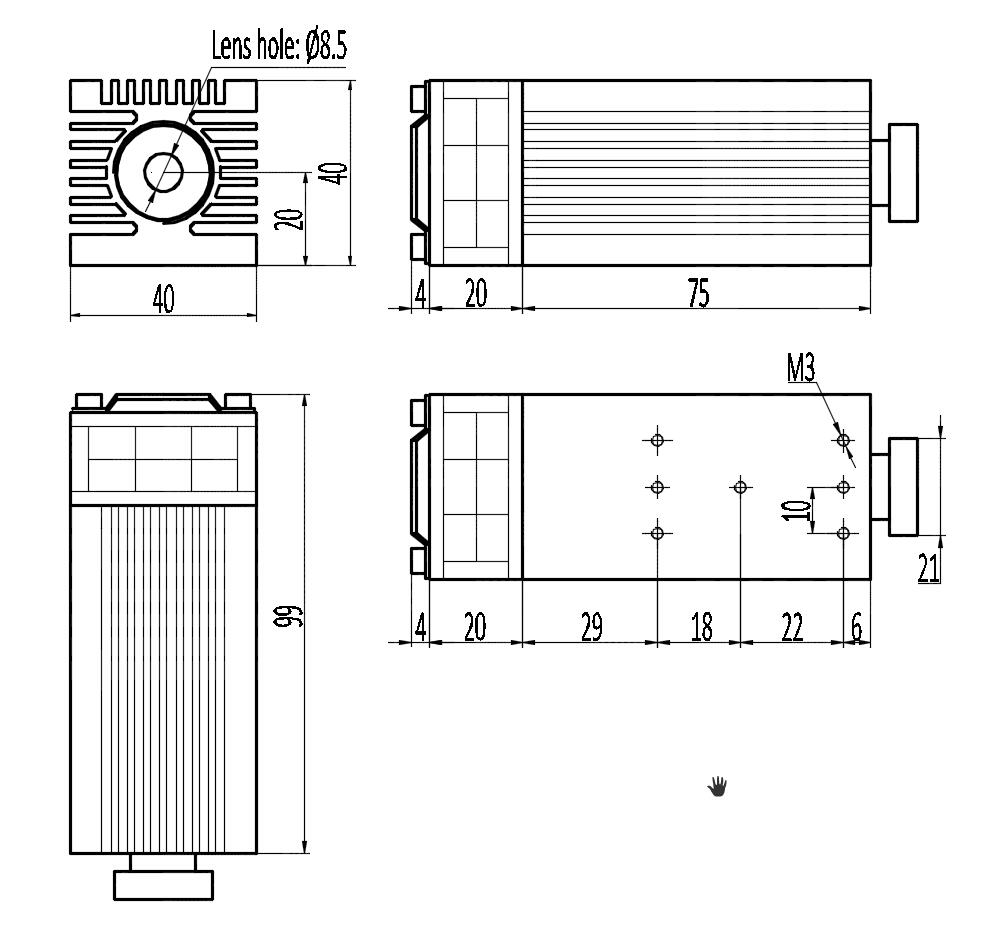

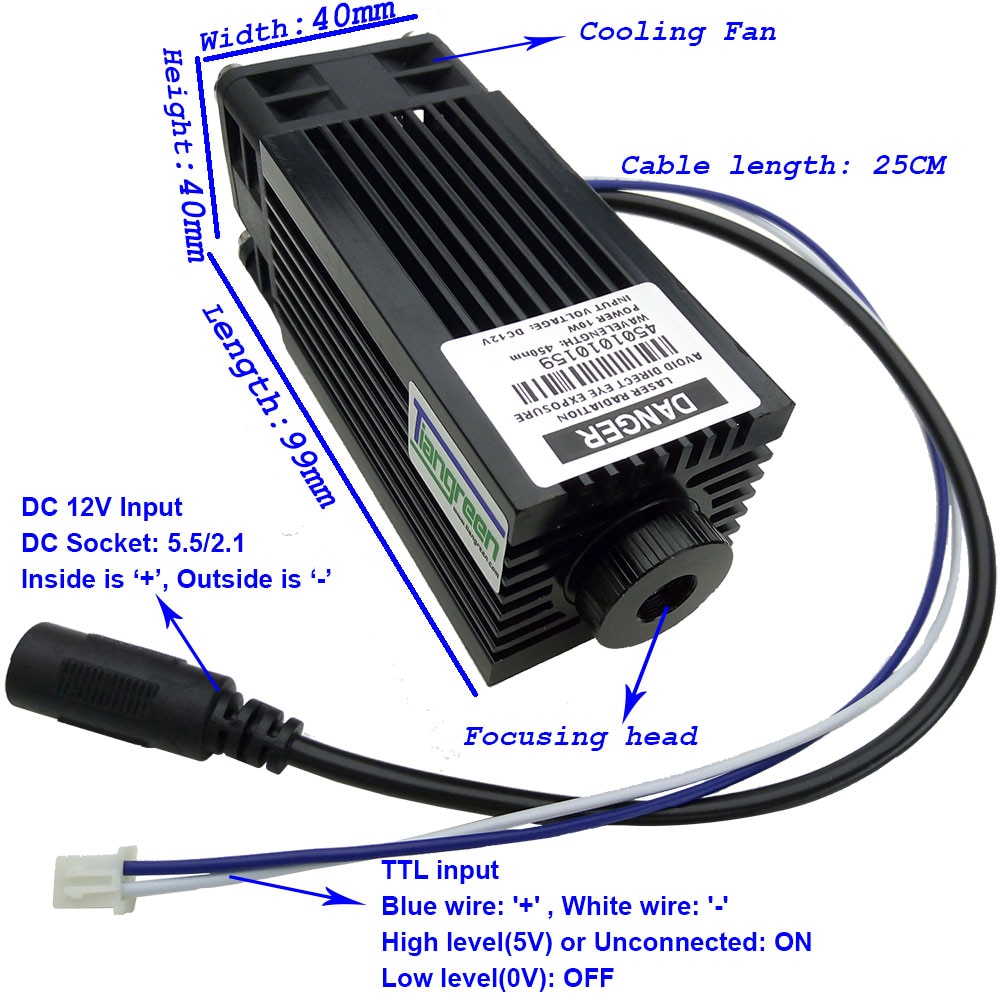

Module Size: 99mm+(7-13mm Lens) x 40mm x 40mm (LxWxH)

Material: hard aluminum + brass

Finish: Black anodized + sandblasting

Cooling method: Fan cooling



Can be carved materials: balsa wood, plywood, stainless steel, iron, aluminum, ceramics, stone, wood, bamboo, leather, plastics, etc.
the effect depend on the material color, reflectivity, transparency, density, thermal conductivity, etc.
different materials have different effects. and reflected light reflected from highly reflective materials may cause damage to the module.
for metal, only a very thin line can be produced, the darker the color, the better effect, enhancing the effect may require multiple operations.



Attentions:

1. Voltage Input: DC 12V.
2. Please make sure input voltage polarity is correct and does not exceed 12V, and TTL input signal is correct, otherwise it will burn laser module.
3. Prevent high voltage electrostatic damage.
4. It is recommended to install on a metal plate with good heat dissipation.
5. The light beam can not shoot to anyone or any flammable, otherwise It can result in injury or fire!!!
6. A high proportion reflected beam reflecting to the module itself may cause damage.



Package include: 1 X laser module
