Description
- Brand Name: MERHOLE
- Origin: CN(Origin)
- Certification: CE
- Certification: RoHS
- Voltage: 220-240v
- Item Type: UV GEL Curing Lamps
- Model Number: 4000W
- Voltage: 85-240V
- Lamp body material: Aluminum alloy
- wavelength: 395nm/405nm/365nm

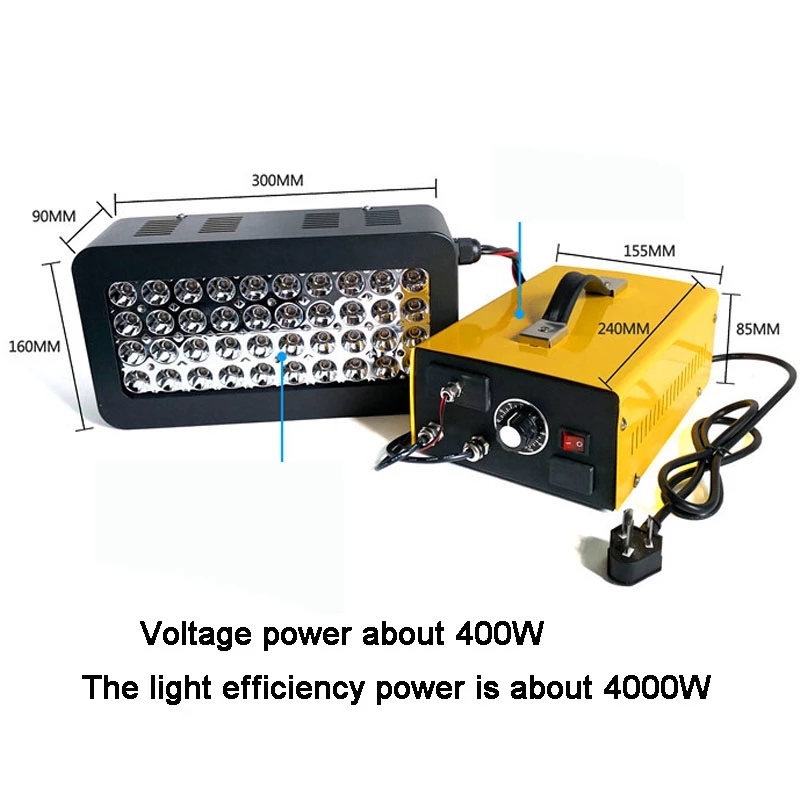

[Power consumption]: 400W
[Relative light effect]: 4000W light effect (relative to traditional tubular UV lamps)
[Light intensity]: 7000mW/cm2 (measured 395NM peak)
[Output wavelength]: 395nm/365nm/405nm (±10nm)

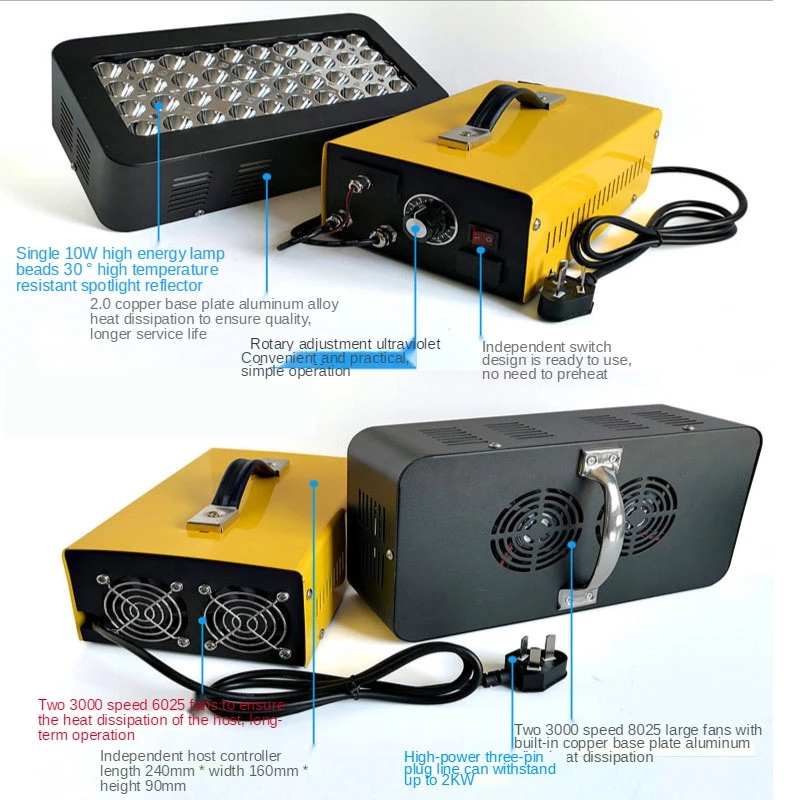

[Light source]: imported LG chip, single 10W high power, quartz glass package.
[Heat dissipation method]: 8025 fan, high thermal conductivity copper substrate and aluminum alloy radiator, longer service life.
[Control method]: Manually adjust the energy 0-100%
[Irradiation distance]: about 1-5 cm (in theory, the closer the better)
[Usage environment]: Conventional room temperature (0-40℃, humidity 20-85%), clean operating environment can be applied
[Lighting angle]: 120 degrees
[Optional accessories] UV protective glasses
【Product Features】: No need to preheat, instant start, energy saving and environmental protection; high energy, high efficiency; small attenuation, long life.
【Applications】: UV glue curing, LED varnish frosting oil, LED printing ink, offset printing curing, coating surface curing, inkjet curing, sterilization detection, fluorescent display, etc.
【Tips】To achieve the best curing effect, you must pay attention to two points:
1. The wavelength of the light curing agent contained in the UV glue must be the same as the wavelength emitted by the UV lamp;
2. The ultraviolet energy emitted by the UV lamp must meet the energy required for UV glue curing;
