Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: AUSTEK
- Model Number: AMAG-S
- Type: Variable Area Water Flowmeters
- Dielectric Conductivity: ≥5μS/cm , softening water 20μS/cm
- Installation Form: Compact/Remote
- Nominal Pressure: 0.6MPa~1.6MPa(by caliber)
- Flow Range: 0.3m/s ~6m/s
- Output Signal: 4~20mA, frequency/pulse, alarm output
- Ambient Temperature: A:≤80℃;B:≤120℃
- Shell Material: Stainless steel, carbon steel
- Electrode material: 316L, Hb, Hc, Ti, Ta, Pt
- Lining Material: PTFE, PFA, F46, PU polyurethane, Ceramic
- Size: DN15~DN600

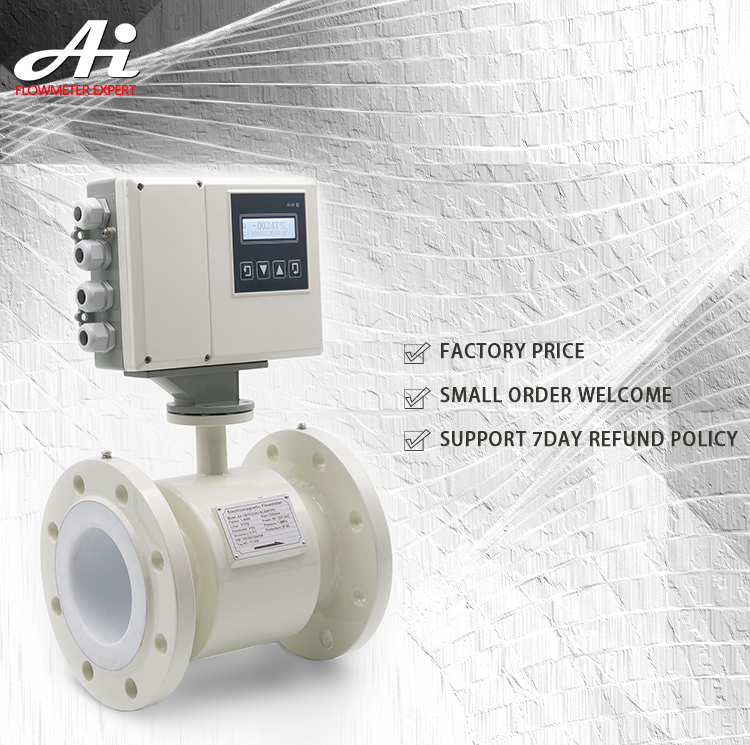

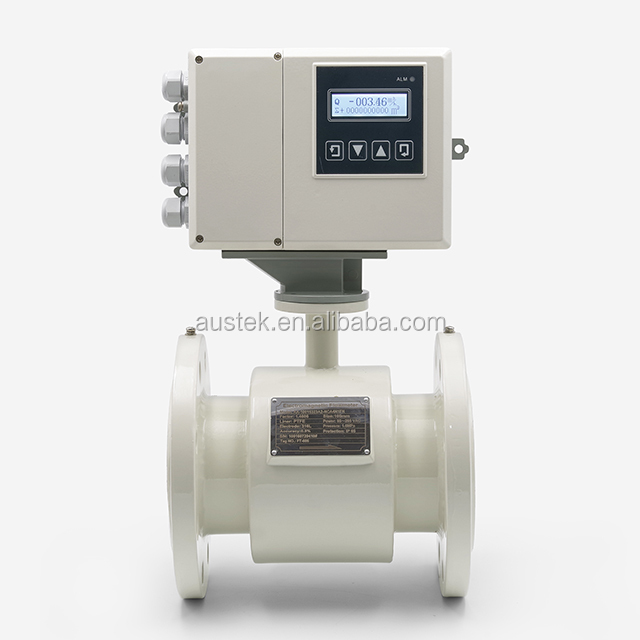

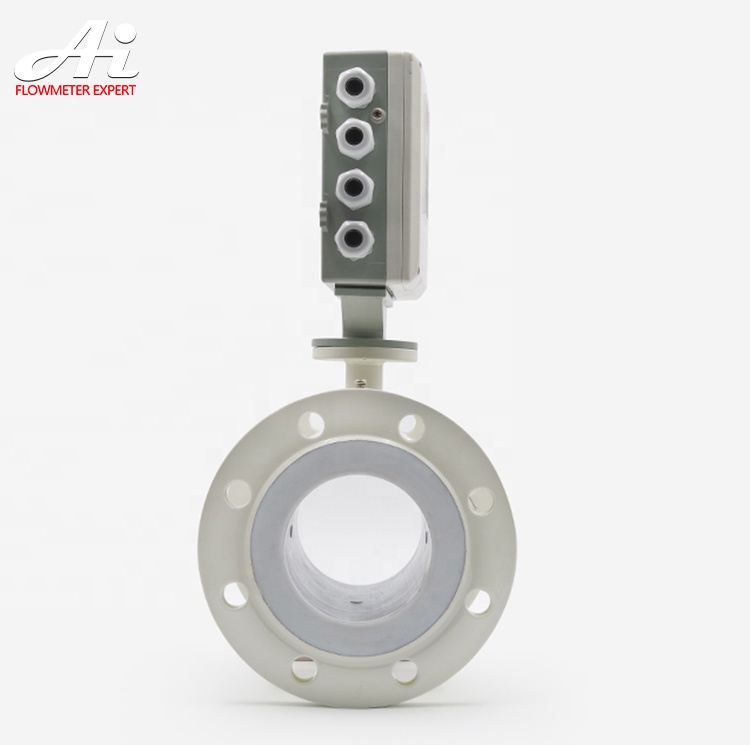

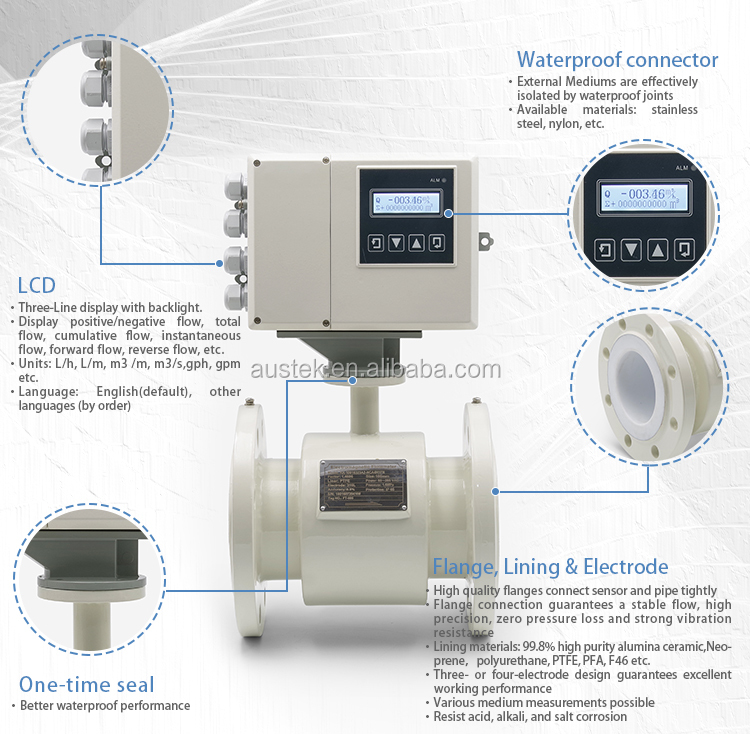

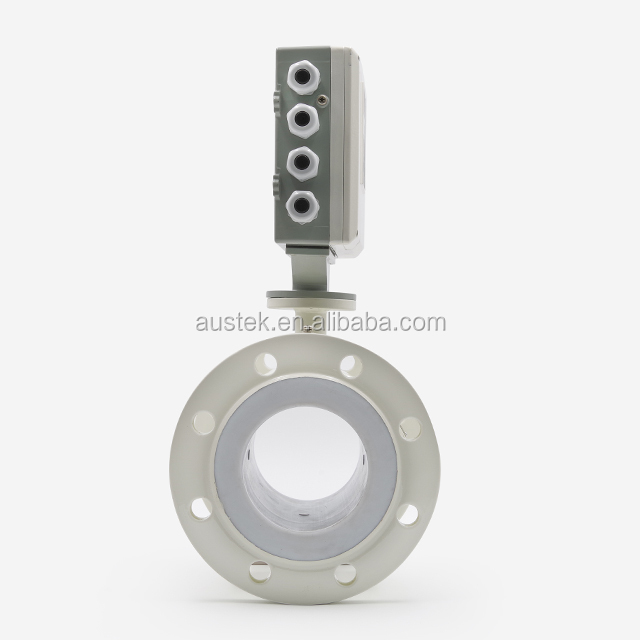

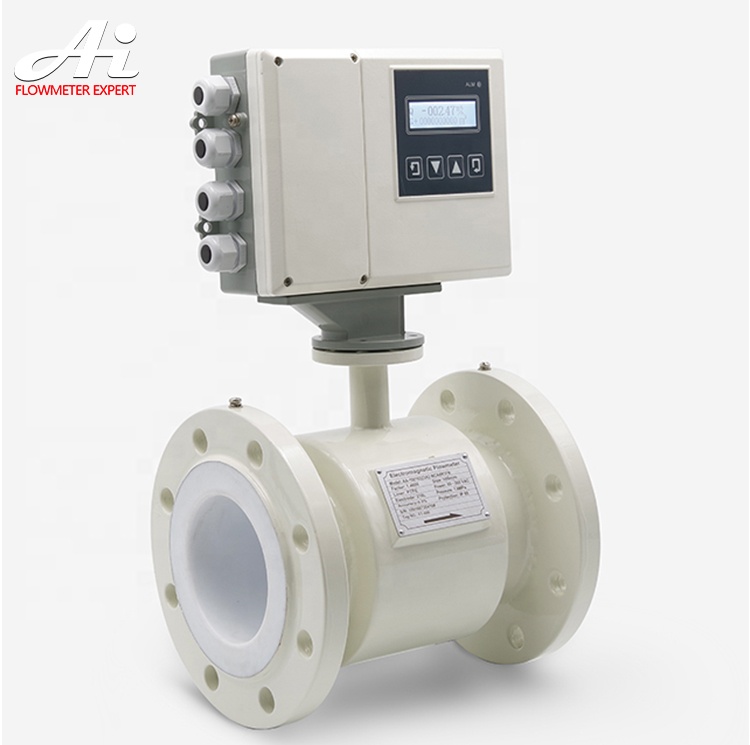

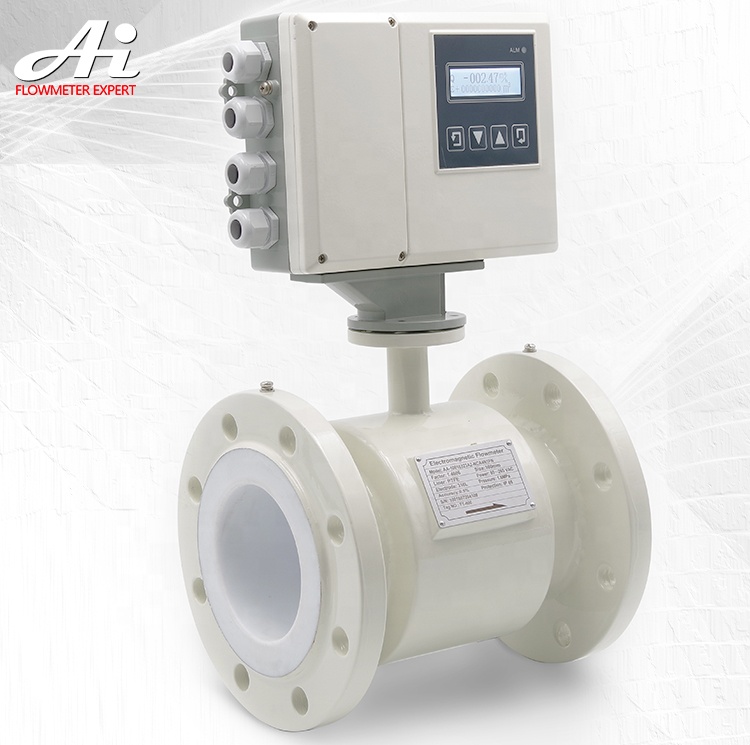

The converter of this flowmeter uses 25Hz ~ 50Hz high-frequency square wave excitation, which effectively reduces the flow noise. It uses the latest signal processing technology and noise suppression algorithm to achieve a stable measurement, resulting in zero point stability, low steady-state volatility and fast dynamic response. The sensor has abrasion-resistant lining, which is suitable for the flow measurement of solid-liquid suspension or inhomogeneous liquids. AMAG-S is mainly used for measuring the slurry of pulp, coal water slurry, mud (including micro particles) and cement slurry etc.
| Nominal diameter | DN15~DN600 |
| Electrode material | 316L, Hb, Hc, Ti, Ta, Pt |
| Lining material | PTFE, PFA, F46, PU polyurethane, Ceramic |
| Conductivity | ≥5μS/cm , for demineralized water: 20μS/cm |
| Accuracy | ±0.5%R~±1.0%R |
| Medium Temperature | A:≤80℃;B:≤120℃ |
| Velocity | 0.3m/s ~6m/s |
| Connection | Flange-type |
| Nominal pressure | 0.6MPa~1.6MPa(by caliber) |
| Installation | Compact/Remote |
| Shell material | Stainless steel, carbon steel, etc. |
1. Q: when can I get the reply after inquiry?
A: We will contact you as soon as possible within 1 hour.
2. Q: can I visit your factory?
A: Certainly. You will know more about our products and strength.
3. Q: how can I get a sample for pretest?
A: we sell samples for pretest. Please contact our sales for more information.
4. Q: How is your quality management?
A: We have a complete quality control system. All of our products will be inspected by QC department before shipping . We can send you our ISO certifications if required.
5. Q: can I have the products according to my own drawings?
A: Yes, we can do OEM according to your requirements.
6. Q: How is the payment term?
A: It is Negotiable. The payment needs to be 100% T/T completed in advance if trade amount is less than $10000.
7. Q: How long is your warranty?
A: Our warranty is 18 months, but we offer Life-time maintenance for the product.
