Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Certification: CE
- Warranty: 1year
- Customized support: OEM, ODM, OBM
- Place of Origin: Shaanxi, China
- Brand Name: XYT METER
- Model Number: QDB118T
- Application: Diving,oxygen
- Power: 3.6V(Battery-powered)
- Over pressure: 150%
- Protection: IP65
- Material: SS
- Pressure range: -0.1-0…100MPa
- Pressrue type: gauge,absolute
- Color: Black, yellow
- Name: Digital Pressure Manometer
- Certificate: explosion-proof
#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:14px}#detail_decorate_root .magic-7{width:750px}#detail_decorate_root .magic-8{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:373px;height:373px}#detail_decorate_root .magic-10{overflow:hidden;width:373px;height:373px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-11{margin-top:-3px;margin-left:-76px;width:450px;height:375px}#detail_decorate_root .magic-12{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-13{padding:0;font-size:16px;line-height:20px;font-weight:bold;margin:0}#detail_decorate_root .magic-14{font-family:”Times New Roman”}#detail_decorate_root .magic-15{overflow:hidden;width:184.5px;height:123px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:184px;height:123px}#detail_decorate_root .magic-17{overflow:hidden;width:184.5px;height:122.33152173913044px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-18{width:750px;border-collapse:collapse}#detail_decorate_root .magic-19{min-height:28px;padding:5px 10px;overflow:hidden;width:727px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-20{display:none}#detail_decorate_root .magic-21{min-height:28px;padding:5px 10px;overflow:hidden;width:164px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-22{min-height:28px;padding:5px 10px;overflow:hidden;width:286px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-23{min-height:28px;padding:5px 10px;overflow:hidden;width:211px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-24{min-height:28px;padding:5px 10px;overflow:hidden;width:493px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-25{min-height:28px;padding:5px 10px;overflow:hidden;width:495px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:28px;padding:5px 10px;overflow:hidden;width:287px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;overflow:hidden;width:206px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;overflow:hidden;width:55px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;overflow:hidden;width:422px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;overflow:hidden;width:207px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;overflow:hidden;width:499px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{width:446px}#detail_decorate_root .magic-33{overflow:hidden;width:446px;height:337.60681114551085px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:446px;height:337px}#detail_decorate_root .magic-35{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-36{overflow:hidden;width:750px;height:843.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:750px;height:843.75px}#detail_decorate_root .magic-38{text-align:center;padding:0;line-height:20px;margin:0}#detail_decorate_root .magic-39{font-size:18px;color:#005fbf;font-family:inherit;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-40{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-41{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-42{width:244.656px;height:234px;overflow:hidden}#detail_decorate_root .magic-43{position:relative;left:-41px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-44{text-align:center;margin:0;padding:0}#detail_decorate_root .magic-45{position:relative;left:0;top:0;width:251.1px;height:188.1px}#detail_decorate_root .magic-46{position:relative;left:-67.5px;top:0;width:339.623px;height:234px}#detail_decorate_root .magic-47{position:relative;left:-62.5px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-48{position:relative;left:-20px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-49{position:relative;left:-70px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-50{position:relative;left:-44px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-51{position:relative;left:-57.5px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-52{position:relative;left:-57px;top:0;width:350.825px;height:234px}#detail_decorate_root .magic-53{font-size:18px}#detail_decorate_root .magic-54{overflow:hidden;width:750px;height:361px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:750px;height:361.285px}#detail_decorate_root .magic-56{overflow:hidden;width:750px;height:325px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:750px;height:325.057px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-60{overflow:hidden;width:247.33333333333334px;height:185.50000000000003px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-61{margin-top:-4.005398110661269px;margin-left:-3.004048582995952px;width:247px;height:185px}#detail_decorate_root .magic-62{overflow:hidden;width:247.33333333333334px;height:185.2496626180837px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-63{margin-top:-64.0863697705803px;margin-left:9.012145748987855px;width:247px;height:308px}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:247px;height:394px}#detail_decorate_root .magic-65{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-67{position:relative;left:0;top:0;width:316.769px;height:234px}#detail_decorate_root .magic-68{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-69{margin:0;padding:0}#detail_decorate_root .magic-70{position:relative;left:0;top:0;width:317.426px;height:234px}#detail_decorate_root .magic-71{position:relative;left:-72px;top:0;width:316.8px;height:232.1px}#detail_decorate_root .magic-72{position:relative;left:-31px;top:0;width:317.79px;height:234px}#detail_decorate_root .magic-73{position:relative;left:0;top:0;width:320.59px;height:234px}#detail_decorate_root .magic-74{position:relative;left:-25px;top:0;width:320.211px;height:234px}#detail_decorate_root .magic-75{position:relative;left:0;top:0;width:244.656px;height:244.656px}#detail_decorate_root .magic-76{width:245px;height:234px;overflow:hidden}#detail_decorate_root .magic-77{position:relative;left:-14px;top:23px;width:285px;height:189px}
Product Description

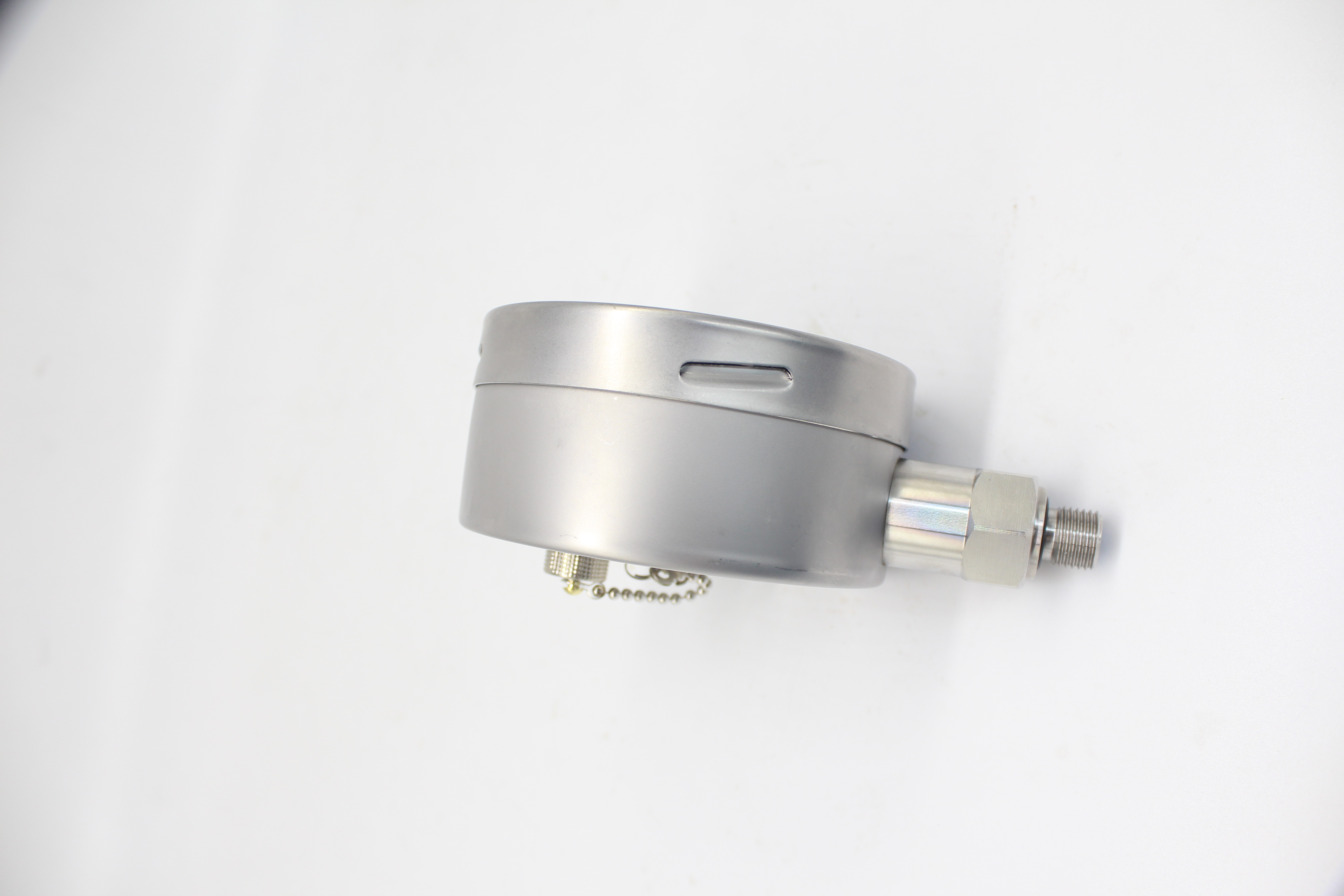

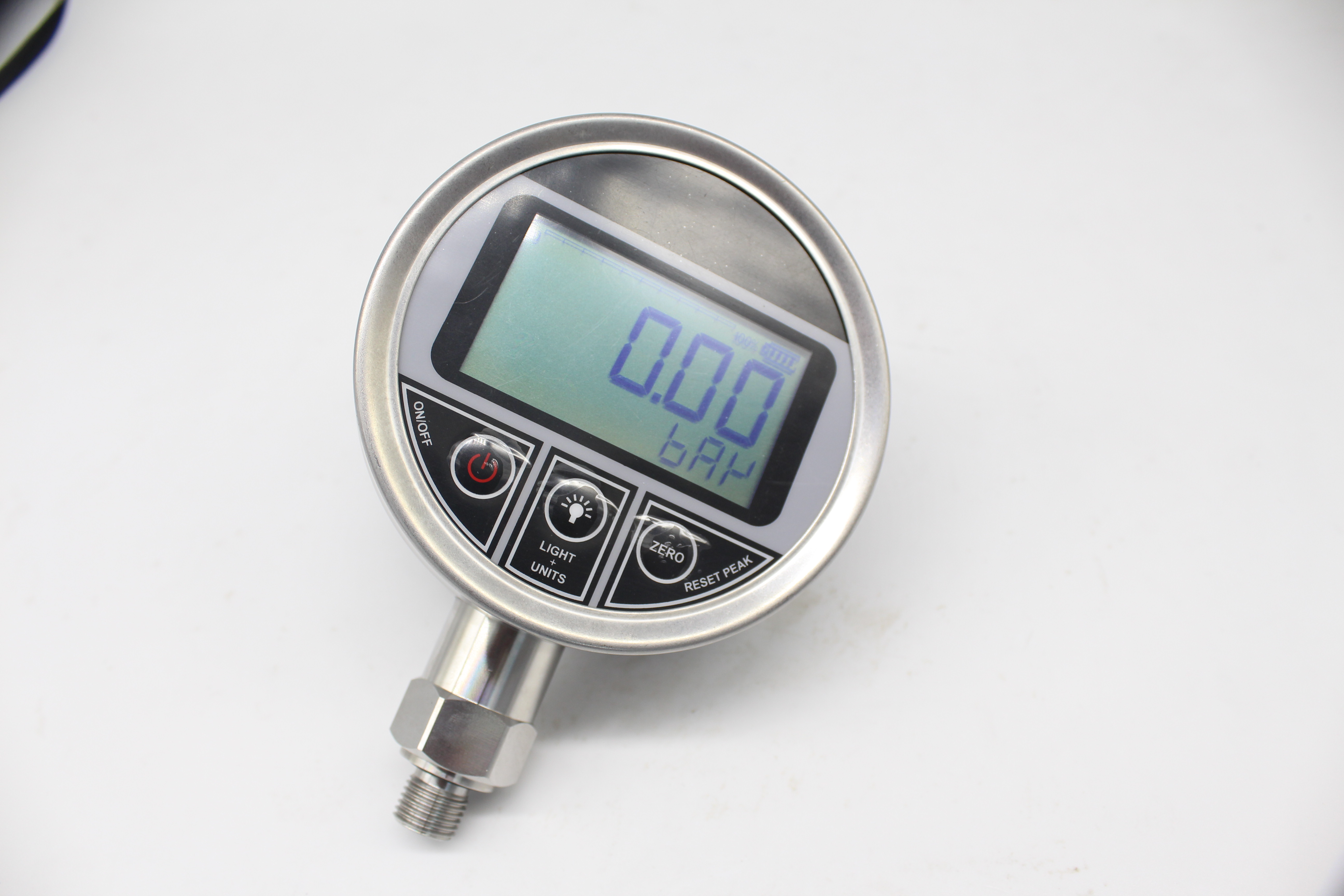

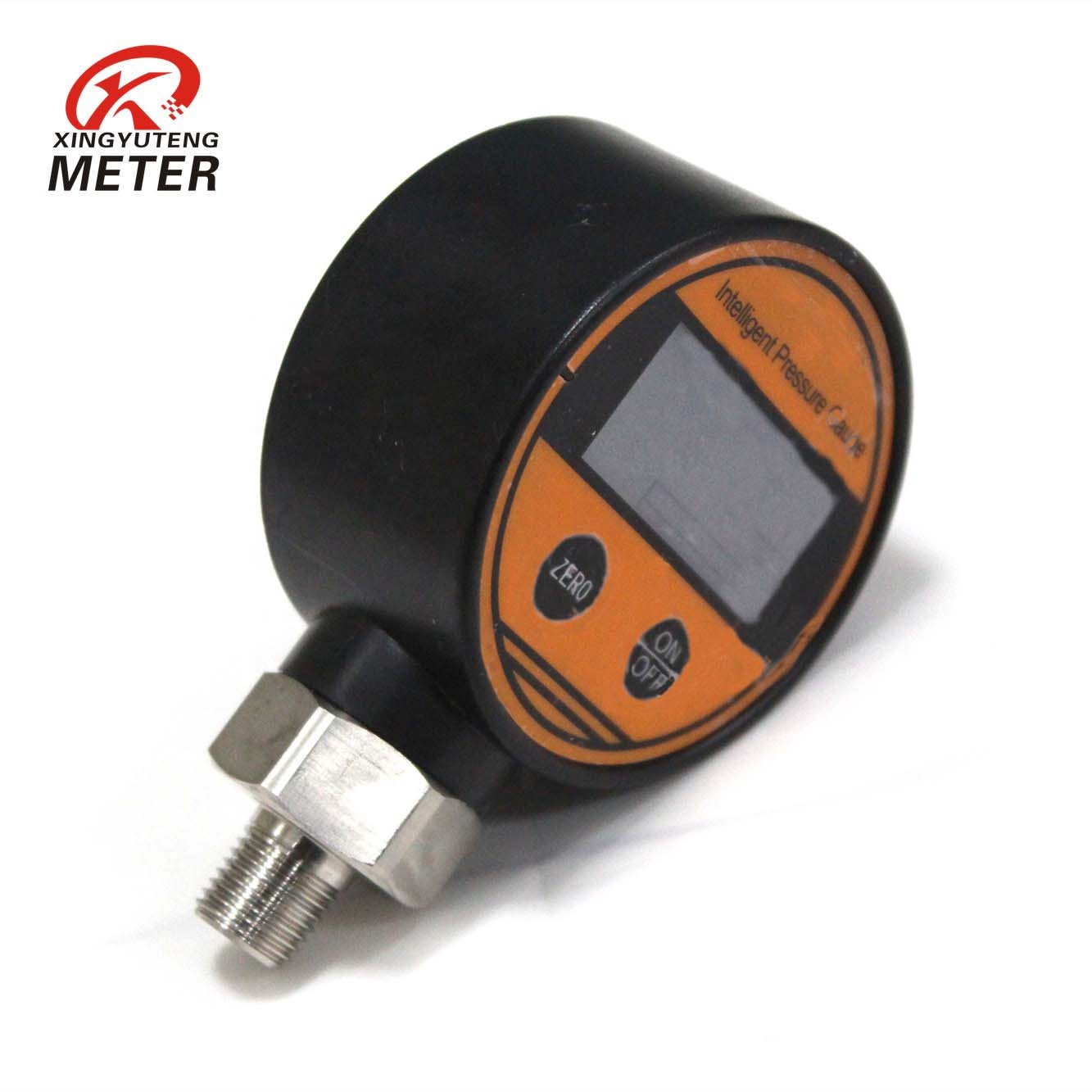

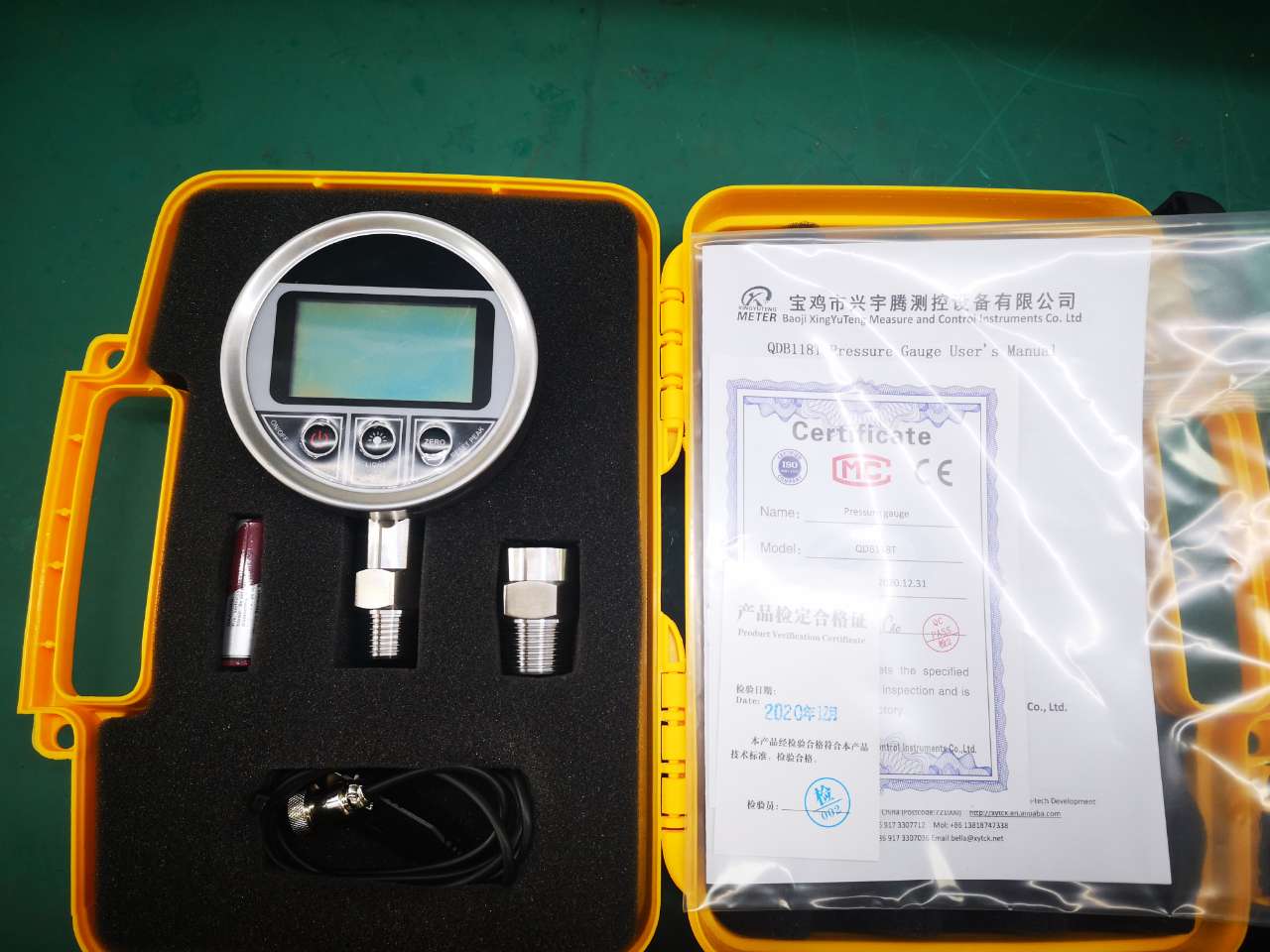

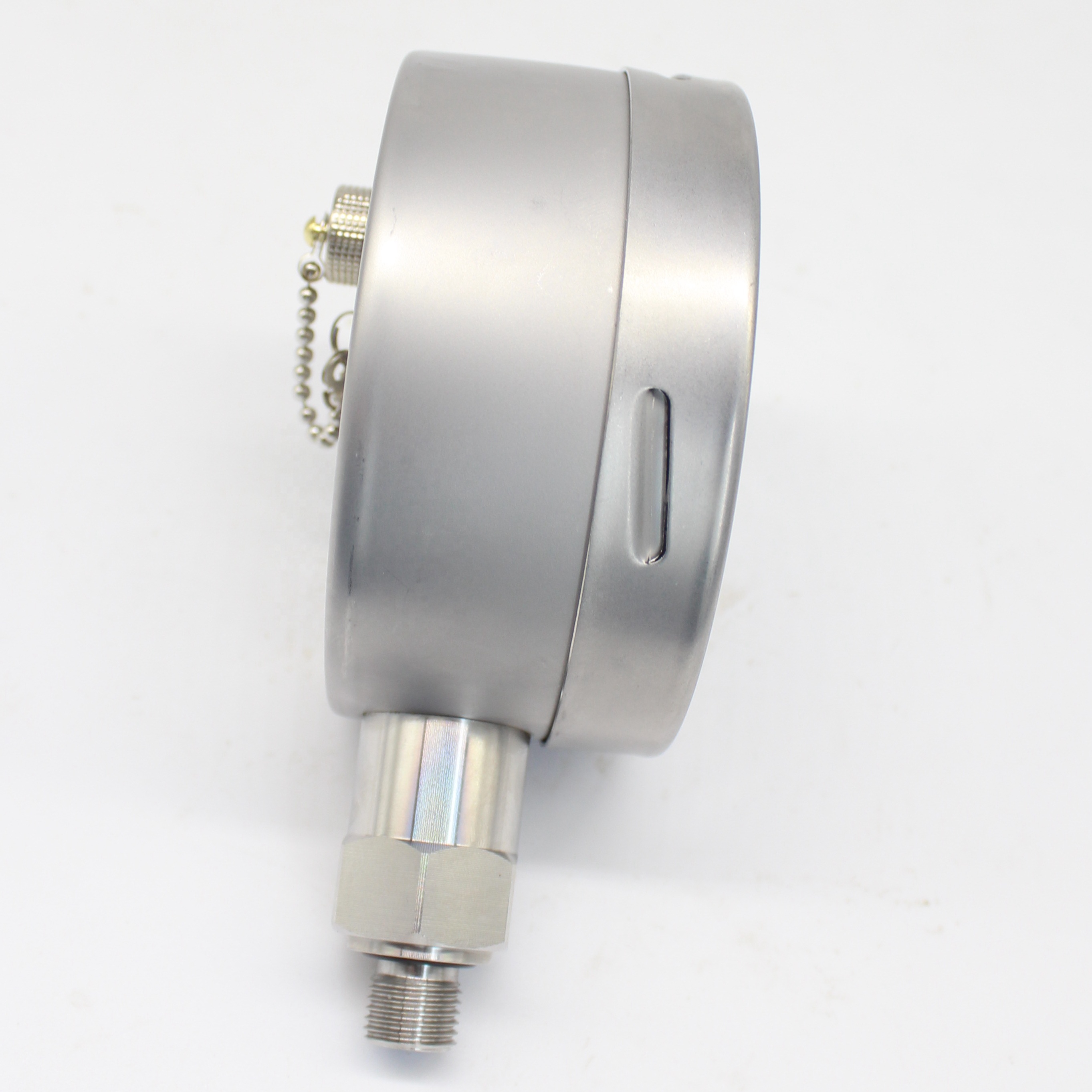

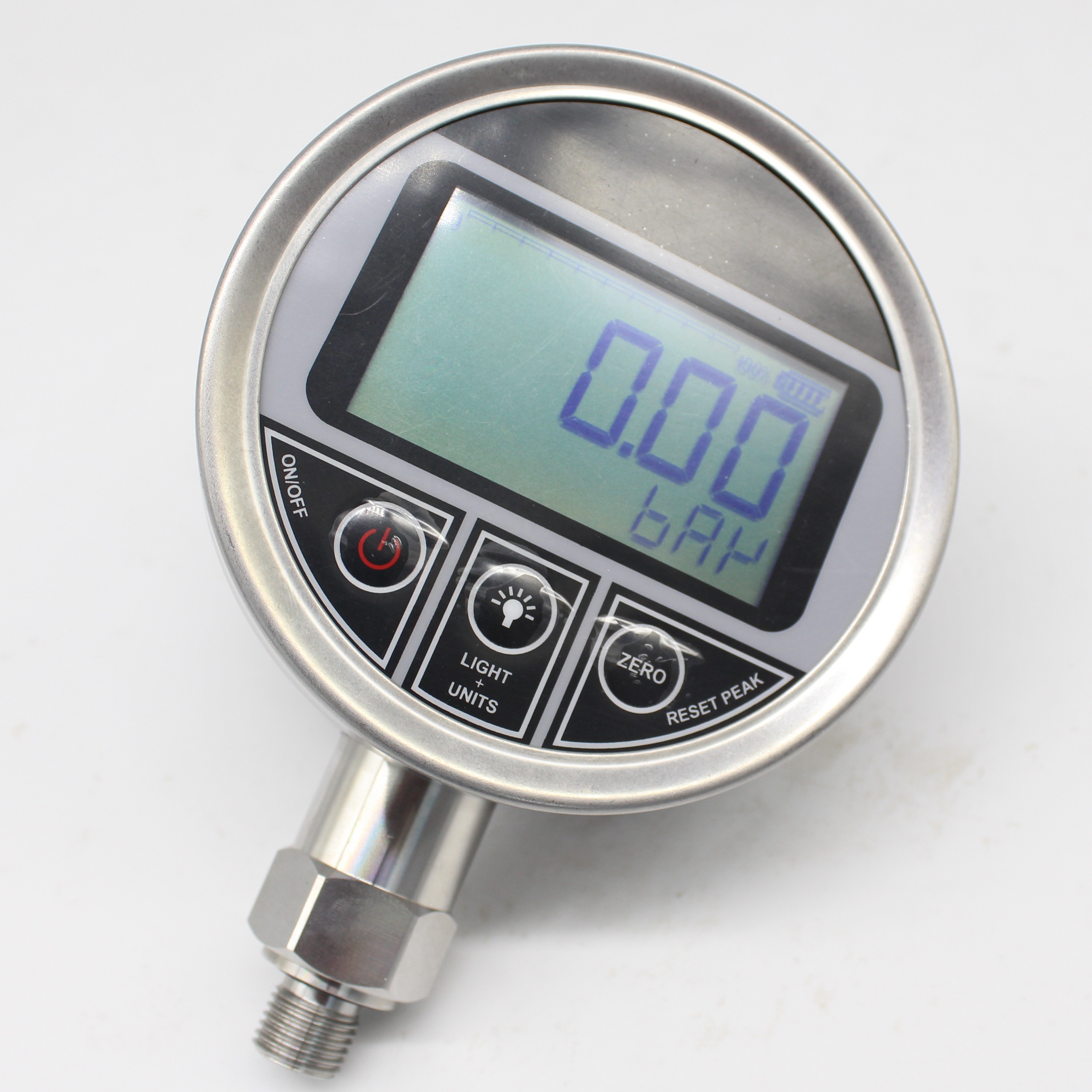

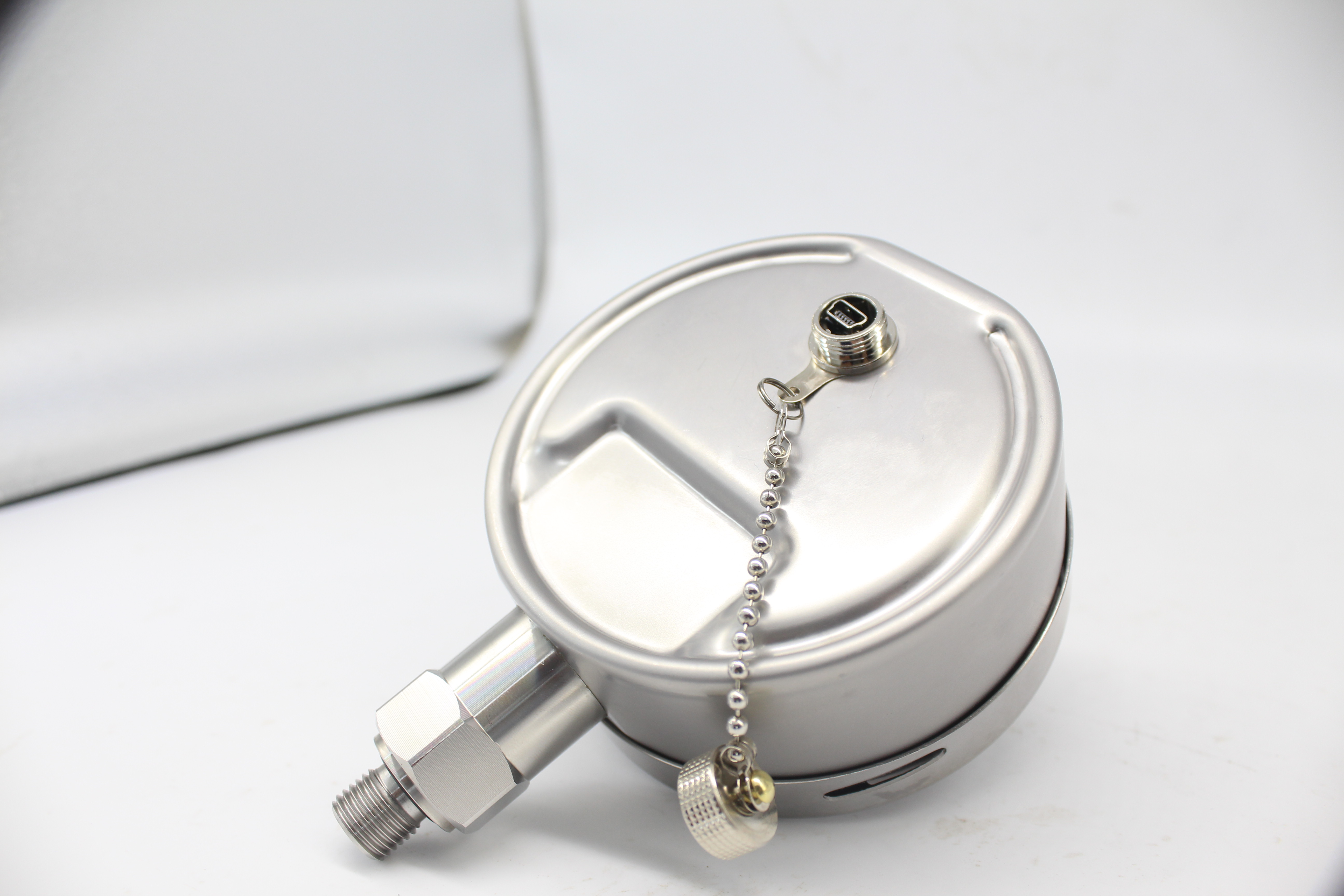

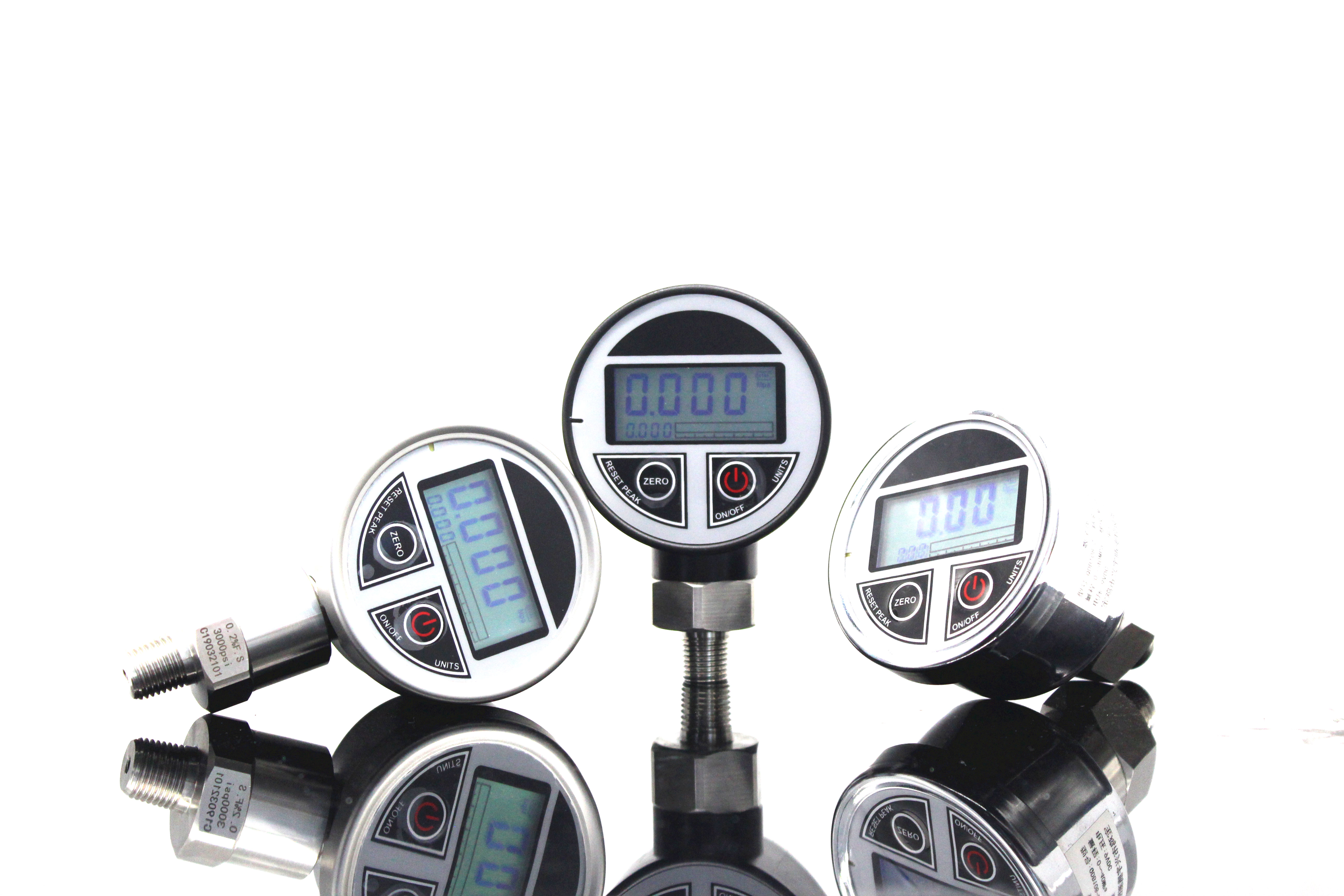

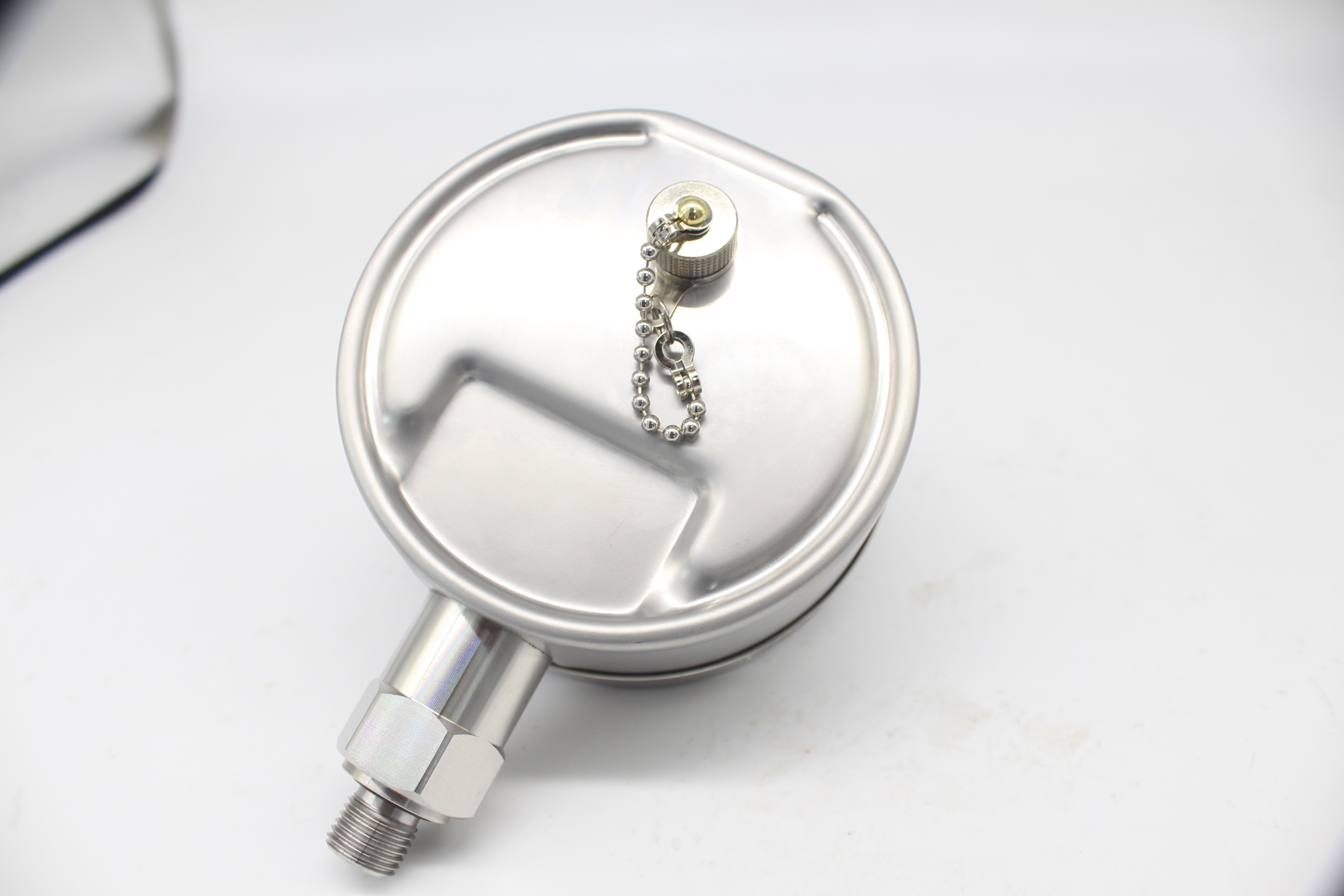

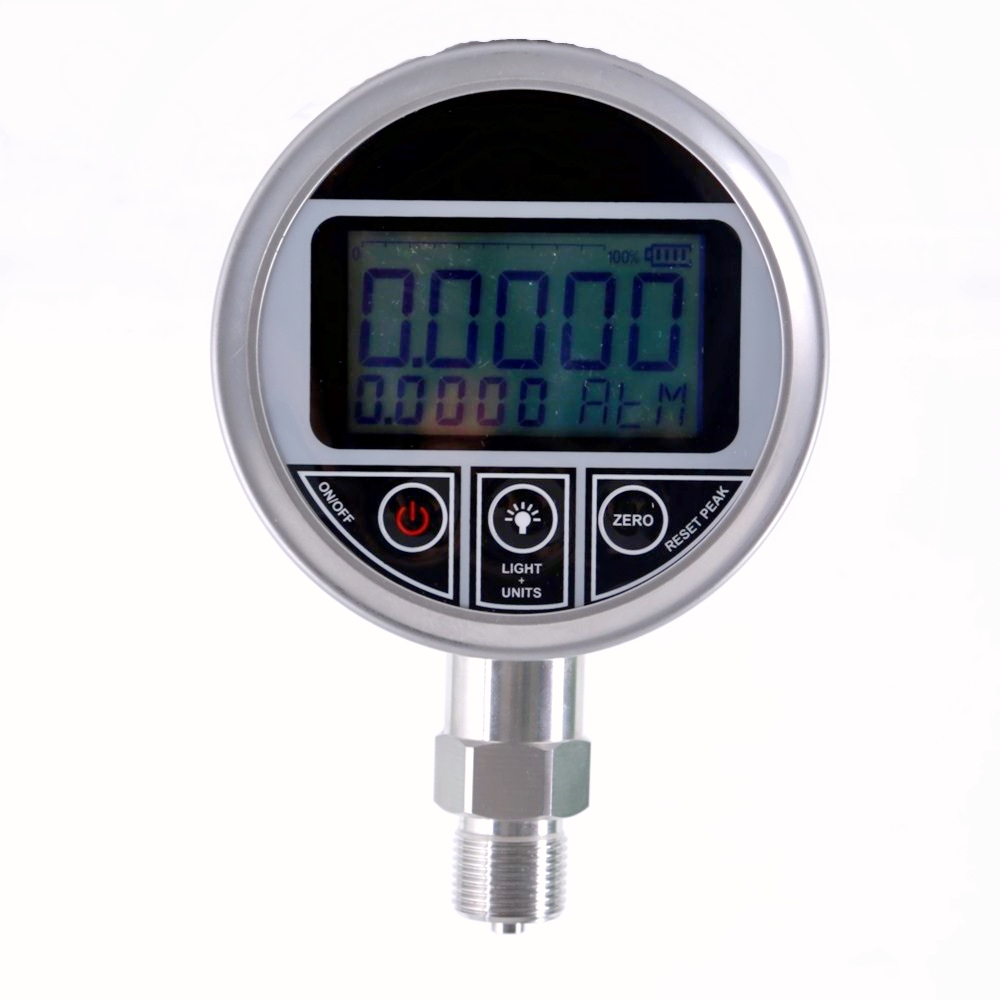

Digital Pressure Gauge QDB118T with Data Logger
QDB118T pressure gauge integrates high sensitivity pressure, high precision signal conditioning circuit, low power battery power management, and rich LCD display interface.Naturally strong anti-interference characteristics, it is an ideal intelligent instrument for pressure collection transmission and display.Suitable for oilfield, water conservancy, metallurgy, tap water and other industries.
Main Features
●Using the latest microprocessor technology, battery-powered, ultra-low power operation, battery life of 2-5 years.
●The temperature characteristics of the whole machine are very good, and the working temperature range is -30-70 degrees.
●Explosion-proof design: explosion-proof aluminum shell, the circuit board system is intrinsically safe.
●Protection level: ip66, fully sealed and waterproof design.
●Rich LCD display interface with power prompt and dynamic percentage display.
●The main screen has 5-bit real-time pressure display.
●The secondary screen can display the time, date, number of data, etc.
●The graphical pressure percentage is displayed with the battery level.
●White backlight for easy night viewing.
●A variety of pressure unit conversion, internationally accepted.
●The acquisition rate is 16 seconds/time to 4 times/second, which is more suitable for application.
●The temperature characteristics of the whole machine are very good, and the working temperature range is -30-70 degrees.
●Explosion-proof design: explosion-proof aluminum shell, the circuit board system is intrinsically safe.
●Protection level: ip66, fully sealed and waterproof design.
●Rich LCD display interface with power prompt and dynamic percentage display.
●The main screen has 5-bit real-time pressure display.
●The secondary screen can display the time, date, number of data, etc.
●The graphical pressure percentage is displayed with the battery level.
●White backlight for easy night viewing.
●A variety of pressure unit conversion, internationally accepted.
●The acquisition rate is 16 seconds/time to 4 times/second, which is more suitable for application.

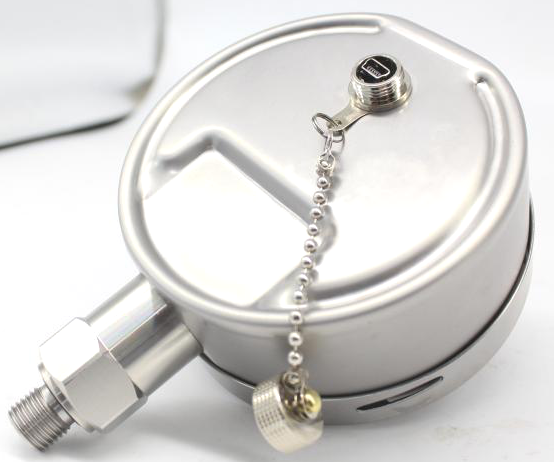

High accuracy Support data transfer to PC USB port is available
|
Specification of QDB118 Digital Pressure Gauge
|
|
|
|
|||
|
Pressure Range
|
-0.1~0…100MPa
|
|
|
|||
|
Accuracy
|
0.1%F.S/0.05%F.S
|
|
|
|||
|
Stability
|
≤0.1%/year
|
|
|
|||
|
Overload Capacity
|
150%F.S.
|
|
|
|||
|
Power Supply
|
3.6VDC
|
|
|
|||
|
Pressure Type
|
Gauge, Absolute, Differential pressure
|
|
|
|||
|
Display Range
|
-19999~99999
|
|
|
|||
|
Display
|
LCD
|
|
|
|||
|
Operating Temperature
|
-20°C~70°C
|
|
|
|||
|
Relative Humidity
|
0~90%
|
|
|
|||
|
Medium
|
Gas/Liquid/Oil etc
|
|
|
|||
|
Sensor Material
|
Diffused silicon
|
|
|
|||
|
Dial Dia.
|
100mm
|
|
|
|||
|
Display Pressure Units (10)
|
bar, psi, Pa, kPa, MPa, Kgf, mmH2O, mH2O, atm, Torr(mmHg)
|
|
|
|||
|
Housing Material
|
Stainless Steel
|
|
|
|||
|

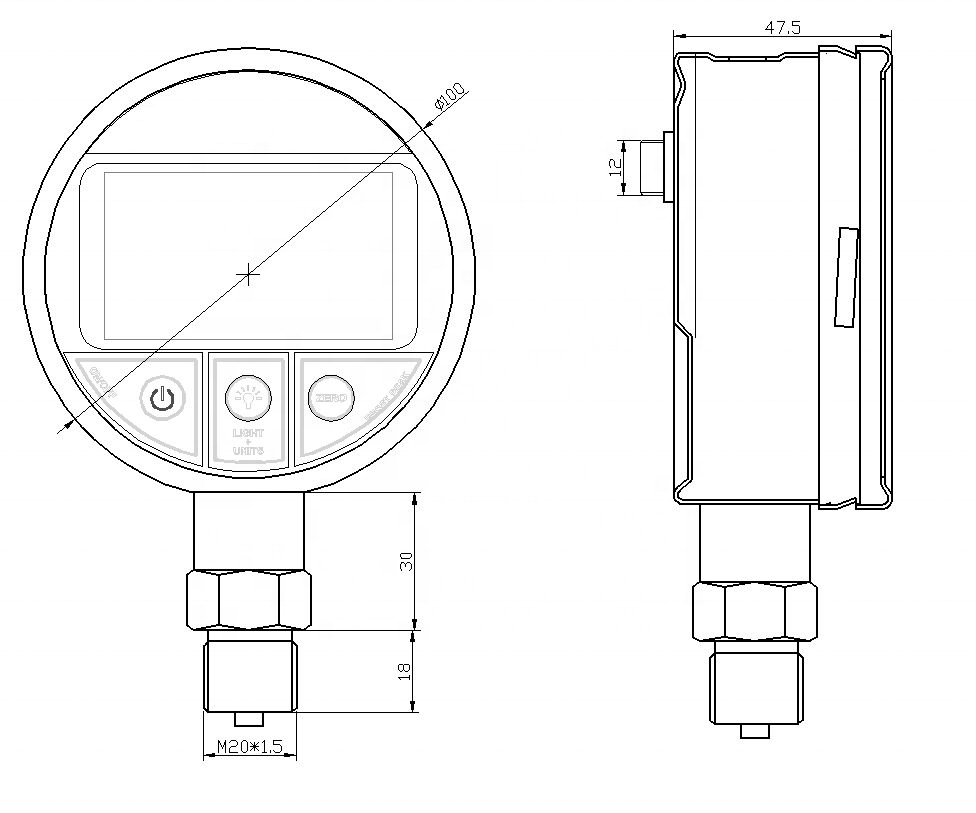

Selection Guide of QDB118T Digital Pressure Gauge
|
|
|
|
|||
|
Thread Connection
|
G14
|
G1/4
|
|
|||
|
|
G12
|
G1/2
|
|
|||
|
|
M20
|
M20*1.5
|
|
|||
|
Measuring Range
|
According to customer’s request
|
|
|
|||

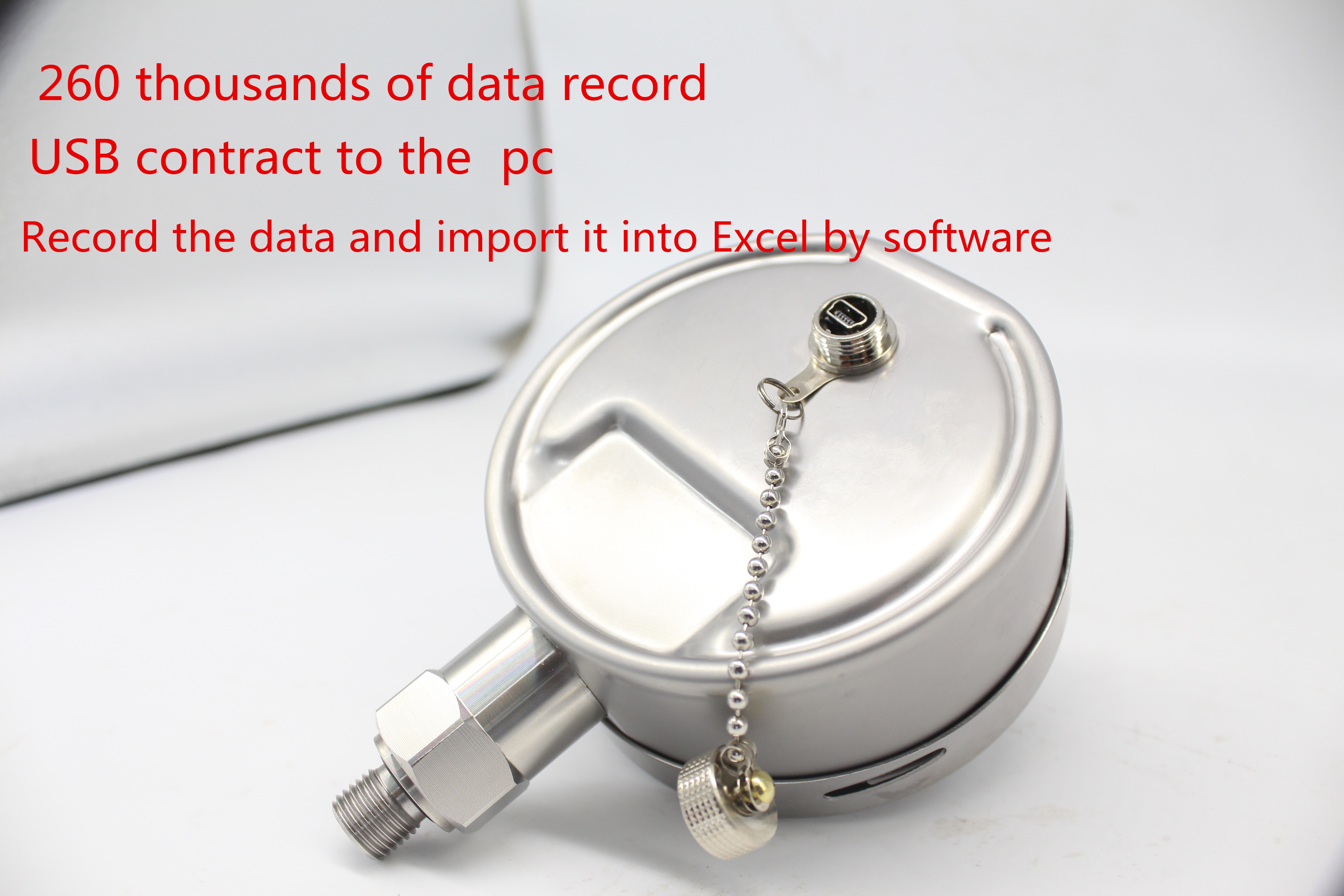

Data logger

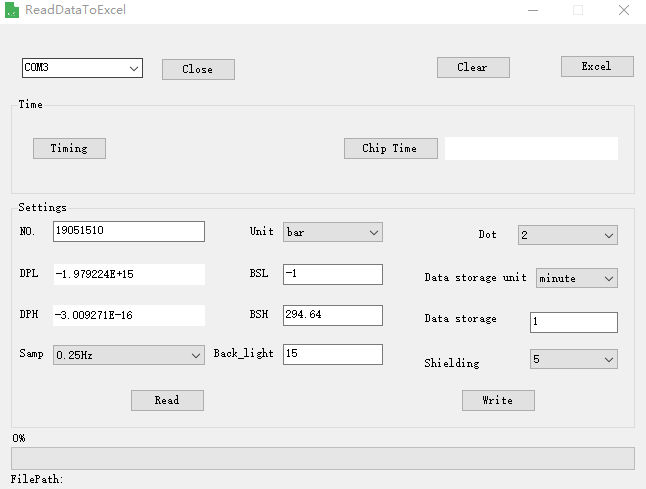

Free software for customer to cliabrate pressure gauge.
High accuracy digital pressure gauge with data logger
Storage 260000 datas and print test report
Baoji XingYuTeng Measure and Control Instruments Co., Ltd was founded in 2007 in Baoji, Shaanxi Province,China.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).
With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.
XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.
As a well-known manufacturer, XingYuTeng specializes in High-tech R&D, focuses on self-developing, manufacturing and selling of measurement and control products for pressure, temperature, liquid level and flow. XingYuTeng has got the certificates for ISO9001, CMC (China Metrology Certification) and EX (Explosion-proof certification).
With the advanced equipments and professional technology, XingYuTeng can offer wide-ranging and varied high-quality pressure transmitter, digital pressure gauge, level transmitter and temperature transmitter etc. The products are widely used in diverse fields such as hydroelectricity, water industry, petroleum industry, chemical engineering, mechanical engineering, hydraulic system, industrial controls, medical industry and food handling.
XingYuTeng has exported products to Europe, America, Southeast Asia, Africa and other regions all over the world. Based on the purpose of satisfying customers, XingYuTeng keeps improving to provide perfect products and excellent services to customers for the win-win situation.
High Quality Calibrator to make Superb Product Quality

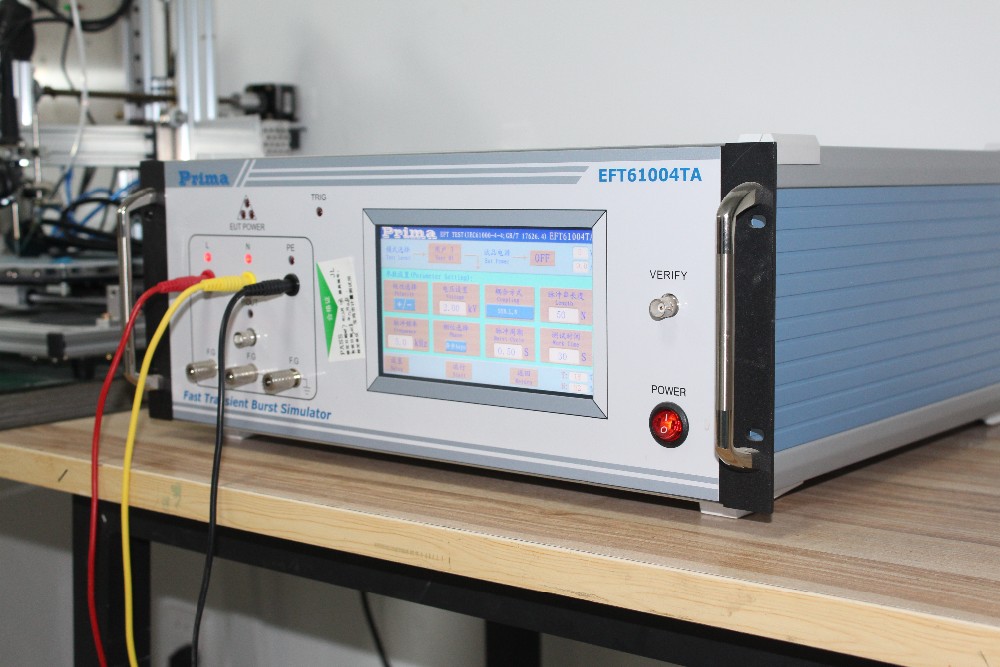

EMC

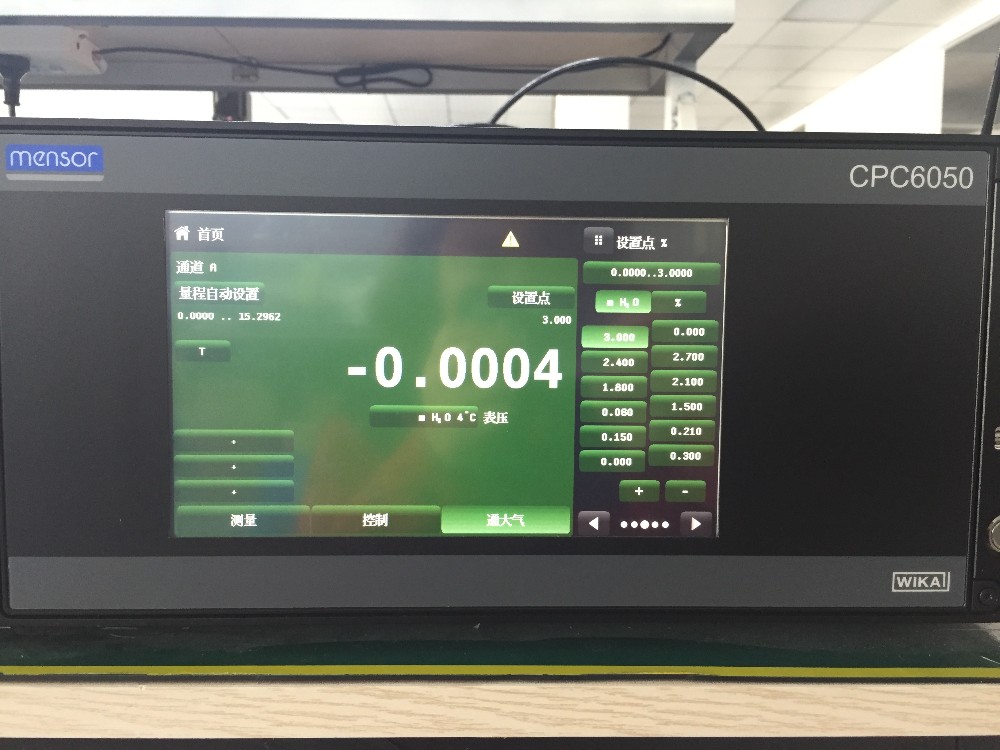

mensor Pressure Calibrator
Circuit Inspection

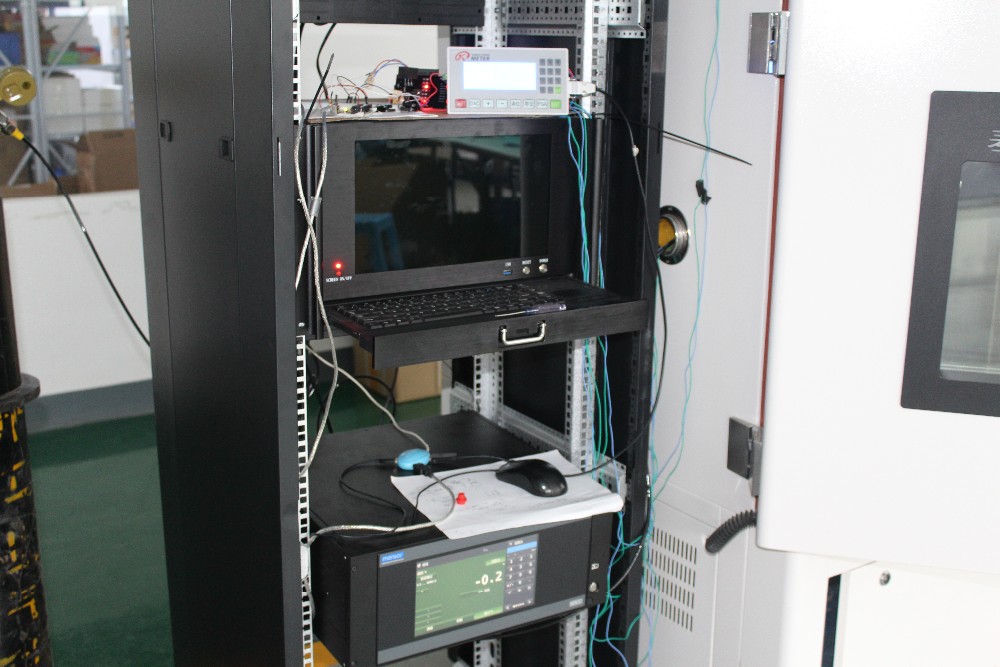

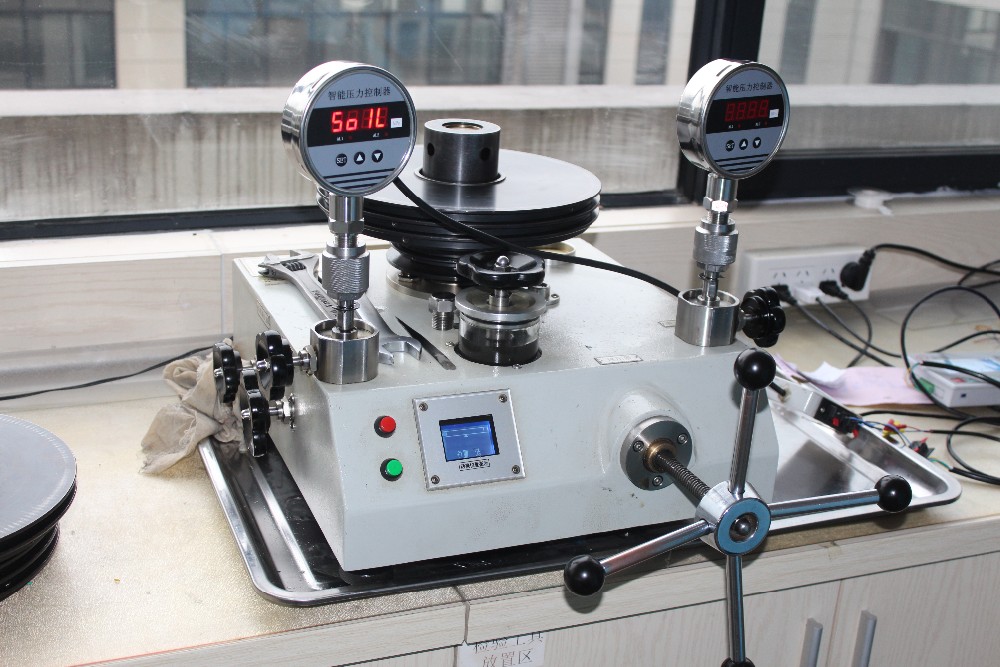

Pressure Calibration

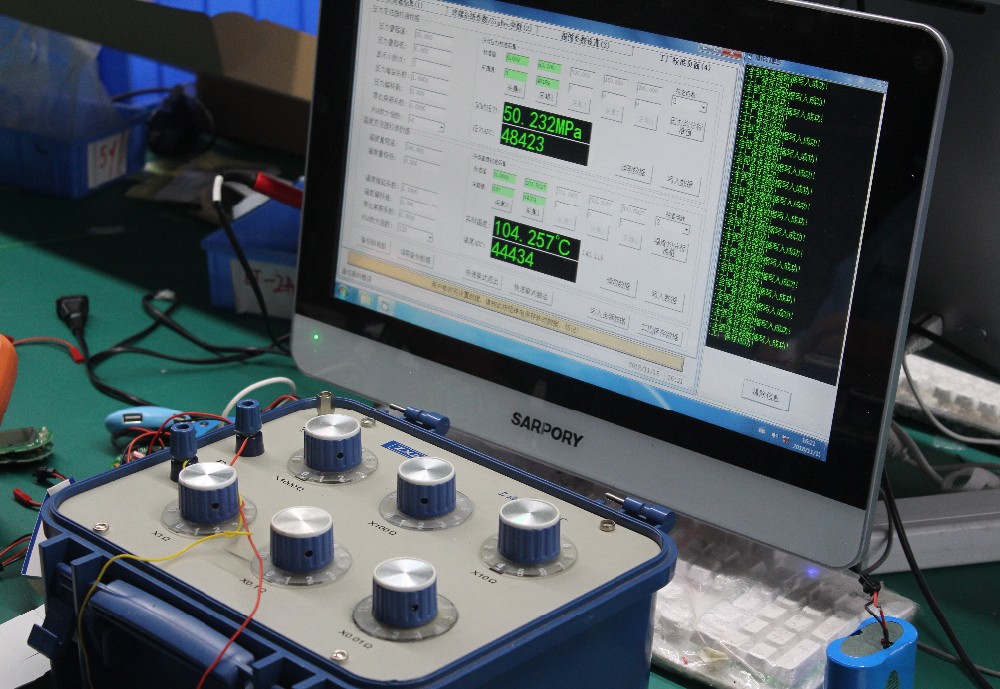

Auto-circuit Inspection

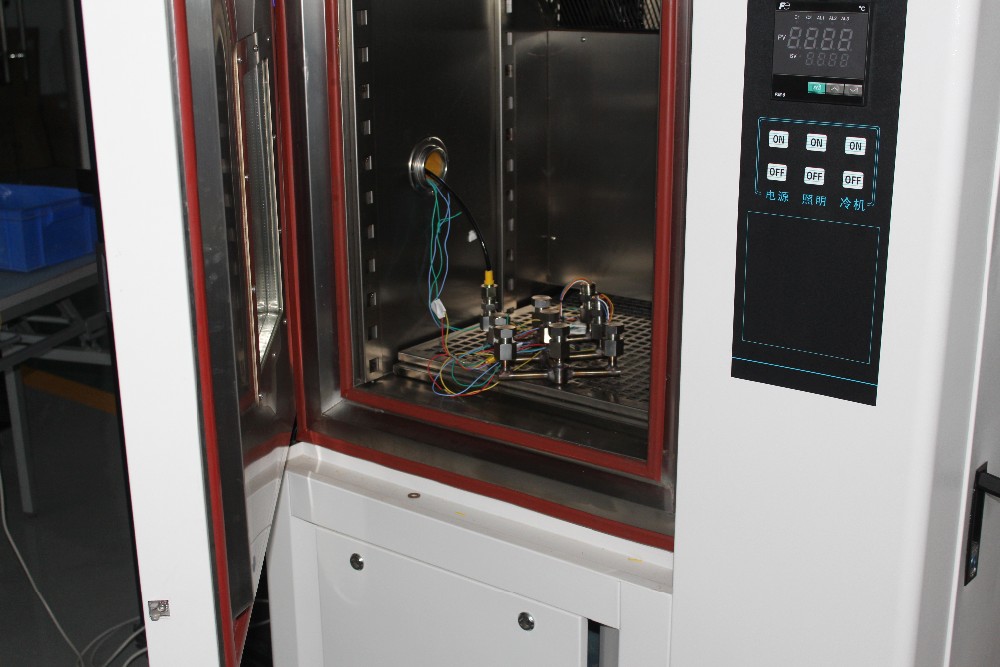

Controller for Temp.

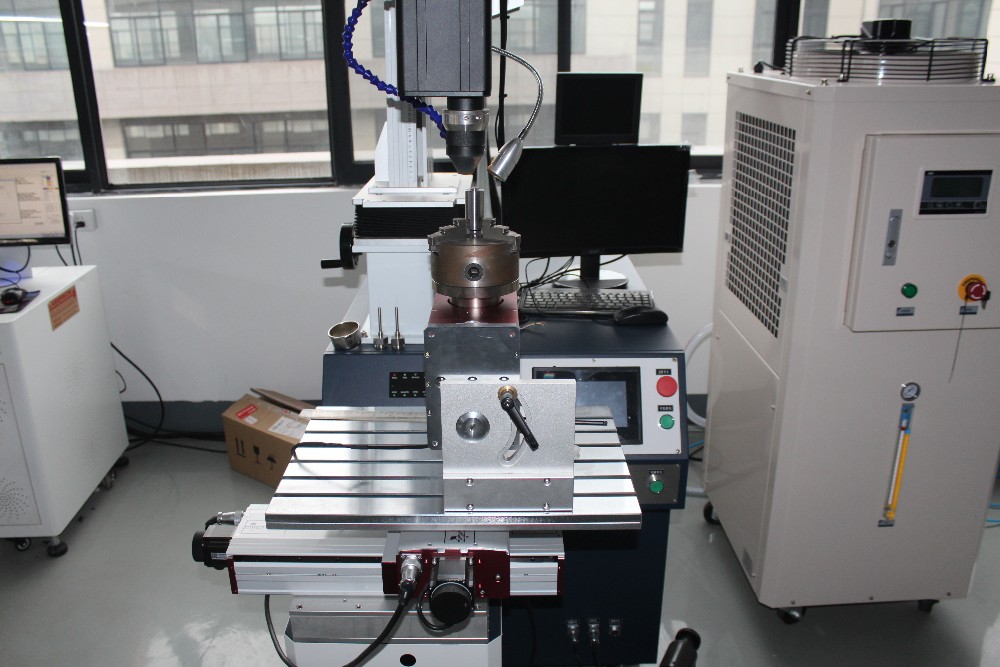

Laser Welding Machine

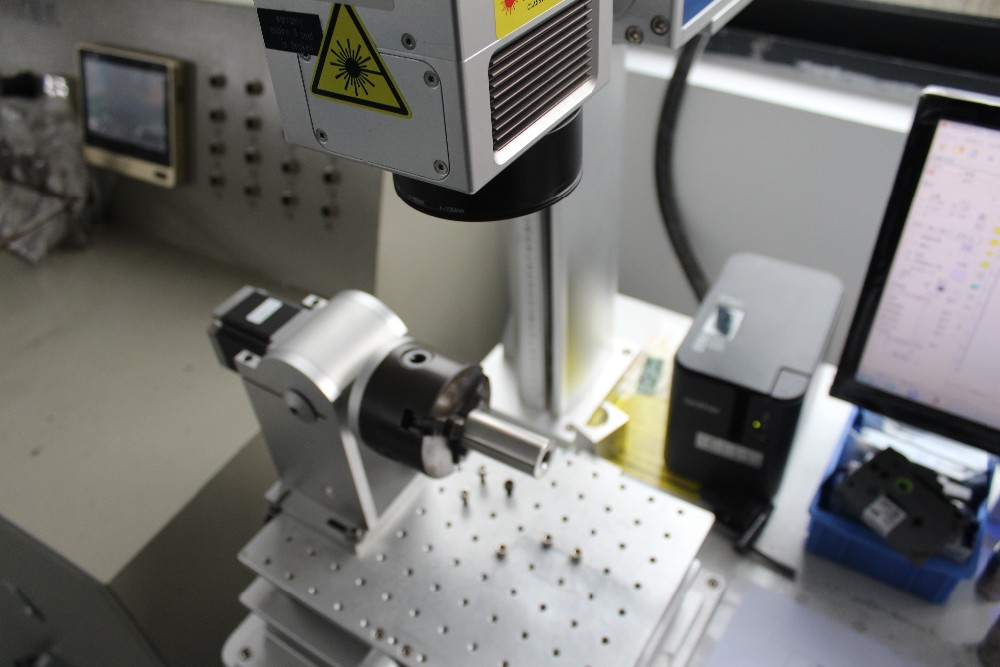

Laser Making Machine

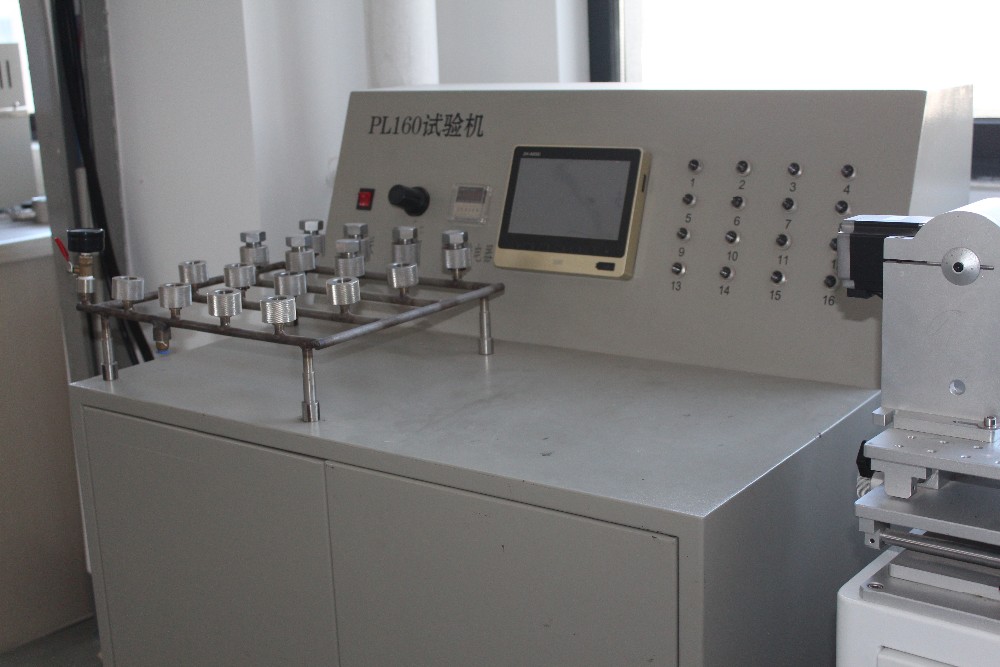

Fatigue Test
Our Certificates
Our Customers
Our Exhibitions

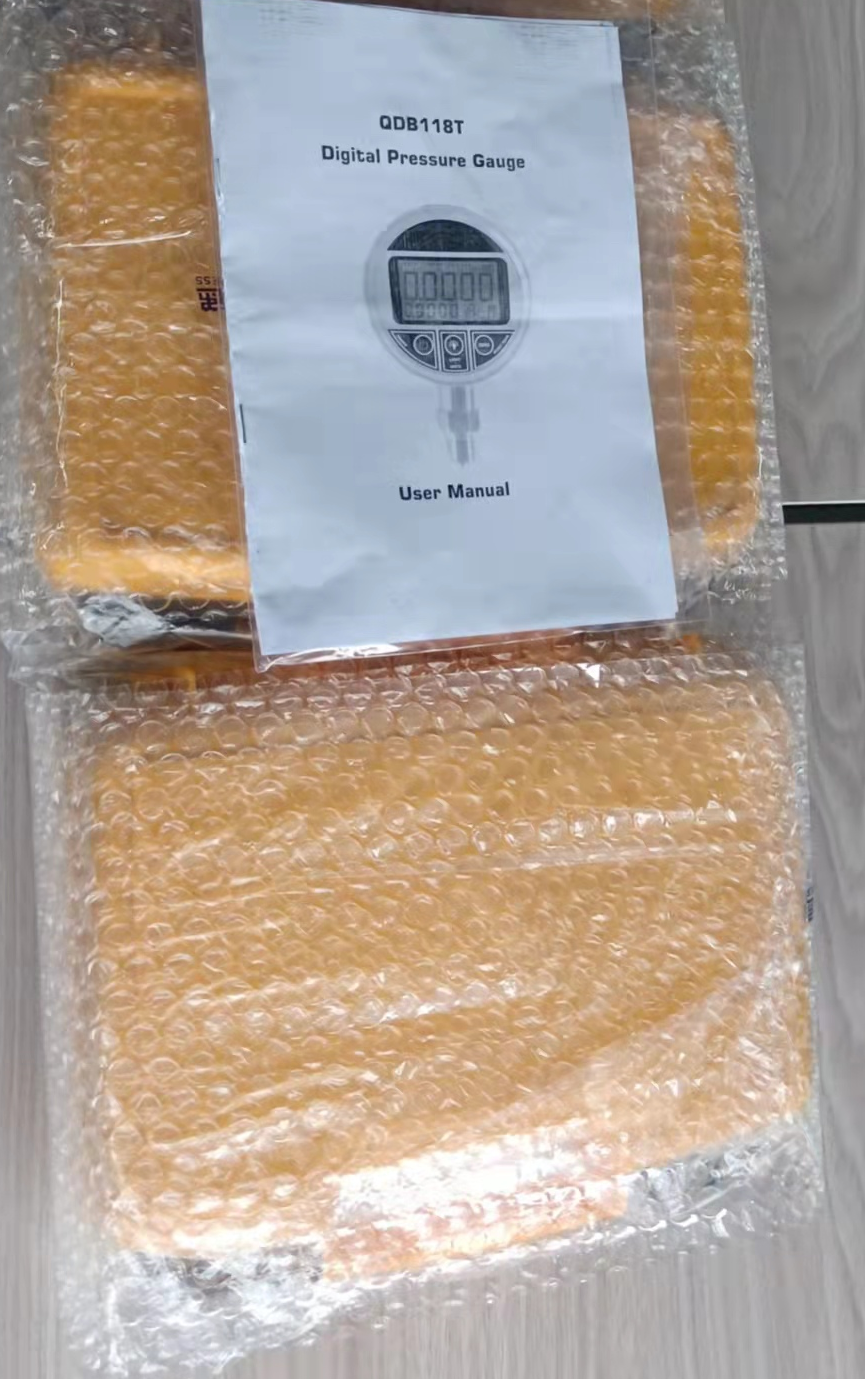

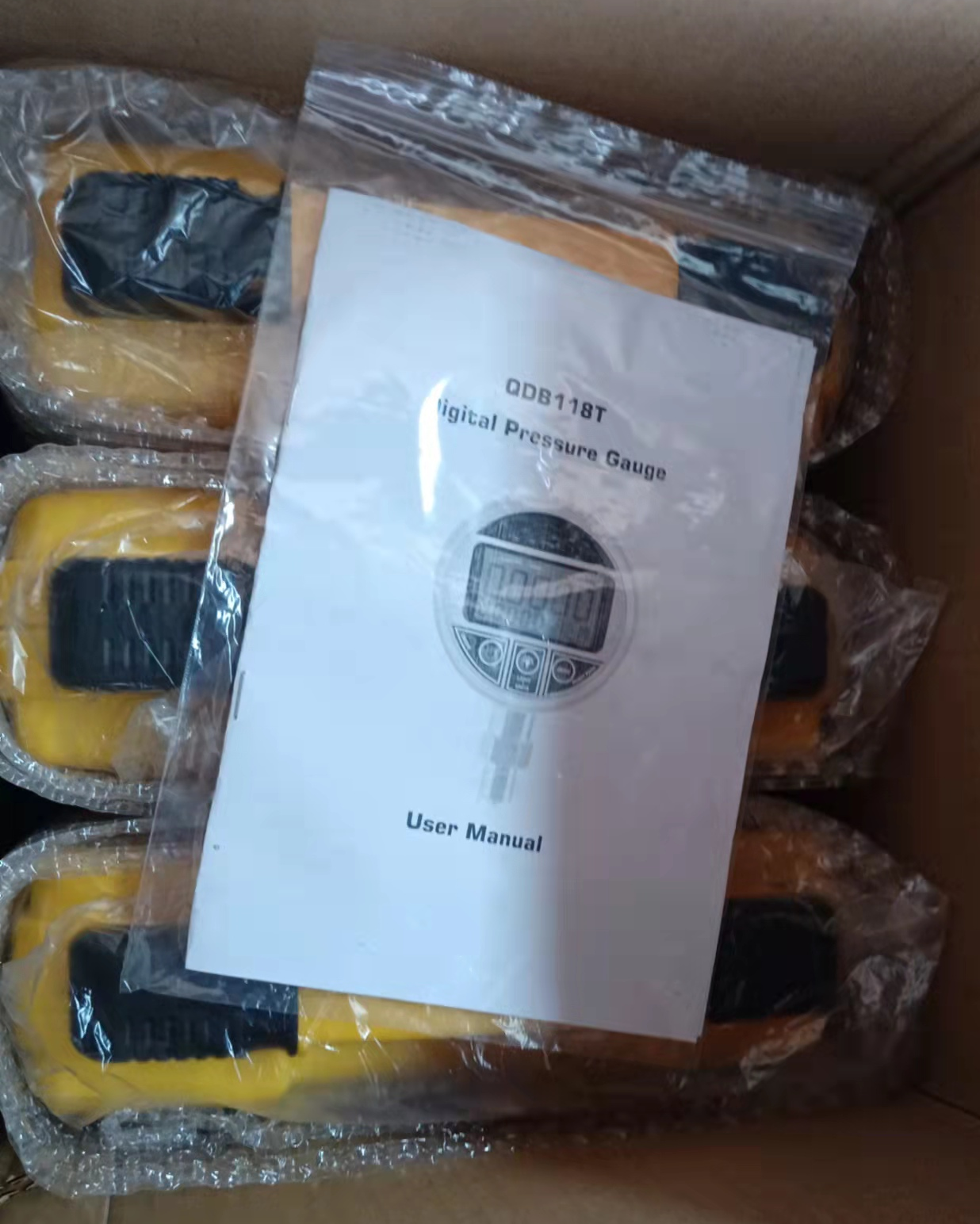

Packing & Delivery

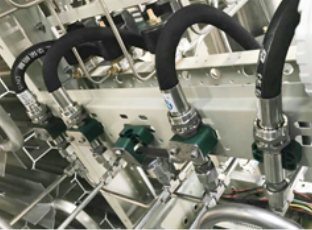

Application

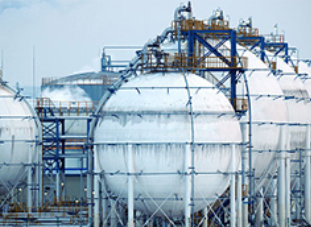

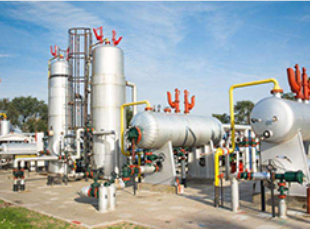

Natural gas
CNG/LNG Gas station
Pump&water treatment

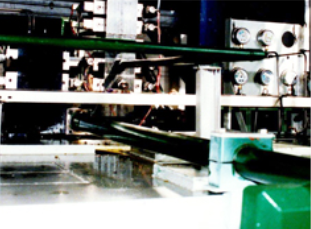

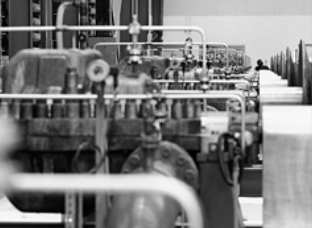

Hydraulic control system
Chemical industry

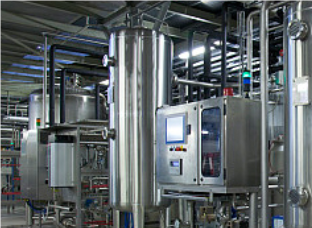

Food industry
Related Products
QYB104
Digital pressure transmitter
QYB108
Digital pressure gauge

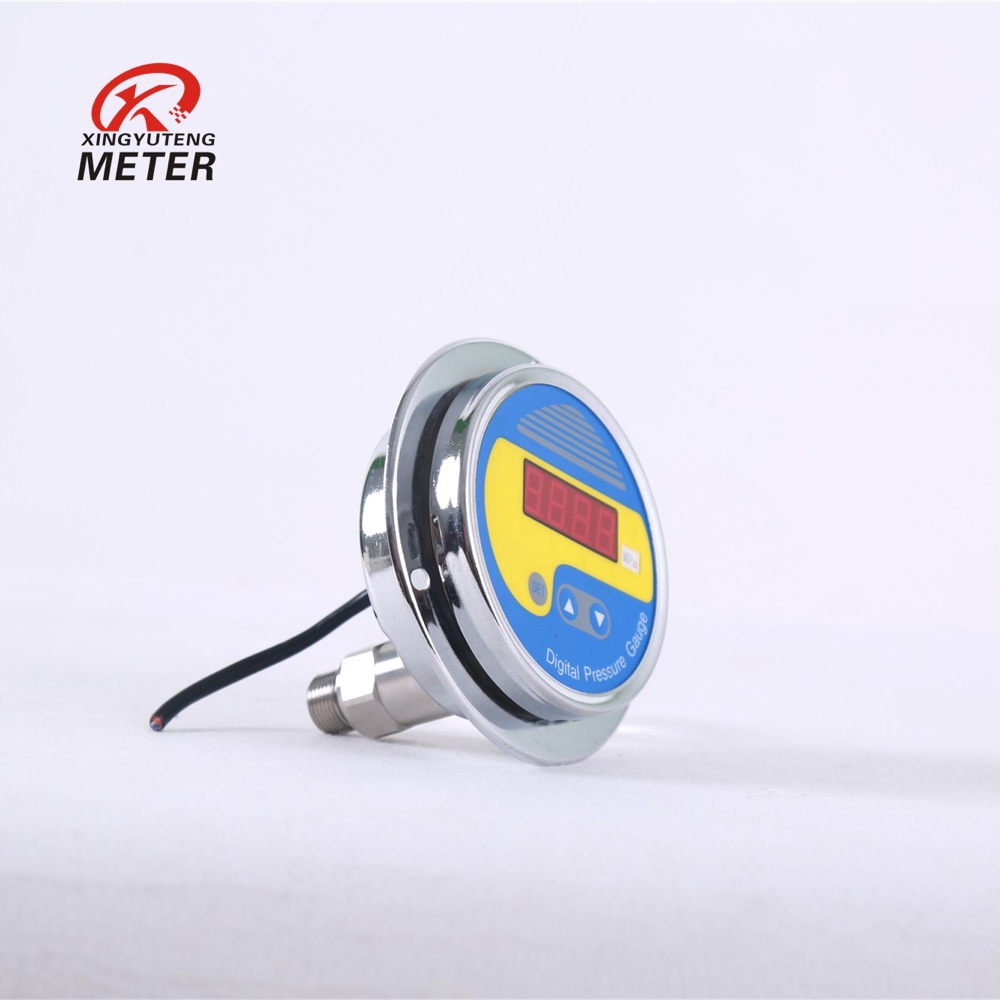

QDB108
Digital pressure gauge
FAQ
1. How long will you reply me?
Normally in 1 hours, no more than 12 hours.
2. How can I get the quotation?
Please provide specification and application including sensing element, pressure range, thread connection, pressure type, medium, electronic connection, shell material etc. More details, more accurate quotation and earlier response.
3. Can I get sample?
Contact with our staff online directly and they would check stock for you.
4. Can I visit your factory?
You are warmly welcomed, our factory is located at Baoji city, Shaanxi province, China.
5. Can we use our logo on the products?
Yes, we provide OEM/ODM service.
6. How long is your warranty period?
Warranty period from the date of acceptance of 12 months.
7. What is your terms of payment?
We could accept T/T, L/C, Western union, PayPal, credit Assurance.
