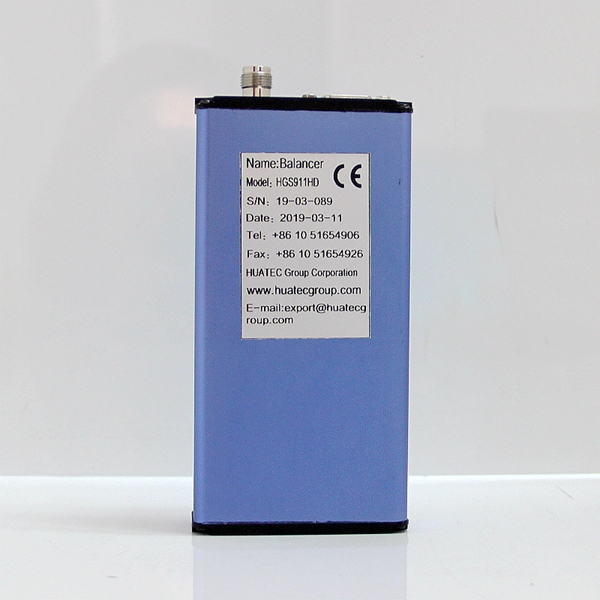

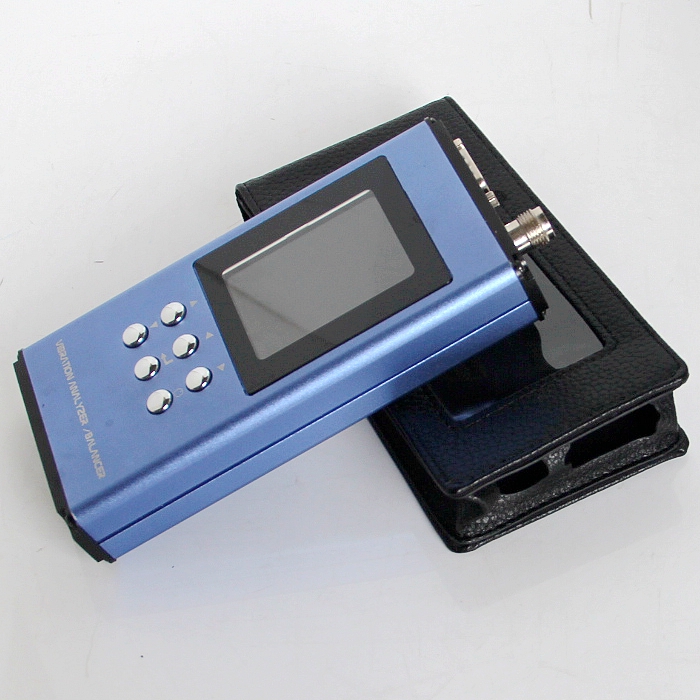

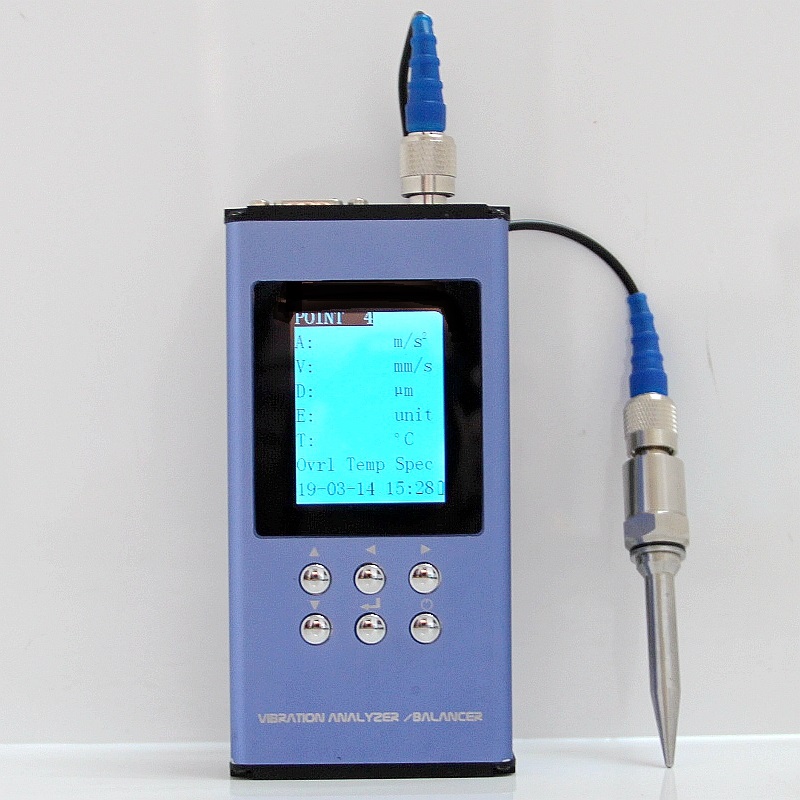

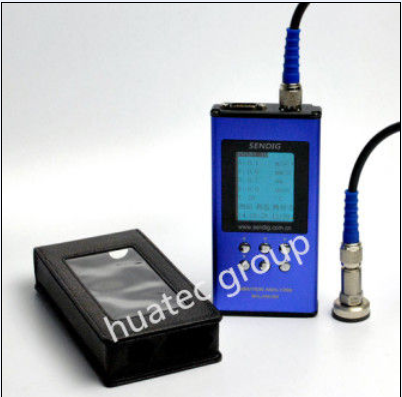

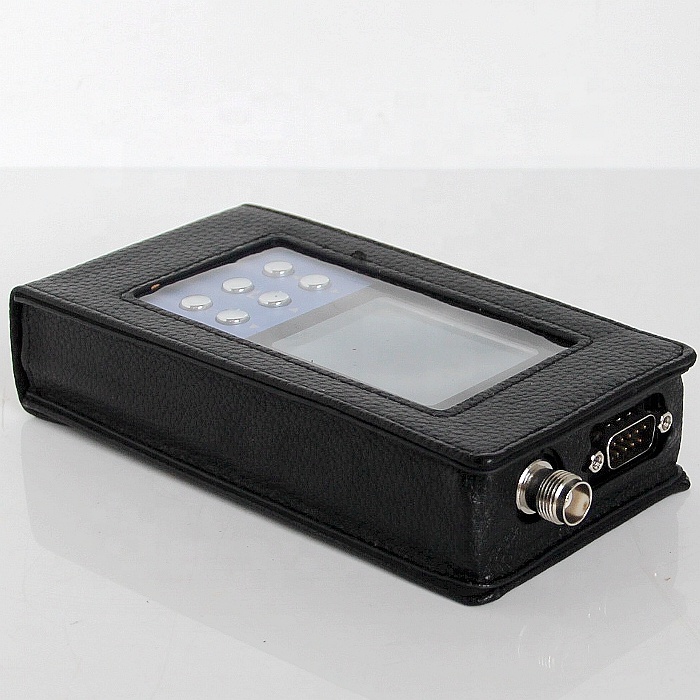

HGS911HD Vibration Balancer / Vibration Analyzer / Data Collector Easy to use FFT Spectrum Analyzer

HGS911HD is an easy operate and small sized economical vibration Spectrum analyzer & data collector. It can be used for overall vibration measurement, spectrum analysis and measurement of high frequency acceleration envelope design makes it very effective for bearing fault detection. HGS911HD testing data can be outputed to computer for database and trending analysis.

It is also a low-cost, easy-to-use balancing meter with the measurement of Amplitude,Rotation speed RPM, & Phase measurement.



Features:

Easy to use FFT spectrum analyzer, 400 lines

Measurement of high frequency acceleration envelope makes it a very effective bearing fault detector

Download from computer database point / location ID & upload overall value to database for trending

Powerful standard condition monitoring software

Parameter selection of Acceleration, velocity, displacement and acceleration envelope for FFT.

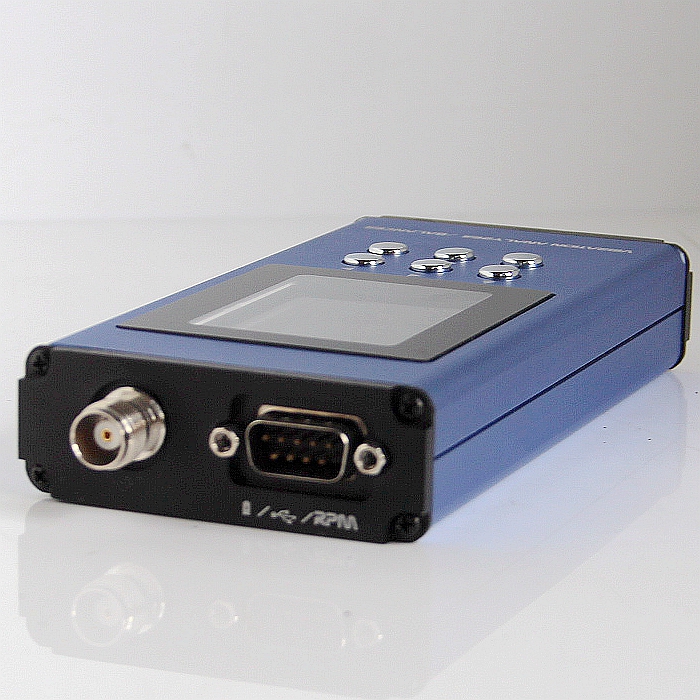

USB 2.0 interfaces to computer

Date/Time & Battery Status Display

True RMS measurement

RPM, Amplitude, Phase measurement for balancing



Specification:



 Maximum measurement range / Resolution / frequency range (may change):

Parameter	Maximum Measurement Range	Maximum Resolution	Frequency Range
Displacement Peak-Peak value	2 mm	1 micron	10 – 500Hz
Velocity RMS value	200mm/s	0.1 mm/s	10 – 1000Hz
Acceleration Peak value	180m/s2	0.1 m/s2	10 – 15000Hz
High Frequency Acceleration Envelope	20unit	0.1unit	5Hz-2kHz #



# Note: Demodulated from 15kHz-40kHz

Accuracy of vibration measurement:

Noise Level (without vibration input): ACC<0.25 m/s2, VEL<0.5mm/s, Disp<1mm

Non-linearity: ±5% + 2 digits

Frequency response accuracy: ±5% + 2 digits

Rechargeable Li-ion battery, Automatic power off, >20 hours operation time

Operation temperature range: 0 – 50°C

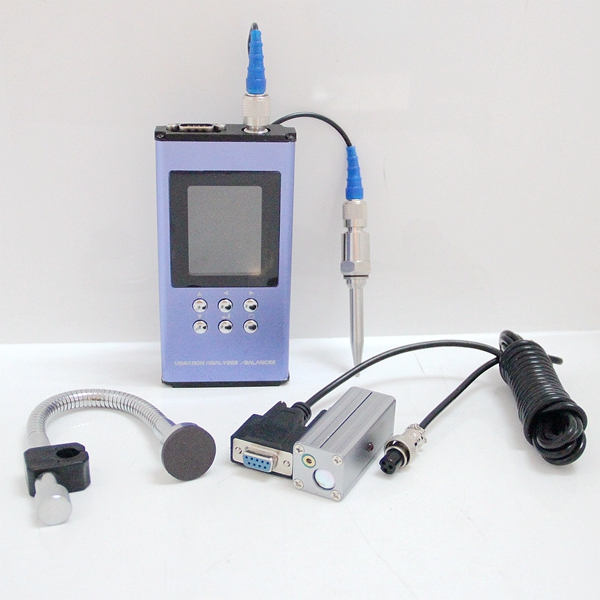

Pickup: Accelerometer with extension stinger and magnetic mount,

Optional tacho-sensor Optional 1 or 2 accelerometers. For 2 accelerometers, a mechanical switch provided.

Rotation speed measurement range: 10-60000 RPM

Storage: 200 sets of ID, acceleration, velocity, displacement, envelope & spectrum

Size: 150 x 70 x 25 (mm)

Weight: 320 gram (including battery)
