Heavy Duty Large Area Cutter 1530 Raycus Metal 1000W 2000W 4000w Fiber Laser Cutting Machine For Steel

  • Home
  • Heavy Duty Large Area Cutter 1530 Raycus Metal 1000W 2000W 4000w Fiber Laser Cutting Machine For Steel
Awaiting product image

Heavy Duty Large Area Cutter 1530 Raycus Metal 1000W 2000W 4000w Fiber Laser Cutting Machine For Steel

$99,725.19

20 in stock

SKU: 1005002324940755 Category:

Description

  • Brand Name: ACCTEK
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: AK1530F3 laser cutting machine for steel
  • CNC or Not: CNC
  • Keyword: laser cutting machine for steel
  • Working area: 1530*3000mm
  • Suitable material: Metal sheet

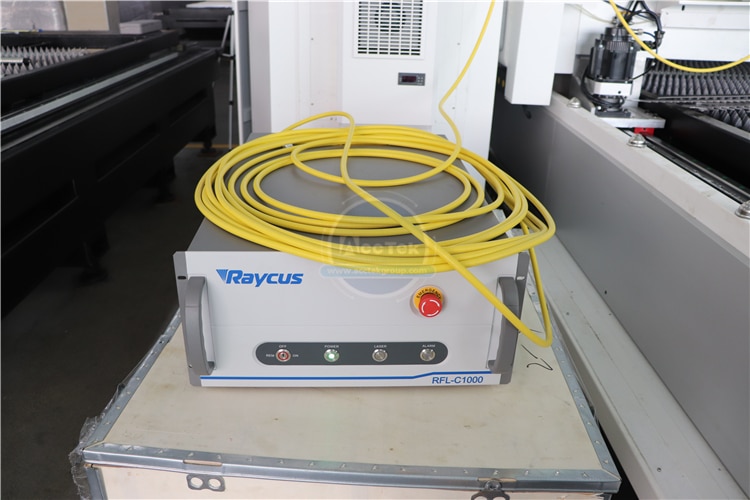

  • Laser generator: Raycus (option: IPG, Nlight)
  • Fiber laser power: 1000W (option: 1500W, 2000W, 3000W, 4000W)
  • Control system: Cypcut
  • Transmission: Rack and pinion transmission
  • Driving system: Japanese Yaskawa servo motor
  • Guide rail: Taiwan Hiwin linear rail
  • Cutting thickness: According to laser power
  • Maximum speed: 120m/min
  • Acceleration: 1.5G
  • Machine weight: 5000kg

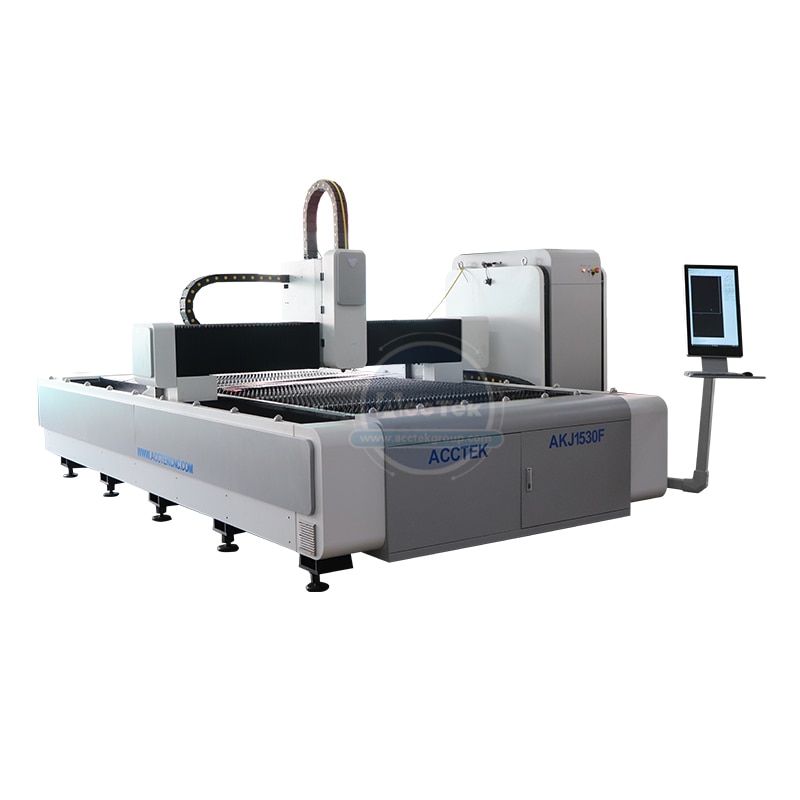

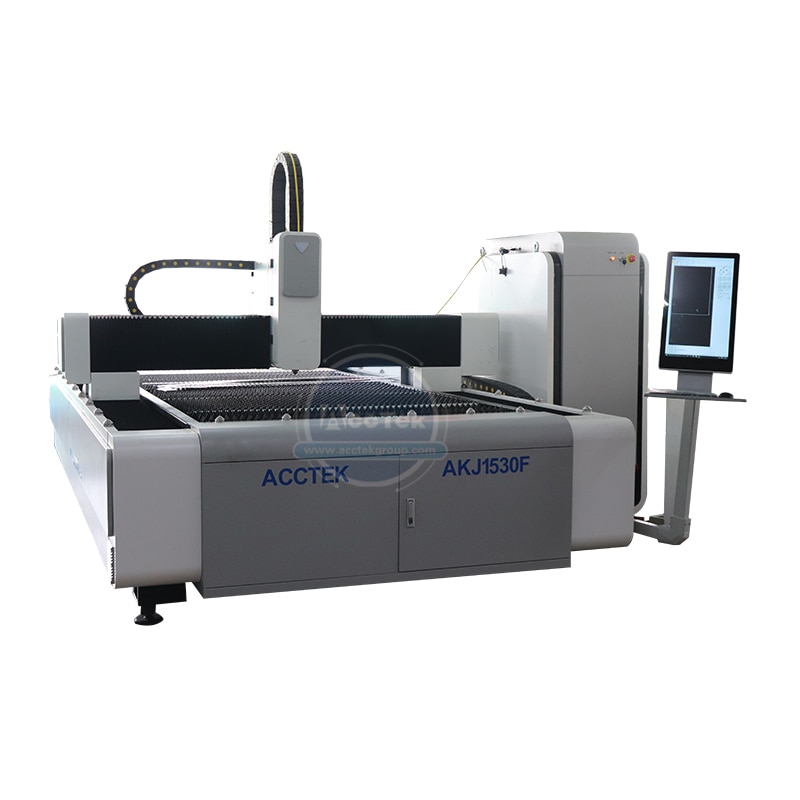

Machine Show

Main Features
1)Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability,
shock resistance.
2)High-performance laser source and stable operating Cypcut system which makes the best cutting effect.
3)The machine owns a perfect cooling system, lubrication system, and dust removal system, to ensure that it can operate stably, efficiently, and durably.
4)The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5)The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

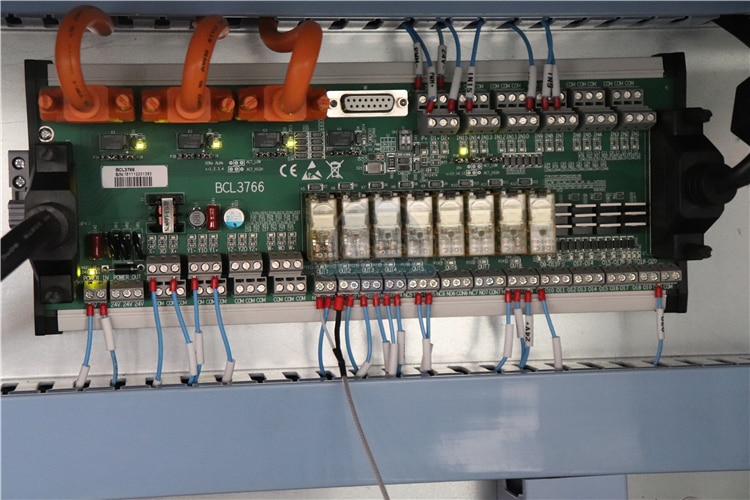

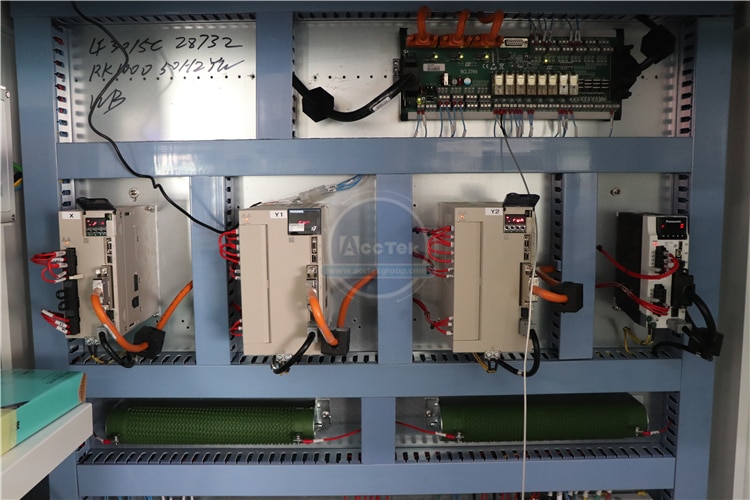

Machine Details

Technical Parameters

Application & Working Samples
Applicable Materials
This kind of fiber laser cutting machine is suitable for metal cutting like stainless steel sheet, mild steel
plate, carbon steel sheet, alloy steel plate, spring steel sheet, iron plate, galvanized iron, galvanized
sheet, aluminum plate, copper sheet, brass sheet, bronze plate, old plate, silver plate, titanium plate,
metal sheet, metal plate, etc.
Applicable Industry
This kind of fiber laser cutting machine is widely used in manufacture billboard, advertising, signs,
signage, metal letters, led letters, kitchen ware, advertising letters, sheet metal processing, metals
components and parts, ironware, chassis, racks & cabinets processing, metal crafts, metal art ware,
elevator panel cutting, hardware, auto parts, glasses frame, electronic parts, nameplates, etc.

Package & Delivery

Package

1) Whole film packaging machine.

2) Anti-collision package edge.

3) Fumigation-free plywood wooden box with an iron-binding belt.

4) According to the customer's requirements for loading the whole container or LCL at Qingdao Port.

Delivery Terms

1) The machine will be produced after received your deposit, its need about 15-25 working days to

produce the machine after get your deposit.

2) After the machine is ready, we will test it very carefully, and ensure everything is OK.

3) Then we will show you the machine photos and the testing video.

4) After you agree, please finish the balance payment.

5) Finally, all things are tested well, then we arrange the delivery.

Certifications

After Sale Services

1) Guarantee

2 years guarantee of the whole machine.

2) Software issue

Our technician is able to re-install or set up by remote for free.

3) Hardware issue

Main parts(excluding the consumables) shall be replaced or repaired free of charge,

if there is any problem during the warranty period.

4) Support online

Our technician is able to teach you online to run the machine or eliminate the fault for free.

5) Training in AccTek factory

We are able to train your staff after placed order in our factory for free.

6) On-site training(Recommended, the most effective way)

We are able to send technician to your workshop to do the installation and training.

You will need bear the related costs(flight, visa, hotel, training costs, etc.)

About Us

Exhibitions

Contact Us

Contact: Ruby Fu (Russian and English Language)

Jinan AccTek Machinery Co., Ltd

Skype: export24@acctekcnc.com

Email: export24@acctekcnc.com
