Description
- Brand Name: HKNA
- Origin: CN(Origin)
- Place of Origin: Zhejiang, China
- Brand Name: Mstar
- Model Number: HC-CA013-A0UM
- Warranty: 1 Year
- Special Features: Vandal-proof
- Sensor: CMOS
- Style: Mini camera
- Function: Vandal-proof
- Video Compression Format: Raw
- Data Storage Options: Buffer
- Application: Indoor
- Customized support: Online technical support, Customized logo, Software reengineering, OEM, ODM
- Resolution: 1280 x 1024

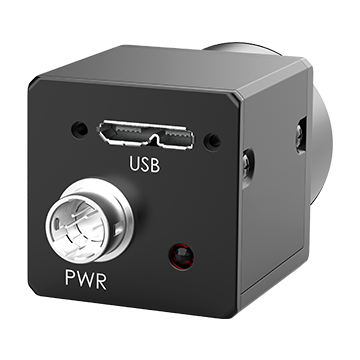

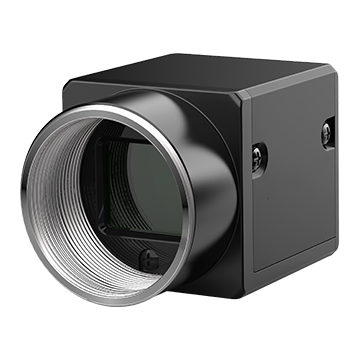

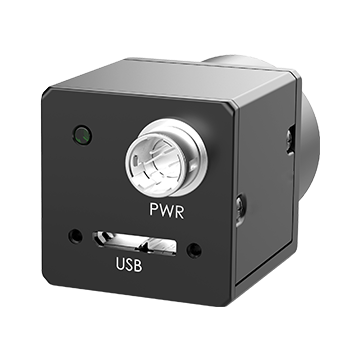

- Product name: 1.3 MP 1/2″ CMOS USB3.0 Area Scan Camera
- Sensor type: CMOS, global shutter
- Frame Rate: 201 fps
- Shutter Mode: Global shutter
- Data Interface: USB 3.0
- Dimension: 29mmx29mmx30mm
- Weight: < 56g
- Lens Interface: C-Mount
- Keyword: USB 3.0 Vision
USB3.0 Industrial Area Scan Camera | An Interface, Infinite Possibilities
With the rapid development of machine vision industry, the digital camera has been leading the industry. USB and GigE industrial cameras have gradually taken the main position of analog cameras. USB industrial camera has become a new force in industrial camera markets, by virtue of its application strength and product charm.
Aim at industry and user demands, Mstar has developed its own USB3.0 industrial area scan camera, which is featured by high usability, wide coverage, excellent performance, diverse functions, and high reliability.

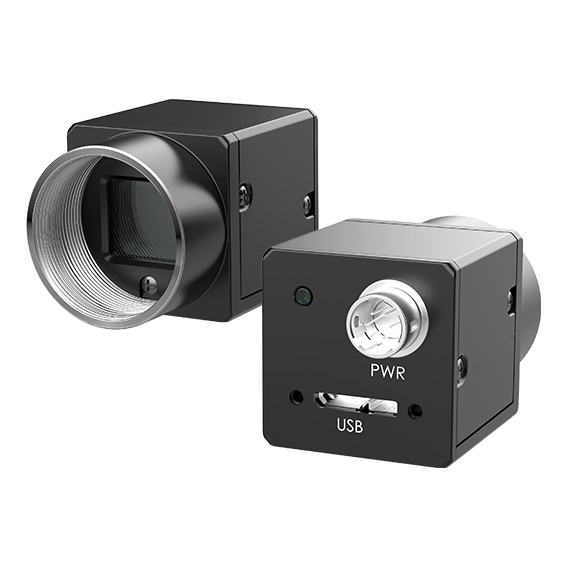

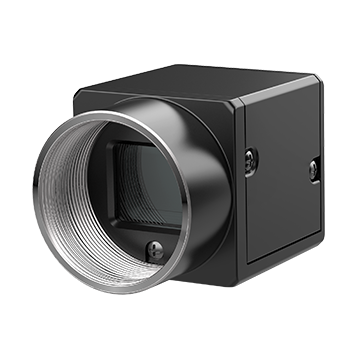

HC-CA013-A0UM New Arrival 1.3MP 1/2″ Global Shutter CMOS USB3.0 Area Scan Machine Vision Industrial Camera
Features
-
Supports auto exposure control, user defined LUT and gamma correction.
-
Cameras can be synchronized with hard trigger and soft trigger. Different exposure modes supported.
-
Compact structure with the size of 29mm×29mm×30mm, suitable for a tight mounting requirement.
-

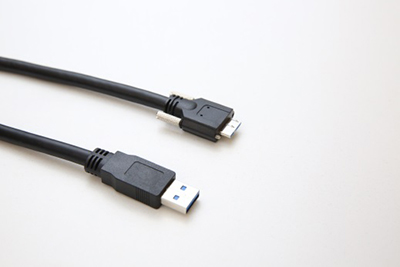

The USB3.0 interface is tightly locked to prevent accidental unplugging and dropping.
-
Compatible with USB 3.0 Vision V1.0.
Applications:
-
Electronic semiconductor
-
Factory automation
-
Logistics code reading
-
Bottle inspection
-
Medical packaging
Specification:
|
Model |
Product Model |
HC-CA013-A0UM |
|
Type |
1.3 MP 1/2″ CMOS USB3.0 Area Scan Camera |
|
|
Camera |
Sensor type |
CMOS, global shutter |
|
Pixel size |
4.8 μm |
|
|
Sensor size |
1/2″ |
|
|
Resolution |
1280 × 1024 |
|
|
Max. Frame Rate |
201 fps |
|
|
Dynamic range |
53 dB |
|
|
SNR |
40 dB |
|
|
Gain |
0 dB to 16 dB |
|
|
Exposure time |
5 μs to 10 sec |
|
|
Shutter mode |
Off/Once/Continuous exposure mode |
|
|
Mono/Color |
Mono |
|
|
Pixel format |
Mono 8/10/10p/12/12p |
|
|
Binning |
Supports 1 × 1, 2 × 2, 4 × 4 |
|
|
Decimation |
Supports 1 × 1, 2 × 2, 4 × 4 |
|
|
Reverse image |
Supports horizontal and vertical reverse image output |
|
|
Electrical features |
Data Interface |
USB3.0 |
|
Digital I/O |

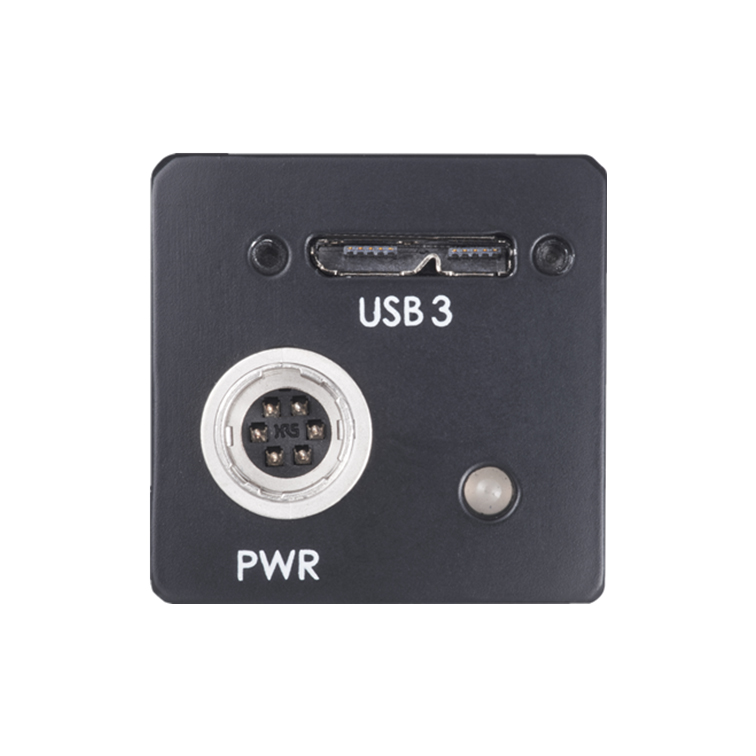

6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), optoisolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
|
|
Power supply |
9 VDC to 24 VDC, supports USB3.0 power supply |
|
|
Power consumption |
Typ. 2.4 W@5 VDC (USB3.0 provides power supply) |
|
|
General |
Client software |
MVS or third-party software meeting with USB3 Vision Protocol |
|
Operating system |
32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
|
|
Compatibility |
USB3 Vision, GenlCam |
|
|
Certification |
CE, FCC, RoHS, KC |

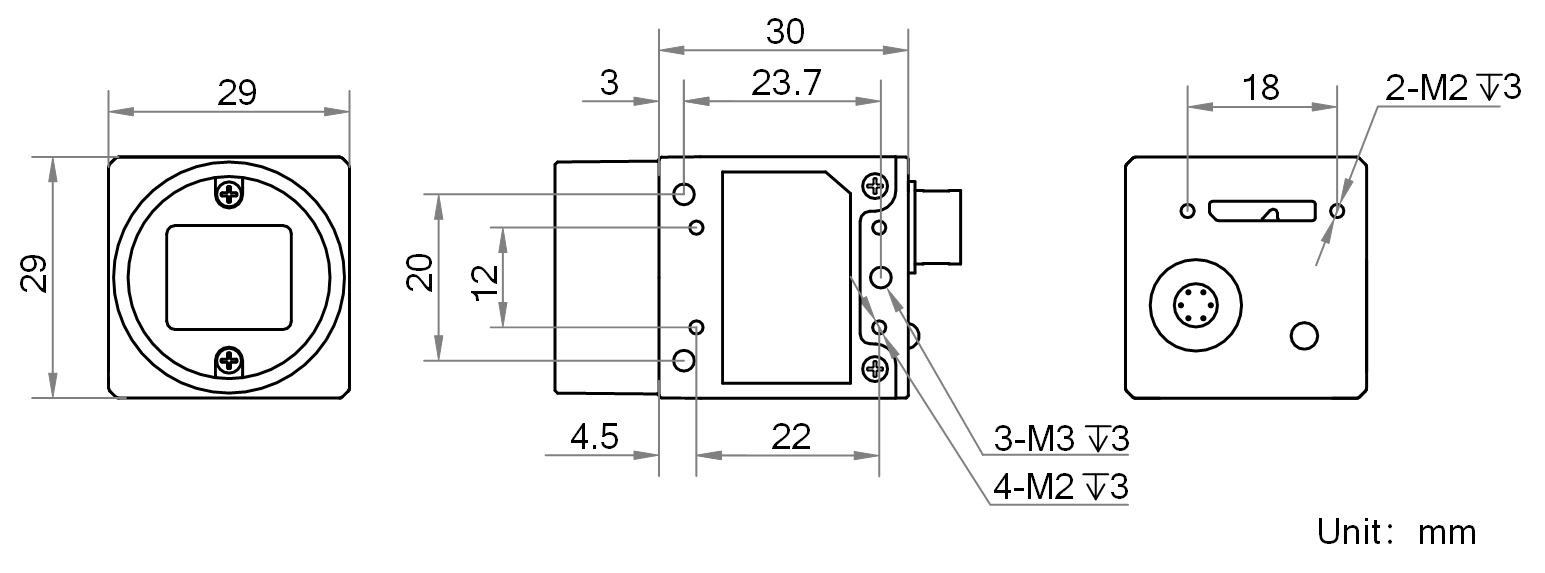

Dimension:
29mm×29mm×30mm USB3.0 industrial area scan camera
