JP151801

CNC 2418 15W Blue Laser Engraving Machine With 500mw 2500mw 5500mw 15000mw Head Wood Router Carving Machine Acrylic PCB PVC

Advantage:if you buy from our EU warehouse or AU warehouse,you will not pay customs tax or other extra fee.we will pay it.please don’t worry.

Product Display:

working area	330 x 340 x 240mm
Frame size	240 x 180 x 40mm
Mesa	24×18cm
Spindle	775 spindle motor(12-36V)24V:10000r/min
Step motor	Fuselage 1ength 34M,Current 1.33A,12v.Torque 0.25N/M
Power supply	24V 5A
Software	GRBL controller (Firmware GRBL v1.1)
supported system	Windows(Do not support Mac)
Drill bits	Free 10pc drill bit
clamps	Free 4pcs

The latest laser, blue laser, is more stable! ! !

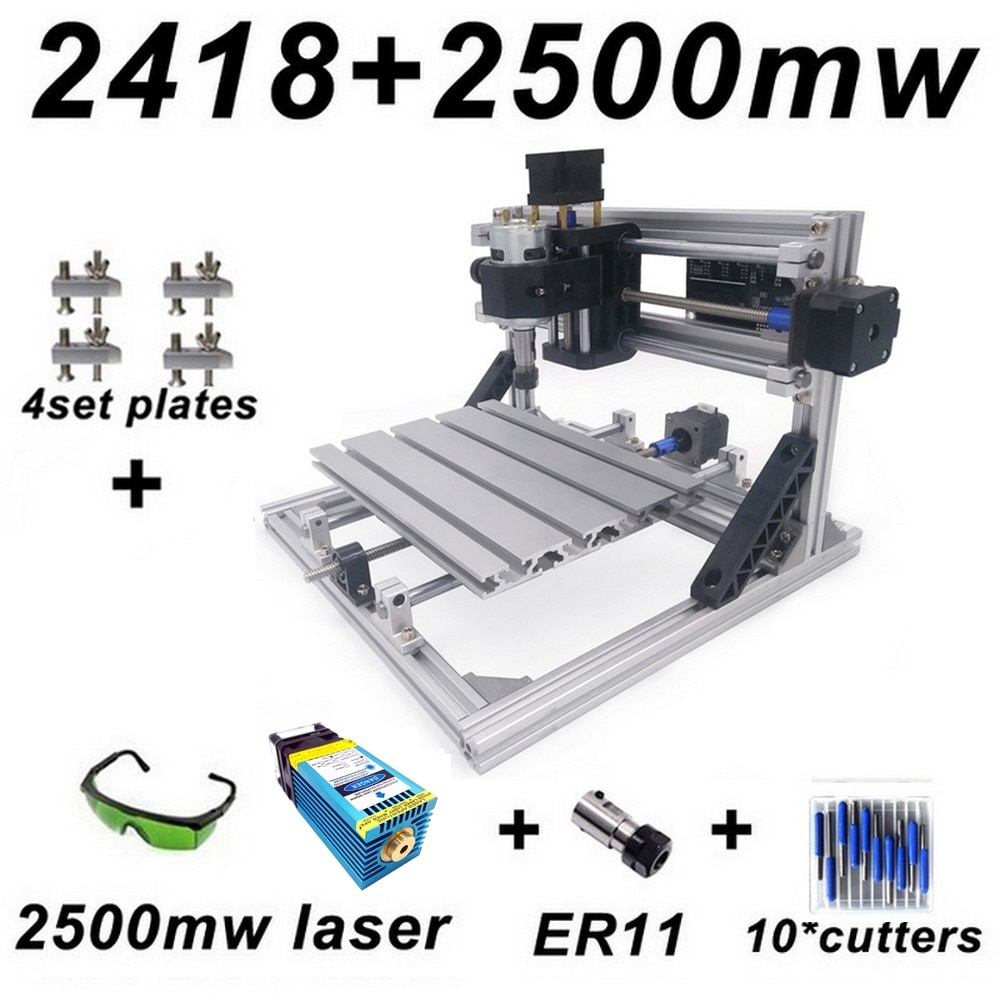

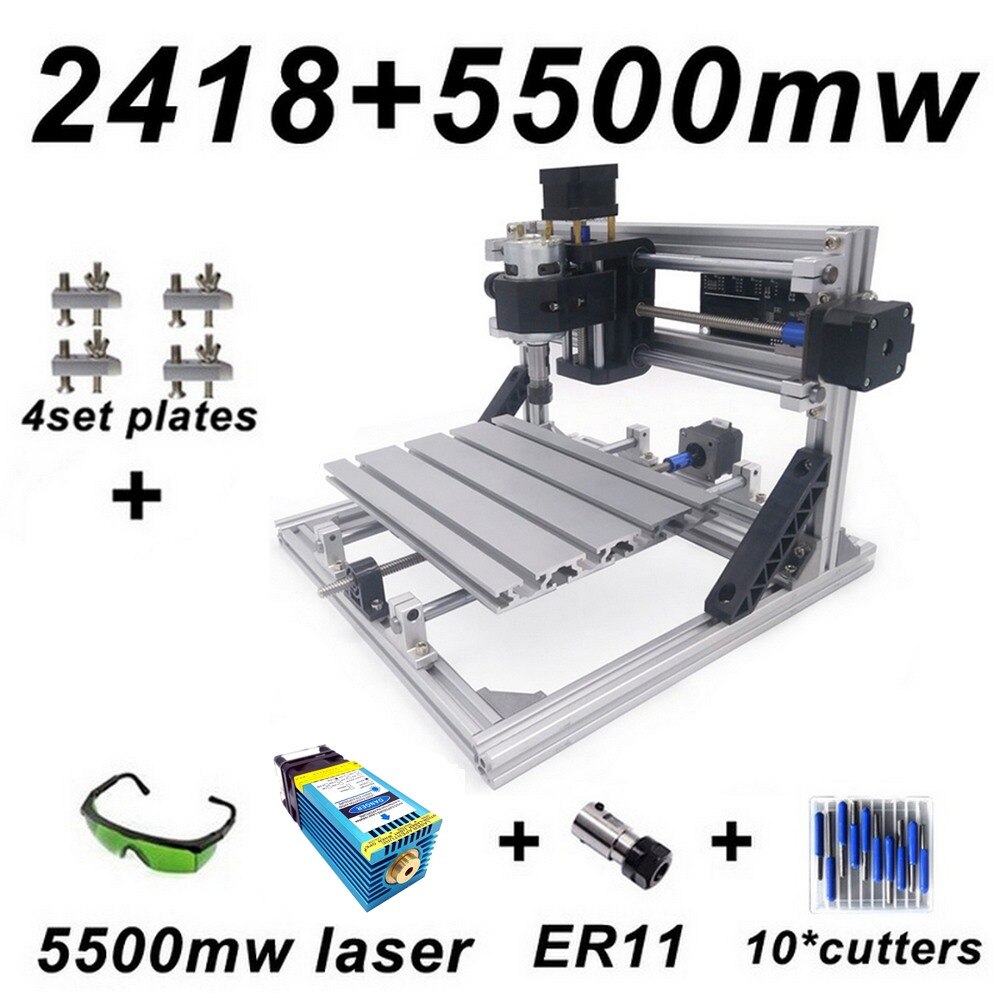

1,Disassembled pack mini CNC 2418 laser head CNC engraving machine 500MW/2500MW/5500MW/15000mw Milling Machine Wood Carving machine DIY MINI CNC router with GRBL control

2,NEW CNC Firmware GRBL v1.1 control Diy mini cnc machine,3 Axis pcb Milling machine,Wood Router laser engraving,with offline controller

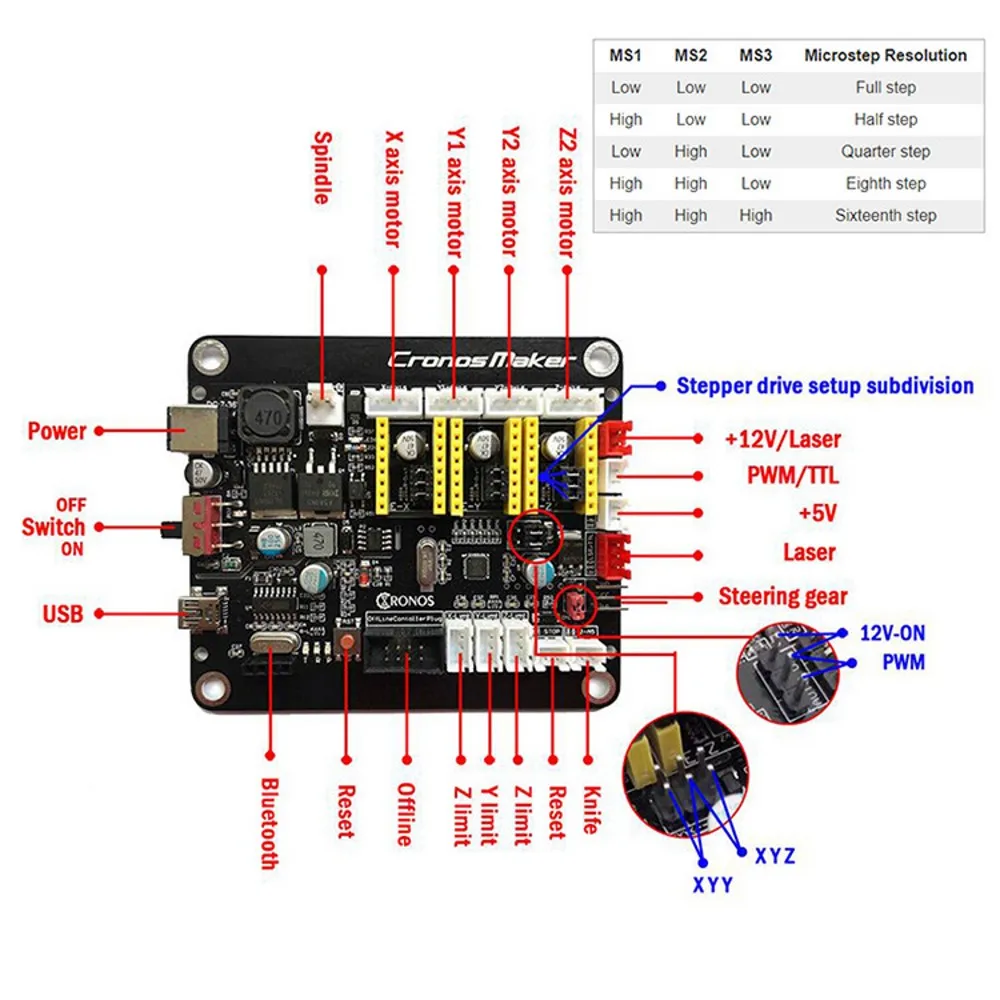

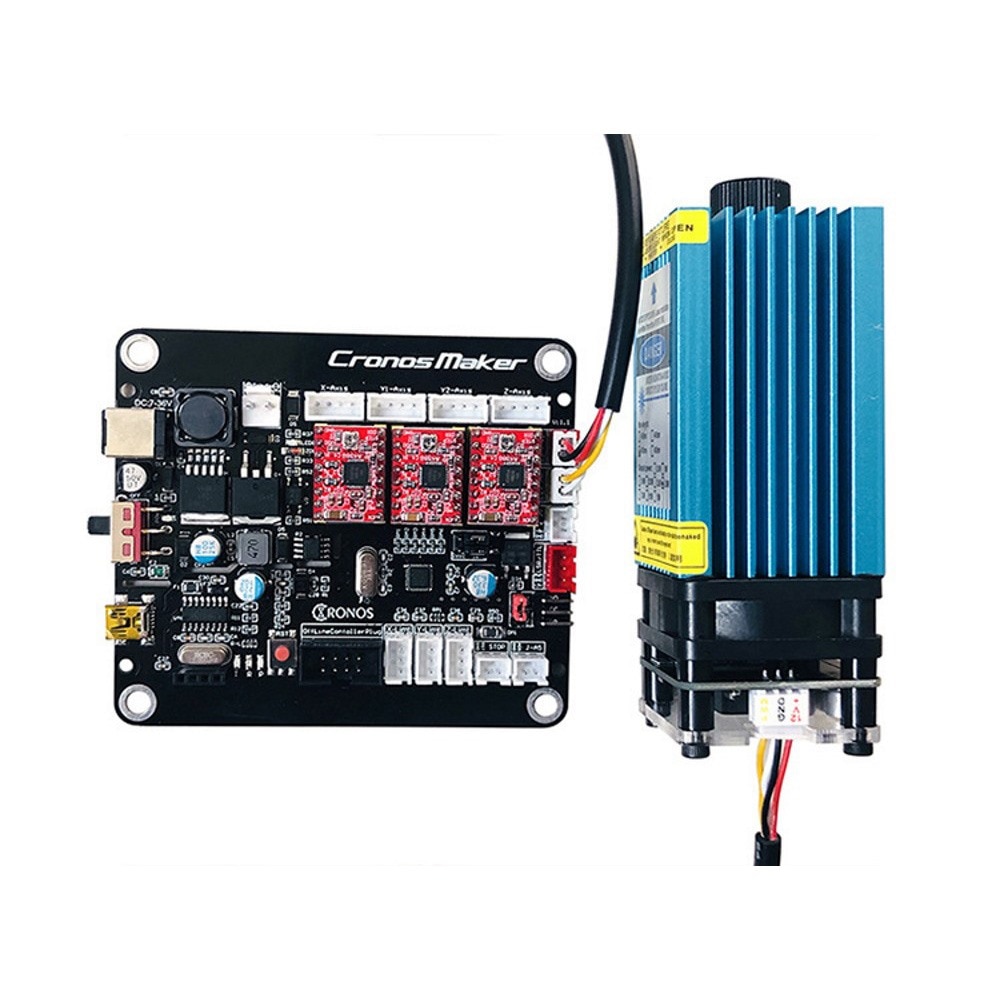

3,The Firmware GRBL v1.1 control is easy to operate and supports offline. The control panel with supports 2P or 3P lasers. Equipped with a laser with a 33mm acrylic blue size.Customers who purchase the standard can install 33mm 2P 3P lasers.

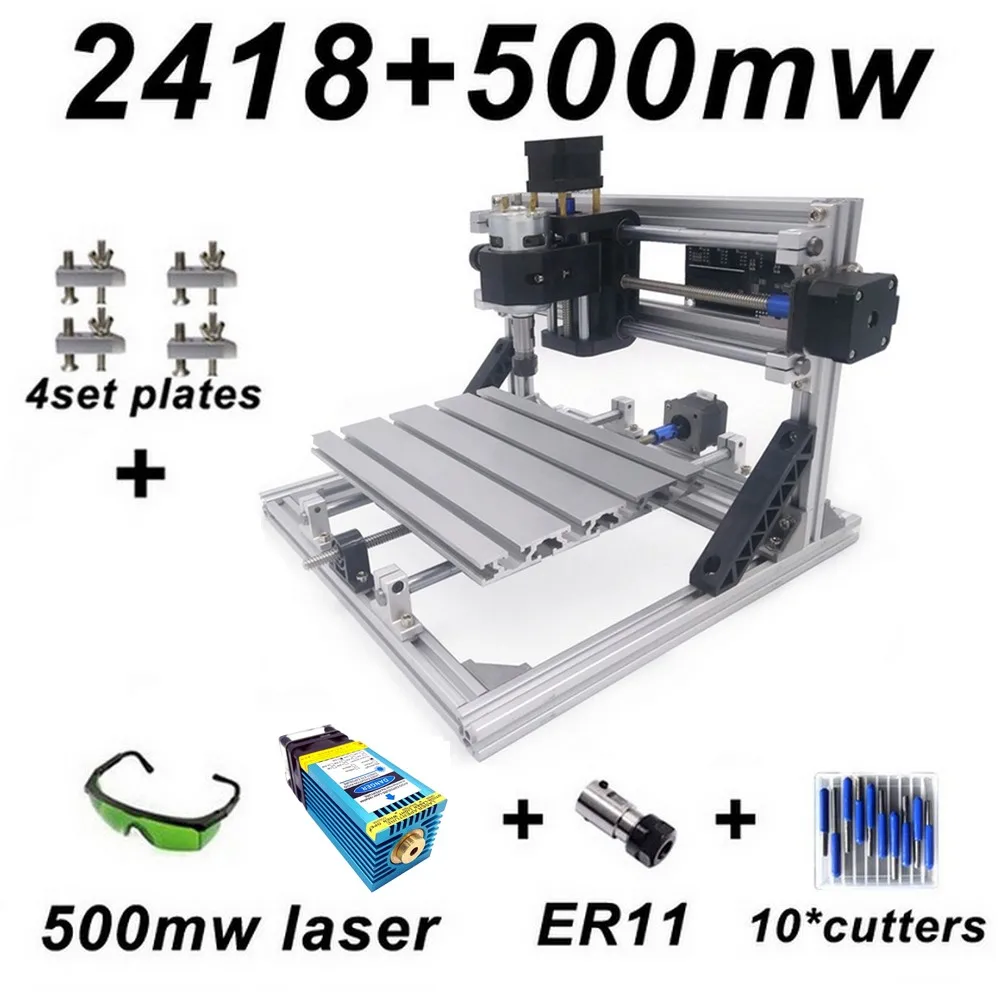

Package inclued:

1pcs Full set engraving machine

Free gift:

20 degree knife x 10

ER11 Kit x 1

Mini clamp x 4

Specification:

• Machine Specifications:
• Rack: Aluminum + Plastic (black)
• Dimensions: 330 x 340 x 240mm (excluding motors and other protruding parts)

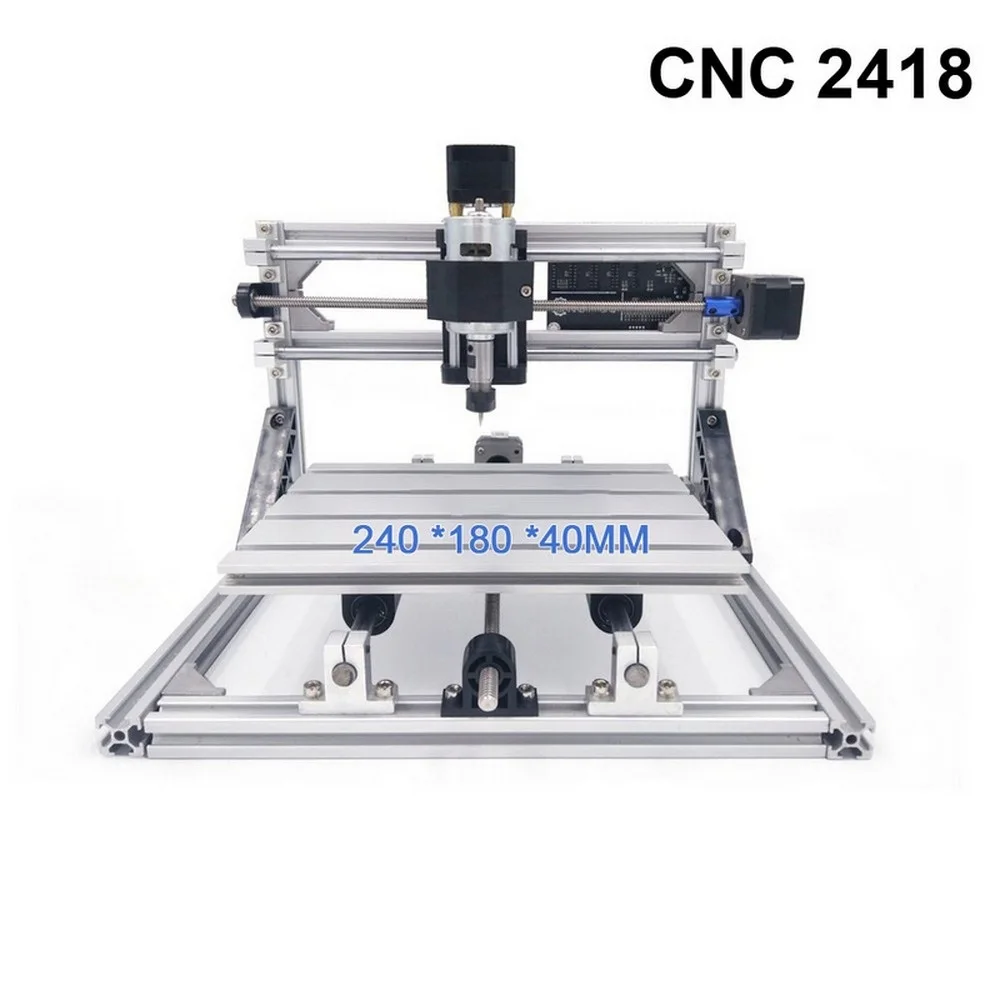

• Working area: 240 x 180 x 40mm / 9.4" x 7" x 1.57"
• Screw: T8 T-Screw Stainless Steel Lead Screw 8mm diameter
• Stepper motor: 3pcs 1.3A, 0.25N.m

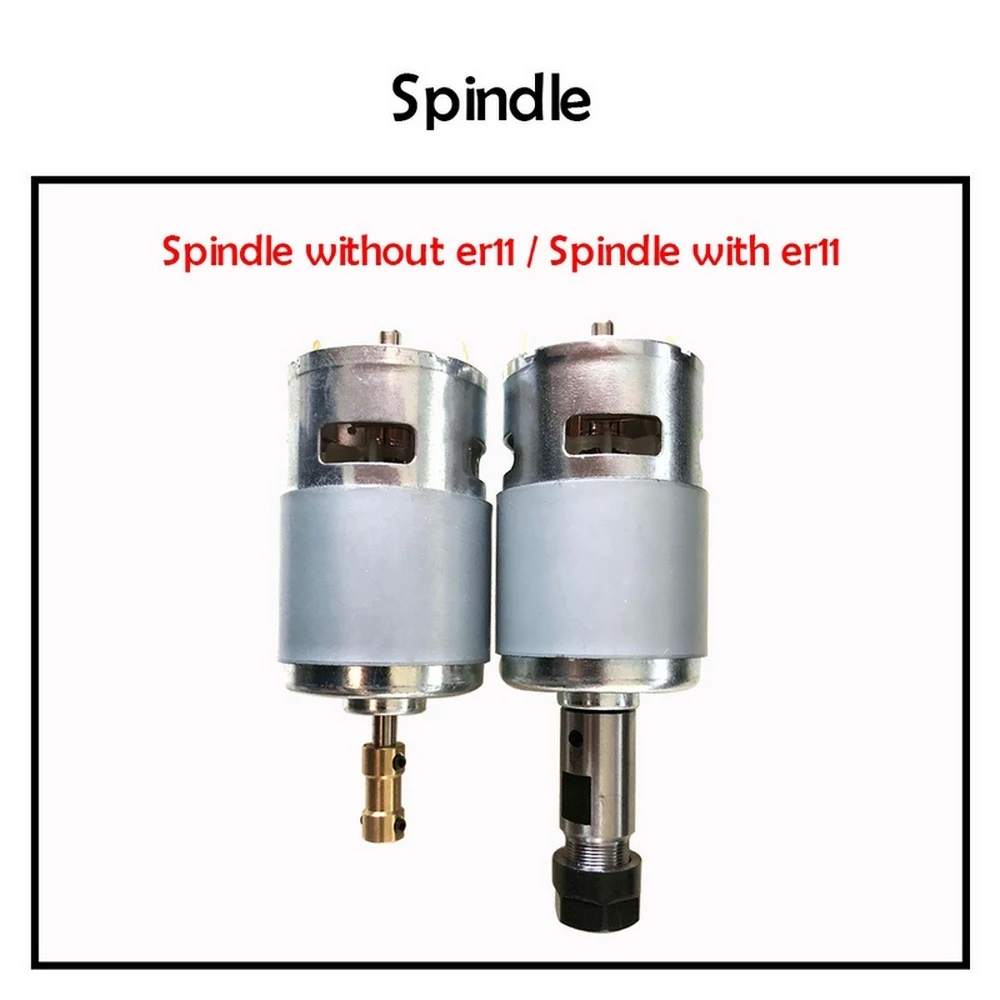

• Spindle: 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
• Tool holder: ER11
• Spindle diameter: 45mm
• Table: 15180 profile (footprint 260x180mm)
• Power supply: 24V 5A
• Drill bits: includes 10pcs
• Clamps: 4 pcs, Hold the thickness of 0-30mm, Size: 50*20*12 (L*W*H), the inner slot width 8mm

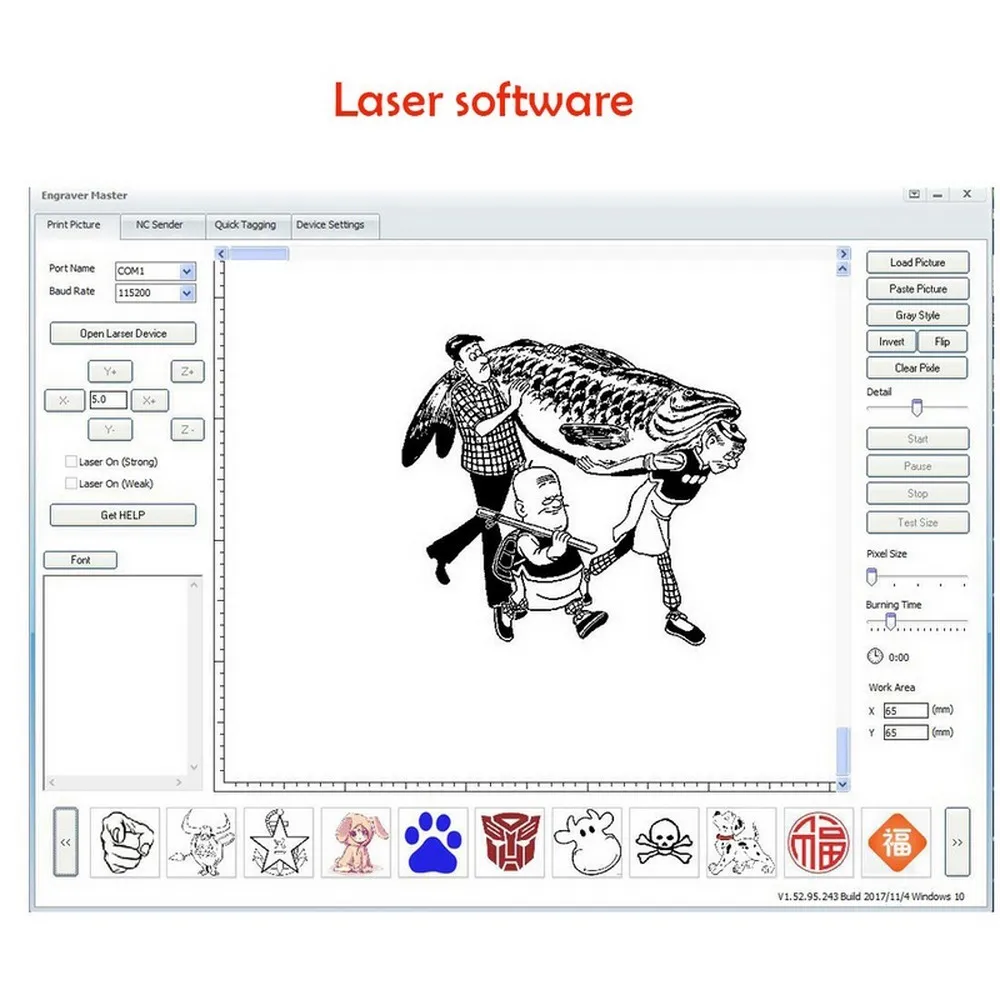

• Control software: Grbl
• Support OS: Windows XP, Win7, Win8, Win10.
• Standard :The complete set of the parts and tools

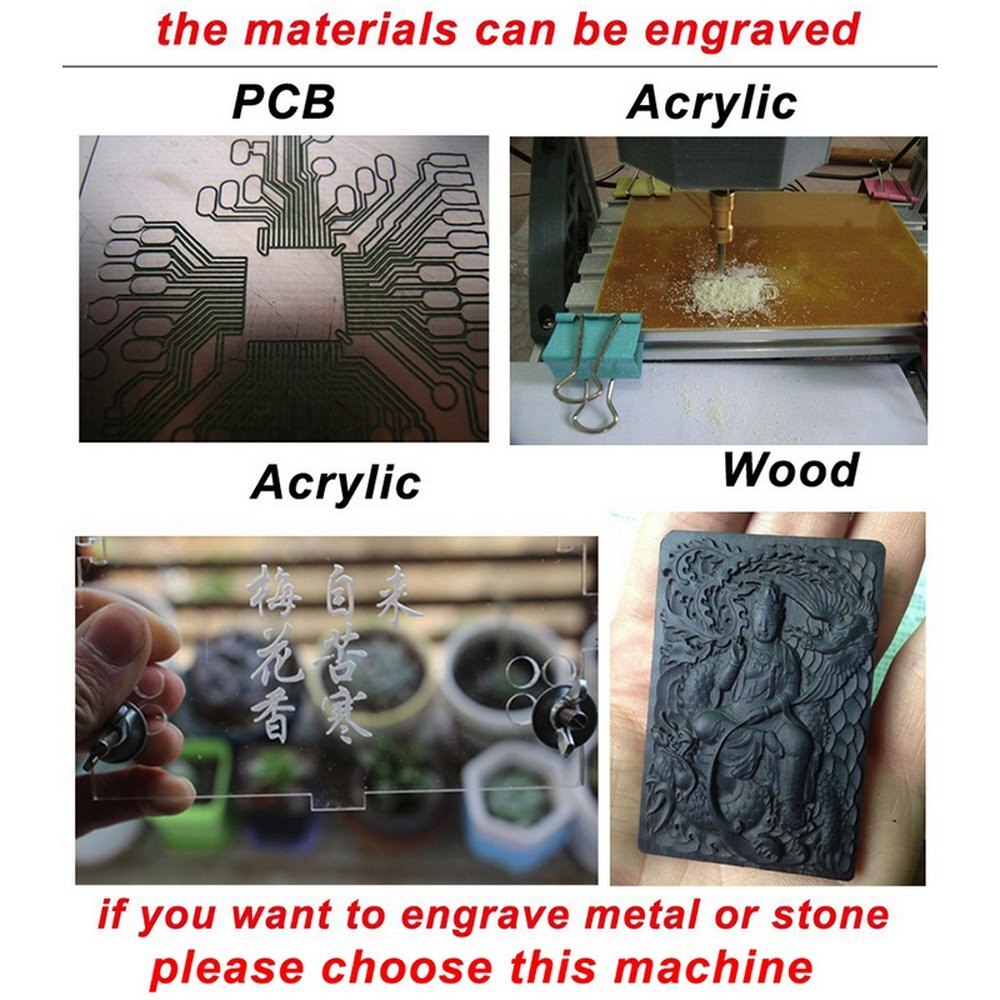

500mw/2500mw/5500mw engraved material: Plastic, wood, acrylic, PVC, PCB and other soft materials

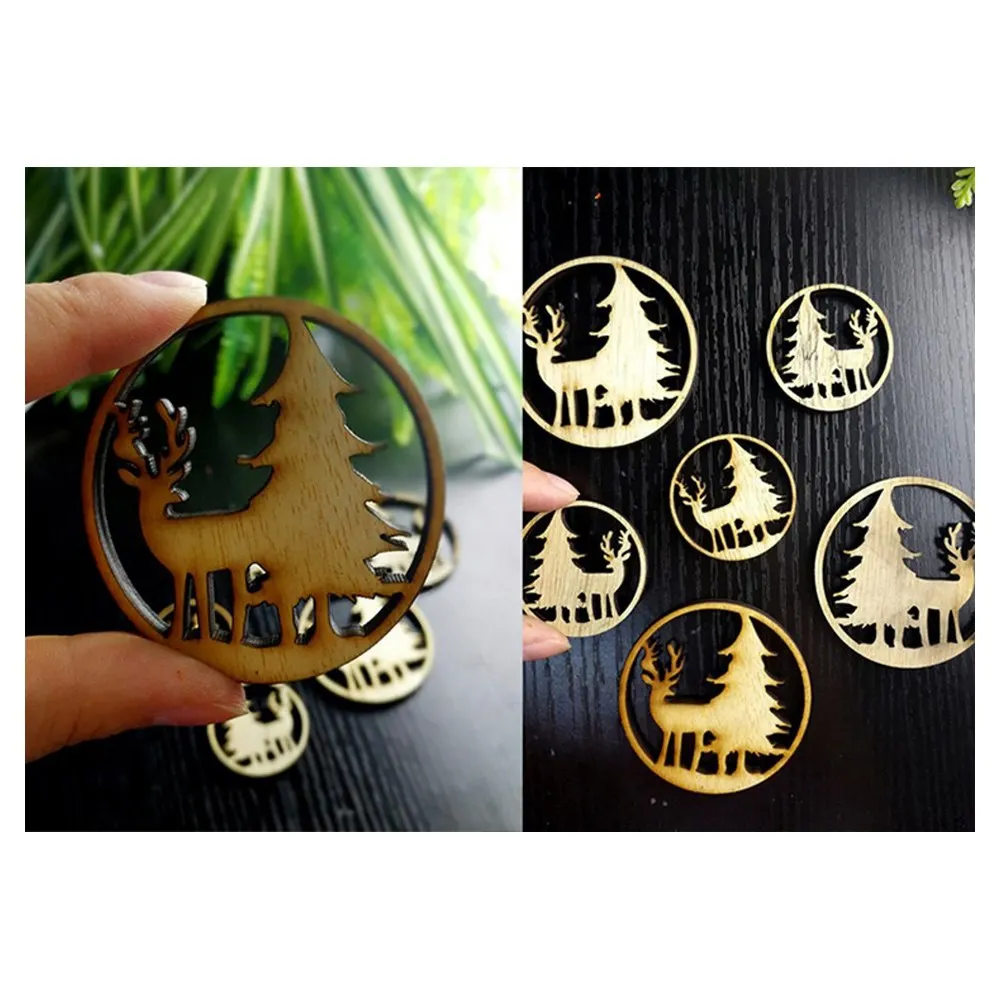

Cuttable material: paper, wood board within 3MM (slow speed, need to cut repeatedly), leather, cloth, etc.

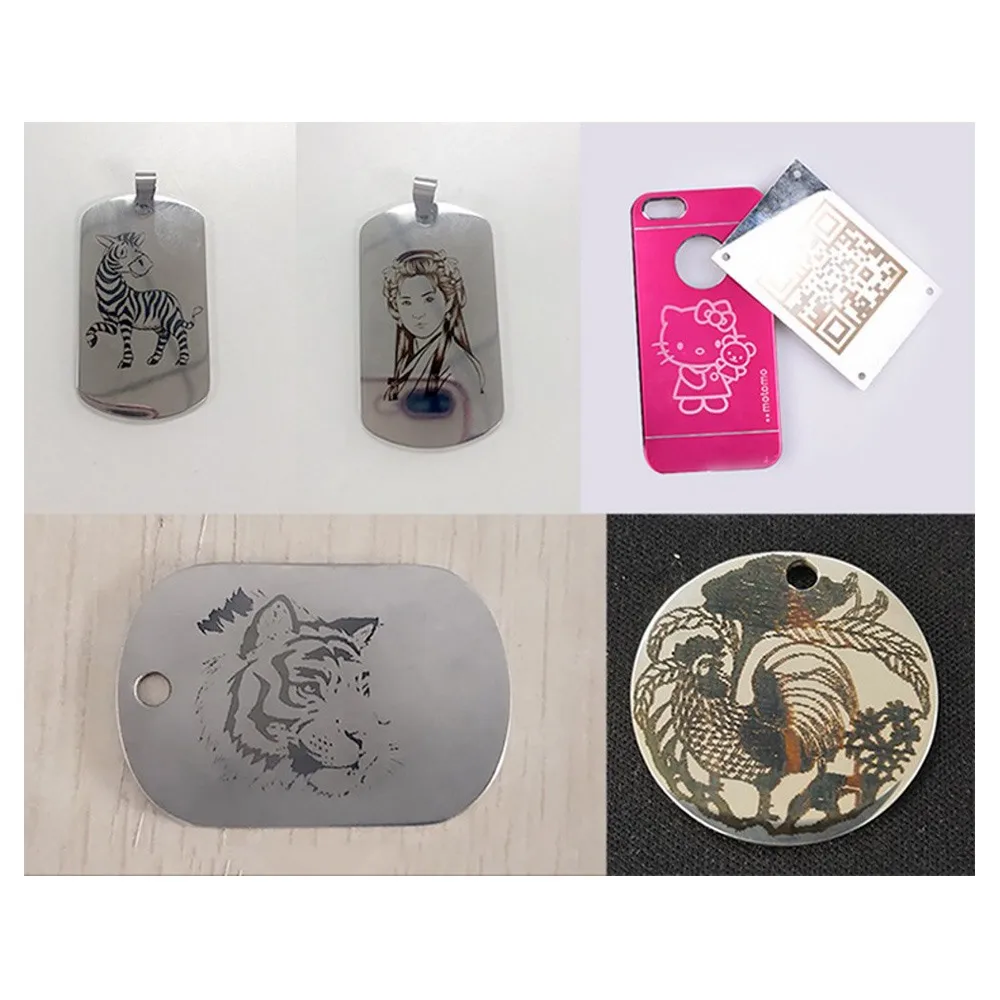

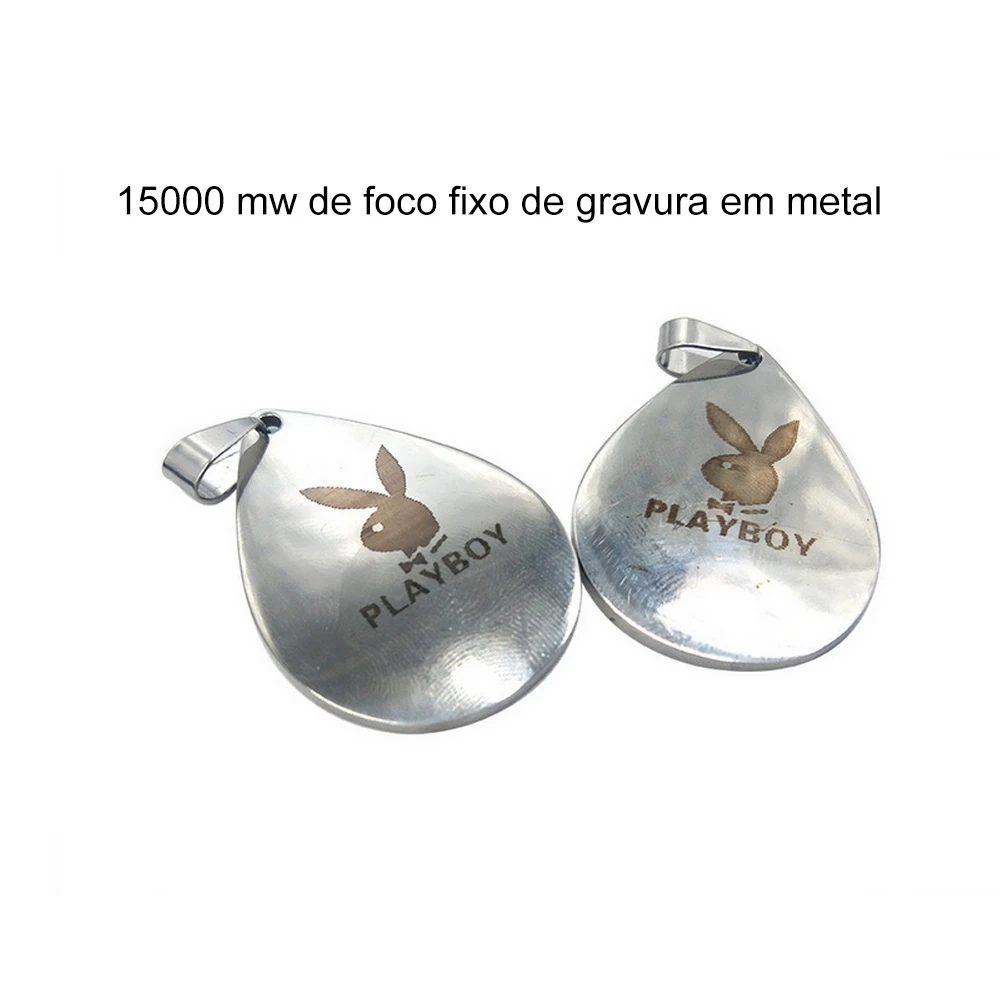

The 15W can also be engraved on the stainless steel surface and the anode colored aluminum alloy surface on the basis of 5500mw. (When drawing the surface of the 304 stainless steel, please use a large pen to blacken the surface and then engrave)

Anything transparent and translucent and silver reflective can’t be cut!!!

Important Notice:

1. ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to enjoy minus tolerance to the spindle so you cannot put it on directly.

2. Contact us for more details.
