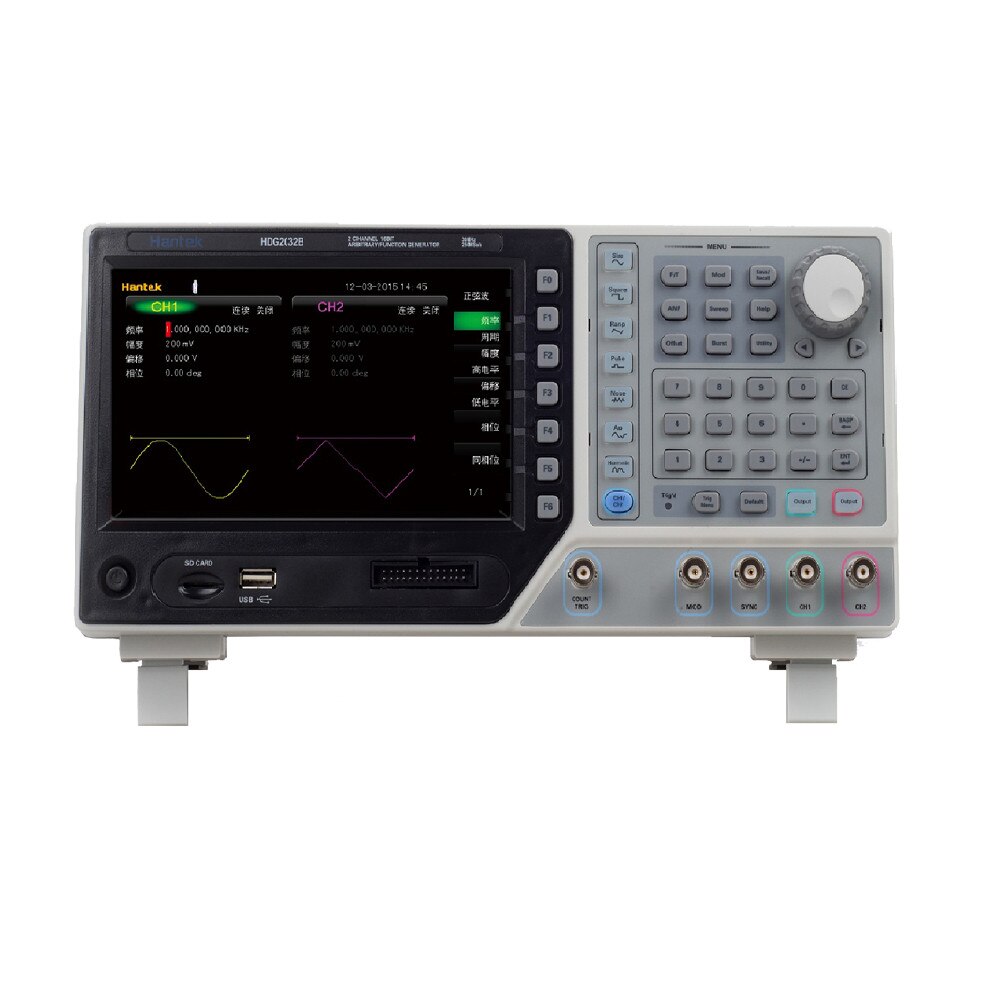

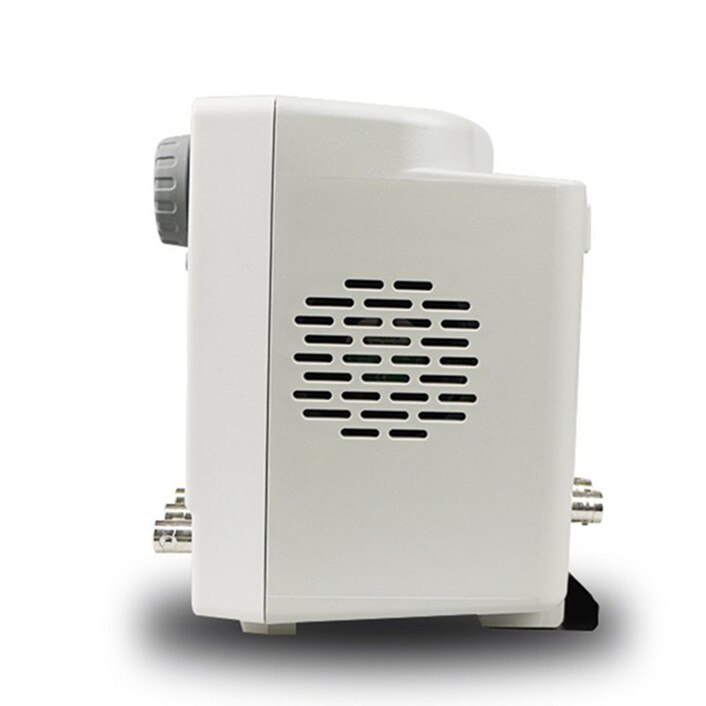

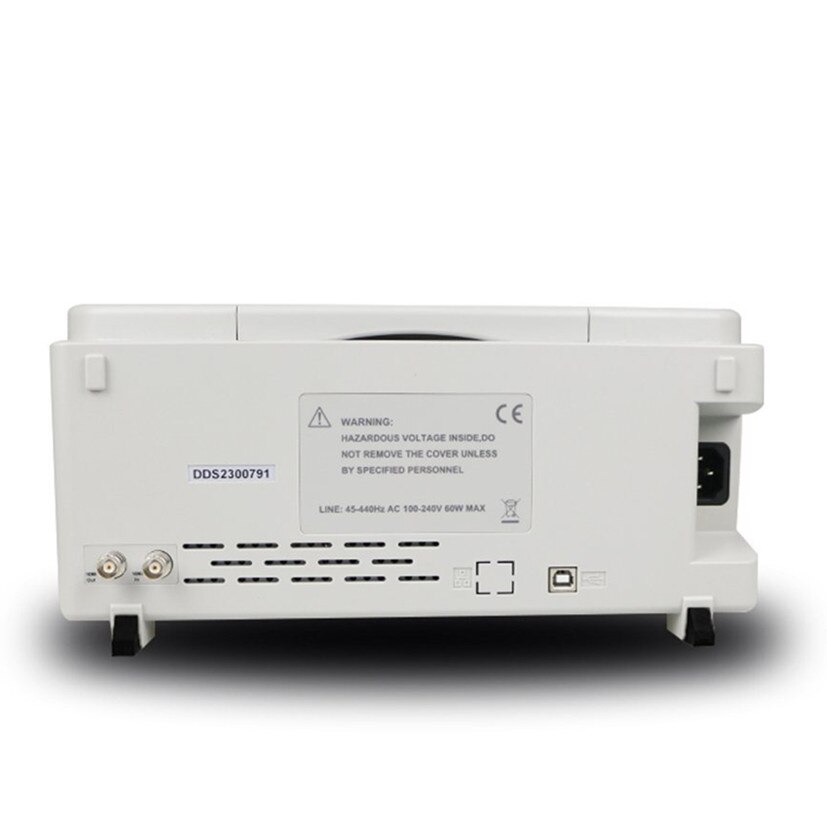

Hantek HDG2062B Arbitrary Waveform Function Generator 2CH 20M 16Bit 250MSa 64M Memory
Features:
l 16Bit Resolution, 250MSa/s Sample Rate; 64M Memory Depth;
l 100/80/60/30/20/10MHz or 5MHz Max. Sine Output Frenquency;
l 16 channels digital output, together with the analog channel can rebuild the more mixed signals in daily practice
l Support AM, FM, PM, ASK, FSK, PSK and PWM modulations
l TCXO timebase standard, OCXO optional for ultra-high stability
l 7 inch, 64K true color TFT display, WVGA(800X480)
l Plenty of interfaces: USB Host, USB Device, LAN
l 80M Frequency Counter;
This device is running Linux , for more detail see
|
Model |
HDG2102B |
HDG2082B |
HDG2062B |
HDG2032B |
HDG2022B |
HDG2012B |
HDG2002B |
|
Main Features |
|||||||
|
Channel |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Memory Depth |
64M |
64M |
64M |
64M |
64M |
64M |
64M |
|
Frenquency |
100MHz |
80MHz |
60MHz |
30MHz |
20MHz |
10MHz |
5MHz |
|
Sample Rate |
250MSa/s |
||||||
|
Voltage Resolution |
16Bit |
||||||
|
Digital Output |
16 Channels output |
||||||
|
Frenquency Characteristic |
|||||||
|
Standard Waveforms |
Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG, Gauss, Haver Sine, Lorentz, Dual-Tone, DC |
||||||
|
Sine |
1uHz~Max. |
||||||
|
Square |
1uHz~30MHz |
1uHz~Max. |
|||||
|
Pluse |
1uHz~15MHz |
1uHz~Max. |
|||||
|
Ramp/Triangle |
1uHz~4MHz |
||||||
|
White Noise |
1uHz~Max. |
||||||
|
Arb. |
1uHz~30MHz |
1uHz~25MHz |
1uHz~20MHz |
1uHz~Max. |
|||
|
Resolution |
1uHz |
||||||
|
Accuracy |
±2ppm, 18~28 degree |
||||||
|
Sine Wave Spectrum Purity |
|||||||
|
Harmonic Distortion |
Typical (0dBm) DC-1MHz: <-60dBc; 1MHz-10MHz: <-55dBc; 10MHz-100MHz: <-50dBc |
||||||
|
Total Harmonic Distortion |
<0.1% (10Hz-20kHz, 0dBm) |
||||||
|
Spurious signal |
Typical(0dBm): ≤10MHz: <-65dBc; |
||||||
|
Phase Noise |
Typical(0dBm,10kHz offset,) 10MHz: ≤-115dBc/Hz |
||||||
|
Square |
|||||||
|
Rise/Down time |
<10ns |
<11ns |
<12ns |
<14ns |
<16ns |
<18ns |
<18ns |
|
Overshoot |
<3%(100KHz, 1Vpp) |
||||||
|
Duty Cycle |
≤10MHz: 20.0%~80.0%; |
8.0%~92.0% |
|||||
|
Non-symmetry |
1% of period+5ns |
||||||
|
Jitter (rms) |
Typical (1MHz,1Vpp, 50Ω) ≤5MHz: 2ppm+500ps; > 5MHz: 500ps |
||||||
|
Ramp |
|||||||
|
Linearity |
≤1%(1KHz, 1Vpp) |
||||||
|
Symmetry |
0%~100% |
||||||
|
Pluse |
|||||||
|
Period |
33.33ns~1Ms |
40ns~1Ms |
40ns~1Ms |
50ns~1Ms |
50ns~1Ms |
100ns~1Ms |
200ns~1Ms |
|
Pulse |
≥12ns |
≥14ns |
≥14ns |
≥16ns |
≥16ns |
≥18ns |
≥18ns |
|
Leading Edge Time |
≥8ns |
≥9ns |
≥10ns |
≥10ns |
≥11ns |
≥11ns |
≥12ns |
|
Overshoot |
<3%(1VPP) |
||||||
|
Jitter (rms) |
Typical (1MHz, 1Vpp, 50Ω) |
||||||
|
Arb. Wavefrom Generator |
|||||||
|
Waveform Length |
64M Point |
||||||
|
Vertical Resolution |
16 Bit |
||||||
|
Sample Rate |
250MSa/s |
||||||
|
Rise/Fall time |
Typical(1Vpp):<6ns |
||||||
|
Jitter |
Typical (1MHz, 1Vpp, 50Ω) |
||||||
|
Amplitude characteristic |
|||||||
|
Amplitude Range |
≤20MHz:1mVpp – 20Vpp; ≤60MHz:1mVpp -15Vpp; ≤80MHz:1mVpp -10Vpp; |
||||||
|
Accuracy |
Typical (1kHz Sine, 0V deviation, >10mVpp, Auto); ±1% of setting ±2mVpp |
||||||
|
Amplitude Flatness |
≤10MHz:±0.1dB; ≤60MHz:±0.2dB; ≤100MHz:±0.4dB |
||||||
|
Resolution |
1mv or 4 digits |
||||||
|
Impedance |
50Ω |
||||||
|
Offset Characteristic |
|||||||
|
Range |
|Voffset| < Vmax – Vpp/2 |
||||||
|
Accuracy |
±(1% of setting + 5mV + 0.5% of amplitude) |
||||||
|
Modulation Characteristic |
|||||||
|
Modulation Type |
AM, FM,PM,2ASK,2FSK,2PSK,PWM |
||||||
|
AM |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Sine, Square, Ramp, Noise, Arb |
||||||
|
Frequency |
1Hz~500KHz |
||||||
|
Depth |
0%~120% |
||||||
|
FM |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Sine, Square, Ramp, Noise, Arb |
||||||
|
Frequency |
1Hz~500KHz |
||||||
|
Frequency Deviation |
0~360 |
||||||
|
PM |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Sine, Square, Ramp, Noise, Arb |
||||||
|
Frequency |
1Hz~500KHz |
||||||
|
Frequency Deviation |
0%~120% |
||||||
|
2ASK |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Square of 50% duty cycle |
||||||
|
Code Rate |
1Hz~500KHz |
||||||
|
2FSK |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Square of 50% duty cycle |
||||||
|
Code Rate |
1Hz~500KHz |
||||||
|
2PSK |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Square of 50% duty cycle |
||||||
|
Code Rate |
1Hz~500KHz |
||||||
|
PWM |
|||||||
|
Carrier Waveforms |
Sine, Square, Ramp, Arb. (except DC) |
||||||
|
Source |
Internal/External |
||||||
|
Modulating Waveforms |
Sine, Square, Ramp, Noise, Arb. |
||||||
|
Code Rate |
1Hz~500KHz |
||||||
|
Width Deviation |
0% to 100% of Pulse Width |
||||||
|
Burst Characteristic |
|||||||
|
Burst Count |
1~2000000000 |
||||||
|
Gated Source |
External trigger |
||||||
|
Trigger Source |
Internal, External or Manual |
||||||
|
Sweep Characteristics |
|||||||
|
Type |
linear |
||||||
|
TypeDirection |
Up |
||||||
|
Sweep time |
280 000s |
||||||
|
Hold/Return time |
280 000s |
||||||
|
Trigger Source |
Internal, External, Manual |
||||||
|
Mark |
Falling Edge of Sync signal(programmable) |
||||||
|
General Specifications |
|||||||
|
Interface |
USB host, USB Device, LAN optional |
||||||
|
Display |
7’’ 64K Color TFT Display, 800*480 |
||||||
|
Power Voltage |
100-120VACRMS(±10%), 45Hz to 440Hz, CATII; 120-240VACRMS(±10%), 45Hz to 66Hz, CATII |
||||||
|
Power Consumption |
<60W |
||||||
|
Size |
305mm x 100mm x 130mm(L x W x H) |
||||||
|
Weight |
3KG |
||||||

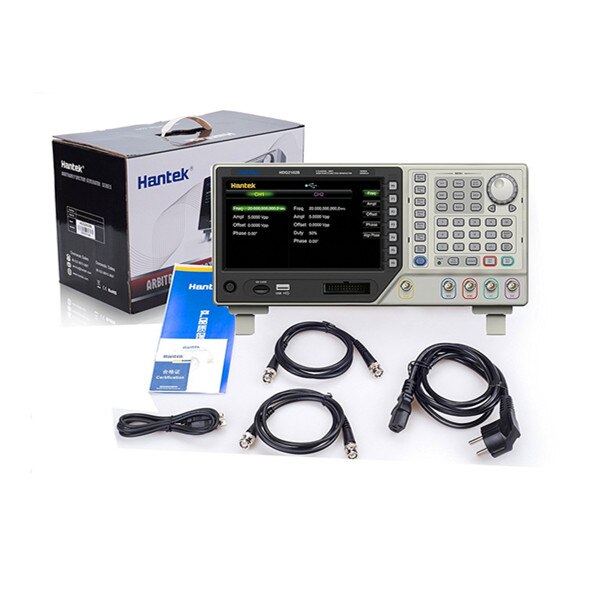

Package:
-
1 x HDG2062B Generator
-
1 x Power cable
-
1 x USB cable
-
1 x BNC cable
-
1 x CD
