Description
- Brand Name: Hantek
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: DSO4072S
- Max Waveform Capture Rate: 30,000wfm/s
- Band Width: 70MHz
- Display Size: 7 inch 64K color LCD display
- Digital Channels: 2
- Record Length: 20MHz
- IS Battery Demountable: No
- Display Resolution: 800*480 Pixels
- Real Time Sampling Rate: 1GSa/S

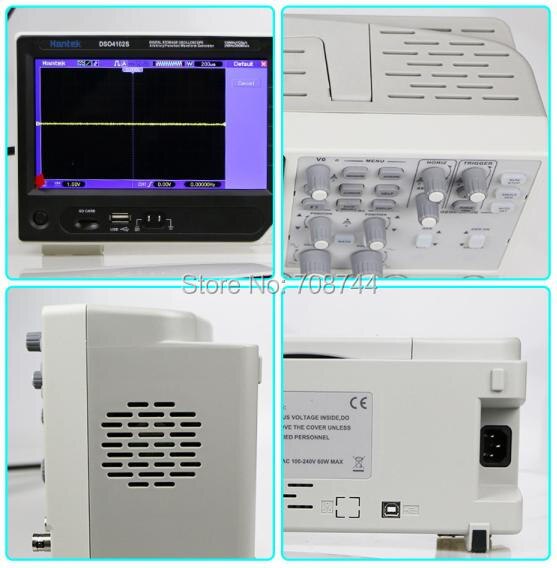

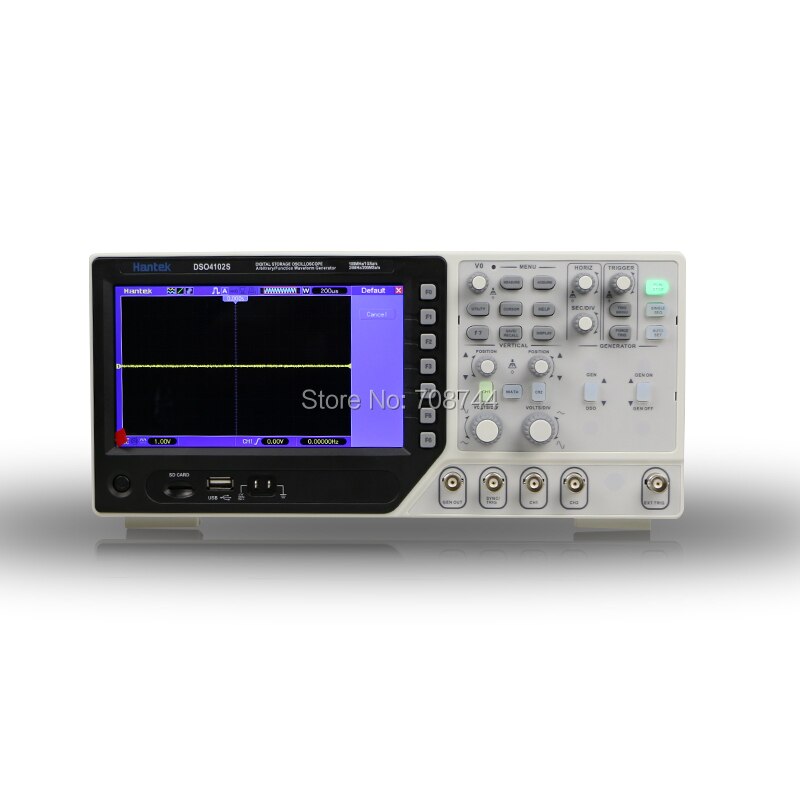

Hantek DSO4072S Digital Multimeter Oscilloscope USB 2 CH 70MHz LCD Display Arbitrary/Function Waveform Generator Osciloscopio
2 Channel Digital Oscilloscope. 1 Channel Arbitrary/Function Waveform Generator. The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously. Oscilloscope: 70MHz Bandwidth, 1GSa/s Sample Rate. 25MHz Arbitrary waveform generator, 12 bits resolution, 200MHz DDS, 7 inch 64K color LCD display, Resolution 800×480.

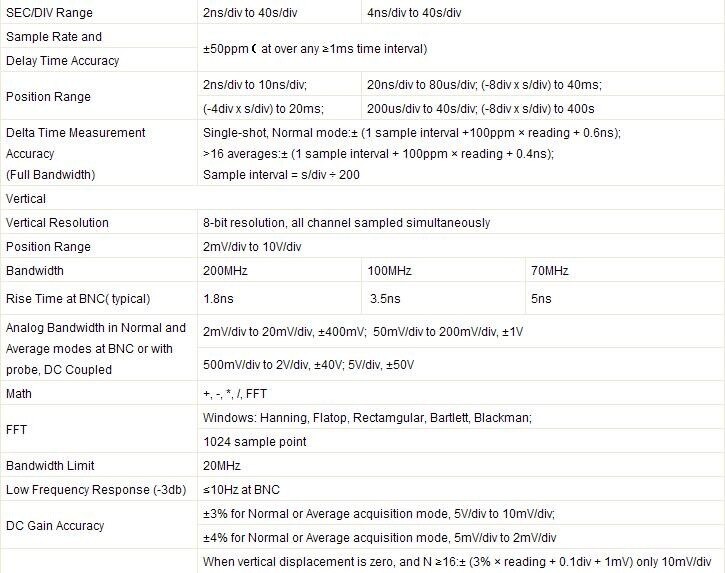

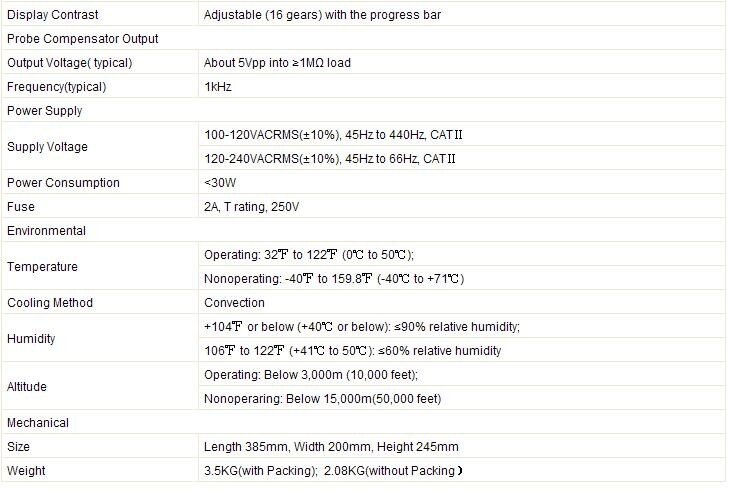

Parameters
-
2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator +Synchronizing Signal+ External Trigger;
-

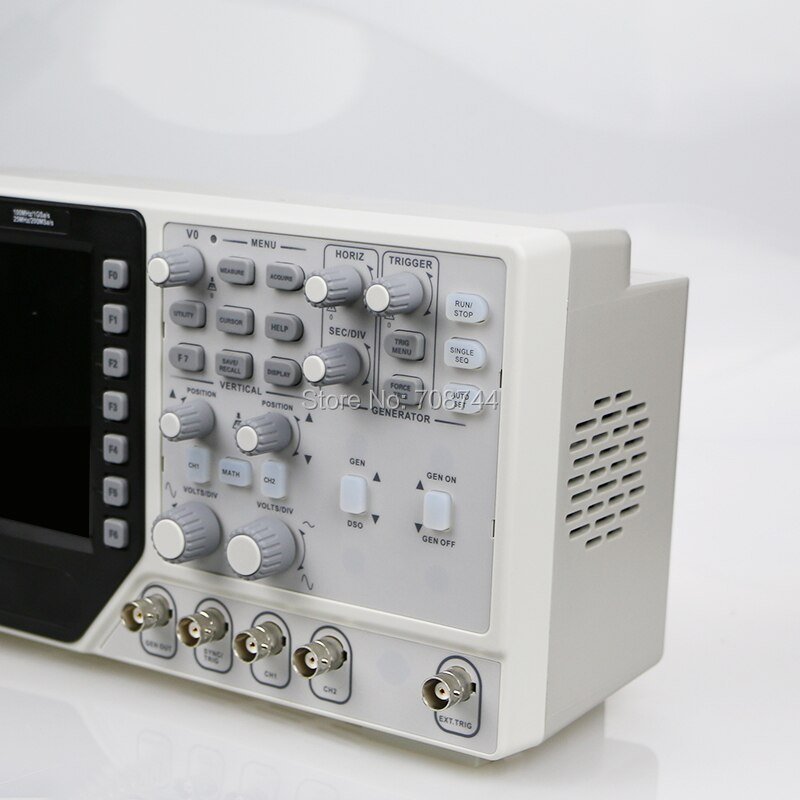

The Keys for osilloscope and waveform generator is seperated for convenient to operate it simultaneously;
-
Large and clear display (7 inch 64K color LCD display, Resolution 800×480), more clear and realistic waveform;
-

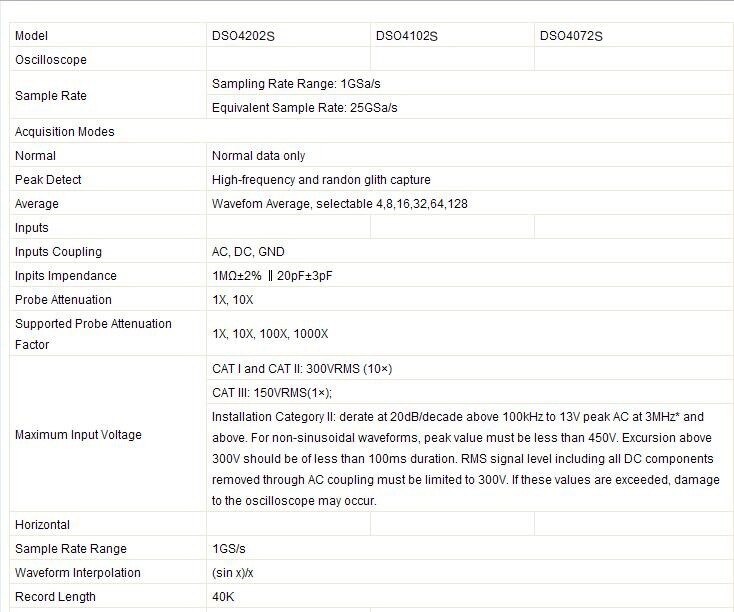

Oscilloscope: 1GSa/s Sample Rate, 200/100/70MHz Bandwidth, more than 20 kinds of auto measurement functions;
-

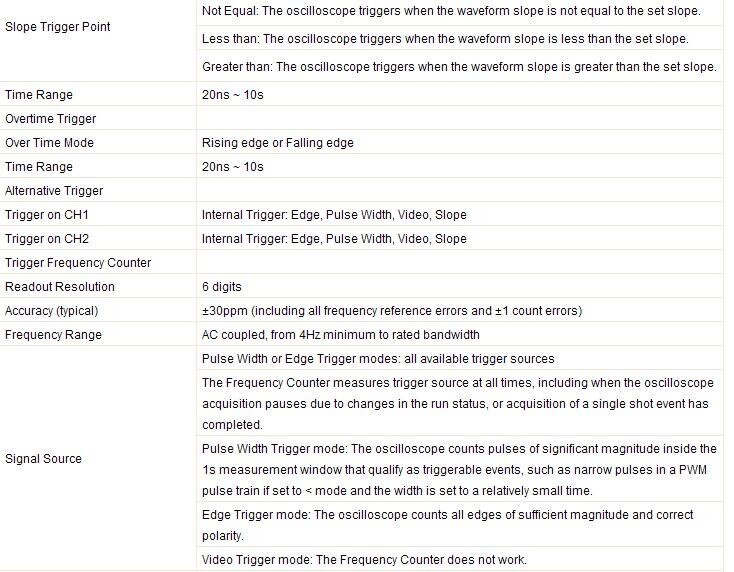

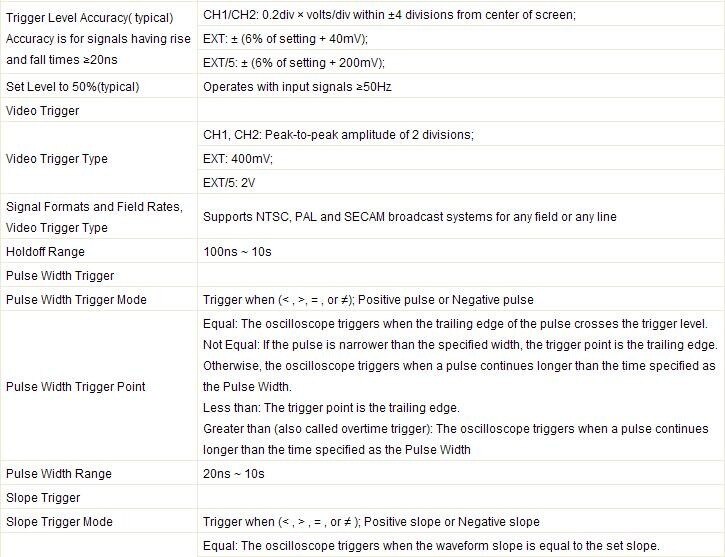

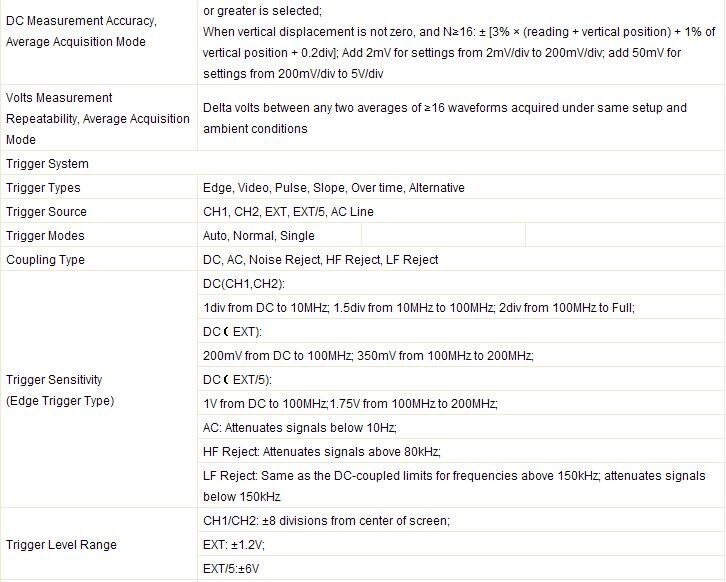

Powerful Trigger Function:Edge, Video, Pulse, Slope, Over time, Alternative;
-

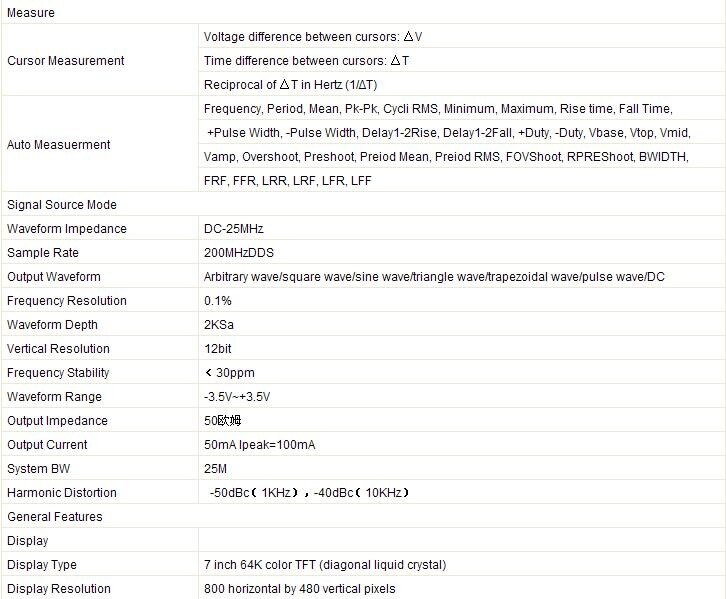

Arbitrary/Function Waveform Generator:25MHz, 12 bits resolution, 200MHz DDS,Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DCis easy to simulate transducer.
-
Support SD card, VGA function (optional);
-
Integrated USB Host, Support USB disk storage, USB interface/SD card system update
