Description
- Brand Name: Hantek
- Certification: CE
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: DSO1122S
- Record Length: 2M
- Max Waveform Capture Rate: 30,000wfm/s
- Display resolution: 640*480 Pixels
- Band Width: 100-349MHz
- IS Battery Demountable: No
- Display Size: 5.0 – 6.9 Inches
- Digital Channels: 2
- Real Time Sampling Rate: 1GSa/S

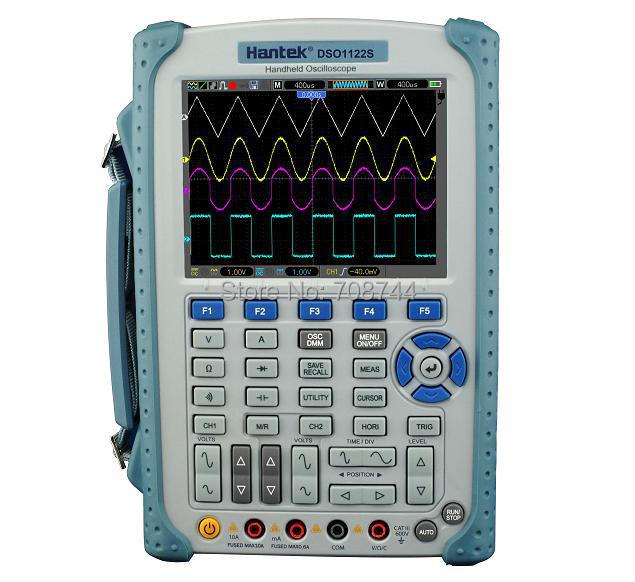

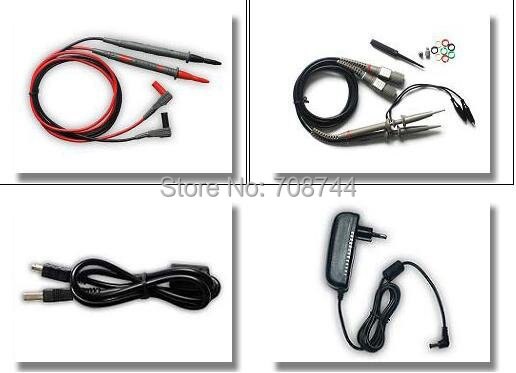

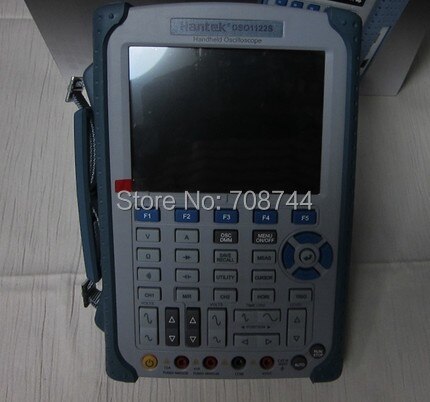

DSO1122S 120MHz Isolation Oscilloscope
Specification
|
Model |
DSO1202S |
DSO1122S |
DSO1062S |
|
|
Oscilloscope Mode |
||||
|
Vertical |
Bandwidth |
200MHz |
120MHz |
60MHz |
|
Real-time Sample Rate |
1GSa/s |
|||
|
Equivalent Sample Rate |
25GSa/s |
|||
|
Record Length (Sample Points) |
Single-channel: Maximum 2M; Dual-channel: Maximum 1M |
|||
|
SEC/DIV Range |
2nS/div-2000S/div (in a 2, 4, 8 sequence) |
|||
|
A/D Converter |
8-bit resolution |
|||
|
VOLTS/DIV Range |
2mV/div~5V/div at input BNC |
|||
|
Position Range |
+/-50V(5V/div),+/-40V(2V/div~500mV/div),+/-2V(200mV/div~50mV/div)+/-400mV(20mV/div~2mV/div) |
|||
|
Rise Time at BNC |
<1.7ns |
<2.9ns |
<5.8ns |
|
|
DC Gain Accuracy |
+/-4% for Sample or Average acquisition mode, 5mV/div to 2mV/div |
|||
|
Trigger |
Trigger Sensitivity |
DC: CH1/CH2(Typical) 1div from DC to 10MHz;1.5div from 10MHz to Full HF Reject: Attenuates signals above 80kHz LF Reject: Attenuates signals below 150kHz Noise Reject: Reduces trigger sensitivity |
||
|
Trigger Level Range |
CH1,CH2: +/-8 divisions from center of screen |
|||
|
Hold off Range |
100ns-10s |
|||
|
Trigger Level Accuracy,typical (Accuracy is for signals having rise and fall times >20ns) |
CH1,CH2: +/-(0.3div x V/div) (within +/-4 divisions from center of screen) |
|||
|
Trigger Type |
Edge |
Trigger on the rising or falling edge |
||
|
Video |
Trigger on an NTSC, PAL, or SECAM standard video signal |
|||
|
Slope |
Trigger (when >,<,=) on a positive or negative slope |
|||
|
Overtime |
From the rising or falling edge |
|||
|
Alternate |
Internal trigger on edge, pulse width, video or slope |
|||
|
Measurement |
Cursors |
Manual: The difference between voltage cursors ; the difference between time cursors ; calculated by Hz. |
||
|
Automatic |
Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width |
|||
|
Meter mode |
||||
|
Max. Resolution |
6,000 Counts |
|||
|
DMM Testing Modes |
Voltage, Current, Resistance, Capacitance, Diode & Continuity |
|||
|
Max. Input Current |
AC: 10A, DC: 10A |
|||
|
Input Impedance |
10 MΩ |
|||
|
Isolation |
The float voltage between BNC and Ground |
600V CATIII, 1000V CAT II |
||
|
The float voltage between each Channel |
600V CATIII, 1000V CAT II |
|||
|
The float voltage between Multimeter and Ground |
1000V |
|||
|
between input Ports directly |
400V CAT II |
|||
|
Input by 10:1 probe |
600V CATIII, 1000V CAT II |
|||
|
The Max input voltage of Multimeter |
The float voltage between Multimeter and Ground |
|||
|
Display |
Type |
Right angle 5.6 16-digit color LCD |
||
|
Resolution |
640*480 dots |
|||
|
Contrast |
16 gears, with the progress bar to show adjustment |
|||
|
Interface |
USB host and USB slave, LAN Optional |
|||
|
Power |
Voltage |
DC Input:12–17VDC, 2000mA |
||
|
Measurement |
Size |
245 x 163 x 52 (mm) |
||
|
Weight |
0.35kg |
|||
Software Support
Operating System: Windows NT.Windows 2000. Windows XP. VISTA. Windows 7.
Second Development
Supply second development demo code (VC.CVI.VB. LABVIEW) and technical support.
