Description
- Brand Name: hopi
- Origin: Mainland China
- DIY Supplies: ELECTRICAL
- AC Voltage: 750V
- Display Type: Digital Display
- DC Voltage: 1000V
- AC Current: 10A
- Measuring Resistance Range: 100 MΩ
- Certification: CE
- DC Current: 10A
- Measuring Capacitance Range: Refer to SPEC
- Operating Mode: Manual Operation
- Model Number: Hantek HDM3055/ HDM3055S /HDM3055A/ HDM3055B /HDM3055H
- Is Smart Device: NO
- Measuring Inductance Range: Refer to SPEC
- Dimensions: Refer to SPEC
- Operating Temperature: 0 – 40 ℃
- Display Size: 3.0 – 4.9 Inches
- Memory: 10000 readings
- DCV basic accuracy: 150 ppm

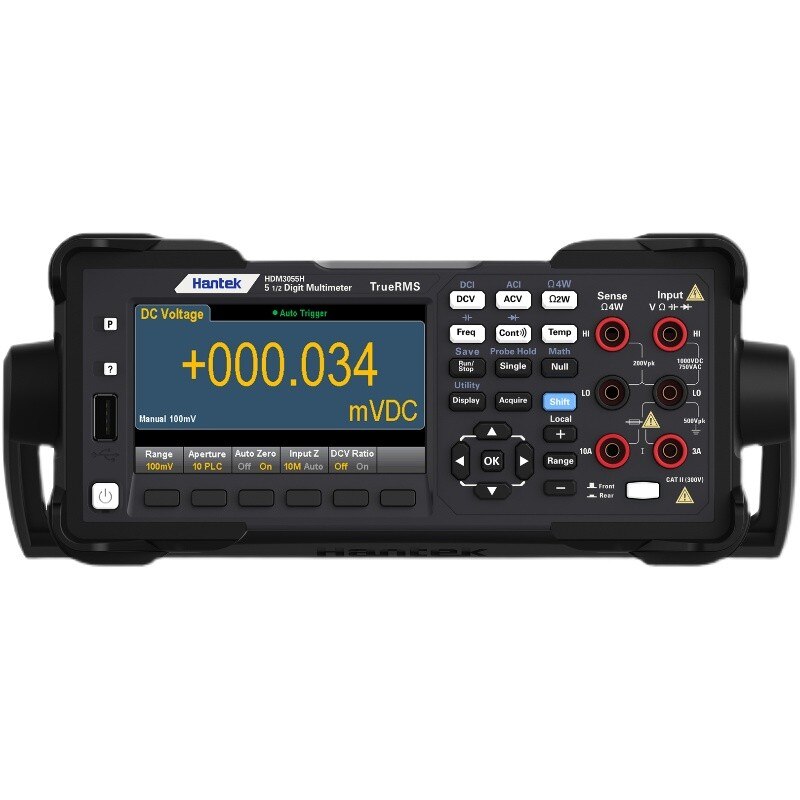

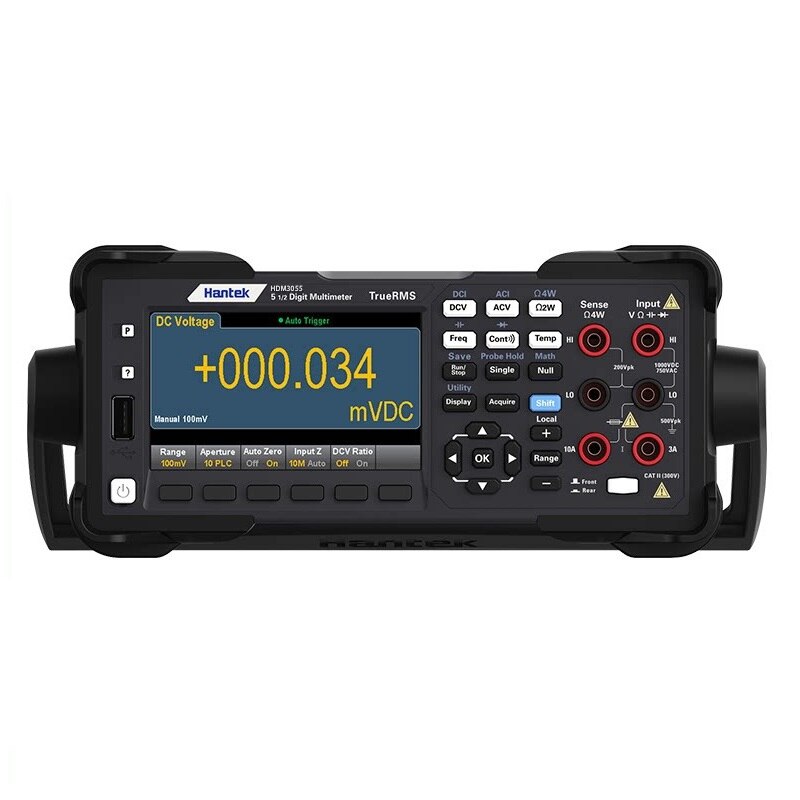

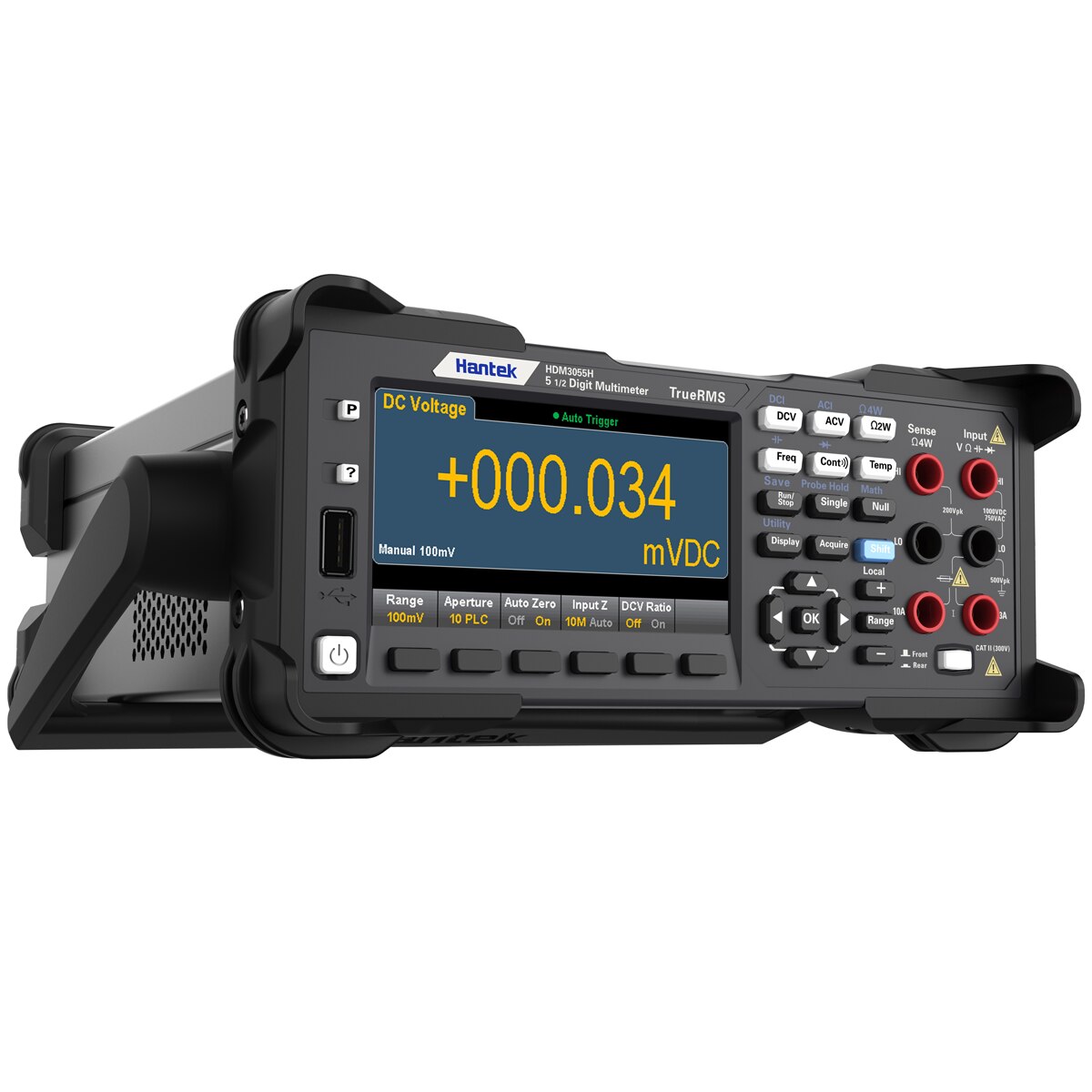

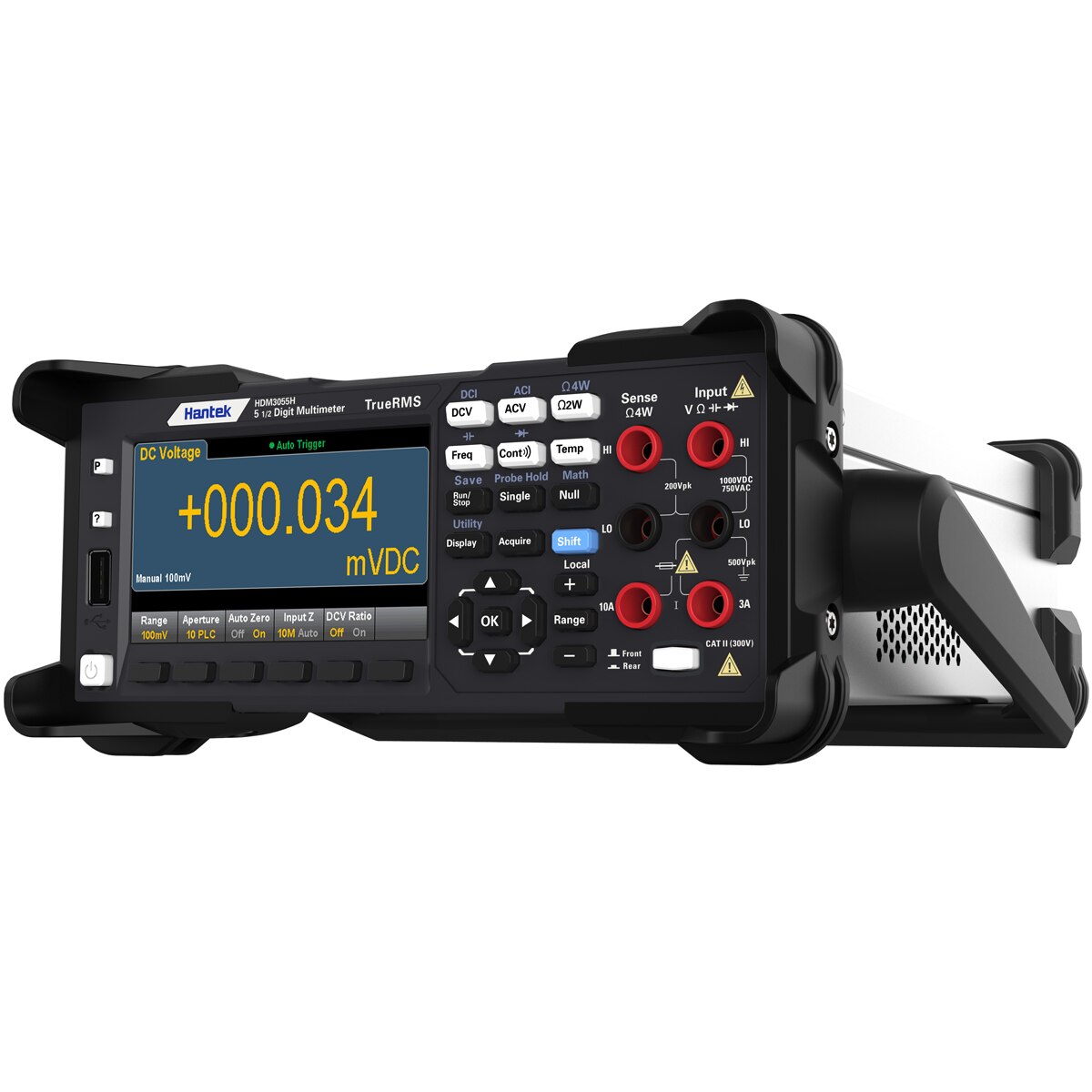

Hantek Desktop Digital Multimeter HDM3055 Digital Display Five and A Half Multi-
Purpose Universal Meter USB Interface
HDM3055 Series:
-
5 1/2 reading multimeter with 1 μV high resolution
-
30 kS/s high-speed sampling frequency, which makes it easy to capture transient signals
-

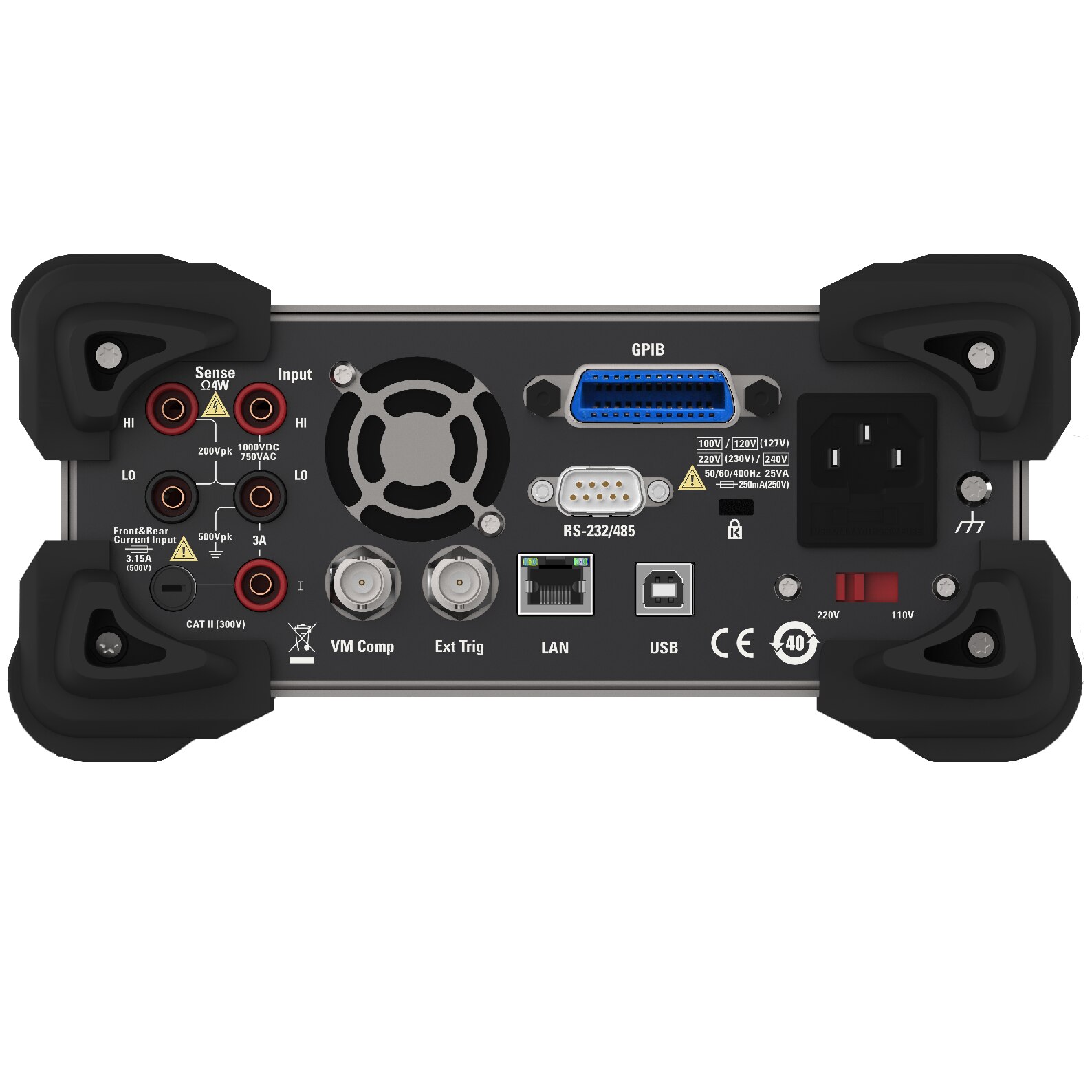

Two sets of input interfaces front and rear, which provides convenience to arrange wires
-
Standard with bar chart, histogram, trend chart and data statistics functions
-
Double display measurement function, displaying voltage and frequency synchronously
-
Ture RMS of AC voltage and true RMS of AC current measurements
-
0.1 μV resolution, simple operation, flexible parameter setting
-
A variety of measurement functions: DC voltage, AC voltage, DC current, AC current, 2-line resistance, 4-line resistance, capacitance, diode, connectivity, frequency, period, temperature, with the current range reaching 10 A
-
4.3-inch color LCD screen
-
Safety standard: CAT II 300 V
-
Support SCPI remote control command, compatible with the mainstream multimeter command set in the market, standard with upper computer control software
-
Configuration interfaces: USB Device, USB Host, LAN (HDM3055B), GPIB (HDM3055H)
