Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Size: 138.5*81*23mm
- Model Number: OHSP350C
- Weight: 430g
- Wavelength Range: 380-780nm
- Measurement Range: 380-780nm
- Name: Handheld Spectrometer Luminaires Tester CCT CRI Lux Meter Hopoocolor OHSP350C
- Wavelength accuracy: ±0.5nm
- FWHM: 2nm
- Resolution: 0.2nm
- Warranty: 2 years

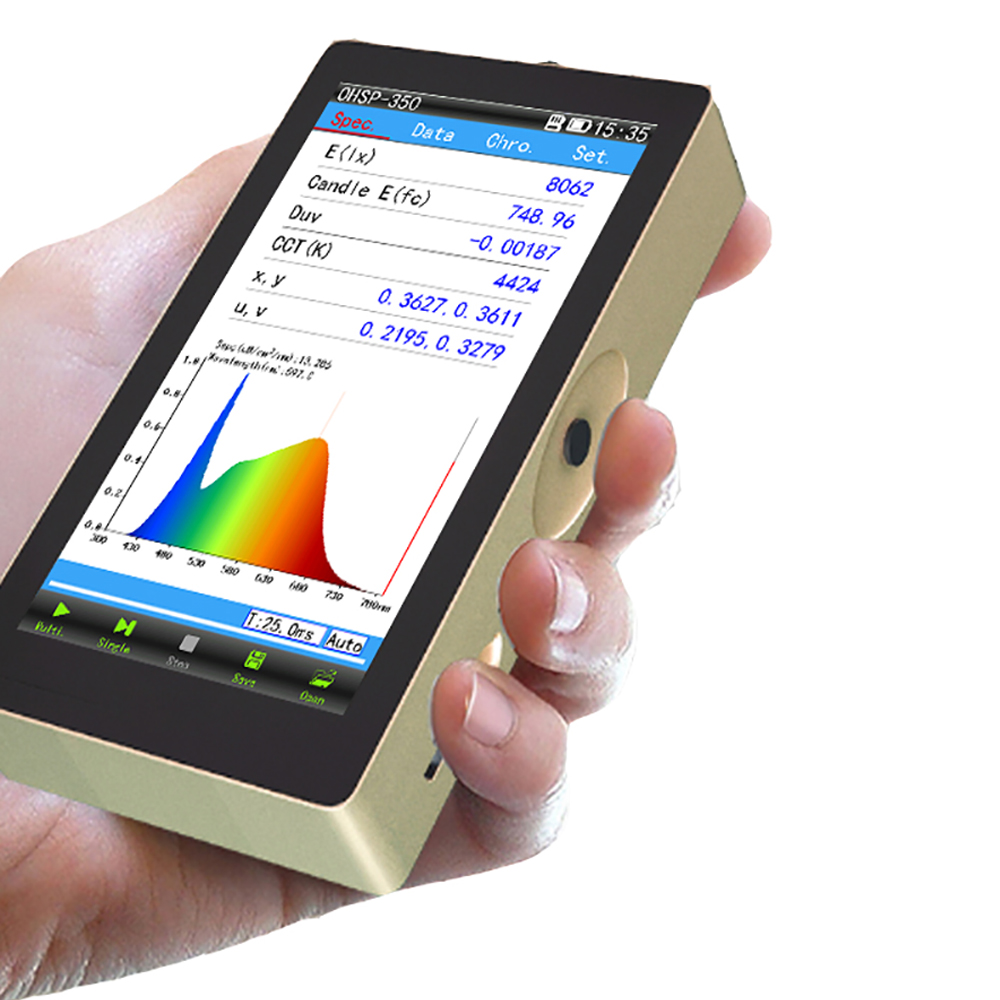

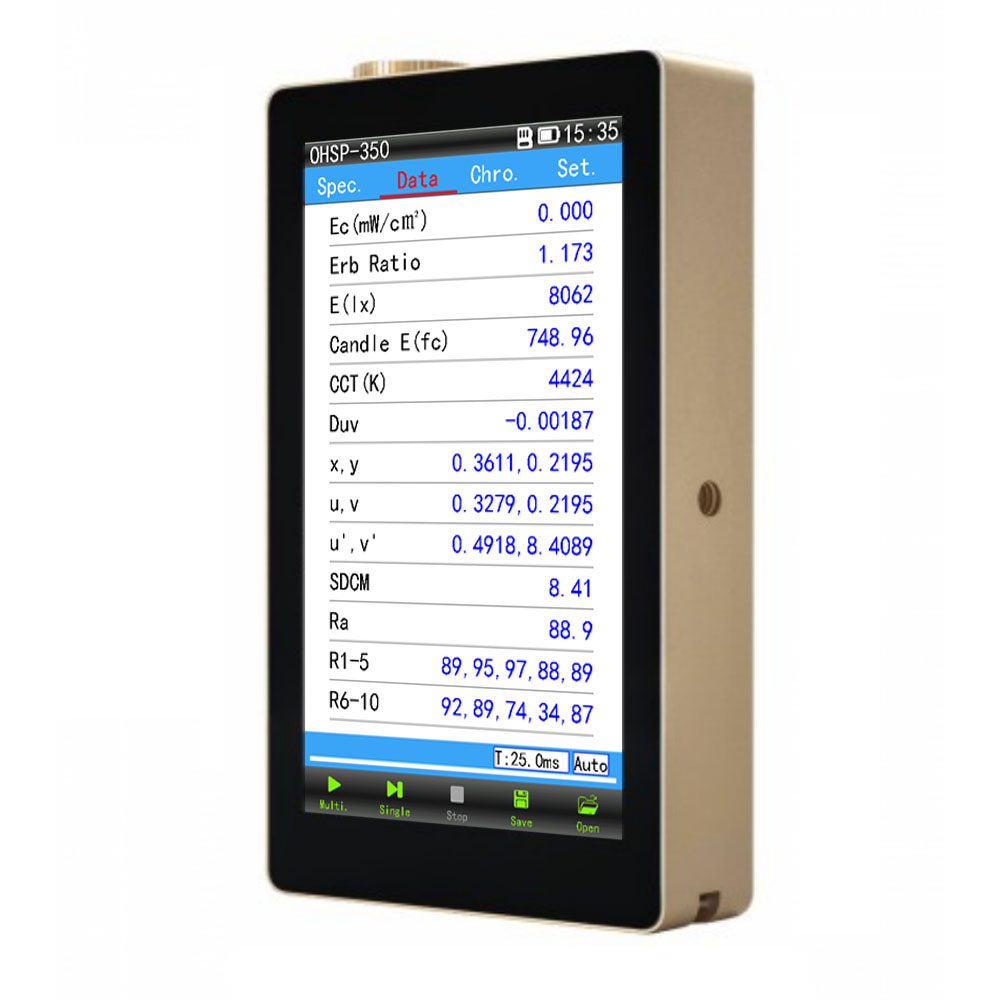

Handheld Spectrometer Luminaires Tester CCT CRI Lux Meter Hopoocolor OHSP350C
Measurement
1. CCT Tc (K) and Blackbody deviation Duv
2. light illumination E (LX), candlelight E (Fc) Spectral irradiance Ee (W/m2)
3. chromaticity coordinates (x, y), (U, V), (U ‘, V’)
4. relative spectral power distribution P (lambda)
5. color index Ra, Ri (i=1 ~ 15)
6. color tolerance SDCM
7. Dominant wavelengths, peak wavelengths
8. Visual ratio of light and shade S/P
9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z

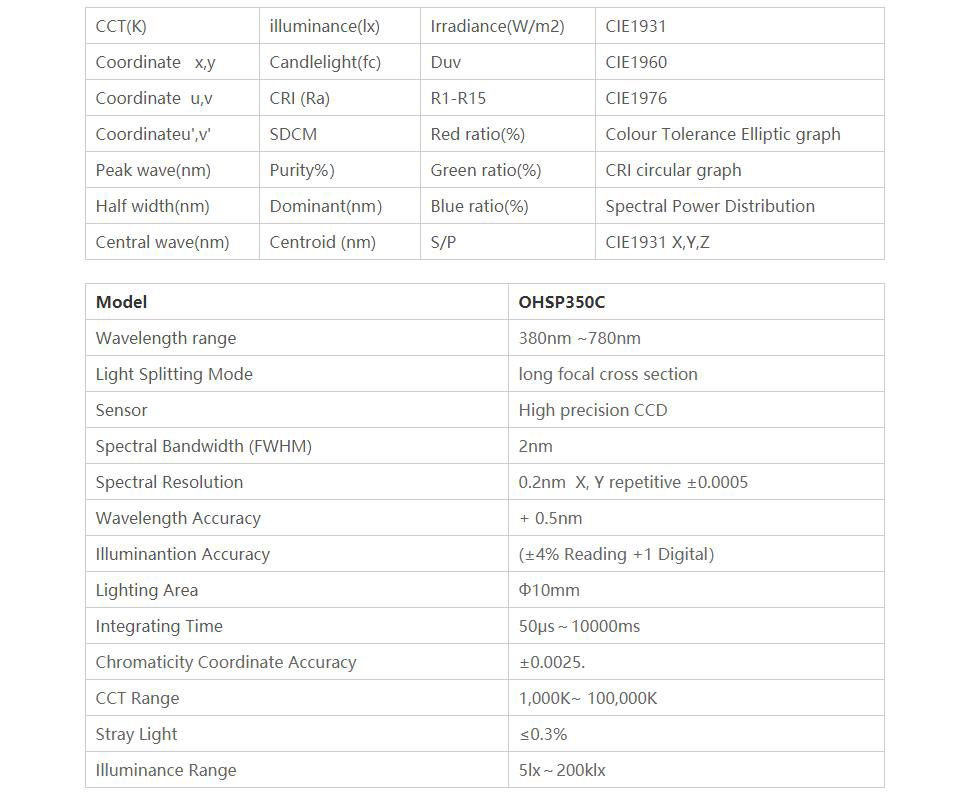

Model OHSP350C
Wavelength range: 380nm ~780nm
Light Splitting Mode: long focal cross section
Sensor: High precision CCD
Spectral Bandwidth (FWHM): 2nm
Spectral Resolution: 0.2nm X, Y repetitive ±0.0005
Wavelength Accuracy: ±0.5nm
Illuminantion Accuracy: (±4% Reading +1 Digital）
Lighting Area: Ф10mm
Integrating Time: 50μs～10000ms
Chromaticity Coordinate Accuracy: ±0.0025.
CCT Range: 1,000K~ 100,000K
Stray Light: ≤0.3%
Illuminance Range: 5lx～200,000lx
