Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AKH-1000
- CNC or Not: CNC
- Product name: Hand-held laser welding machine AKH-1000
- Laser power: 1000W 1500W
- Fiber length: Standard 10M maximum support 15M
- Way of working: Continuous/modulation
- Speed range: 0-120mm/s
- Welding thickness: 0.5-3mm
- Cooling water: Industrial therm ostatic water tank
- Working humidity: <70% no condensation

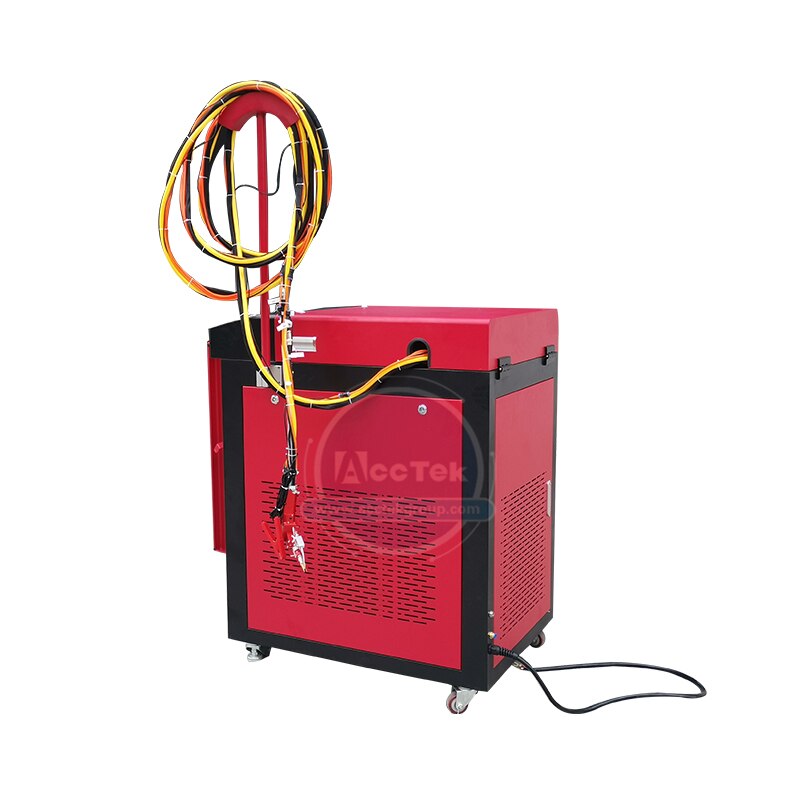

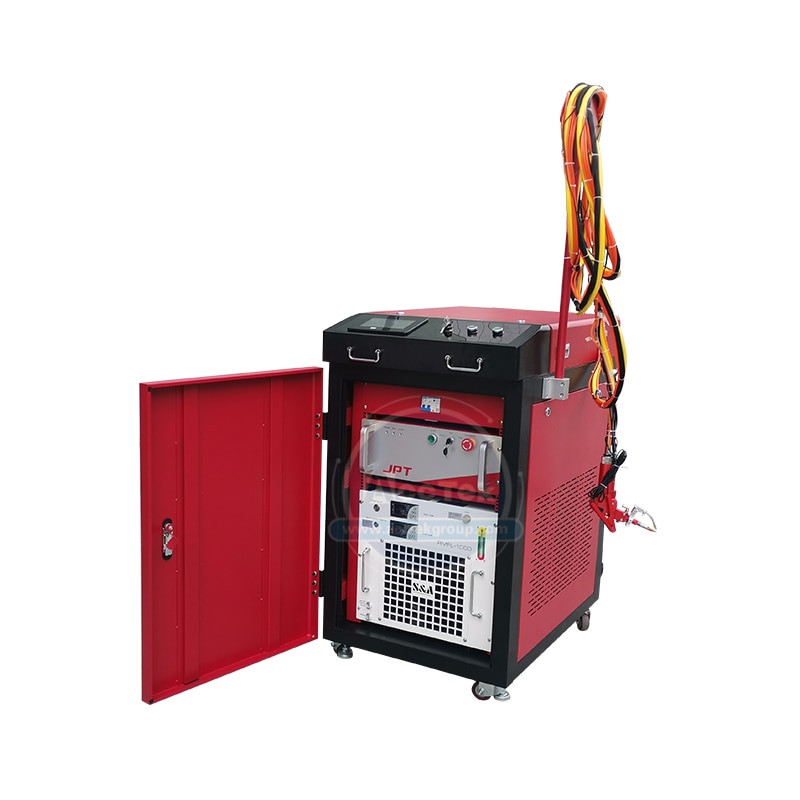

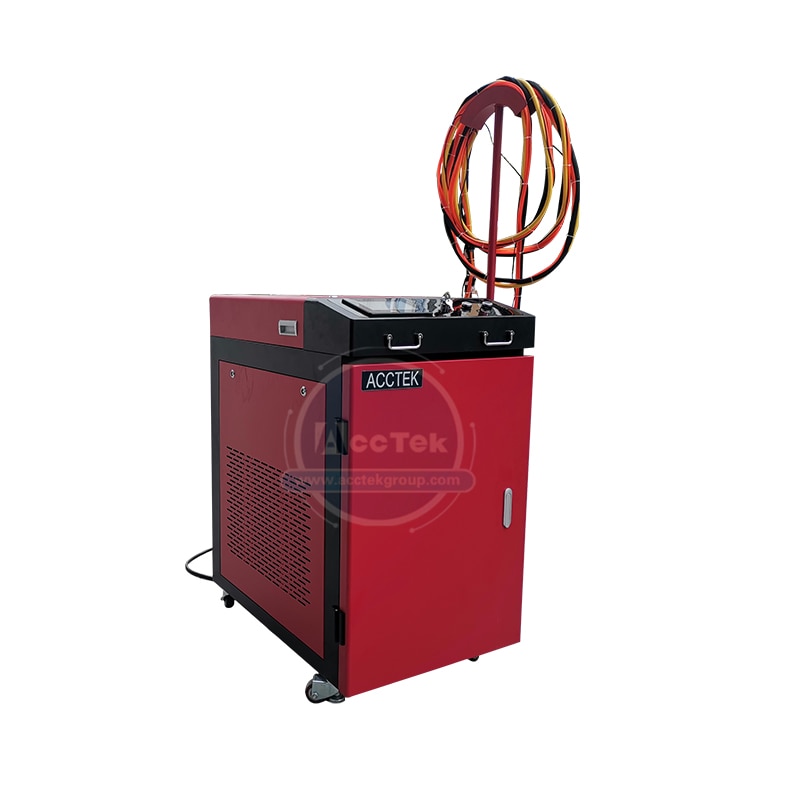

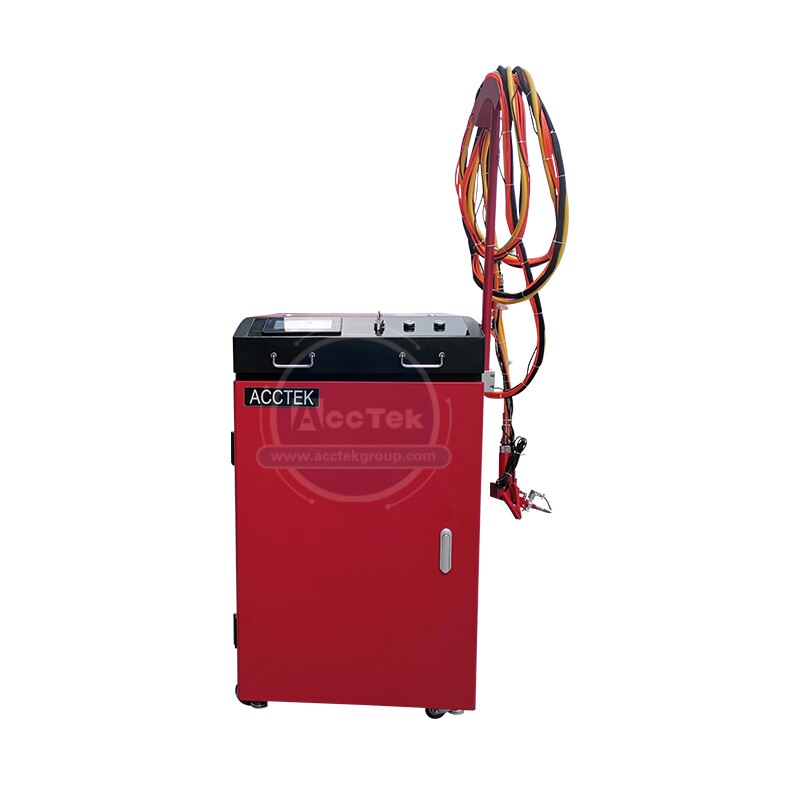

Hand Held Welding Machine Small Hand Held Metal Fiber Laser Welding Machine 1000W
Product Application
Machine Features
1)Simple and easy to operate, the weld is not deformed.
2)Laser output is stable, ensuring weld consistency.
3)High power density after laser focusing.
4)The weld seam is smooth and beautiful, the welding workpiece has no deformation, the welding is firm, and no subsequent grinding process is required, which saves time and cost.
5)360 degree without dead angle micro soldering
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.
6)Fast, easy to operate, labor saving Fast welding speed, 2-10 times faster than traditional welding, one machine can replace at least 2 welders a year.
7)Long life working, safer and more environmentally friendly laser welding is with low consumables for micro soldering.
Detail Show
Product Paramenters
|
Description
|
Parameter
|
|
Model
|
AKH-1000 / AKH-1500
|
|
Power
|
1000W /1500W
|
|
Range of adjustable power
|
1-100%
|
|
Laser wavelength
|
1070nm
|
|
Fiber length
|
Standard 10m, maximum support 15m
|
|
Way of working
|
Continuous/modulation
|
|
Speed range
|
0-120mm/s
|
|
Repeat precision
|
±0.01mm
|
|
Welding
thickness
|
Welding thickness
|
|
Welding gap
requirements
|
≤0.5mm
|
|
Cooling water
|
Industrial therm ostatic water tank
|
|
Working
temperature
|
15-35℃
|
|
Working
humidity
|
<70% no condensation
|
|
Voltage
|
380V
|
Working Samples
Applicable Material of Hand Held Welding Machine Small Hand Held Metal Fiber Laser Welding Machine 1000W
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials, such as: copper – brass, titanium – molybdenum, titanium – gold, nickel – copper and so on.
Applicable industry of Hand Held Welding Machine Small Hand Held Metal Fiber Laser Welding Machine 1000W
Kitchen cabinets, staircase elevator, shelf, oven, stainless steel door, window guardrail, distribution box, medical equipment, communications equipment, craft gifts, household and other industries.
Service & Feedbacks
1) Guarantee 2 years guarantee of the whole machine.
2) Software issue Our technician is able to re-install or set up by remote
for free.
for free.
3) Hardware issue Main parts(excluding the consumables) shall be replaced/repaired free of charge, if there is any
problem during the warranty period.
problem during the warranty period.
4) Support online Our technician is able to teach you online to run the machine or eliminate
the fault for free.
the fault for free.
5) Training in AccTek factory We are able to train your staff after placed order in our factory for free.
6)On-site training (Recommended, the most effective way) We are able to send technician to your workshop to do the installation and
training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)
training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)
