Hamamatsu PSD Two-dimensional Position Sensor Displacement Detector S5990-01 S5991-01

$228.00

SKU: 4000251943412 Category:

Description

Hamamatsu PSD Two-dimensional Position Sensor Displacement Detector S5990-01 S5991-01

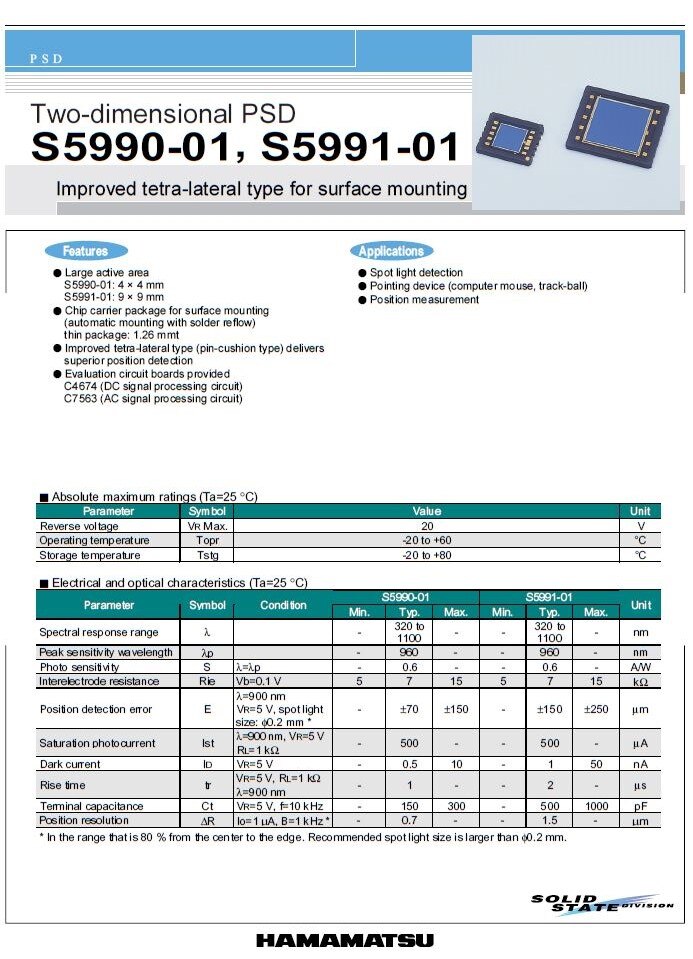

S5990-01 Visible Light Si Position Sensing Detector datasheet

Spectrums Detected Visible Light
Wavelength of Peak Sensitivity 960nm
Package Type Ceramic
Mounting Type Surface Mount
Number of Pins 10
Diode Material Si



  • Type: Modem Cable
  • Package: Yes
  • Products Status: IN STOCK

Hamamatsu, S5990-01 Visible Light Si Position Sensing Detector (PSD), Surface Mount Ceramic

The Hamamatsu Photonics two-dimensional PSD is surface mountable, high-accuracy position sensitive detectors.

Excellent position detectability

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

S5990-01 is a S5990 series two dimension, surface mount, high accuracy position sensitive detector (PSD). It has excellent position detectability. It is compatible with lead free solder reflow. It has a improved tetra-lateral type (pin-cushion type) delivers superior position detection. It is used in applications such as light spot detection, pointing device, various types of position detection.



Large active area: 4 × 4mm
Silicon resin window material
320nm to 1100nm spectral response range
960nm typical peak sensitive wavelength
0.6A/W typical photosensitivity
7Kohm typical interelectrode resistance
500µA typical saturation photocurrent
1µs typical rise time
Operating temperature range from -20°C to 60°C
