Description
Hall effect non-contact analog angle position sensor potentiometer 5V 0-5V out 360 180 degree
- Certification: CE
- DIY Supplies: ELECTRICAL
- Place of Origin: Shanghai, China
- Model Number: P3022-V1-CW360
- Brand Name: CALT
- Usage: Position Sensor
- Theory: Hall Sensor
- Output: Analog SENSOR
- Description: Hall effect non-contact angle position sensor
- Guarantee: 12 months
- Customize: Accept special customize
- Material: alloy
- Output model category: Analog sensor
- Application: Industrial Automation
- Voltage – Supply: 5v
- Output Type: 0-5v
Product Description
Hall effect non-contact analog angle position sensor potentiometer 5V 0-5V out 360 180 degree
Description
P3022series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted
to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs
an electrical signal that is proportional to the rotational angle.
This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has
the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing
member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component
caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size,
optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for
electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective
non-contact angle sensor.
P3022series of miniature non-contact angle sensor works through the principle of electromagnetic induction, the angle is converted
to an electrical signal. When the rotation angle of the object passed to the axis of rotation sensors, P3022 angle sensor outputs
an electrical signal that is proportional to the rotational angle.
This series of products using hard aluminum alloy material shell; Hall-type non-contact technology, P3022 series angle sensor has
the advantages of non-contact angle sensor, and the use of high-quality imported high quality stainless steel high speed bearing
member, so that it reduced frictional resistance when measuring the minimum, not because of the wear surface measurement component
caused decrease measurement accuracy, long service life theoretically unlimited; the product compact structure, small size,
optional strong, high resolution, smooth rotation dynamic noise in addition to the excellent performance suitable for
electromagnetic interference outside the water, oil, vibration, shock and other harsh industrial environment, is a cost-effective
non-contact angle sensor.

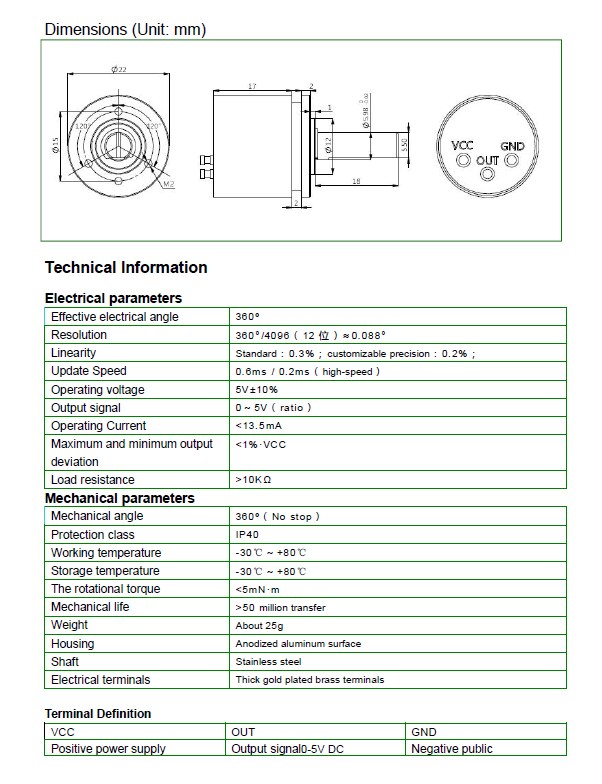

Feature
n Small size, the maximum outer diameter of 22mm
n Full 360 ° no dead angle measurement
n Linearity is ±0.3% F.S.
n Output signal 0-5V DC
n Supply voltage 5V DC
n Angle Direction: Clockwise rotation of the rotary shaft
n Long product life.
n Small rotational torque
n Aluminum shell
n Easy to install
n Small size, the maximum outer diameter of 22mm
n Full 360 ° no dead angle measurement
n Linearity is ±0.3% F.S.
n Output signal 0-5V DC
n Supply voltage 5V DC
n Angle Direction: Clockwise rotation of the rotary shaft
n Long product life.
n Small rotational torque
n Aluminum shell
n Easy to install

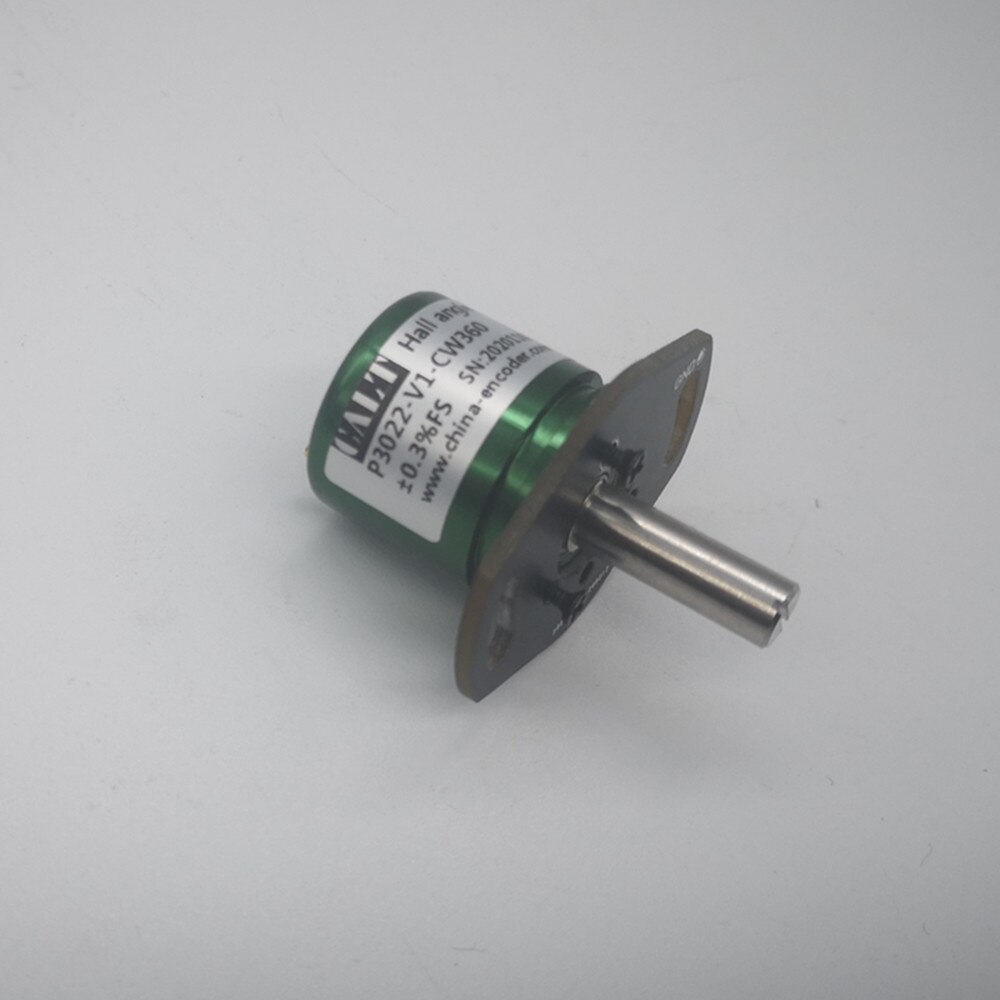

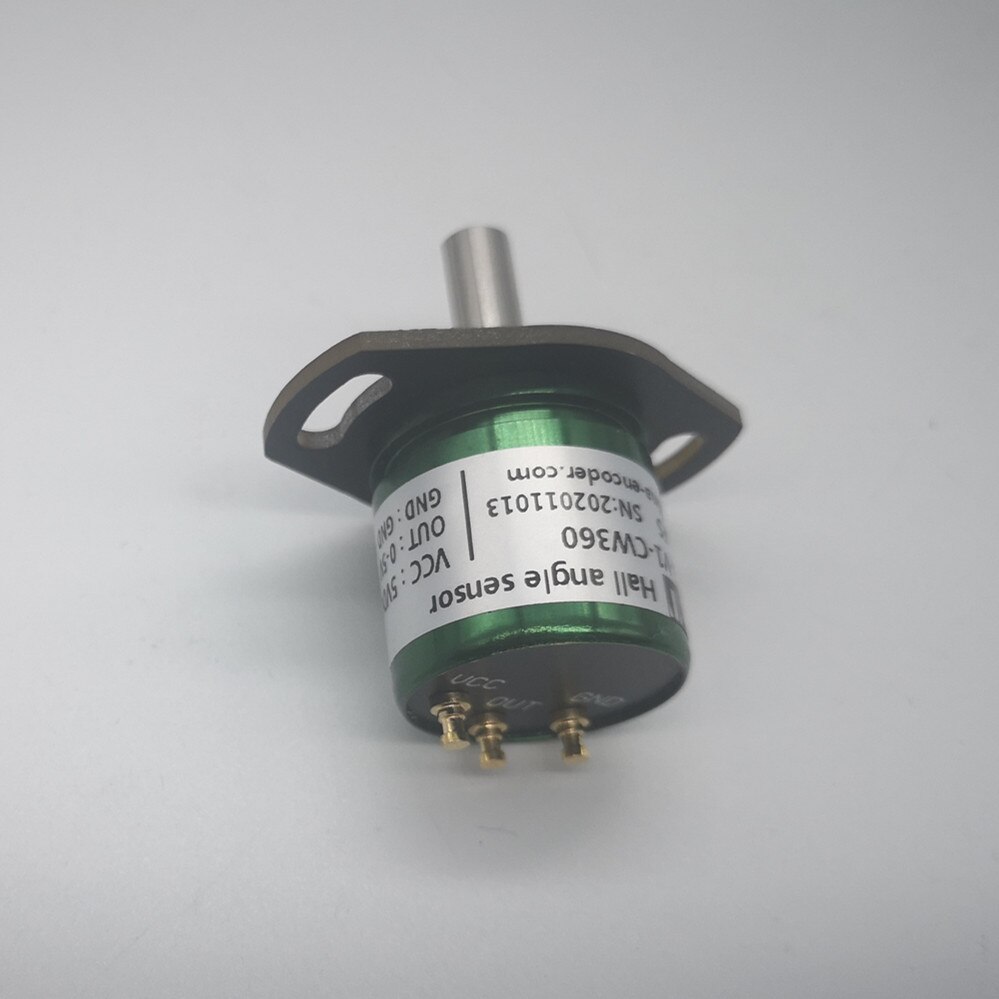

Details Images
